90° angled copper ring eyelet, tin-plated 120mm² for M10 screw SE90-12010

Lokaler Index:
TCC112BORP
Katalognummer:
SE90-12010
EAN-Code:
8680734707219
Hersteller: TRYTYT
Material: Electrolytic copper
Inner diameter [mm]: 8.5
Outer diameter [mm]: 19.5
Preis:
6,73 €
gross / stk.
(inklusive MwSt 23%)
Lieferung in 3h
bis zu 2 Wochen (Arbeitstage)
Abholung in 1 Stunde
Menge stk.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken

Produktbeschreibung

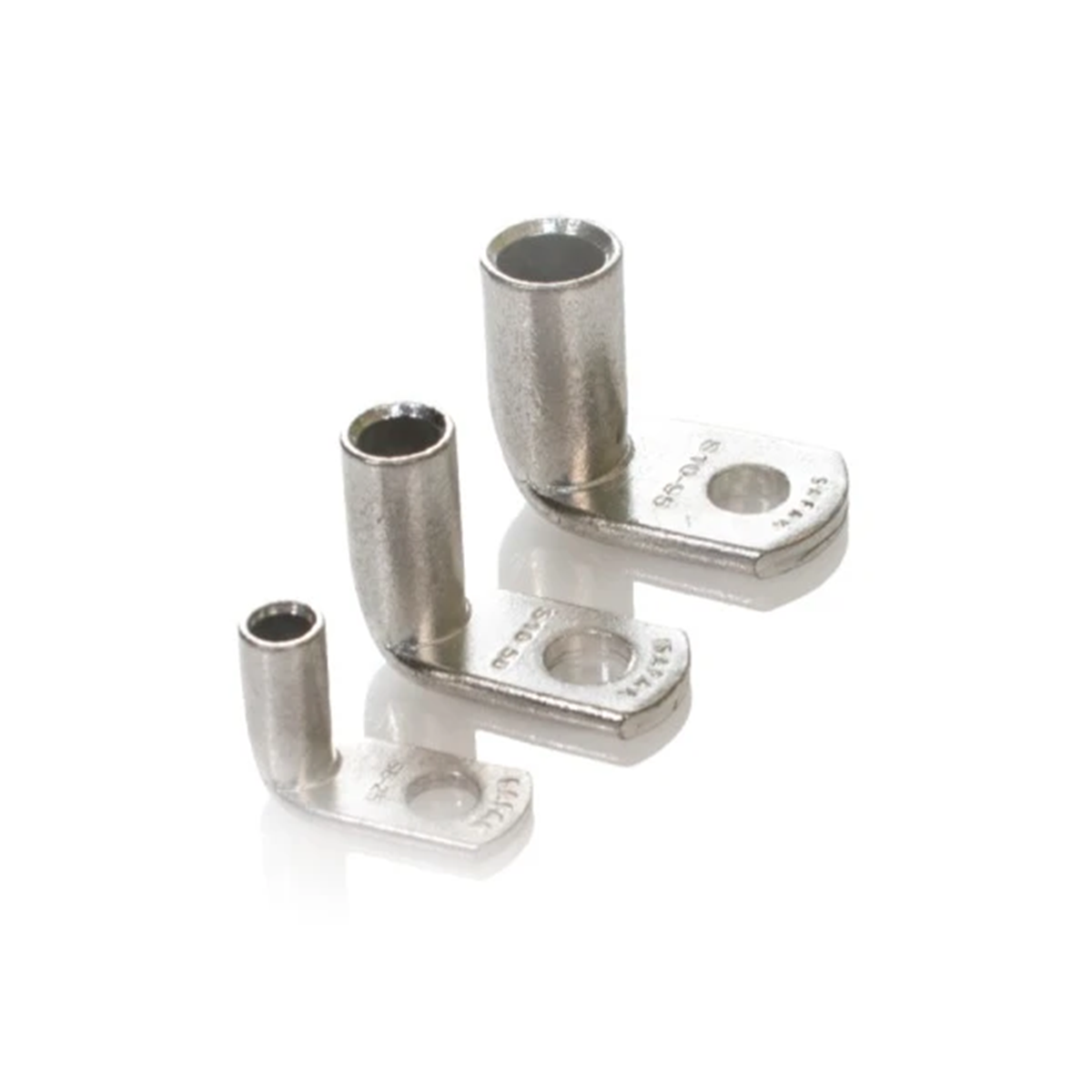

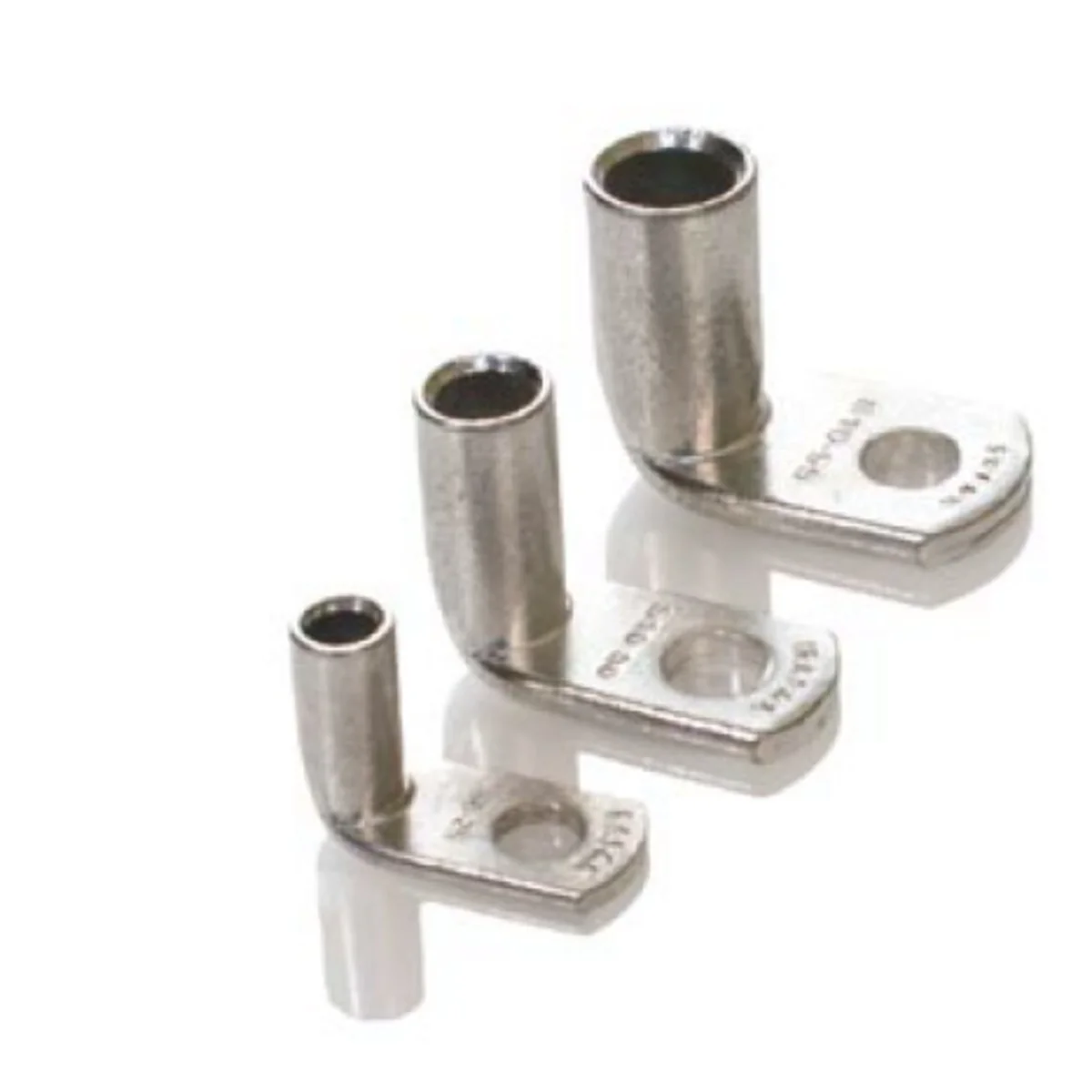

SE90 series copper tubular lugs (tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable coming perpendicularly (at an angle of 90o) to, for example, a switchgear, busbar or other device using a screw clamp. The use of SE90 ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In the case of crimping sector conductors, they should be reformed into "round".

All copper ring terminals distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

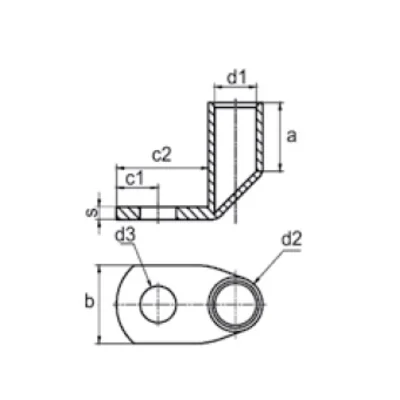

Technische Daten

  • Material
    Electrolytic copper
  • Outer diameter [mm]
    19.5
  • cross section [mm²]
    120
  • Inner diameter [mm]
    8.5
  • Screw
    M10
  • PKWIU
    27.33.13.0

Hersteller-Details

  • Hersteller
    TRYTYT Sp. z o.o.
  • Adresse
    43-382 Bielsko-Biała Horeszków 8 Polska
