TRYTYT

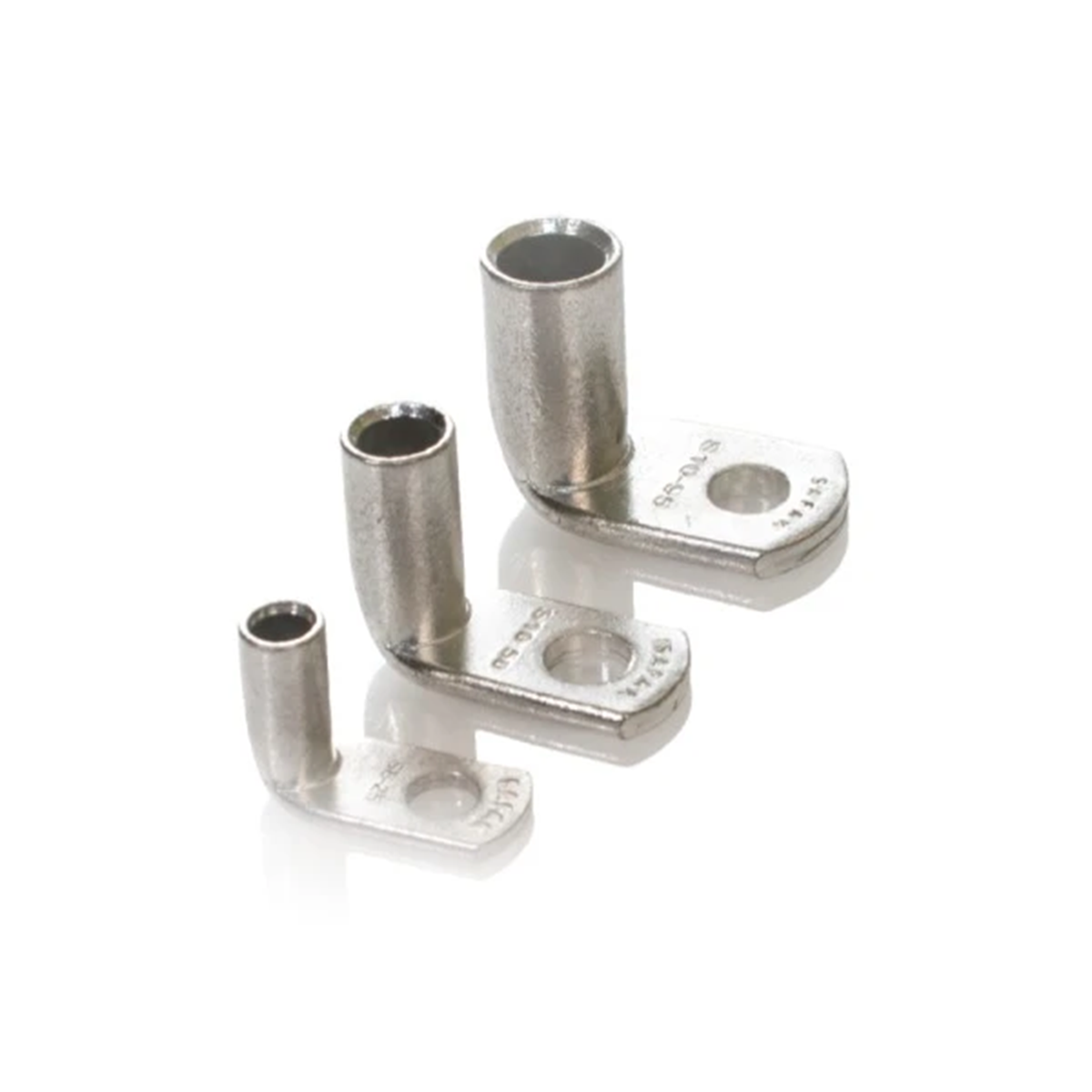

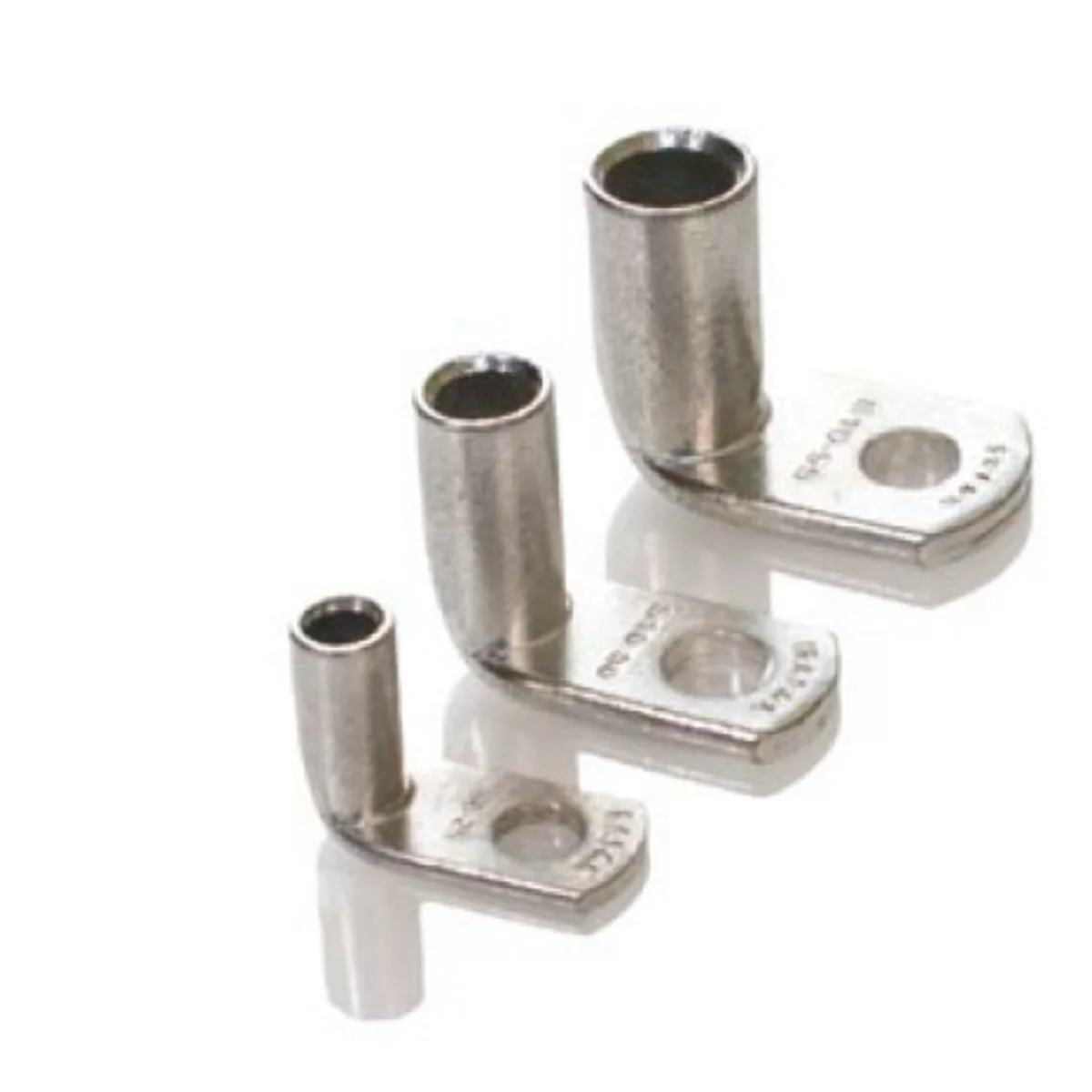

90° angled copper eyelet, tin-plated 240mm² for M16 screw SE90-24016

local index:
TCC104BORP
Catalog No:
SE90-24016
EAN code:
8680734707318
Price:
11,76 €
gross / pcs.
including VAT 23%
Availability:
Product on individual request
Delivery:
From 3,45 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pcs.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

SE90 series copper tubular lugs (tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable coming perpendicularly (at an angle of 90o) to, for example, a switchgear, busbar or other device using a screw clamp. The use of SE90 ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In the case of crimping sector conductors, they should be reformed into "round".

All copper ring terminals distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

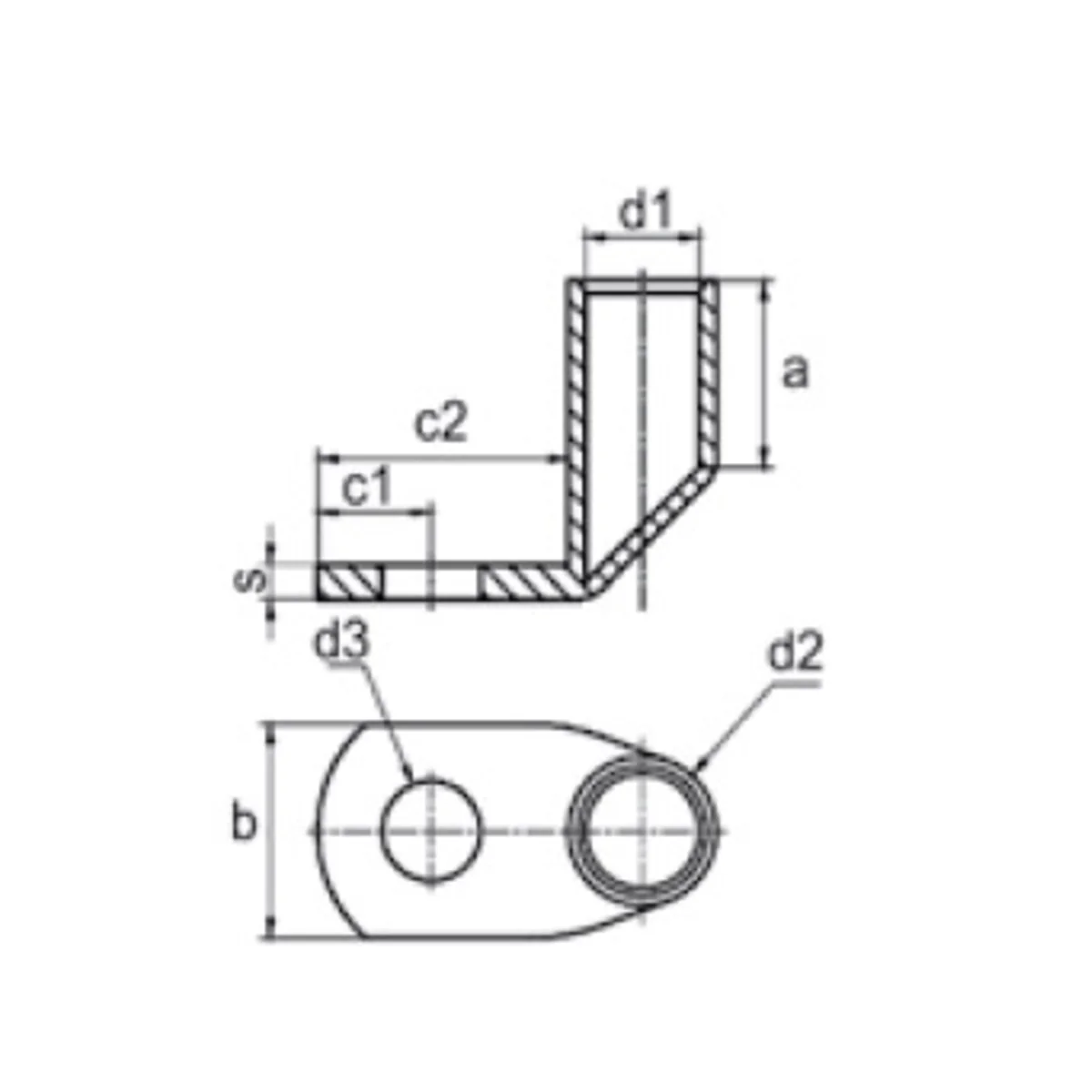

Technical data

  • Material
    Electrolytic copper
  • Outer diameter [mm]
    26
  • cross section [mm²]
    240
  • Inner diameter [mm]
    12
  • Screw
    M16

See other products in the category: Cu tips
