TRYTYT

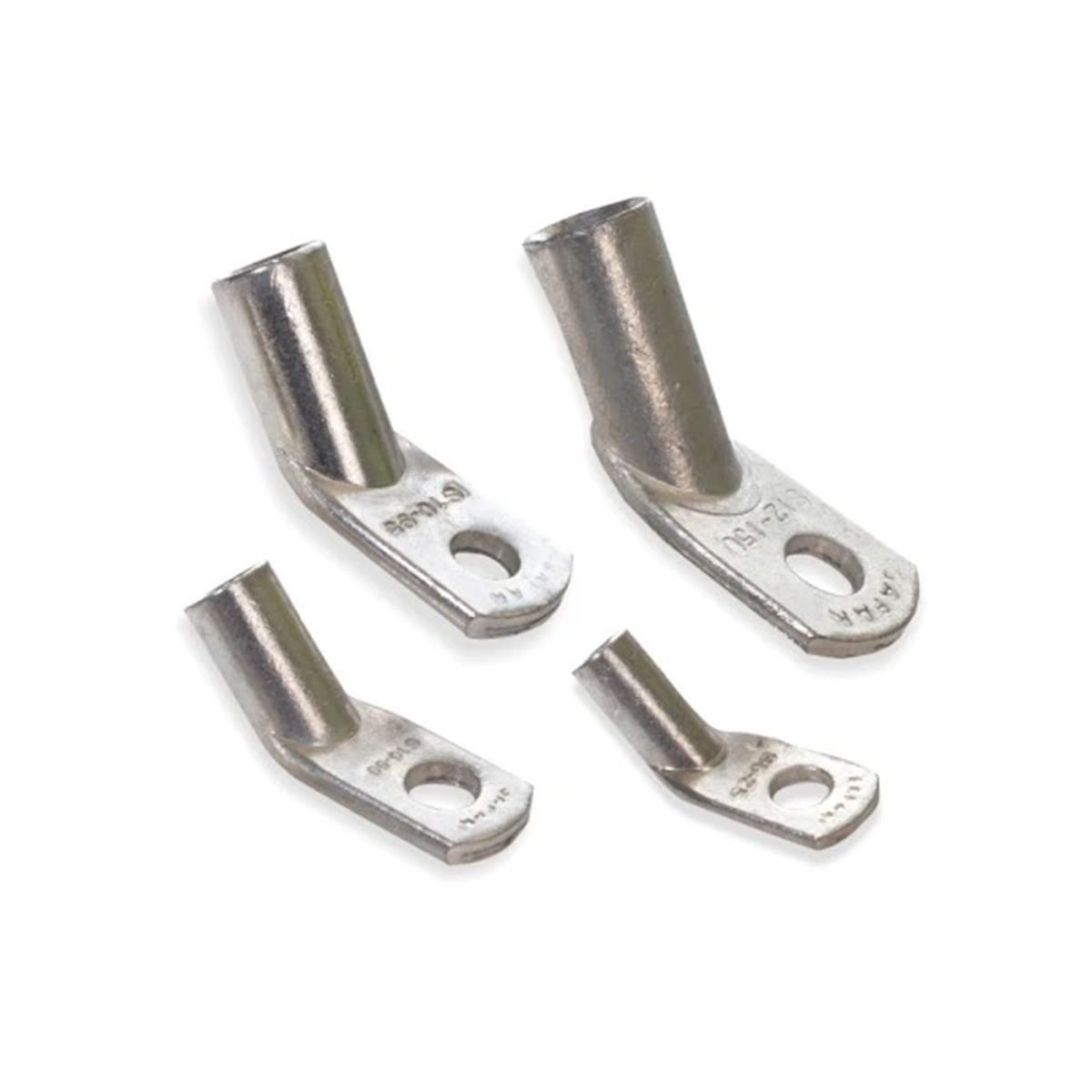

45° angular copper ring eyelet, tin-plated 10mm² for M6 screw 5 pcs. SE45-01006

local index:
TCC191BORP
Catalog No:
SE45-01006
EAN code:
8680734706618
Price:
4,01 €
gross / pkg.
including VAT 23%
Availability:
up to 2 weeks (business days)
Delivery:
From 3,69 € (prepaid courier) Details
Quantity:
Goods at a promotional price can only be purchased in the quantity available in stock pkg.
Delivery methods:
Metody dostawy
details
Payment methods:
Metody płatności
details

Product description

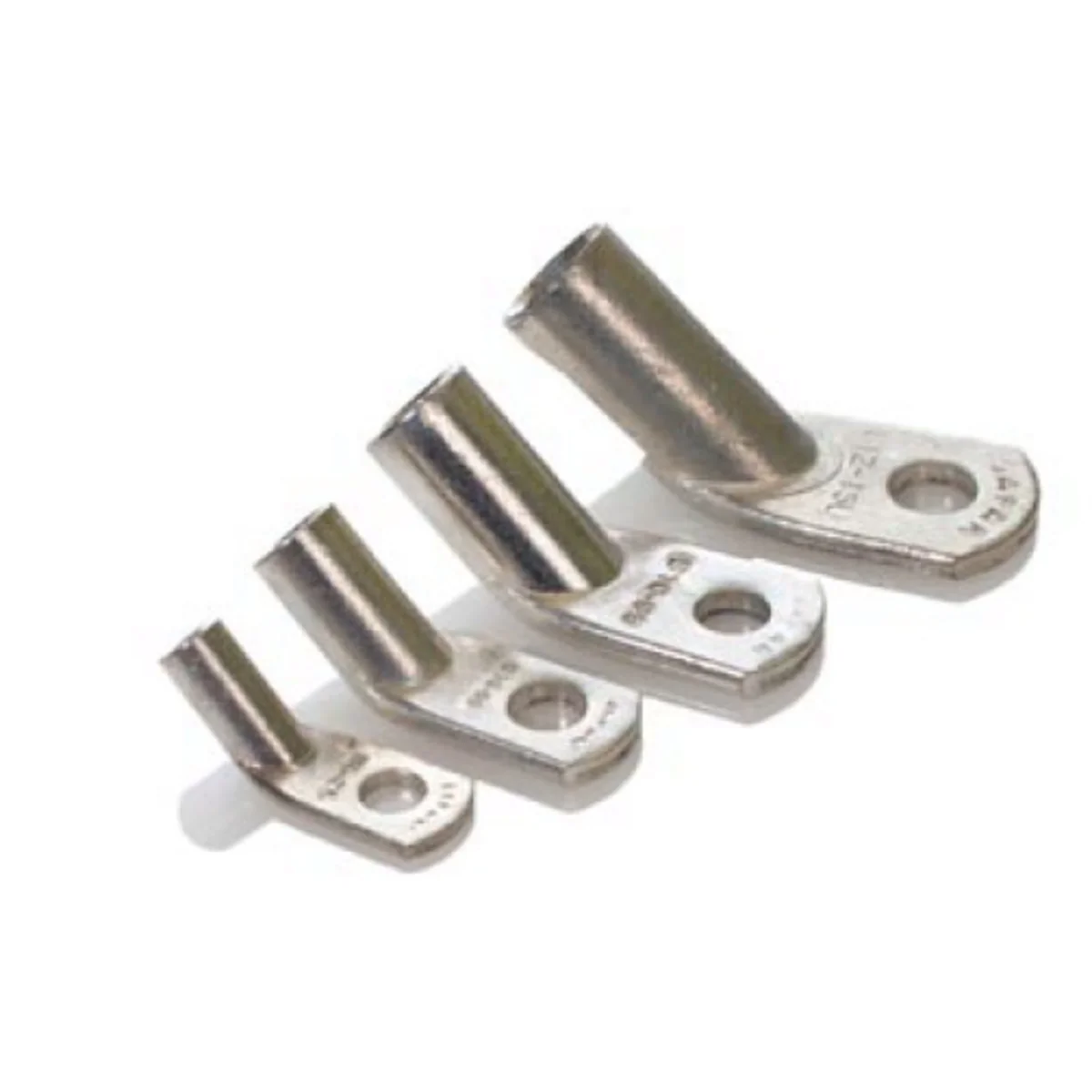

SE45 series copper tubular lugs (tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the incoming cable at an angle of 45° to e.g. switchgear, busbar or other device by means of a screw terminal. The use of SE45 ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper pipe lugs distributed by TRYTYT are subjected to an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less prone to cracks and micro-cracks during crimping, and thus have better working parameters.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

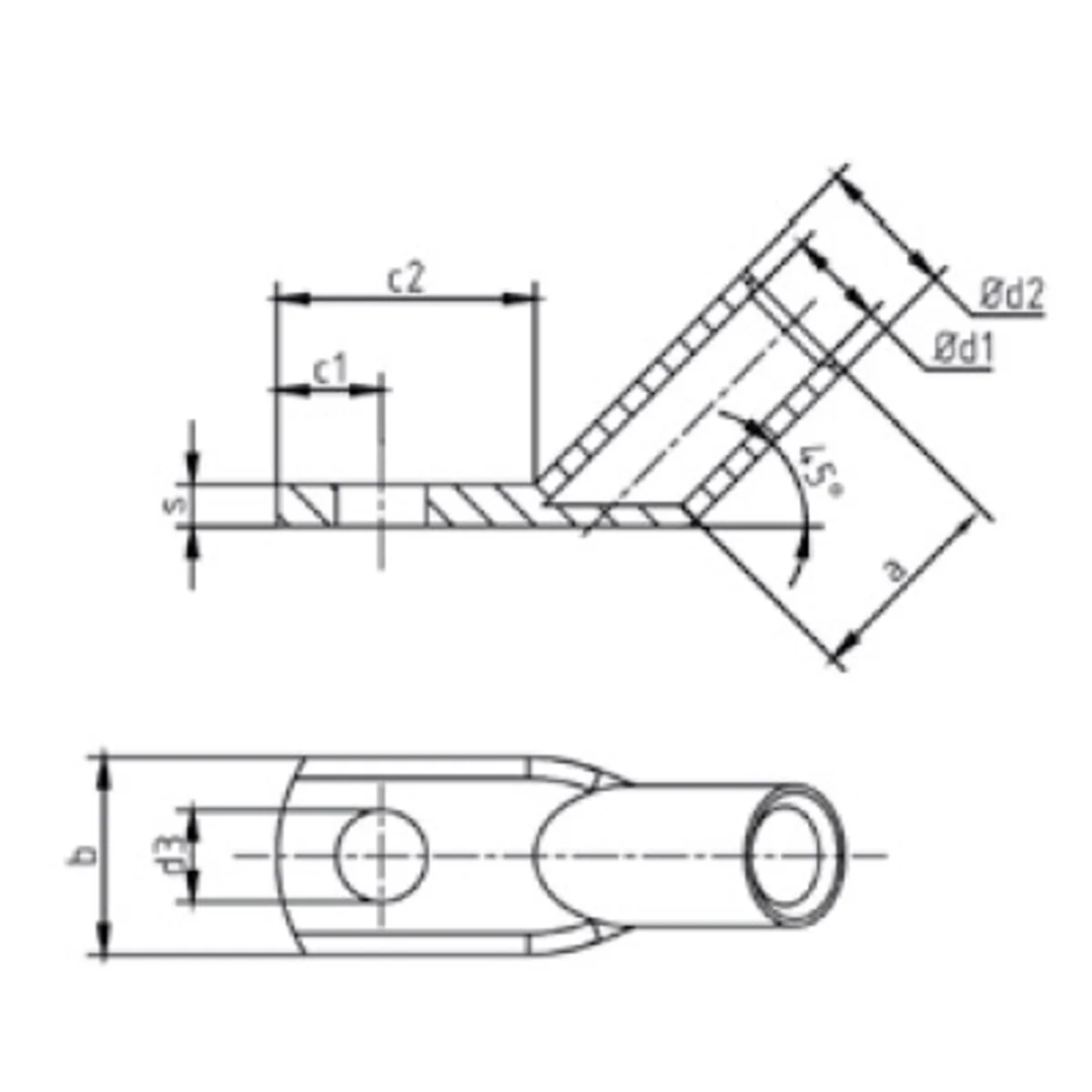

Technical data

  • Material
    Electrolytic copper
  • Inner diameter [mm]
    4.5
  • Screw
    M6
  • Pieces in the package
    5
  • Outer diameter [mm]
    7
  • cross section [mm²]
    10
