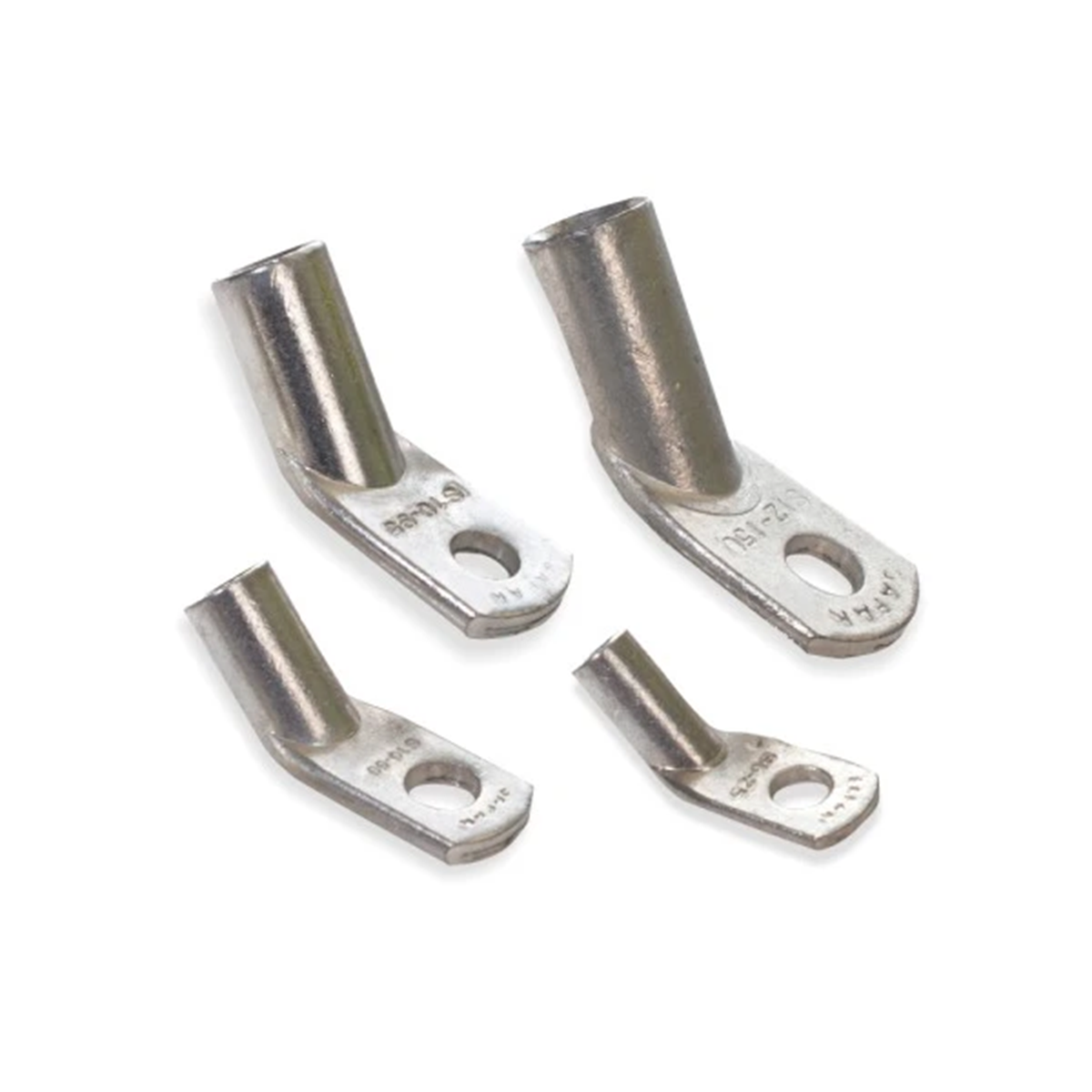

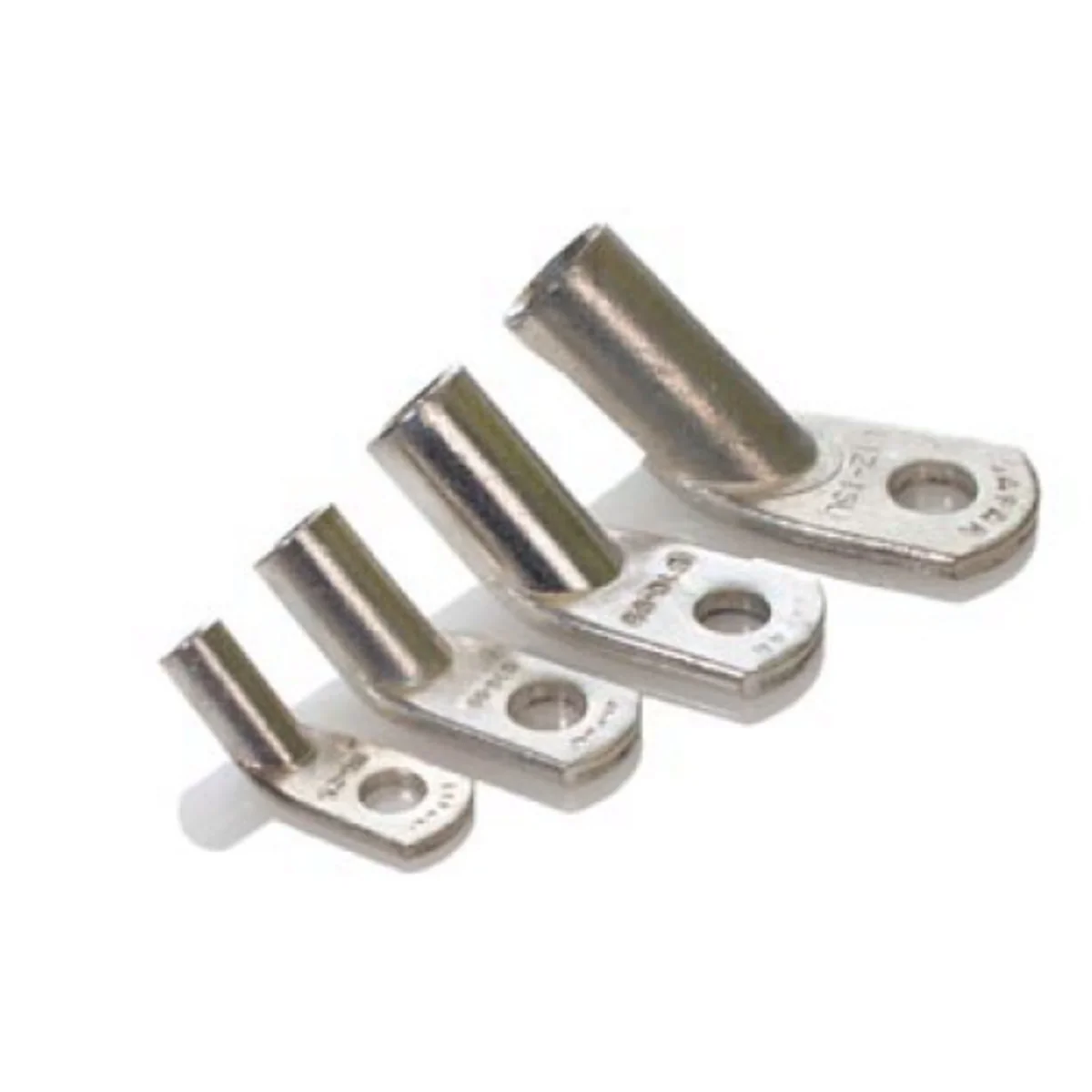

45° angled copper ring eyelet, tin-plated 50mm² for M12 screw 5 pcs. SE45-05012

Indice locale:
TCC203BORP
Numero di catalogo:
SE45-05012
Codice EAN:
8680734706731
Produttore: TRYTYT
Material: Electrolytic copper
Pieces in the package: 5
Inner diameter [mm]: 10
Prezzo:
20,50 €
gross / conf.
(inclusa IVA 23%)
4,10 € gross/pezzi
Consegna in 3 ore
fino a 2 settimane (giorni lavorativi)
Raccolta in 1h
Quantità conf.
(multiplo:
1
)
Aggiungi alla richiesta di preventivo
Aggiungi agli appunti
Stampa

Descrizione del prodotto

SE45 series copper tubular lugs (tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the incoming cable at an angle of 45° to e.g. switchgear, busbar or other device by means of a screw terminal. The use of SE45 ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In case of pressing sector cores, they should be reformed into “round”.

All copper pipe lugs distributed by TRYTYT are subjected to an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less likely to develop cracks and micro-cracks during crimping, and thus have better working parameters.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

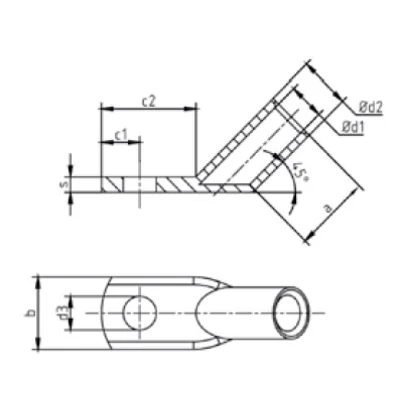

Dati tecnici

  • Material
    Electrolytic copper
  • Inner diameter [mm]
    10
  • Screw
    M12
  • PKWIU
    27.33.13.0
  • Pieces in the package
    5
  • Outer diameter [mm]
    14
  • cross section [mm²]
    50

Dettagli del produttore

  • Produttore
    TRYTYT Sp. z o.o.
  • Indirizzo
    43-382 Bielsko-Biała Horeszków 8 Polska
