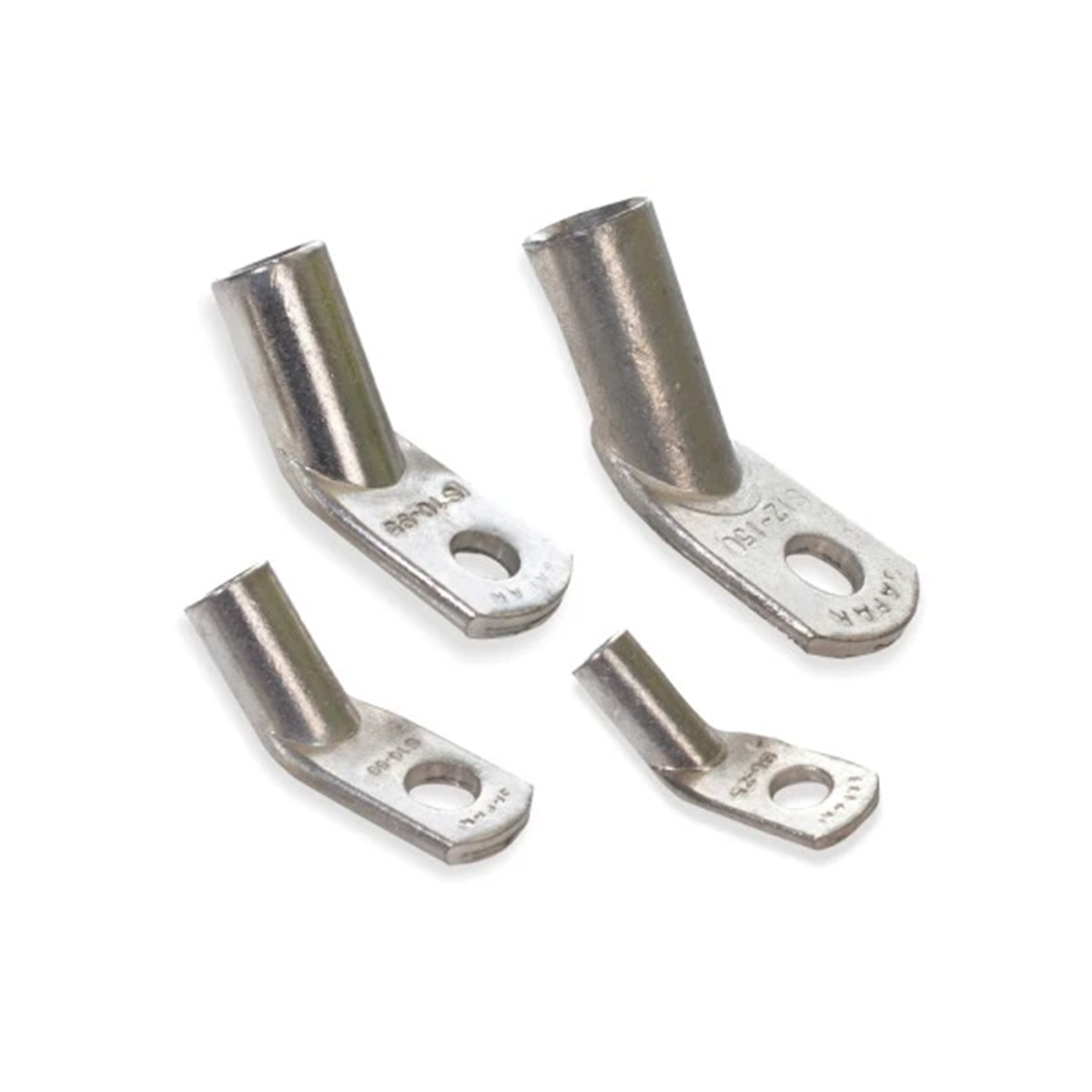

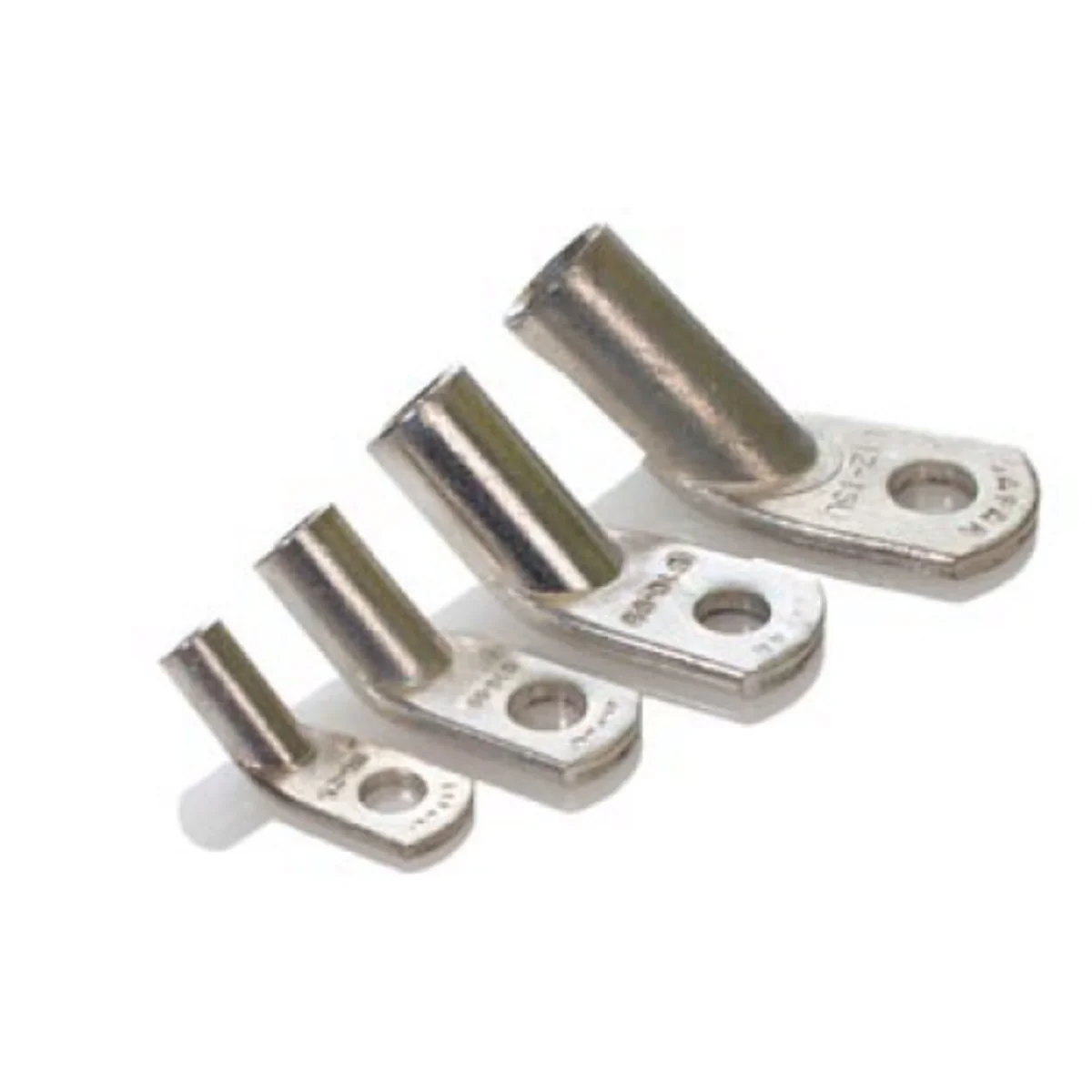

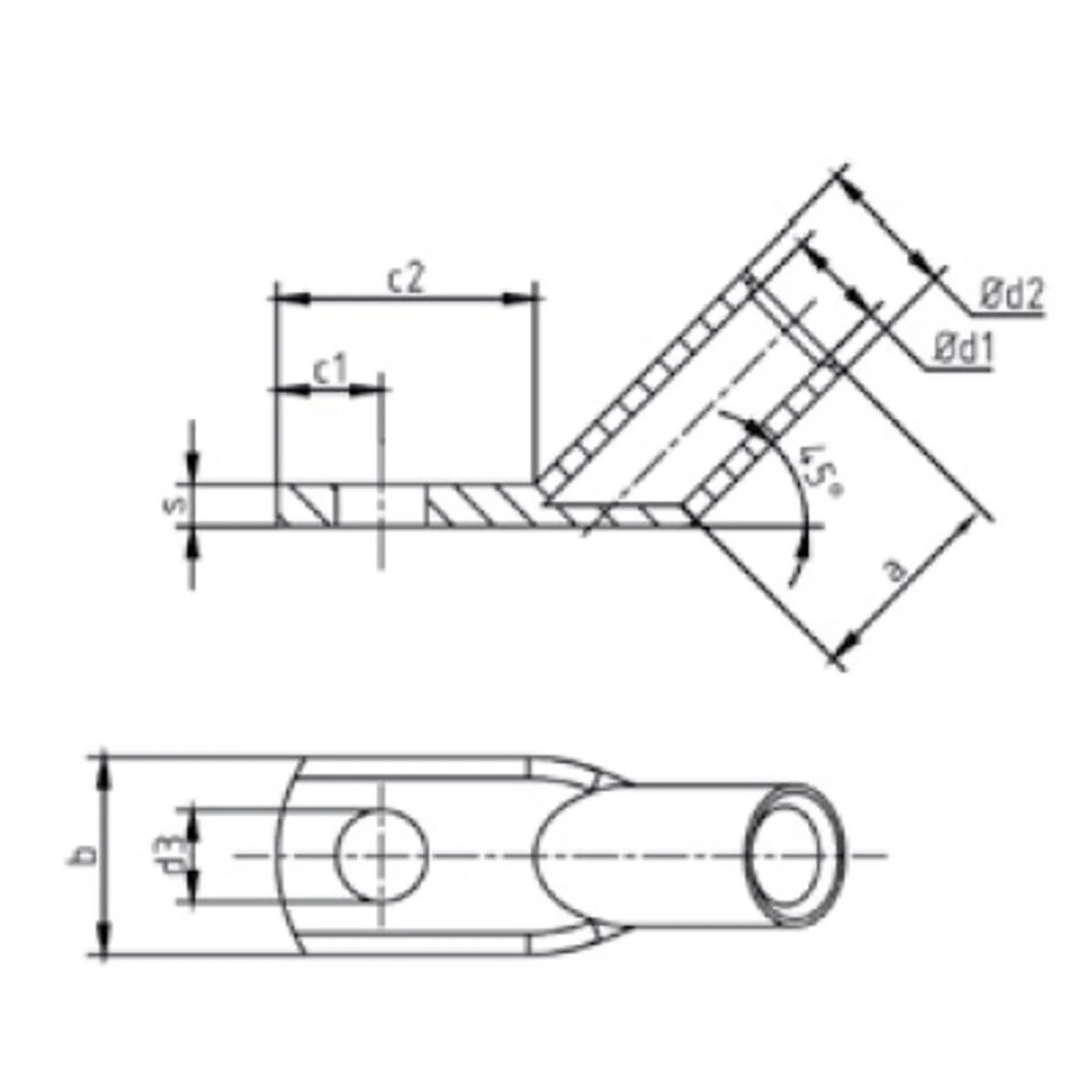

45° angled copper eyelet, tin-plated 120mm² for M10 screw SE45-12010

SE45 series copper tubular lugs (tin-plated) for crimping. They enable the termination of copper cable cores, they are used where it is necessary to connect the cable coming at an angle of 45° to, for example, a switchgear, busbar or other device using a screw clamp. The use of SE45 ring terminals increases the safety and durability of this type of connection. In contrast to soldered connections, the use of ring terminals reduces the risk of overheating of wires and insulation. In the case of crimping sector cores, they should be reformed into "round".

All copper pipe lugs distributed by TRYTYT undergo an additional process of hardening and firing at 700°C. This process removes any impurities from the tip material. Hardened terminals, as opposed to non-hardened terminals, are less exposed to cracks and micro-cracks during crimping, and thus have better working parameters.

Efficiency of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.
