278709
0

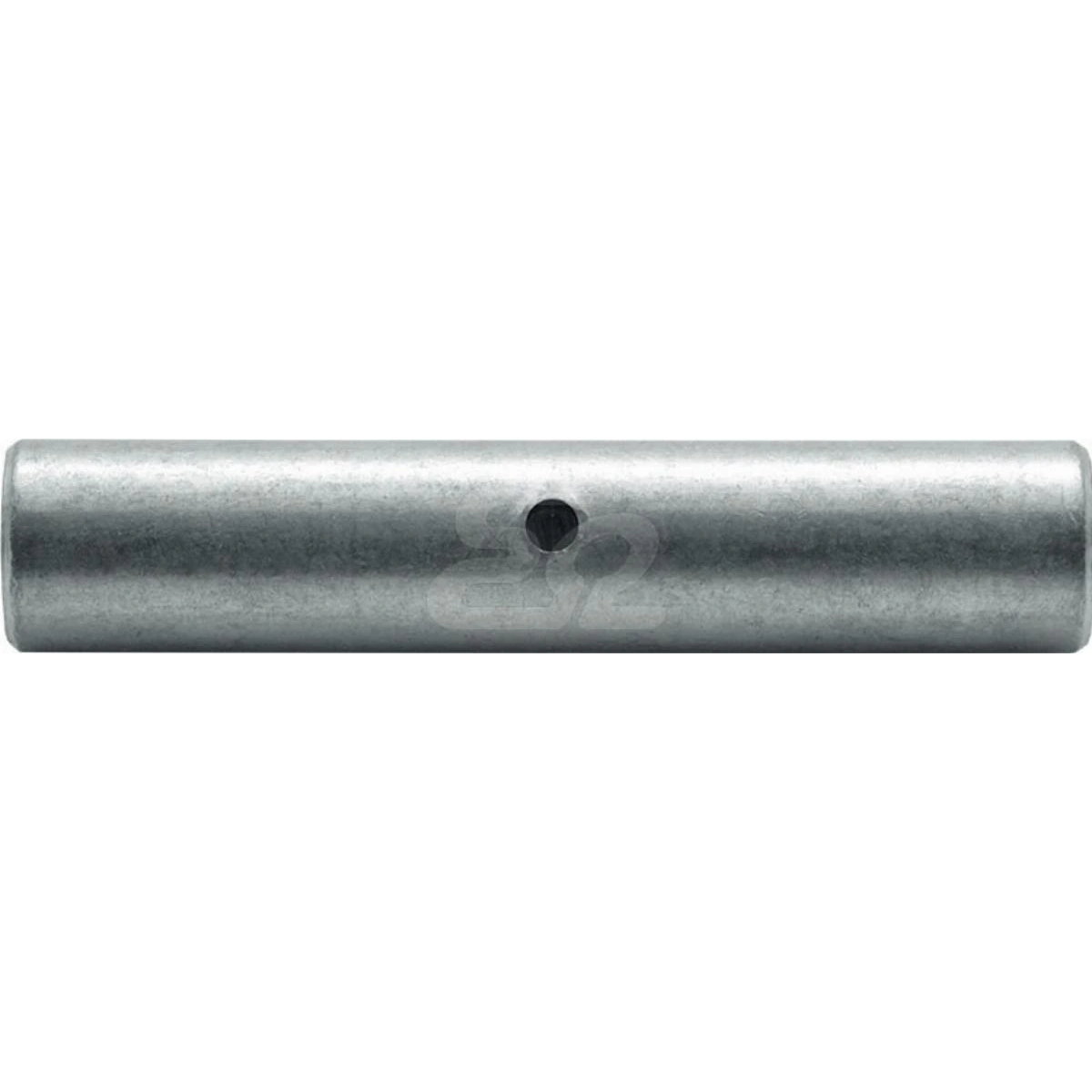

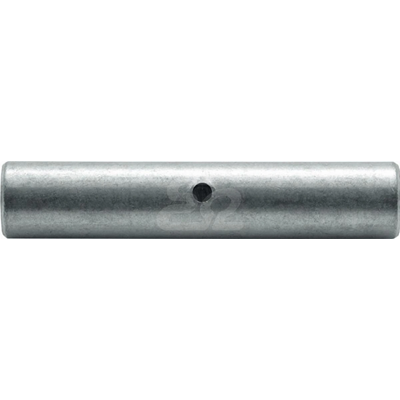

2ZA 95 thin-walled tubular cable connector E12KA-01070100600
local index:
TCT046ERGO
Catalog No:
E12KA-01070100600
Price:
1,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Thin-walled aluminum connector for connecting wires on the so-called “contact”
Properties:
- Mechanically unloaded
- Economic, only for very low-response connections
- Not recommended for new installations.
- Does not contain grease in the clamped part to facilitate gas-tight connection
Technical data
-
Length [mm]96
-
Inner diameter [mm]12.8
-
cross section [mm²]95
-
Stranded conductor cross-section [mm²]95
-
PKWIU27.33.13.0
-
MaterialAluminum
-
Outer diameter [mm]18
-
Solid conductor cross-section [mm²]120
-
CoverageNo cover
Other technical data
-
Cross section formOkrągły linkowy/ sektorowy linkowy
-
Connection as copper boltNo
-
For pull protected connectionsYes
-
Suitable for Aldrey-cablesNo
-
Al - przekrój znamionowy95 mm²
-
MaterialAluminium
-
Suitable for Al/St-cablesNo
-
Oil stop/centre barNo
Bulk packaging
| A kind of package | Sztuka |
| Quantity | 50 pcs. |
| Weight (kg) | 0,030 |
| Width (m) | 0,200 |
| Length (m) | 0,150 |
| Depth (m) | 0,100 |
