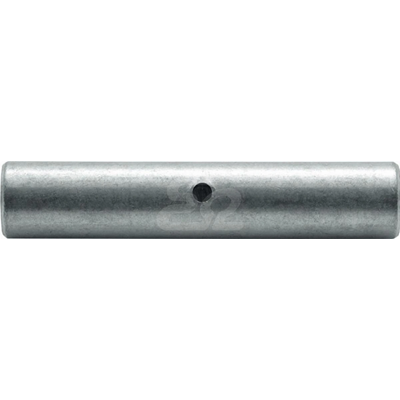

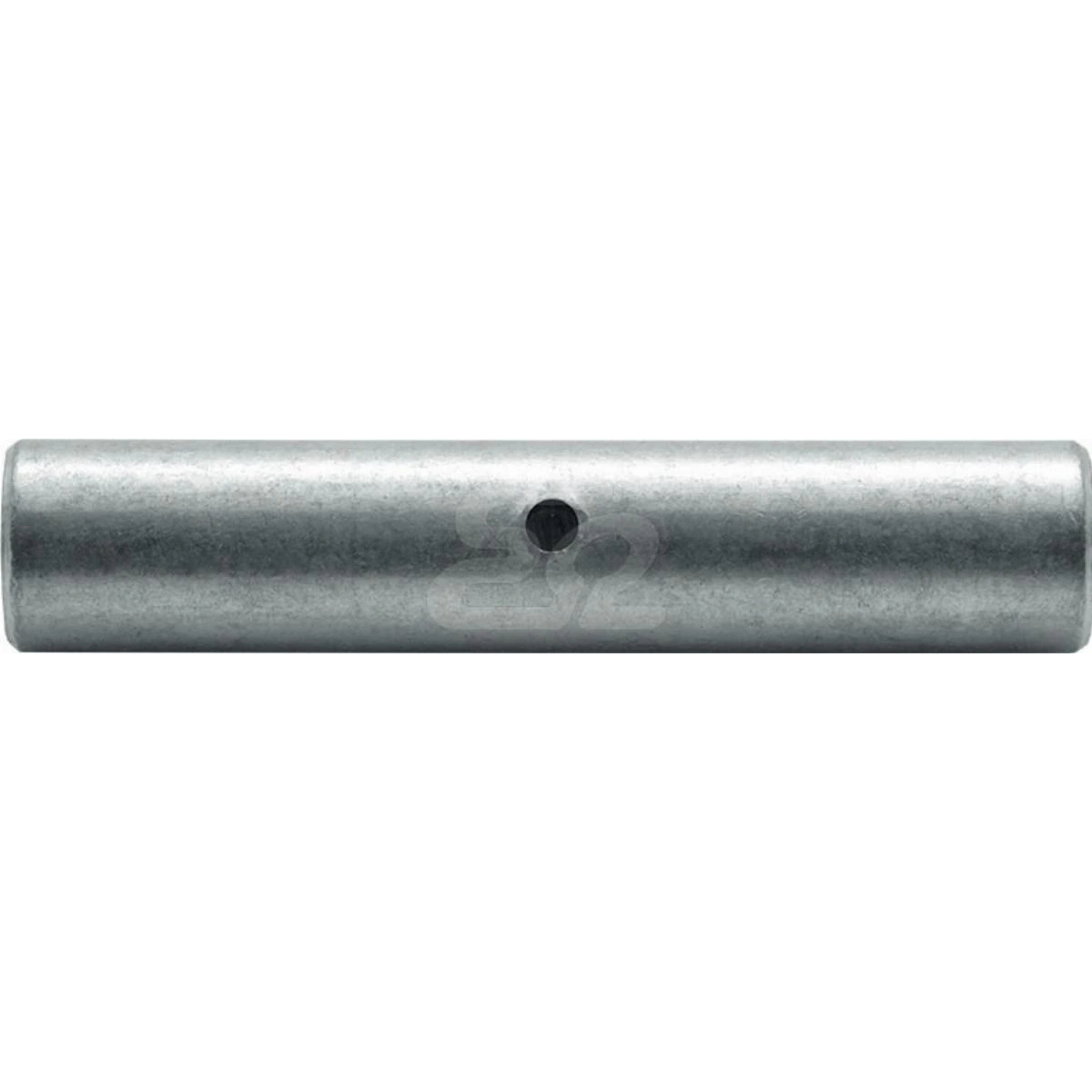

2ZA 120 thin-walled tubular cable connector E12KA-01070100700

local index:
TCT047ERGO
Catalog No:
E12KA-01070100700
Manufacturer: ERGOM
Length [mm]: 110
Material: Aluminum
Inner diameter [mm]: 14.3
Price:
1,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Accessible 370 pcs.
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Thin-walled aluminum connector for connecting wires on the so-called “contact”

Properties:


  • Mechanically unloaded

  • Economic, only for very low-responsibility connections

  • Not recommended for new installations.
  • Does not contain grease in the clamped part to facilitate gas-tight connection

Technical data

  • Length [mm]
    110
  • Inner diameter [mm]
    14.3
  • cross section [mm²]
    120
  • Stranded conductor cross-section [mm²]
    120
  • PKWIU
    27.33.13.0
  • Material
    Aluminum
  • Outer diameter [mm]
    19.7
  • Solid conductor cross-section [mm²]
    150
  • Coverage
    No cover

Other technical data

  • Cross section form
    Okrągły linkowy/ sektorowy linkowy
  • Connection as copper bolt
    No
  • For pull protected connections
    Yes
  • Suitable for Aldrey-cables
    No
  • Al - przekrój znamionowy
    120 mm²
  • Material
    Aluminium
  • Suitable for Al/St-cables
    No
  • Oil stop/centre bar
    No

Bulk packaging

A kind of package Sztuka
Quantity 50 pcs.
Weight (kg) 0,040
Width (m) 0,200
Length (m) 0,150
Depth (m) 0,100
