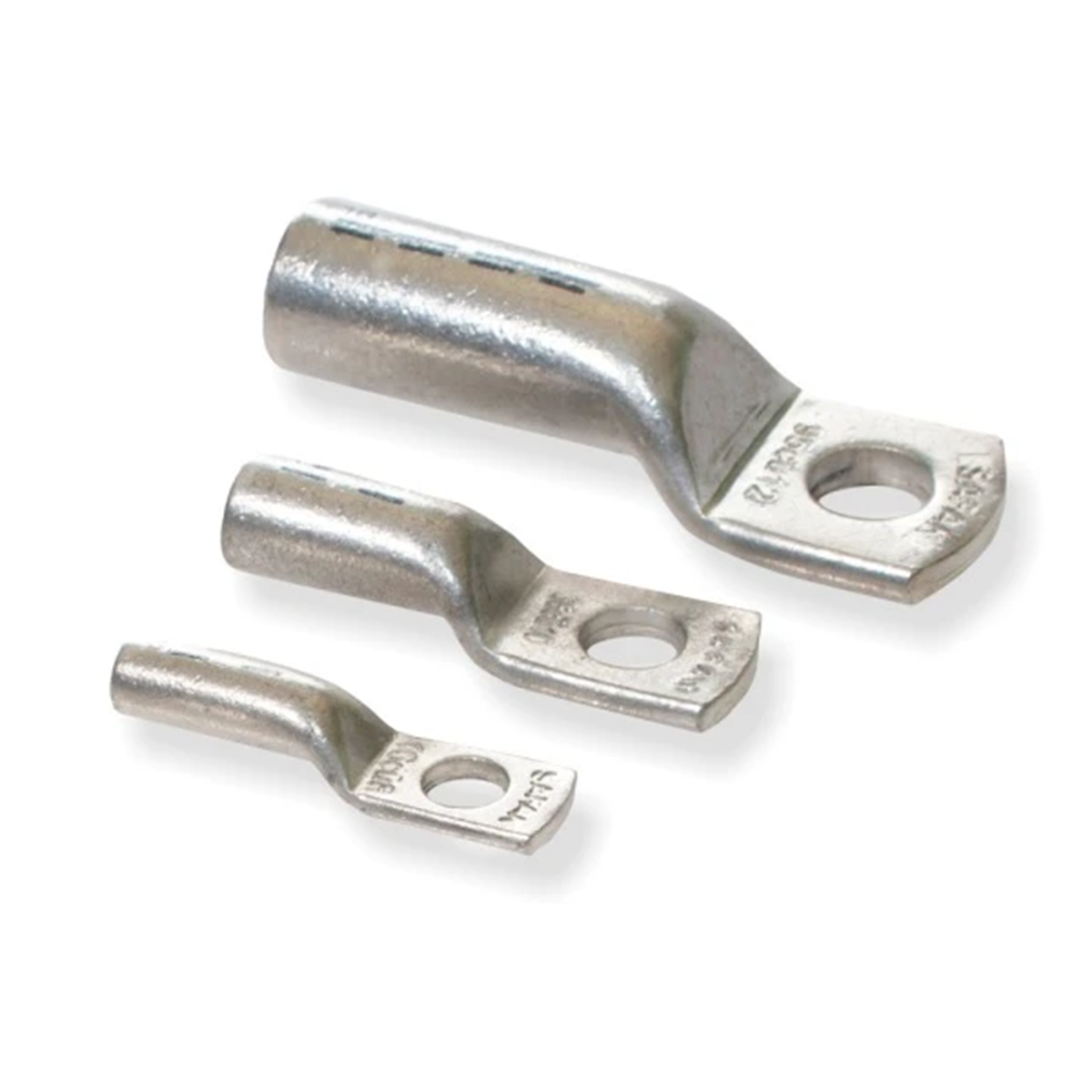

185mm² aluminum tubular ring terminal for M20 screw AL-18520

local index:
TCA020BORP
Catalog No:
AL-18520
EAN code:
8680734701491
Manufacturer: TRYTYT
Length [mm]: 125
Material: Aluminum
Type: Oczkowa
Price:
8,19 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Al aluminum tubular ring terminals according to DIN 46329 (tube part), for crimping. They are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. Recommended for use in damp rooms and with high and long-term current loads.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

Technical data

  • Length [mm]
    125
  • Type
    Oczkowa
  • Inner diameter [mm]
    18.3
  • Screw
    M20
  • PKWIU
    27.33.13.0
  • Material
    Aluminum
  • Width [mm]
    40
  • Outer diameter [mm]
    29
  • cross section [mm²]
    185
