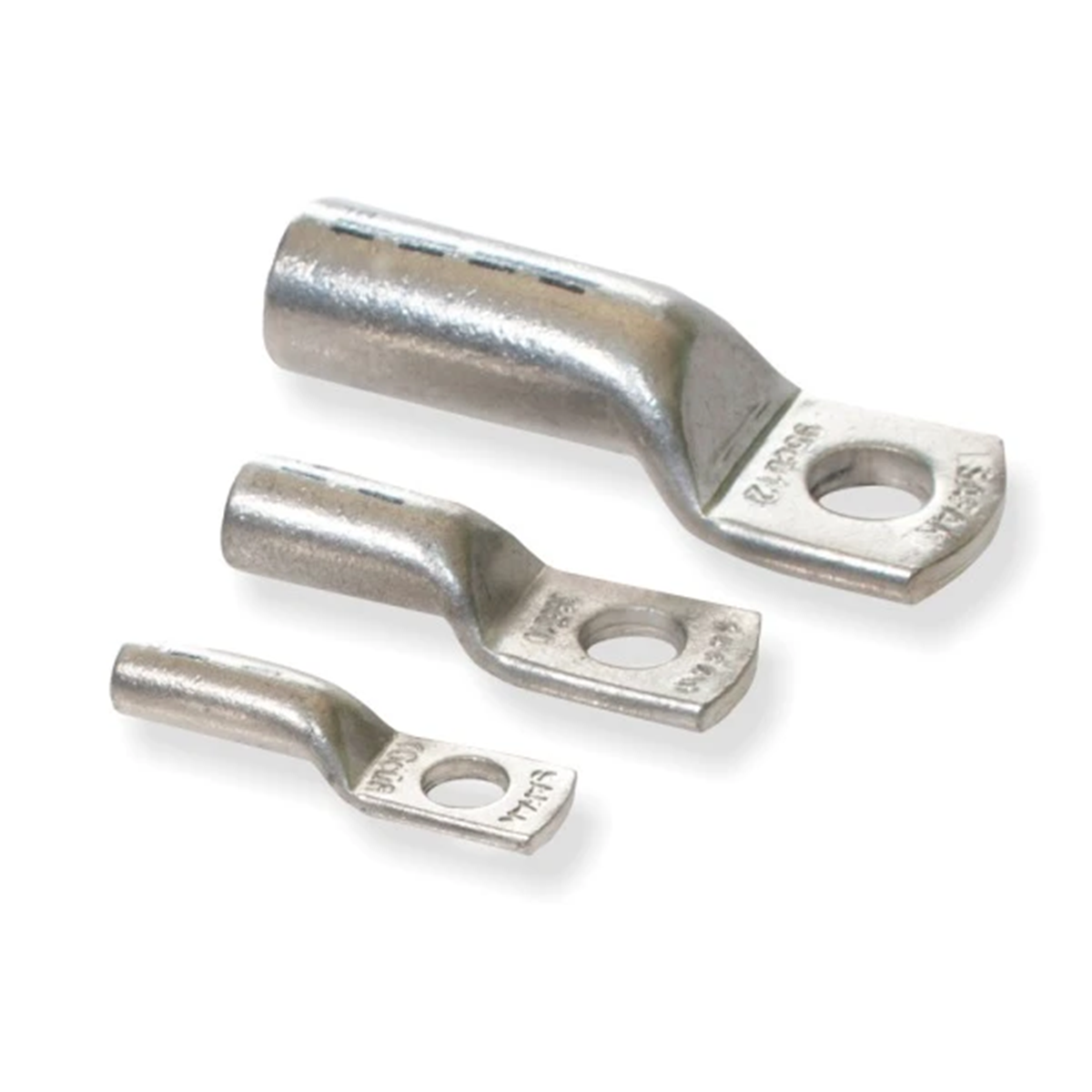

150mm² aluminum tubular ring terminal for M16 screw AL-15016

local index:
TCA038BORP
Catalog No:
AL-15016
EAN code:
8680734701453
Manufacturer: TRYTYT
Material: Aluminum
Type: Oczkowa
Width [mm]: 35
Price:
5,95 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Al aluminum tubular ring terminals according to DIN 46329 (tube part), for crimping. They are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. Recommended for use in damp rooms and with high and long-term current loads.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

Technical data

  • Material
    Aluminum
  • Width [mm]
    35
  • Outer diameter [mm]
    25.5
  • Height [mm]
    122
  • PKWIU
    27.33.13.0
  • Type
    Oczkowa
  • Inner diameter [mm]
    16.3
  • Screw
    M16
  • cross section [mm²]
    150
