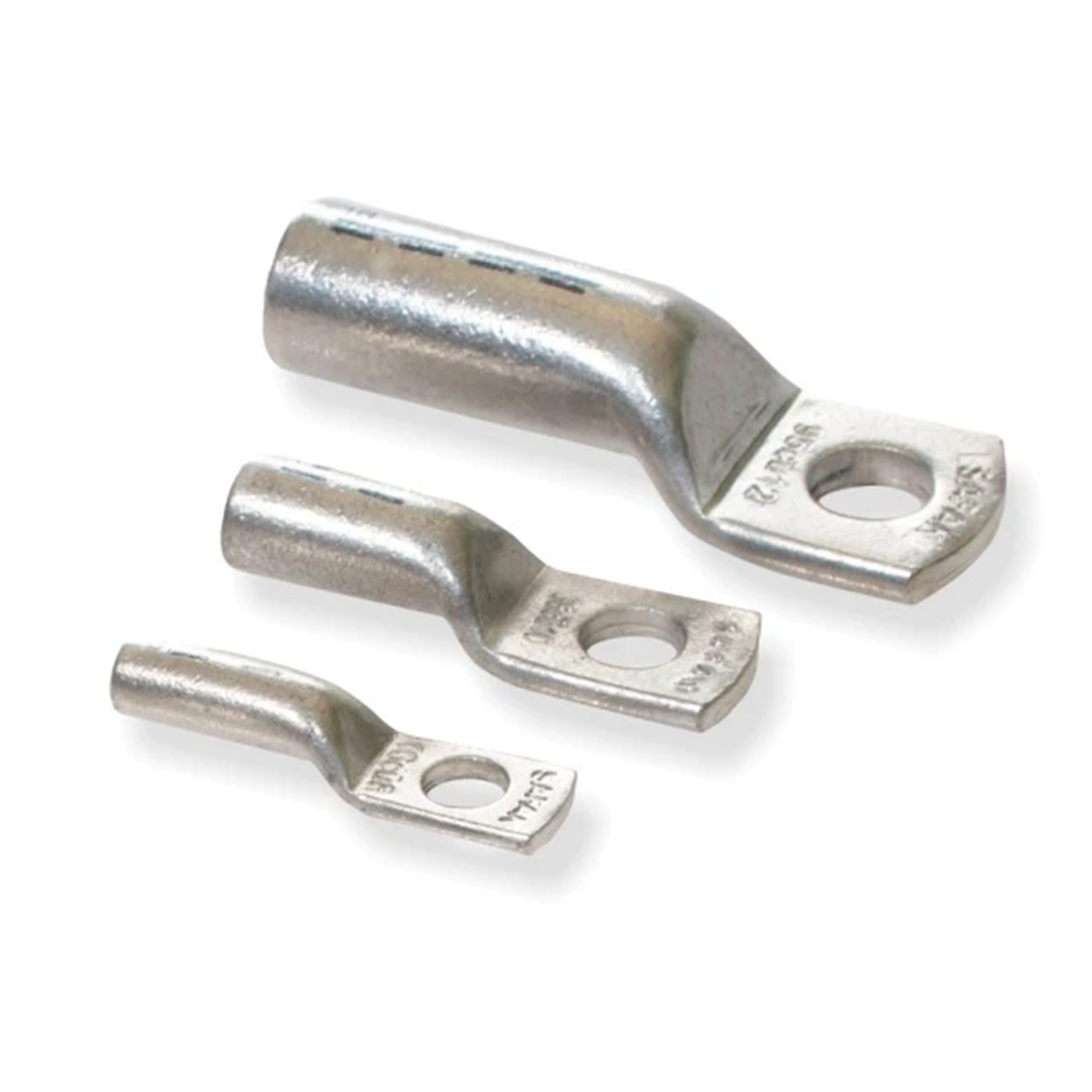

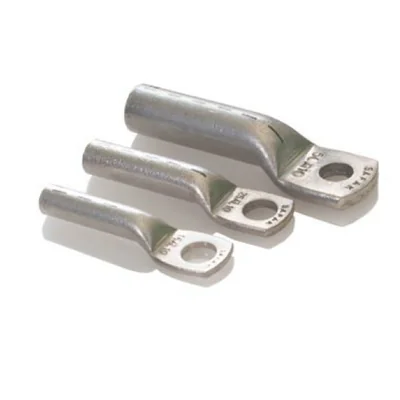

150mm² aluminum tubular ring terminal for M12 screw AL-15012

local index:
TCA016BORP
Catalog No:
AL-15012
EAN code:
8680734701446
Manufacturer: TRYTYT
Length [mm]: 122
Material: Aluminum
Type: Oczkowa
Price:
4,59 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Print

Product description

Al aluminum tubular ring terminals according to DIN 46329 (tube part), for crimping. They are used where it is necessary to connect the cable to, for example, a switchgear, busbar or other device using a screw terminal. Recommended for use in damp rooms and with high and long-term current loads.

The effectiveness of crimping (fixing the terminal on the cable) depends on the use of an appropriate tool and a die adapted to the cross-section.

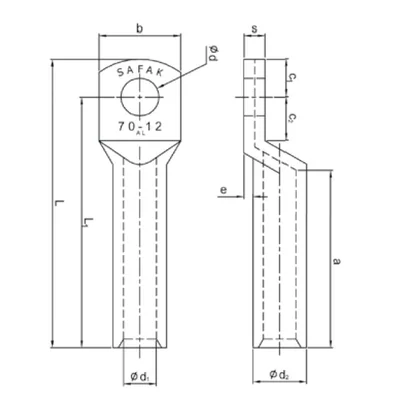

Technical data

  • Length [mm]
    122
  • Type
    Oczkowa
  • Inner diameter [mm]
    16.3
  • Screw
    M12
  • PKWIU
    27.33.13.0
  • Material
    Aluminum
  • Width [mm]
    35
  • Outer diameter [mm]
    25.5
  • cross section [mm²]
    150
