350988
2
UTP cat. 5e external gel-coated cable SEC5EUTPG
local index:
KRD001CICQ
Catalog No:
SEC5EUTPG
EAN code:
5904169100104
Large-size product
Price:
0,52 €
gross / m.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

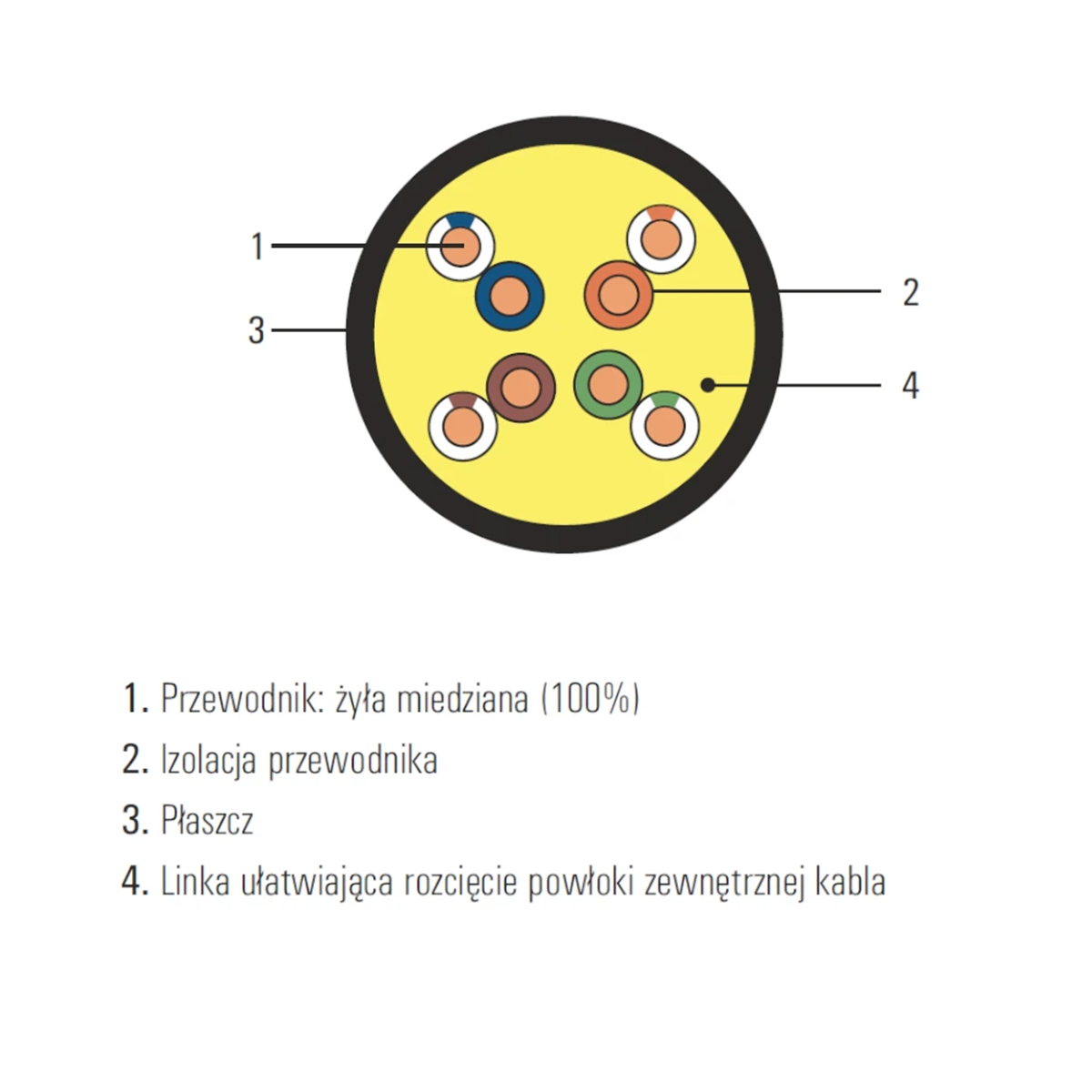

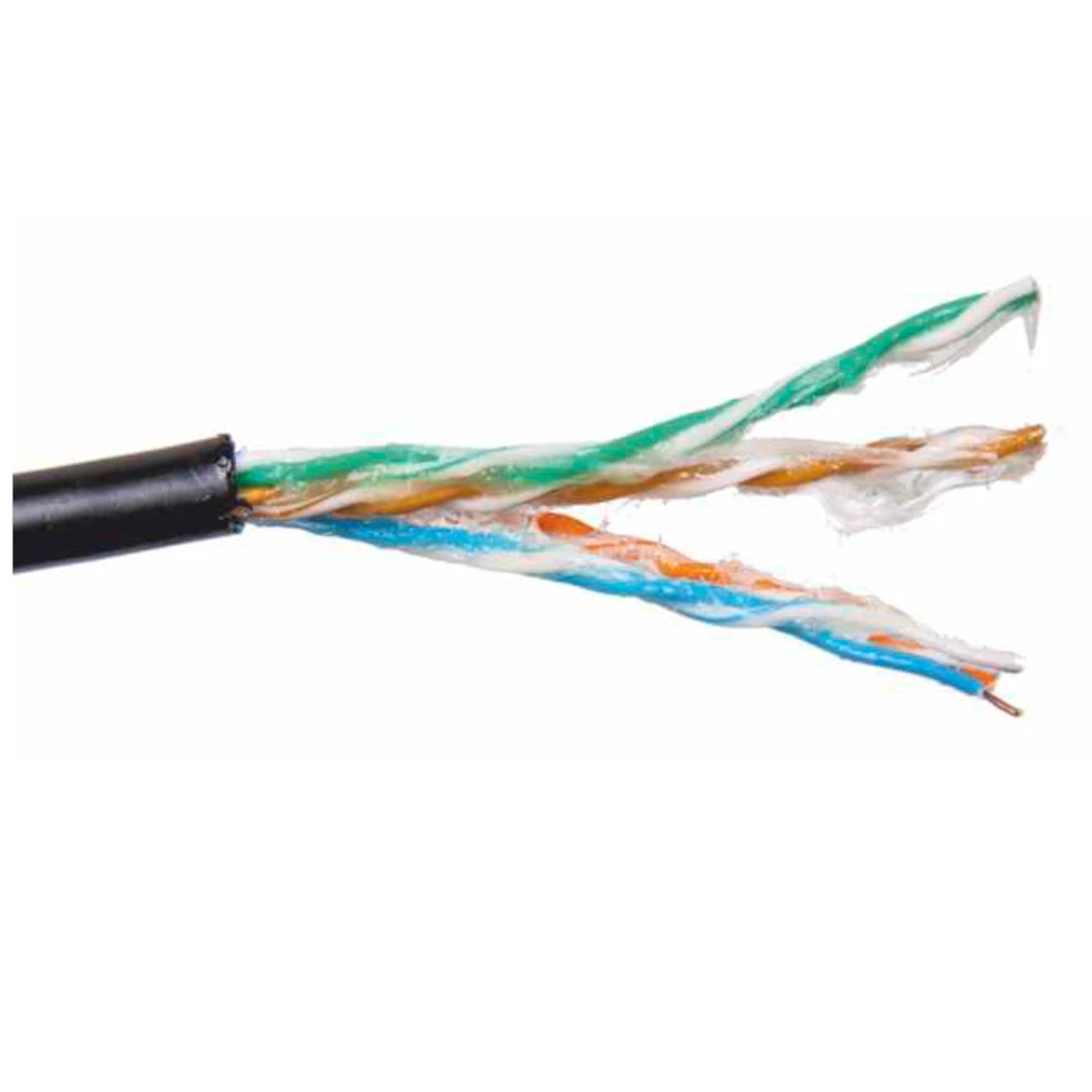

UTP twisted copper cable (unshielded) category 5e, gel coated pdesigned for outdoor installation. Suitablefor outdoor LAN installations, where There are no electromagnetic interferences from the outside. The cable has a core filled with gel. It has a polyethylene coating and is resistant to UV radiation.
Intended use:
- for installation in computer networks, t
- for installation in telephone networks,
- for installation in CCTV and IP video surveillance systems, etc.
Key features:
• meets the requirements of category 5e UTP,
• has resistance to UV solar radiation,
• filling the medium with gel,
• compliant with ISO/IEC 11801, EN 50173, EIA/TIA 568-B.2,
• RoHS compliant.
Technical data
-
Thickness [mm]0.5
-
Category5e
-
Number of beams4
-
Working temperature [°C]from -30 to +70
-
PKWIU27.32.13.0
-
Number of veins8
-
ColorBlack
-
Cable diameter [mm]5.5
-
Insulation materialPolyethylene
Other technical data
-
Conductor materialCopper
-
AWG size24
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathOther
-
Colour outer sheathBlack
-
Material armouringOther
-
Reaction-to-fire according to EN 13501-6: ClassFca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN 60754-1/2No
-
Flame retardantAccording to IEC/EN 60332-1-2
-
Low smoke according to EN IEC 61034-2No
-
Olejoodporny zgodnie z IEC 60811-404No
-
Circuit integrityNone
-
Min. permitted bending radius, moving application with forced guidance54 mm
-
Min. permitted bending radius, stationary application/permanent installation43 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value62 %
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight39
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingNone
-
Longitudinal water blocking cableYes
-
Suitable for underground installationYes
-
Protective sheathAl/PE
-
Specification material outer sheathPolyethylene (PE)
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Halogen free according to EN IEC 60754-2No
-
Low smoke (according to EN 61034-2)No
-
Oil resistant according to EN IEC 60811-404No
-
Trwałość izolacji zgodnie z IEC 60331Yes
-
Outer diameter approx.5.4 mm
-
Min. permitted bending radius, moving application/free movement54 mm
-
Permitted cable outer temperature during assembling/handling-40 ... 60 °C
-
Category5E
-
UV resistantYes
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
