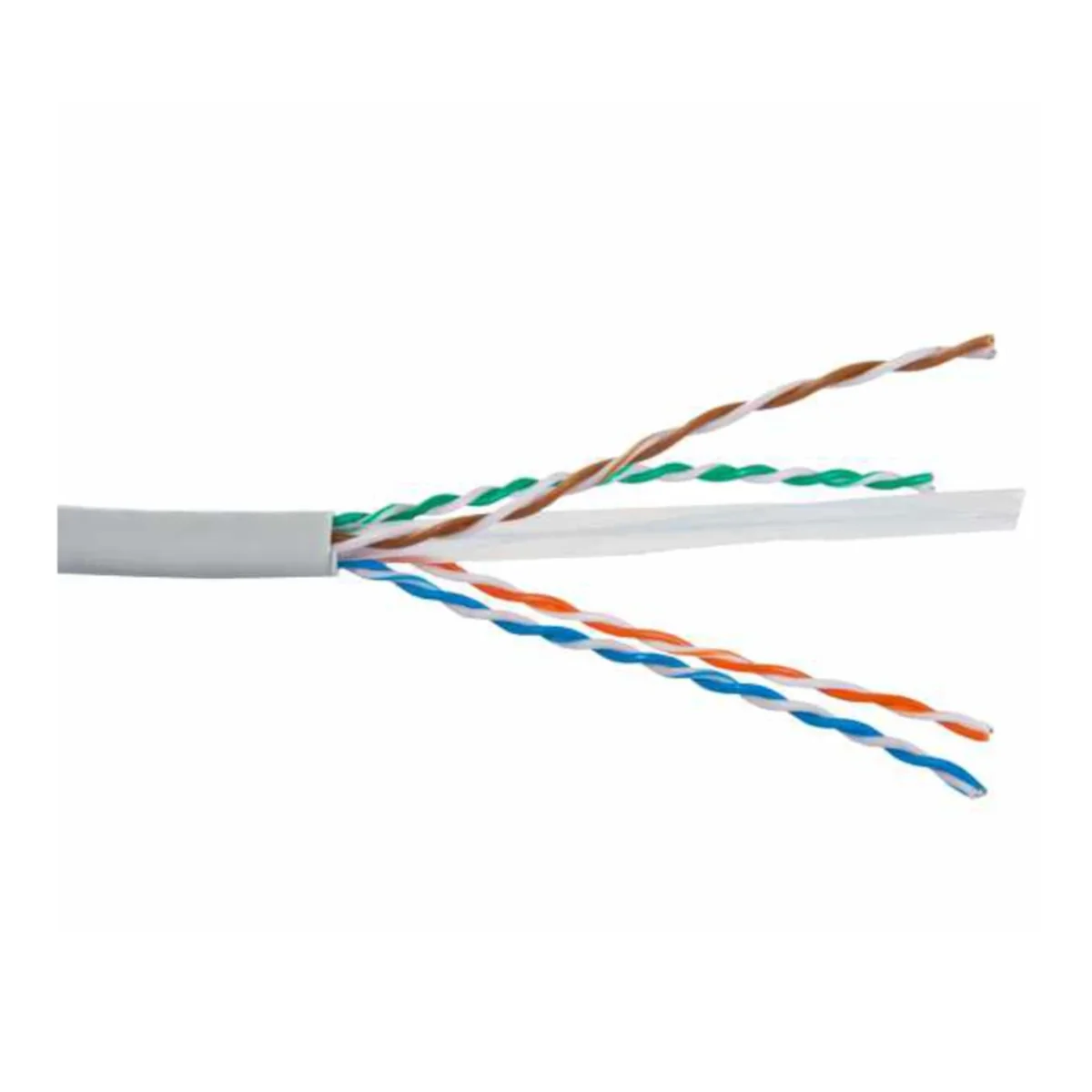

securityNET U/UTP cat.6 LSZH B2ca cable 500 m SEC6UTPLSZH-B2CA
Index local:
KRD012CICQ
Numéro de catalogue:
SEC6UTPLSZH-B2CA
Code EAN:
5904169104461
Producteur:
SECURITYNET
Prix:
3,52 zł
gross / mc.
(y compris la TVA 23%)
Sur commande
Quantité mc.
(plusieurs:
1
)
Ajouter à la demande de devis
Ajouter au presse-papiers
Imprimer
Renseignez-vous sur le produit
Données techniques
Autres données techniques
-
Conductor materialCopper
-
AWG size23
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathOther
-
Colour outer sheathGrey
-
Material armouringOther
-
Low smoke according to EN IEC 61034-2Yes
-
Reaction-to-fire according to EN 13501-6: ClassB2ca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd1
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance60 mm
-
Min. permitted bending radius, stationary application/permanent installation48 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value60 %
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingNone
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathOther
-
Specification material outer sheathOther
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Halogen free according to EN IEC 60754-2Yes
-
Reaction-to-fire according to EN 13501-6: Smoke productions1
-
Reaction-to-fire according to EN 13501-6: Aciditya1
-
Outer diameter approx.6 mm
-
Min. permitted bending radius, moving application/free movement60 mm
-
Permitted cable outer temperature during assembling/handling-20 ... 60 °C
-
Category6
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight40.6 kg/km
