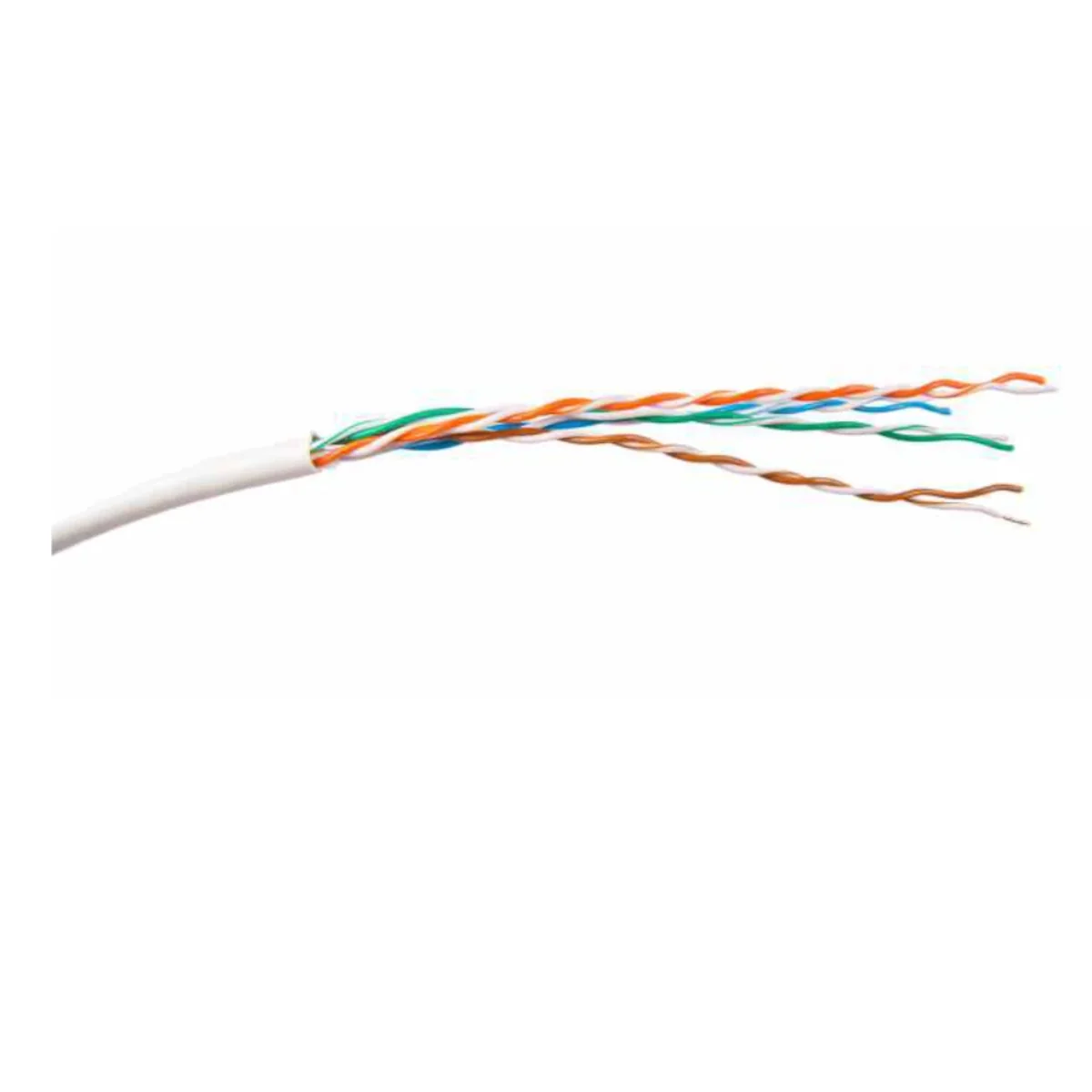

SecurityNET U/UTP 200MHz cat. 5e PVC cable 500m SEC5EUTP500
Lokaler Index:
KRE018CICQ
Katalognummer:
SEC5EUTP500
EAN-Code:
5904169105031
Hersteller:
SECURITYNET
Preis:
1,73 zł
gross / lfm.
(inklusive MwSt 23%)
Auf Bestellung
Menge lfm.
(mehrere:
1
)
Zur Angebotsanfrage hinzufügen
Zur Zwischenablage hinzufügen
Drucken
Fragen Sie nach dem Produkt
Technische Daten
Weitere technische Daten
-
Conductor materialCopper
-
Diameter conductor0.5 mm
-
AWG size24
-
Number of cores8
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingNone
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathPolyvinyl chloride (PVC)
-
Specification material outer sheathOther
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.5 mm
-
Min. permitted bending radius, moving application/free movement50 mm
-
Permitted cable outer temperature during assembling/handling-20 ... 60 °C
-
Category5E
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight29.5 kg/km
-
Conductor surfaceBare
-
Nominal cross section conductor0.196 mm²
-
Conductor categoryClass 1 = solid
-
Number of stranding elements1
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Material armouringOther
-
Low smoke according to EN IEC 61034-2No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance50 mm
-
Min. permitted bending radius, stationary application/permanent installation40 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value69 %
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
Hersteller-Details
-
HerstellerC&C Partners Sp. z o.o.
-
Adresse64-100 Leszno 17 Stycznia 119, 121 Polska
-
E-Mail
Großpackungen
| Eine Art Paket | Bęben | Paleta | Bęben |
| Menge | 500000 lfm. | 18000000 lfm. | 500 lfm. |
| Gewicht (kg) | 15,100 | 564,000 | - |
| Breite (m) | 0,160 | 1,000 | - |
| Länge (m) | 0,325 | 1,000 | - |
| Tiefe (m) | 0,265 | 1,200 | - |
