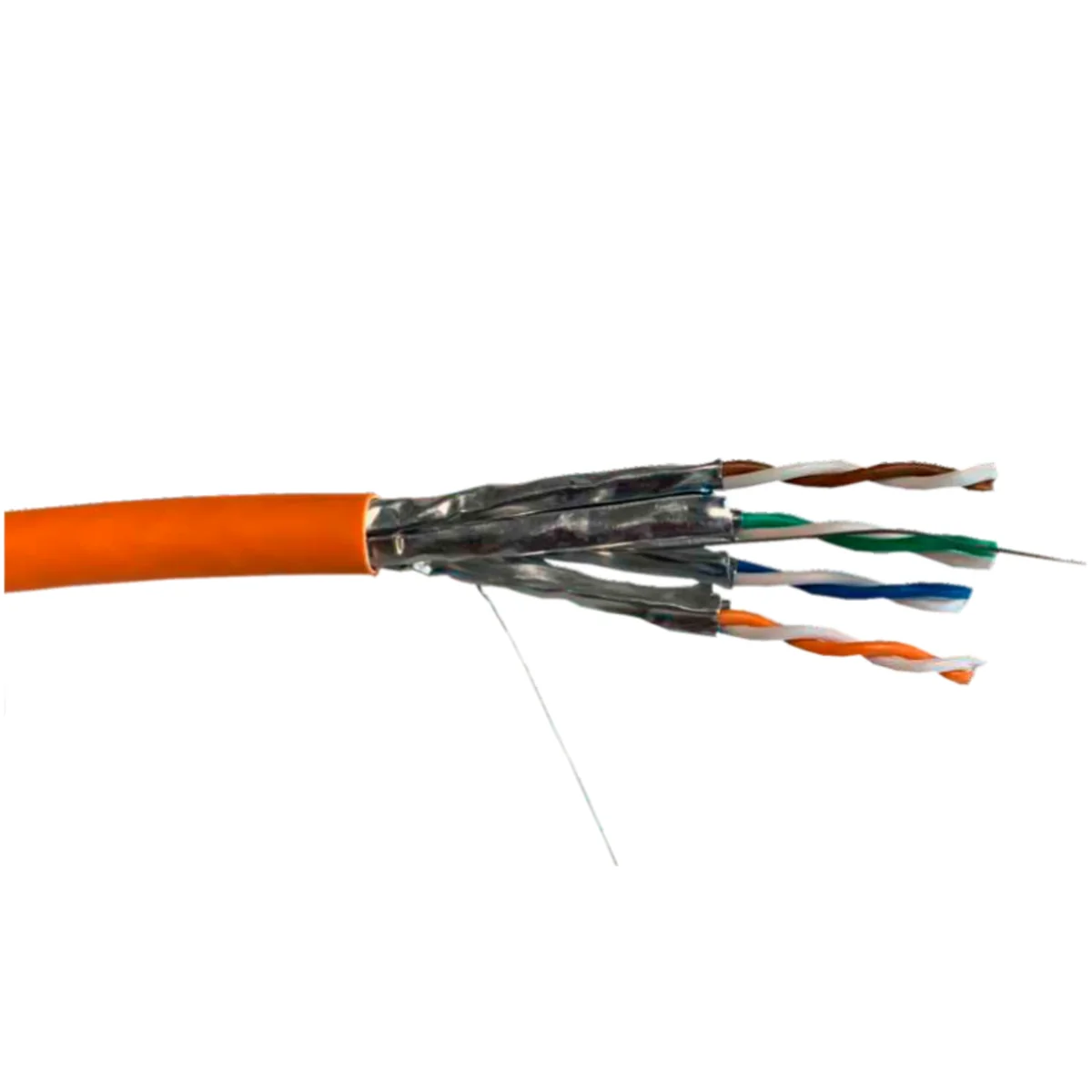

SecurityNET U/FTP cable cat.6A CU LSZH Dca 500m SEC6AUFTPLSZH-DCA
local index:
KRE011CICQ
Catalog number:
SEC6AUFTPLSZH-DCA
EAN code:
5904169104508
Manufacturer:
SECURITYNET
Price:
3,43 zł
gross / m.
(including VAT 23%)
On request
Quantity m.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Ask about the product
Technical data
Other technical data
-
Conductor materialCopper
-
AWG size23
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementFoil
-
Screen over strandingFoil
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathOther
-
Colour outer sheathOrange
-
Material armouringOther
-
Low smoke according to EN IEC 61034-2Yes
-
Reaction-to-fire according to EN 13501-6: ClassDca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesd1
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance74 mm
-
Min. permitted bending radius, stationary application/permanent installation60 mm
-
Permitted cable outer temperature after assembling without vibration-5 ... 60 °C
-
NVP value74 %
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingLayers
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathOther
-
Specification material outer sheathOther
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Halogen free according to EN IEC 60754-2Yes
-
Reaction-to-fire according to EN 13501-6: Smoke productions1
-
Reaction-to-fire according to EN 13501-6: Aciditya1
-
Outer diameter approx.7.4 mm
-
Min. permitted bending radius, moving application/free movement74 mm
-
Permitted cable outer temperature during assembling/handling-5 ... 60 °C
-
Category6A (IEC)
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight62 kg/km
Manufacturer details
-
ManufacturerC&C Partners Sp. z o.o.
-
Address64-100 Leszno 17 Stycznia 119, 121 Polska
-
E-mail
Bulk packaging
| A kind of package | Bęben | Paleta | Paleta | Bęben |
| Quantity | 500000 m. | 6000000 m. | 9000000 m. | 500 m. |
| Weight (kg) | 27,500 | 404,000 | 596,000 | - |
| Width (m) | 0,200 | 0,800 | 0,800 | - |
| Length (m) | 0,400 | 1,200 | 1,200 | - |
| Depth (m) | 0,380 | 0,940 | 1,360 | - |
