SecurityNET S/FTP cable, cat.7 PE, external, gelled, 500 m SEC7SFTPG

Name: SecurityNET S/FTP cable, cat.7 PE, external, gelled, 500 m
Brand: SECURITYNET
SKU: KRE014CICQ
Price: 4.96 PLN
Availability: BackOrder

Índice local:

KRE014CICQ

Número de catálogo:

SEC7SFTPG

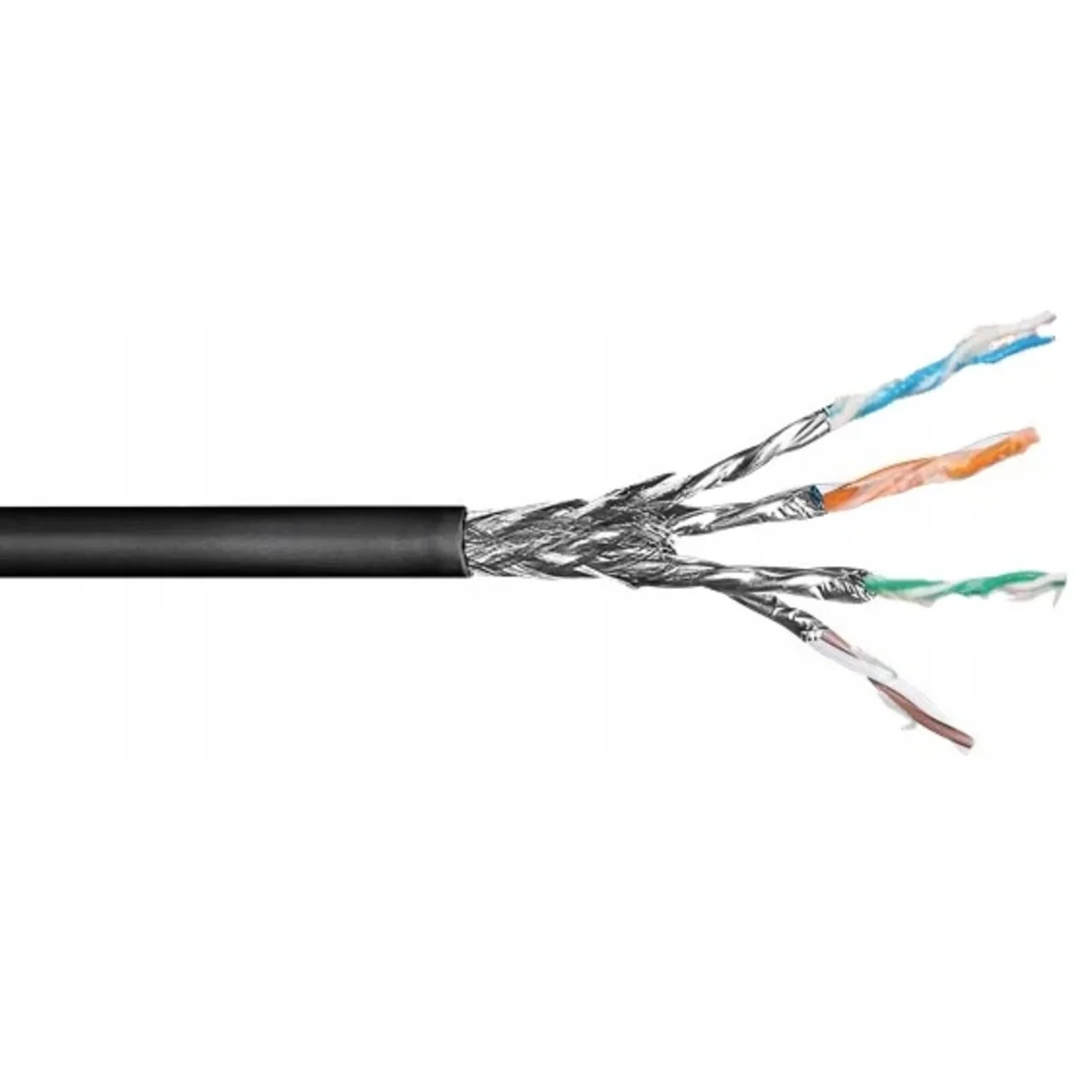

SecurityNET S/FTP cable, cat.7 PE, external, gelled, 500 m

Haga clic en la foto para ampliar

Fabricante: SECURITYNET

Precio:

4,96 zł

gross / metro

(IVA incluido 23%)

2 semanas

Por encargo

Cantidad metro

(múltiple:

1

)

Añadir a solicitud de presupuesto

Añadir al portapapeles

Imprimir

Pregunta por el producto

Datos técnicos Detalles del fabricante Archivos para descargar

Datos técnicos

Otros datos técnicos

Conductor material

Copper
AWG size

23
Number of cores

8
Stranding element

Pairs
Specification core insulation

Polyethylene (PE)
Screen over stranding element

Foil
Screen over stranding

Foil
Radial water blocking cable

Yes
Approved type of underground installation

Other
Material outer sheath

Other
Colour outer sheath

Black
Material armouring

Other
Low smoke according to EN IEC 61034-2

No
Reaction-to-fire according to EN 13501-6: Class

Fca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Oil resistant according to EN IEC 60811-404

No
Min. permitted bending radius, moving application with forced guidance

76 mm
Min. permitted bending radius, stationary application/permanent installation

65 mm
Permitted cable outer temperature after assembling without vibration

0 ... 60 °C
NVP value

74 %
Suitable as telephone cable

Yes

Conductor surface

Bare
Conductor category

Class 1 = solid
Number of stranding elements

1
Material core insulation

Other
Core identification

Colour
Stranding

Layers
Longitudinal water blocking cable

Yes
Suitable for underground installation

Yes
Protective sheath

Al/PE
Specification material outer sheath

Polyethylene (PE)
Armouring/reinforcement

None
Cable geometry

Round
Halogen free according to EN IEC 60754-2

No
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Outer diameter approx.

7.6 mm
Min. permitted bending radius, moving application/free movement

76 mm
Permitted cable outer temperature during assembling/handling

-40 ... 60 °C
Category

7
Certified for shipboard application

No
Suitable as computer data cable

Yes

Detalles del fabricante

Fabricante

C&C Partners Sp. z o.o.
Dirección

64-100 Leszno 17 Stycznia 119, 121 Polska
Email

info@securitynet.eu

Archivos para descargar

Descargar todos los archivos

DZ_003_0907_2024_kable-kat_-7-zewn_-pdf.pdf

DOP_SEC7SFTPG-003.pdf
