SecurityNET F/UTP Category 6 PVC CU cable SEC6FTP
local index:
KRE009CICQ
Catalog No:
SEC6FTP
EAN code:
5904169100142
Price:
0,76 €
gross / m.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Ask about the product
Product description

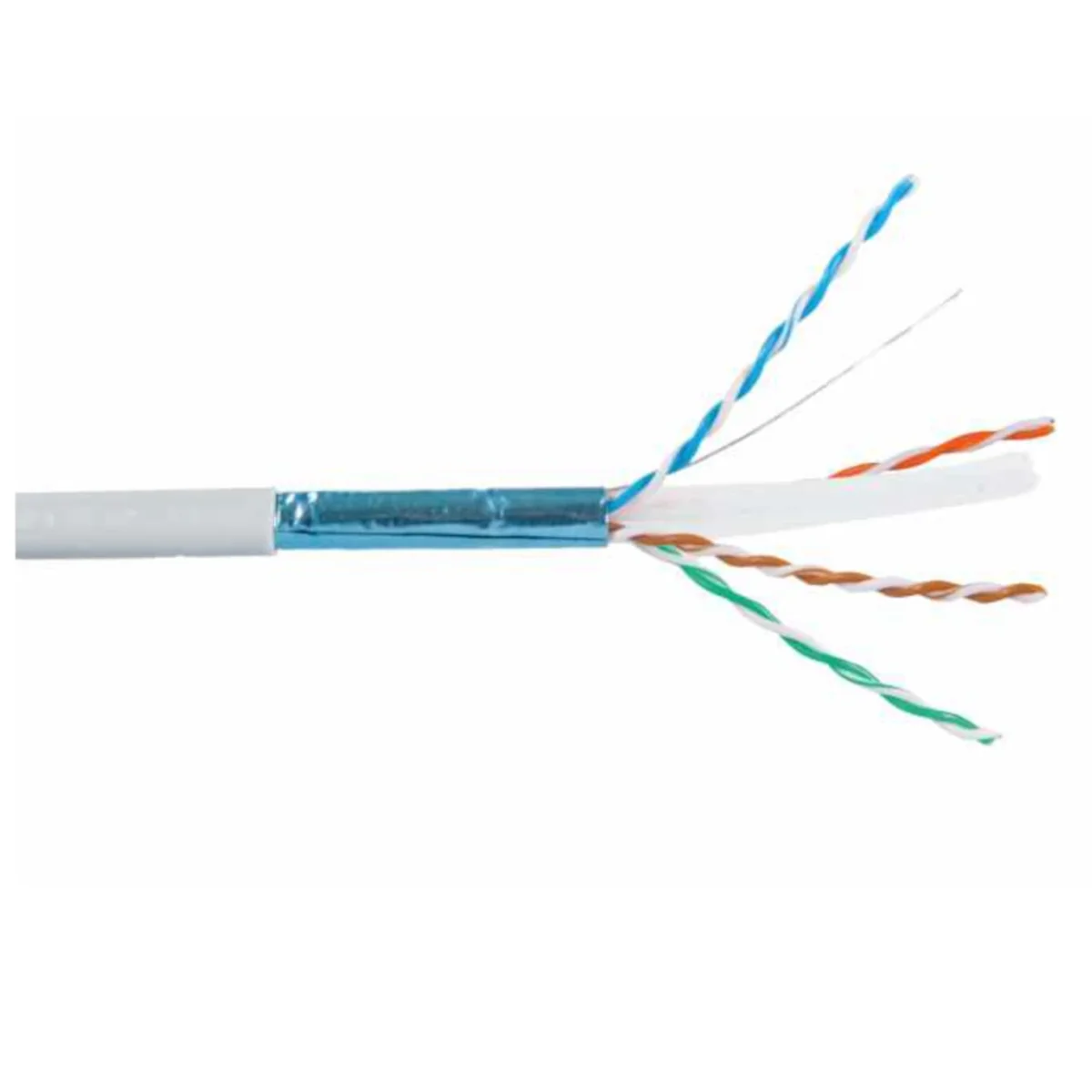

SecurityNET installation twisted cable designed for making connections between multimedia signal distribution points and connection sockets.
twisted cable (shielded) perfectly suitable for:
- installations in computer networks,
- telephone installations,
- CCTV systems.
Technical data
-
InsulationHDPE 1.09mm
-
ColorGray
-
Insulation materialPolyvinyl chloride
-
Category6e
-
Cable diameter [mm]7.4
-
PKWIU27.32.13.0
Other technical data
-
Conductor materialCopper
-
AWG size23
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementFoil
-
Screen over strandingFoil
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathPolyvinyl chloride (PVC)
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Low smoke according to EN IEC 61034-2No
-
Outer diameter approx.7.5 mm
-
Min. permitted bending radius, moving application/free movement75 mm
-
Permitted cable outer temperature during assembling/handling-20 ... 60 °C
-
Category6
-
UV resistantNo
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingLayers
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathPolyvinyl chloride (PVC)
-
Colour outer sheathGrey
-
Material armouringOther
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Halogen free according to EN IEC 60754-2No
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance75 mm
-
Min. permitted bending radius, stationary application/permanent installation60 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value70 %
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight60
