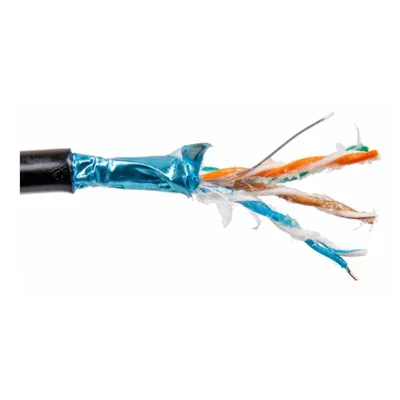

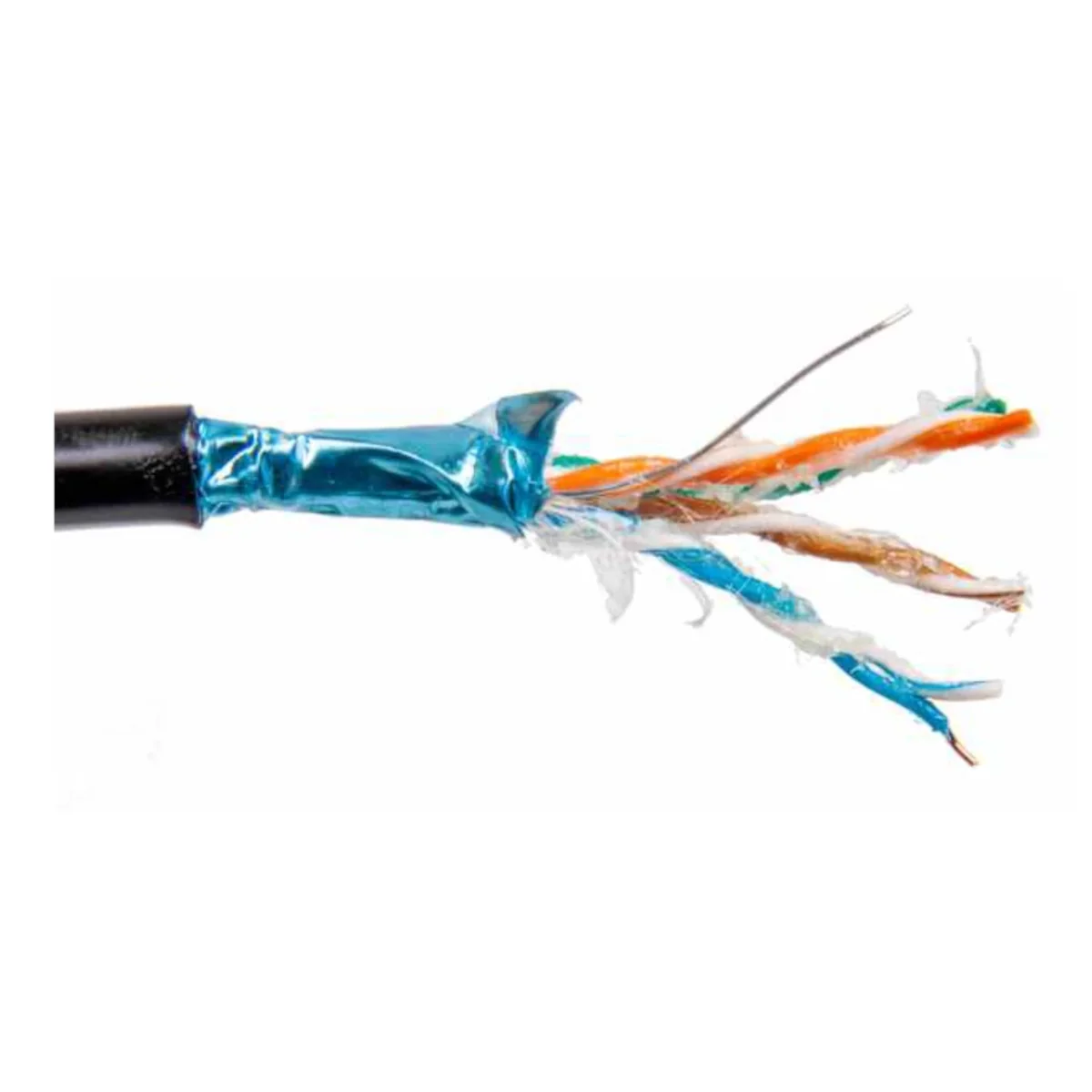

SecurityNET F/UTP cat. 6 cable outdoor gel PE 1000m SEC6FTPG
Índice local:
KRE002CICQ
Número de catálogo:
SEC6FTPG
Código EAN:
5904169100159
Fabricante:
SECURITYNET
Precio:
3,42 zł
gross / metro
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad metro
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Datos técnicos
-
PKWIU27.32.13.0
Otros datos técnicos
-
Conductor materialCopper
-
AWG size23
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementFoil
-
Screen over strandingFoil
-
Radial water blocking cableYes
-
Approved type of underground installationOther
-
Material outer sheathOther
-
Colour outer sheathBlack
-
Material armouringOther
-
Low smoke according to EN IEC 61034-2No
-
Reaction-to-fire according to EN 13501-6: ClassFca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance75 mm
-
Min. permitted bending radius, stationary application/permanent installation60 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value70 %
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationPolyethylene (PE)
-
Core identificationColour
-
StrandingLayers
-
Longitudinal water blocking cableYes
-
Suitable for underground installationYes
-
Protective sheathAl/PE
-
Specification material outer sheathPolyethylene (PE)
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.7.5 mm
-
Min. permitted bending radius, moving application/free movement75 mm
-
Permitted cable outer temperature during assembling/handling-40 ... 60 °C
-
Category6
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight70 kg/km
Detalles del fabricante
-
FabricanteC&C Partners Sp. z o.o.
-
Dirección64-100 Leszno 17 Stycznia 119, 121 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Bęben | Paleta | Bęben |
| Cantidad | 1000000 metro | 12000000 metro | 100 metro |
| Peso (kg) | 61,000 | 752,000 | - |
| Ancho (m) | 0,200 | 1,100 | - |
| Longitud (m) | 0,550 | 1,100 | - |
| Profundidad (m) | 0,360 | 1,200 | - |
