el12 Cables and wires Power cables Power cables cu up to 1 kV

Power cable YKY 3x2.5 NYY-J 0.6/1kV 112271061D0500

local index:
KEC242NKTQ
Catalog No:
112271061D0500
EAN code:
5907802032879

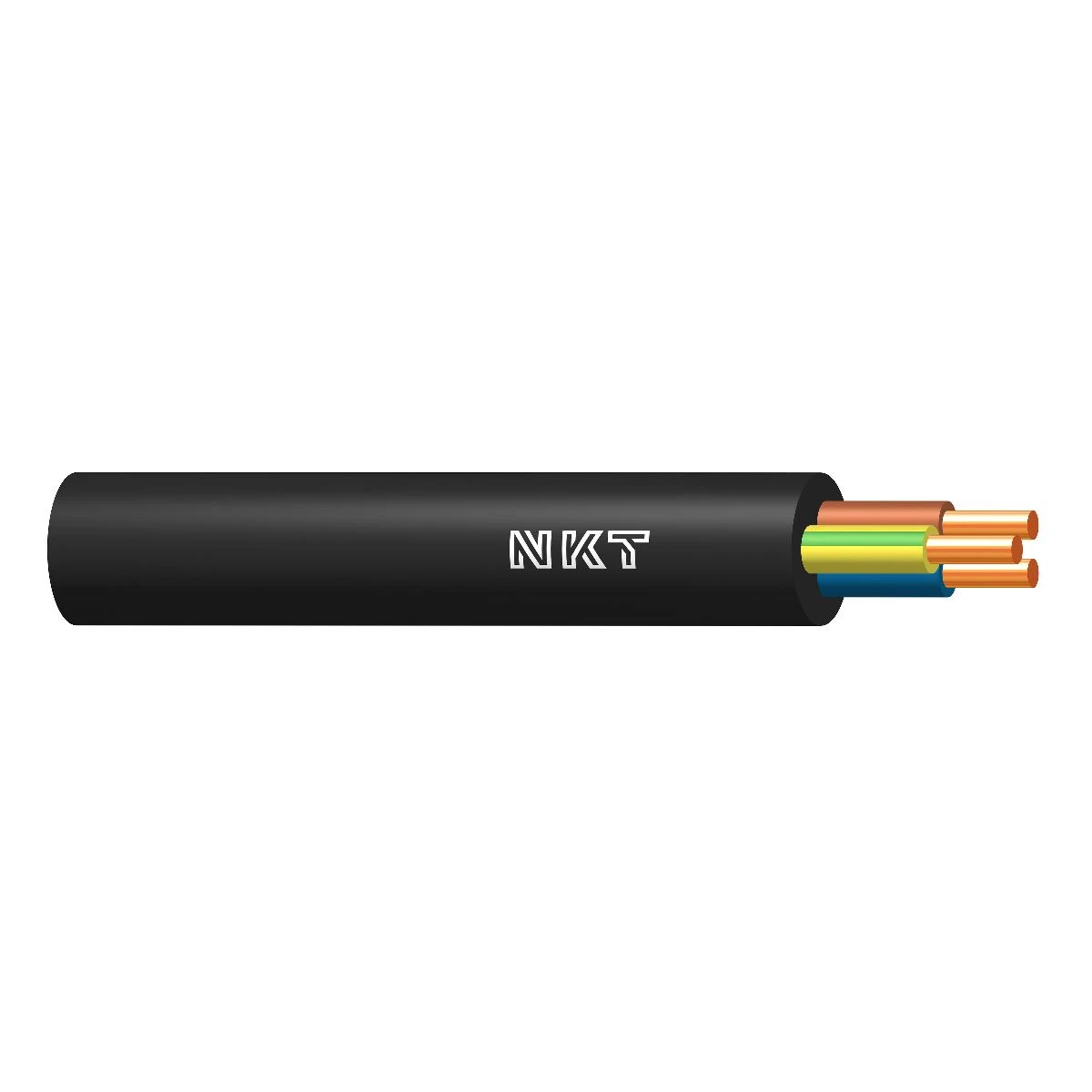

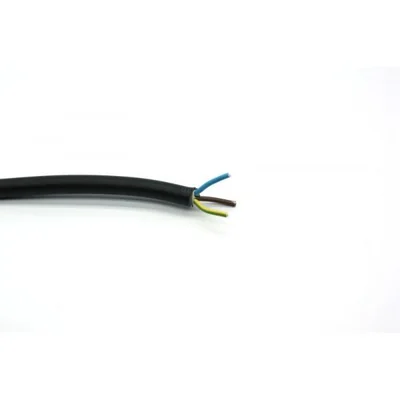

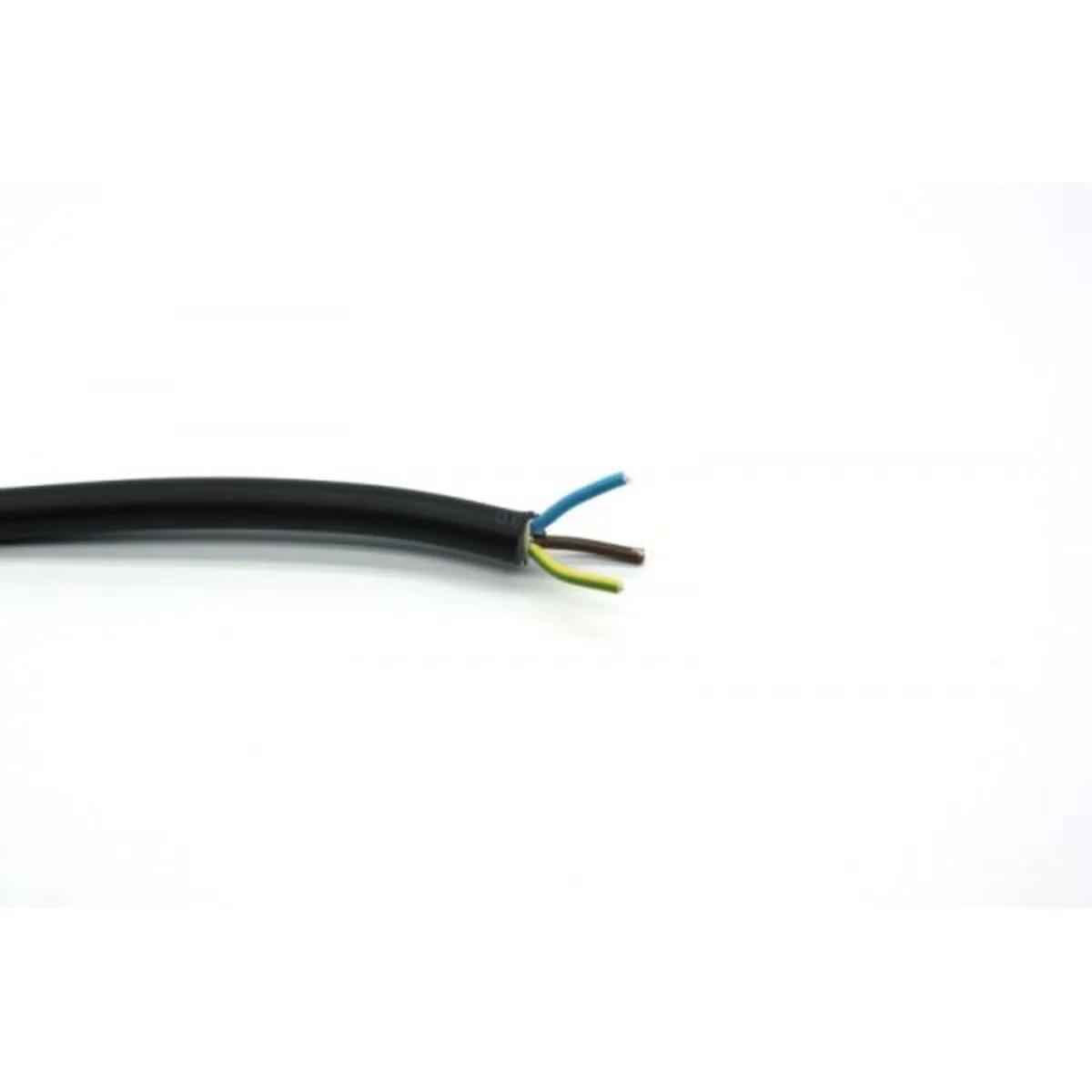

Power cable YKY 3x2.5 NYY-J 0.6/1kV
Power cable YKY 3x2.5 NYY-J 0.6/1kV
Power cable YKY 3x2.5 NYY-J 0.6/1kV
Power cable YKY 3x2.5 NYY-J 0.6/1kV

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 3
Color: Black
Vein material: Copper
See full description
Price:
1,23 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 19012 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
It is not possible to add more of this product to the cart. Goods at a promotional price can only be purchased in the quantity available in stock.
Add to clipboard
Print
Product description Technical data

Product description


Power cable YKYż 3x2.5 NYY-J 0.6/1 kV with copper conductors, PVC insulation, flame-retardant PVC sheath with green-yellow protective conductor.


Used for electricity transmission, in power lines led outdoors, indoors and outdoors, for laying in ducts, on structures and directly in the ground, in water and in the air, in places with low risk of mechanical damage.

Technical data

  • Number of veins
    3
  • Vein material
    Copper
  • Core cross-section [mm²]
    2.5
  • Accurate color
    Black
  • PKWIU
    27.32.13.0
  • Color
    Black
  • Rated voltage [V]
    600/1000
  • Core
    Wire
  • Insulation material
    PVC

Other technical data

  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Number of cores
    3
  • Specification core insulation
    Other
  • Laminated sheath
    No
  • Żyła ochronna
    No
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Circuit integrity
    No
  • Outer diameter approx.
    10.71 mm
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 70 °C
  • Nominal voltage U
    1 kV
  • Nominal cross section conductor
    2.5 mm²
  • Shape of conductor
    Round
  • Material core insulation
    Polyvinyl chloride (PVC)
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Max. conductor temperature
    70 °C
  • Nominal voltage U0
    0.6 kV

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    2652
  • Numer referencyjny DoP (DWU)
    DOP000032_PL_Rev.1
  • Oznaczenie produktu
    YKYżo 0.6/1 kV 3x2,5
  • Nazwa producenta:
    NKT S.A., ul. Gajowa 3, 43-254 Warszowice
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575
  • Zastosowanie:
    Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.
