el12 Cables and wires Power cables Power cables cu up to 1 kV

Power cable YKXS 4x16 RE 0.6/1kV 112200015

local index:
KEC003NKTQ
Catalog No:
112200015
EAN code:
8591462026889

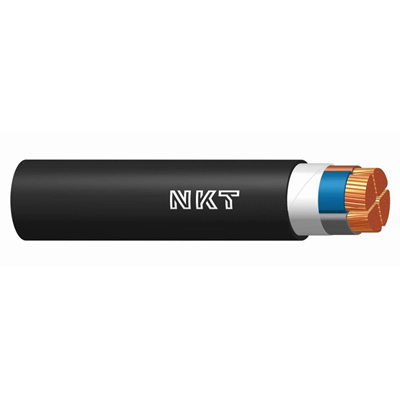

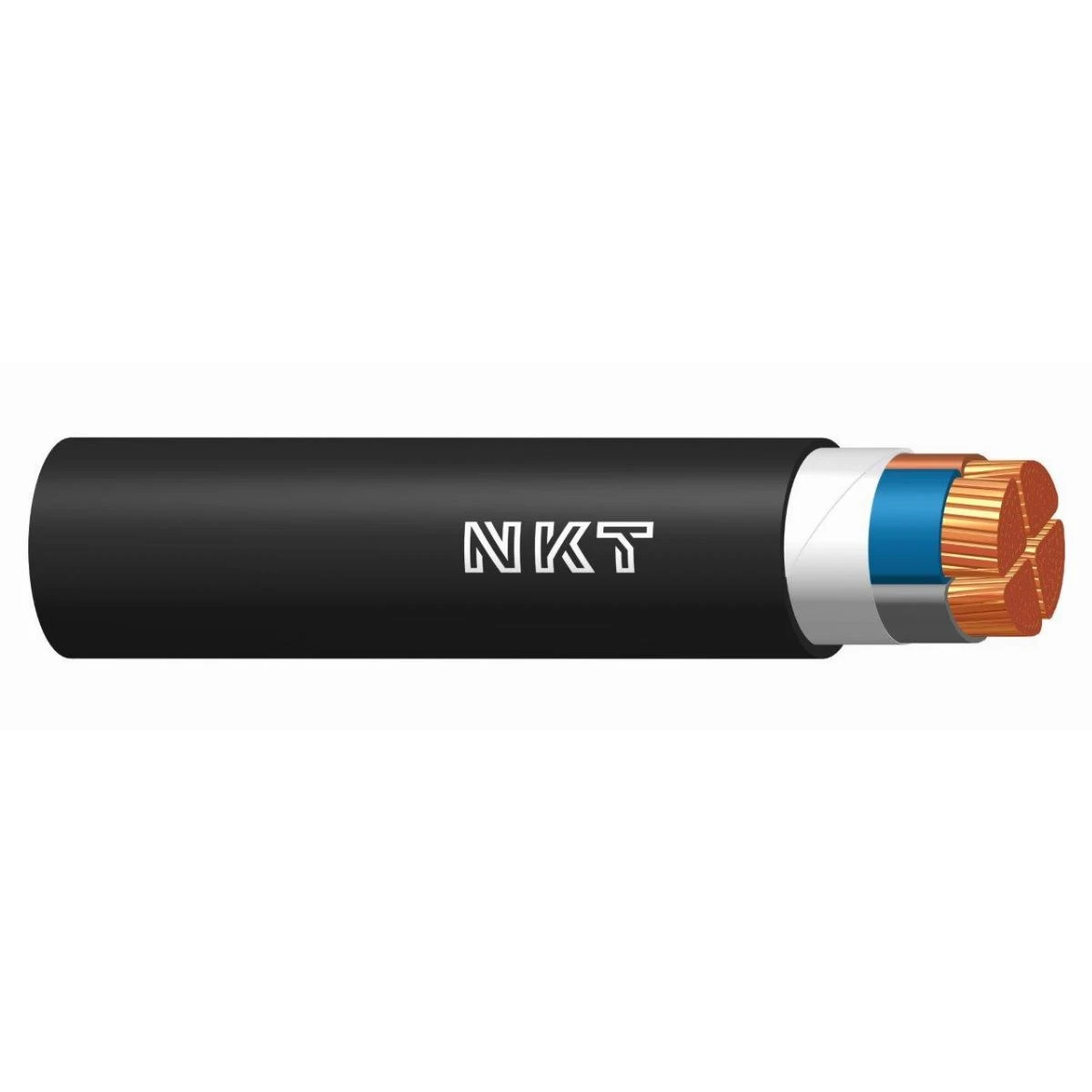

Power cable YKXS 4x16 RE 0.6/1kV
Power cable YKXS 4x16 RE 0.6/1kV

Click on the photo to enlarge

Manufacturer: NKT
Number of veins: 4
Color: Blue | Brown | Black | Gray
Rated voltage [V]: 600/1000
See full description
Large-size product
Price:
9,41 €
gross / m.
(including VAT 23%)
Delivery in 3h
Accessible 555 m.
Pickup in 1h
Quantity m.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Files to download

Product description

Power cable voltage 0.6/1 kV from the manufacturer NKT S.A. The product catalog number is 112200015.  ;Power cable (K) with copper conductors in polyethylene insulation (XS) and PVC sheath (Y). Intended for supplying low-voltage receivers with electricity, used for permanent installation indoors, directly in the ground, in ducts cables, on constructions, in places with little exposure to mechanical damage.

  • RE - single-wire round conductors class 1.
  • 4-core: blue, brown, black, gray .

Technical data

  • Number of veins
    4
  • Rated voltage [V]
    600/1000
  • Cable outer diameter [mm]
    19.7
  • Vein class
    1
  • Color
    Blue Brown Black Gray
  • Core cross-section [mm²]
    16
  • Insulation material
    Cross-linked polyethylene
  • PKWIU
    27.32.13.0

Other technical data

  • Conductor material
    Copper
  • Nominal cross section conductor
    16 mm²
  • Shape of conductor
    Round
  • Material core insulation
    Polyolefin
  • Core identification
    Colour
  • Fibre optic elements
    No
  • Inner semi-conducting layer
    No
  • Screen
    No
  • Lead sheath
    No
  • Concentric conductor
    None
  • Material outer sheath
    Polyvinyl chloride (PVC)
  • Colour outer sheath
    Black
  • Longitudinal water blocking conductors
    No
  • Reaction-to-fire according to EN 13501-6: Class
    Eca
  • Reaction-to-fire according to EN 13501-6: Flaming droplets/particles
    None
  • Halogen free according to EN 60754-1/2
    No
  • Flame retardant
    According to IEC/EN 60332-1-2
  • Low smoke according to EN IEC 61034-2
    No
  • Wytrzymałość (trwałość) izolacji
    No
  • Olejoodporny zgodnie z IEC 60811-404
    No
  • Max. conductor temperature
    90 °C
  • Nominal voltage U0
    0.6 kV
  • Conductor surface
    Bare
  • Conductor category
    Class 1 = solid
  • Number of cores
    4
  • Specification core insulation
    Polyethylene (PE)
  • Laminated sheath
    No
  • Żyła ochronna
    No
  • Outer semi-conducting layer
    No
  • Drain wire
    No
  • Number of pilot/reduced conductors
    0
  • Armouring
    No
  • Specification material outer sheath
    Other
  • Conductive coating
    No
  • Longitudinal water blocking screen
    No
  • Reaction-to-fire according to EN 13501-6: Smoke production
    None
  • Reaction-to-fire according to EN 13501-6: Acidity
    None
  • Halogen free according to EN IEC 60754-2
    No
  • Low smoke (according to EN 61034-2)
    No
  • Trwałość izolacji zgodnie z IEC 60331
    No
  • Circuit integrity
    No
  • Outer diameter approx.
    18.0 mm
  • Permitted cable outer temperature after assembling without vibration
    -35 ... 90 °C
  • Nominal voltage U
    1 kV

Dane CPR (Construction Products Regulation)

  • Numer notyfikowanego laboratorium badawczego CE:
    1014
  • Numer referencyjny DoP (DWU)
    DOP000081_PL, Revision 3
  • Oznaczenie produktu
    YKXS 4x16 RE
  • Nazwa producenta:
    NKT s.r.o. Kladno, ul. Průmyslová 1130, 272 01, Kladno
  • Reakcja na ogień:
    Eca
  • Zharmonizowana specyfikacja techniczna (norma):
    EN 50575
  • Zastosowanie:
    Do przesyłu energii elektrycznej do zastosowania w obiektach objętych uregulowaniami odnośnie reakcji wyrobów budowlanych na oddziaływanie ognia.

Manufacturer details

  • Manufacturer
    NKT s.r.o
  • Address
    CZ 27201 Kladno Prumyslova 1130 Czechy
