DOMNET U/UTP Category 6 PVC cable DOM6UTP

Name: DOMNET U/UTP Category 6 PVC cable
Brand: SECURITYNET
SKU: KRD006CICQ
Price: 0.44 PLN
Availability: InStock

Lokaler Index:

KRD006CICQ

Katalognummer:

DOM6UTP

EAN-Code:

5904169100029

Klicken Sie auf das Foto, um es zu vergrößern

Hersteller: SECURITYNET

Number of veins: 8

Category: 6e

Color: Gray

Siehe vollständige Beschreibung

Preis:

0,44 €

gross / lfm.

(inklusive MwSt 23%)

Zugänglich 28351 lfm.

Menge lfm.

(mehrere:

)

Zur Angebotsanfrage hinzufügen

Zur Zwischenablage hinzufügen

Drucken

Fragen Sie nach dem Produkt

Produktbeschreibung Technische Daten Hersteller-Details Großpackungen Dateien zum Herunterladen

Produktbeschreibung

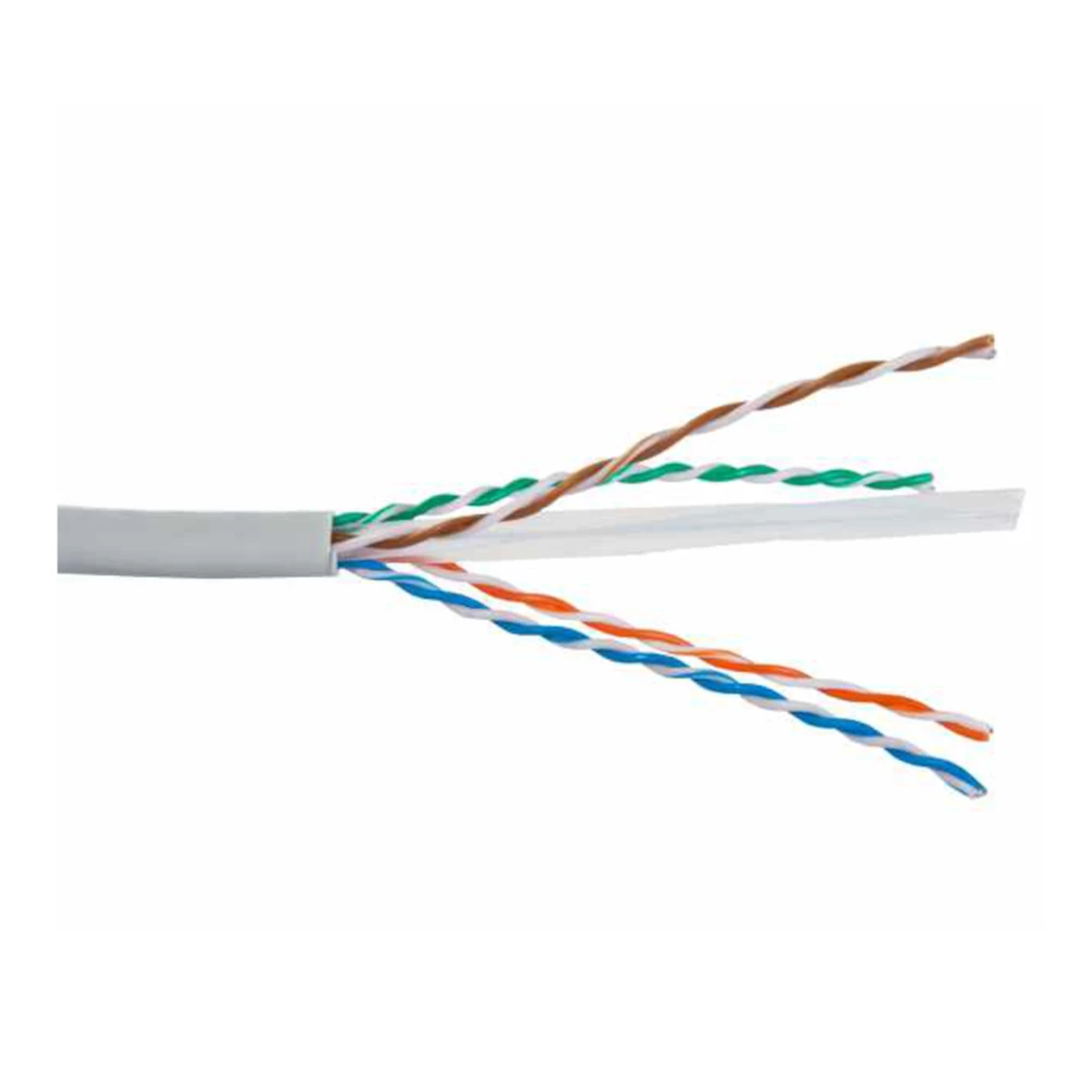

DOMNET U/UTP cat. 6 PVC cable - installation twisted pair cable designed for making connections between distribution points of multimedia signals and user connection sockets ;w, not exposed to electromagnetic interference. It has a PVCD outer coating, for internal use. Made of high quality copper. Meets the requirements of category 6 UTP. The cable meets the requirements of the standard:

ISO /IEC 11801,
EN 50173,
EIA/TIA 568-B.2.

UTP twisted pair cable (unshielded) ideal for:

installations in computer networks,
installations in telephone networks,
CCTV systems,

Technische Daten

Number of veins

8
Color

Gray
Working temperature [°C]

from -15 to +60
Vein class

1

Category

6e
Cable diameter [mm]

8
Insulation material

Polyvinyl chloride
PKWIU

27.32.13.0

Weitere technische Daten

Conductor material

Copper
AWG size

23
Number of cores

8
Material core insulation

Other
Core identification according to HD 308 S2

Yes
Screen over stranding element

None
Screen over stranding

None
Radial water blocking cable

Yes
Approved type of underground installation

Other
Material outer sheath

Polyvinyl chloride (PVC)
Colour outer sheath

Grey
Material armouring

Other
Reaction-to-fire according to EN 13501-6: Class

Eca
Reaction-to-fire according to EN 13501-6: Flaming droplets/particles

None
Halogen free according to EN 60754-1/2

No
Flame retardant

According to IEC/EN 60332-1-2
Low smoke according to EN IEC 61034-2

No
Olejoodporny zgodnie z IEC 60811-404

No
Circuit integrity

None
Min. permitted bending radius, moving application with forced guidance

60 mm
Min. permitted bending radius, stationary application/permanent installation

48 mm
Permitted cable outer temperature after assembling without vibration

0 ... 60 °C
NVP value

69 %
Certified for shipboard application

No
Suitable as computer data cable

Yes
Weight

41

Conductor surface

Bare
Conductor category

Class 1 = solid
Stranding element

Pairs
Specification core insulation

Polyethylene (PE)
Core identification

Colour
Stranding

None
Longitudinal water blocking cable

No
Suitable for underground installation

No
Protective sheath

Polyvinyl chloride (PVC)
Specification material outer sheath

Other
Armouring/reinforcement

None
Cable geometry

Round
Reaction-to-fire according to EN 13501-6: Smoke production

None
Reaction-to-fire according to EN 13501-6: Acidity

None
Halogen free according to EN IEC 60754-2

No
Low smoke (according to EN 61034-2)

No
Oil resistant according to EN IEC 60811-404

No
Trwałość izolacji zgodnie z IEC 60331

Yes
Outer diameter approx.

6 mm
Min. permitted bending radius, moving application/free movement

60 mm
Permitted cable outer temperature during assembling/handling

-20 ... 60 °C
Category

6
UV resistant

No
Suitable as telephone cable

Yes
Suitable as signalling cable

Yes

Hersteller-Details

Hersteller

C&C Partners Sp. z o.o.
Adresse

64-100 Leszno 17 Stycznia 119,121
Steueridentifikationsnummer

6970013242

Großpackungen

Eine Art Paket	Karton	Paleta	Karton	Karton	Paleta	Karton
Menge	1000 lfm.	10980000 lfm.	305 lfm.	1000 lfm.	10980000 lfm.	305 lfm.
Gewicht (kg)	11,930	429,480	-	11,930	429,480	-
Breite (m)	0,400	1,340	-	0,400	1,340	-
Länge (m)	0,400	1,240	-	0,400	1,240	-
Tiefe (m)	0,230	0,970	-	0,230	0,970	-
