DOMNET F/UTP data cable cat. 5e PVC CU, 305 meters DOM5EFTP
Índice local:
KRE007CICQ
Número de catálogo:
DOM5EFTP
Código EAN:
5904169100005
Envío en palé
Precio:
1,77 zł
gross / metro
(IVA incluido 23%)
Entrega en 3h
Recogida en 1h
Cantidad metro
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto

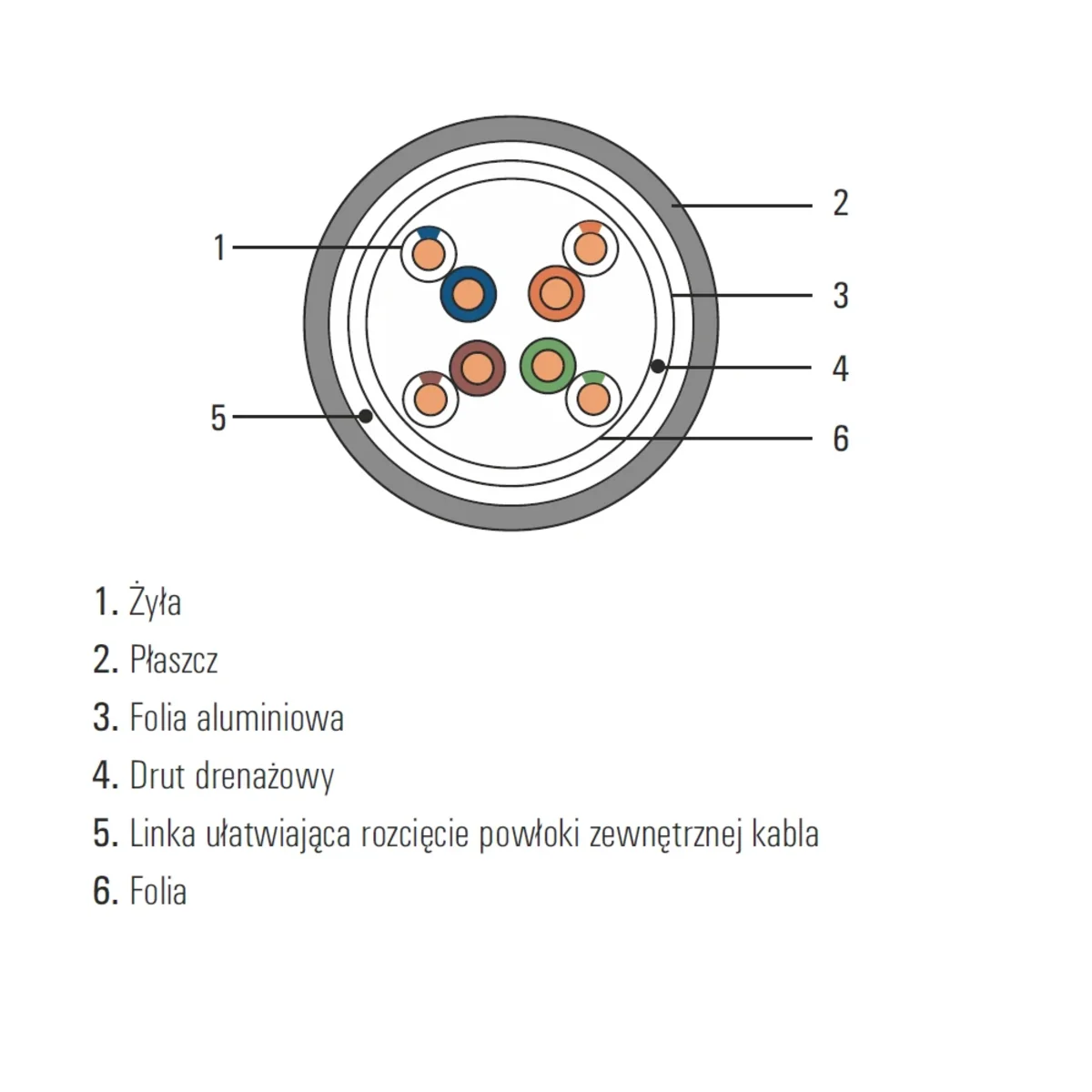

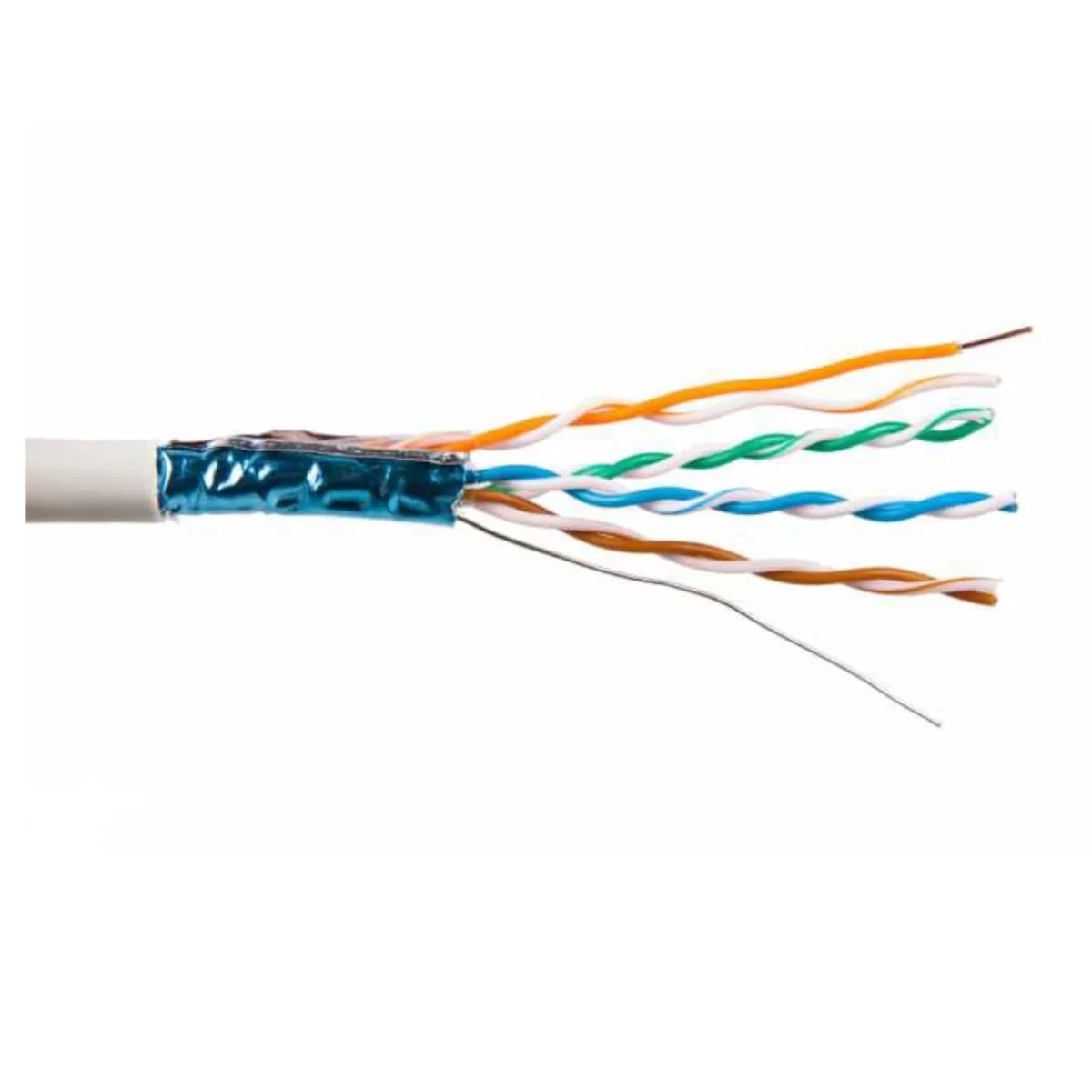

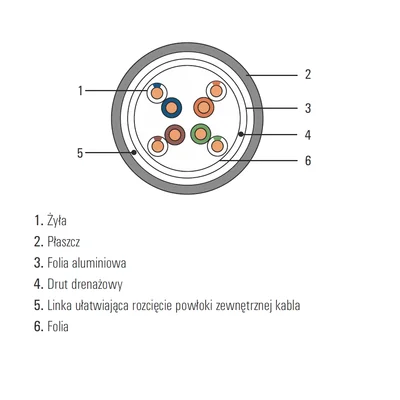

Installation twisted cables DomNET have been created for connections between distribution points multimedia signals connection sockets user FTP (shielded) cable is of high quality copper, and sheath outer cable is made of PVC.
The twisted cable (shielded)perfectly suitable for:
- < li>installations in computer networks,
- telephone installations,
- CCTV systems.
The use of a screen minimizes the risk of interference.
Standards met:
- ISO/IEC 11801,
- EN 50173,
- EIA/TIA 568-B.2.
Datos técnicos
-
InsulationHDPE 1.02mm
-
ColorWhite
-
Insulation materialPolyvinyl chloride
-
Category5e
-
Cable diameter [mm]5
-
PKWIU27.32.13.0
Otros datos técnicos
-
Conductor materialCopper
-
AWG size24
-
Number of cores8
-
Material core insulationOther
-
Core identification according to HD 308 S2Yes
-
Screen over stranding elementNone
-
Screen over strandingNone
-
Radial water blocking cableNo
-
Approved type of underground installationOther
-
Material outer sheathPolyvinyl chloride (PVC)
-
Armouring/reinforcementNone
-
Cable geometryRound
-
Halogen free according to EN IEC 60754-2No
-
Reaction-to-fire according to EN 13501-6: Smoke productionNone
-
Reaction-to-fire according to EN 13501-6: AcidityNone
-
Outer diameter approx.6.2 mm
-
Min. permitted bending radius, moving application/free movement62 mm
-
Permitted cable outer temperature during assembling/handling-20 ... 60 °C
-
Category5E
-
Certified for shipboard applicationNo
-
Suitable as computer data cableYes
-
Weight37 kg/km
-
Conductor surfaceBare
-
Conductor categoryClass 1 = solid
-
Stranding elementPairs
-
Specification core insulationOther
-
Core identificationColour
-
StrandingBundle
-
Longitudinal water blocking cableNo
-
Suitable for underground installationNo
-
Protective sheathPolyvinyl chloride (PVC)
-
Colour outer sheathWhite
-
Material armouringOther
-
Low smoke according to EN IEC 61034-2No
-
Reaction-to-fire according to EN 13501-6: ClassEca
-
Reaction-to-fire according to EN 13501-6: Flaming droplets/particlesNone
-
Oil resistant according to EN IEC 60811-404No
-
Min. permitted bending radius, moving application with forced guidance62 mm
-
Min. permitted bending radius, stationary application/permanent installation50 mm
-
Permitted cable outer temperature after assembling without vibration0 ... 60 °C
-
NVP value71 %
-
Suitable as telephone cableYes
-
Suitable as signalling cableYes
Detalles del fabricante
-
FabricanteC&C Partners Sp. z o.o.
-
Dirección64-100 Leszno 17 Stycznia 119, 121 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Karton | Paleta | Paleta | Karton |
| Cantidad | 305000 metro | 9150000 metro | 10980000 metro | 305 metro |
| Peso (kg) | 11,400 | 365,000 | 434,000 | - |
| Ancho (m) | 0,400 | 0,970 | 970,000 | - |
| Longitud (m) | 0,400 | 1,240 | 1240,000 | - |
| Profundidad (m) | 0,230 | 1,160 | 1340,000 | - |
