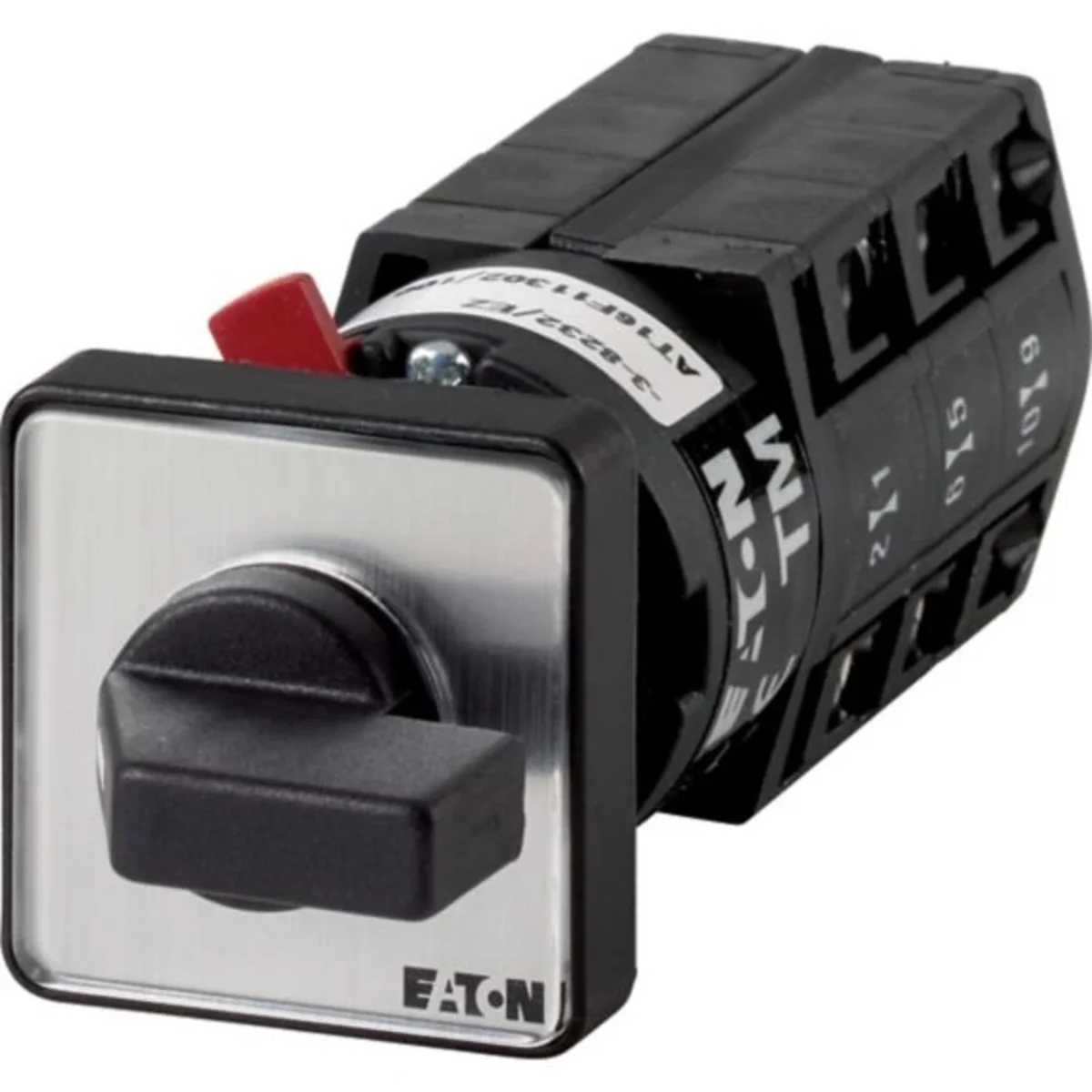

TM-3-15433/EZ Power switch, Contacts: 6, 10 A, nameplate: HAND-0-AUTO, 60 °, latching, 22.3 mm panel mount, black knob, non-locking 045490

Name: TM-3-15433/EZ Power switch, Contacts: 6, 10 A, nameplate: HAND-0-AUTO, 60 °, latching, 22.3 mm panel mount, black knob, non-locking
Brand: EATON
SKU: ALK075MOEL
Price: 391.19 PLN
Availability: BackOrder

local index:

ALK075MOEL

Catalog number:

045490

EAN code:

4015080454908

TM-3-15433/EZ Power switch, Contacts: 6, 10 A, nameplate: HAND-0-AUTO, 60 °, latching, 22.3 mm panel mount, black knob, non-locking

Click on the photo to enlarge

Manufacturer: EATON

Price:

391,19 zł

gross / pcs.

(including VAT 23%)

up to 4 weeks

On request

Quantity pcs.

(multiplicity:

)

Add to inquiry

Add to clipboard

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Type of switch

Reverser
Max. rated operation voltage Ue AC

500 V
Number of switch positions

3
With retraction in 0-position

No
Width in number of modular spacings

0
Suitable for front mounting

Yes
Suitable for intermediate mounting

No
Type of control element

Toggle
Degree of protection (IP), front side

IP65

Number of poles

3
Rated permanent current Iu

10 A
With zero (off) position

Yes
Device construction

Built-in device
Suitable for floor mounting

No
Suitable for distribution board installation

No
Complete device in housing

No
Front shield size

48x48 mm
Degree of protection (NEMA), front side

12

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,056	0,096
Volume (m3)	0,000	0,000
Width (m)	0,032	0,040
Length (m)	0,100	0,104
Depth (m)	0,032	0,040
