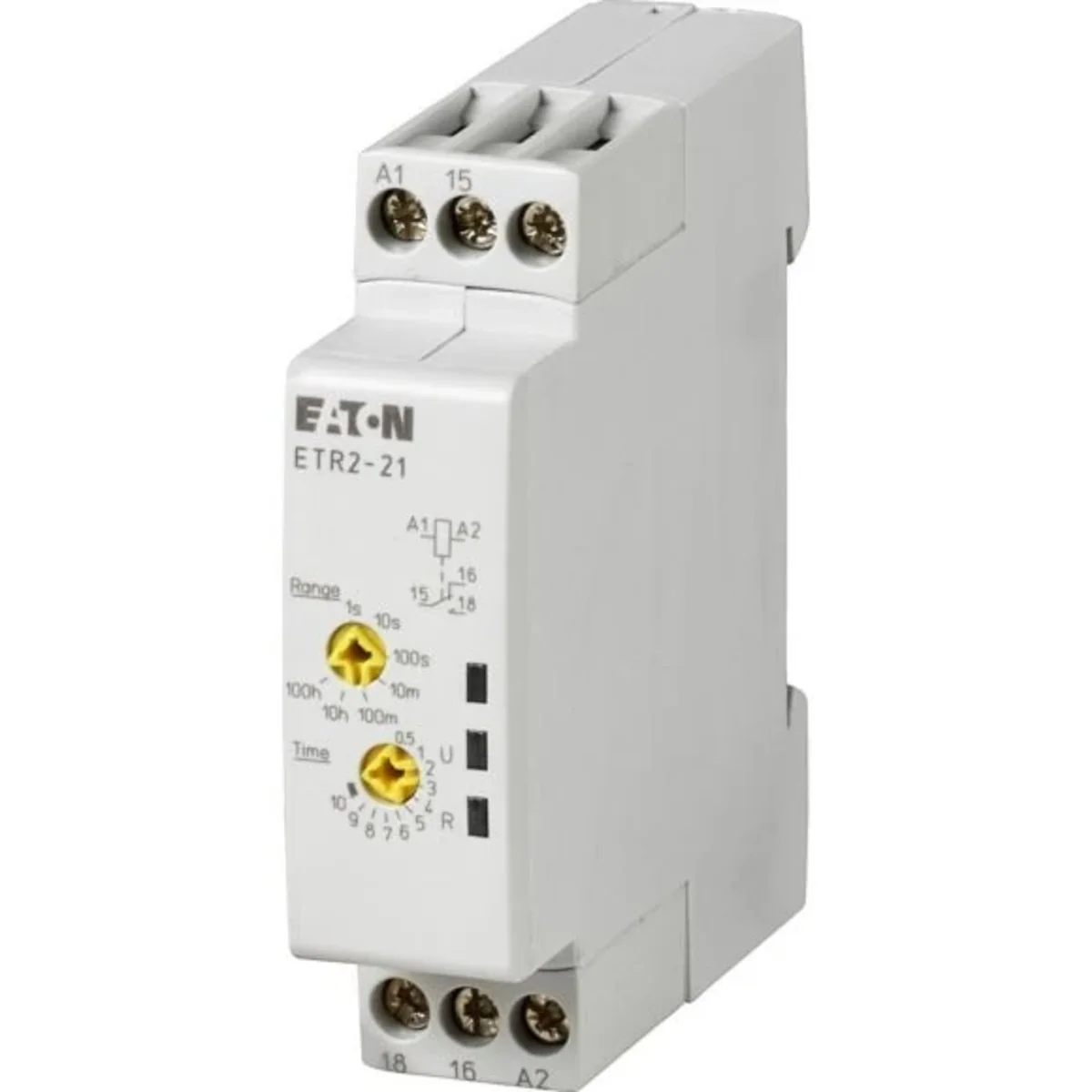

Timing relay, ETR2-21 262687
local index:
APC046MOEL
Catalog No:
262687
EAN code:
4015082626877
Manufacturer:
EATON
Thermal current [A]: 6
Time range [s]: 0.05-360000
Rated operational current NO contact 230 V [A]: 3
Price:
148,07 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
ETR2 electronic time relays, 17.5 mm wide, 1 changeover contact - impulse switching.
Technical data
-
Thermal current [A]6
-
Rated operational current NO contact 230 V [A]3
-
Time range [s]0.05-360000
-
Operating voltage range [V]24-230
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationNo
-
Function floating contact on de-energizationNo
-
Function pulse shapingNo
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Time range0.05 ... 360000 s
-
Number of outputs, undelayed, normally open contact0
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact0
-
With semiconductor outputNo
-
Suitable for front mountingNo
-
Height70 mm
-
Function delay-on energizationNo
-
Function floating contact on energizationYes
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableNo
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 240 V
-
Nominal current3 A
-
Number of outputs, undelayed, normally closed contact0
-
Number of outputs, undelayed, change-over contact1
-
Number of outputs, delayed, normally open contact0
-
Outputs, reversible delayed/undelayedNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Width17.5 mm
-
Depth63 mm
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 0,062 |
| Volume (m3) | 0,000 |
| Width (m) | 0,065 |
| Length (m) | 0,090 |
| Depth (m) | 0,020 |
