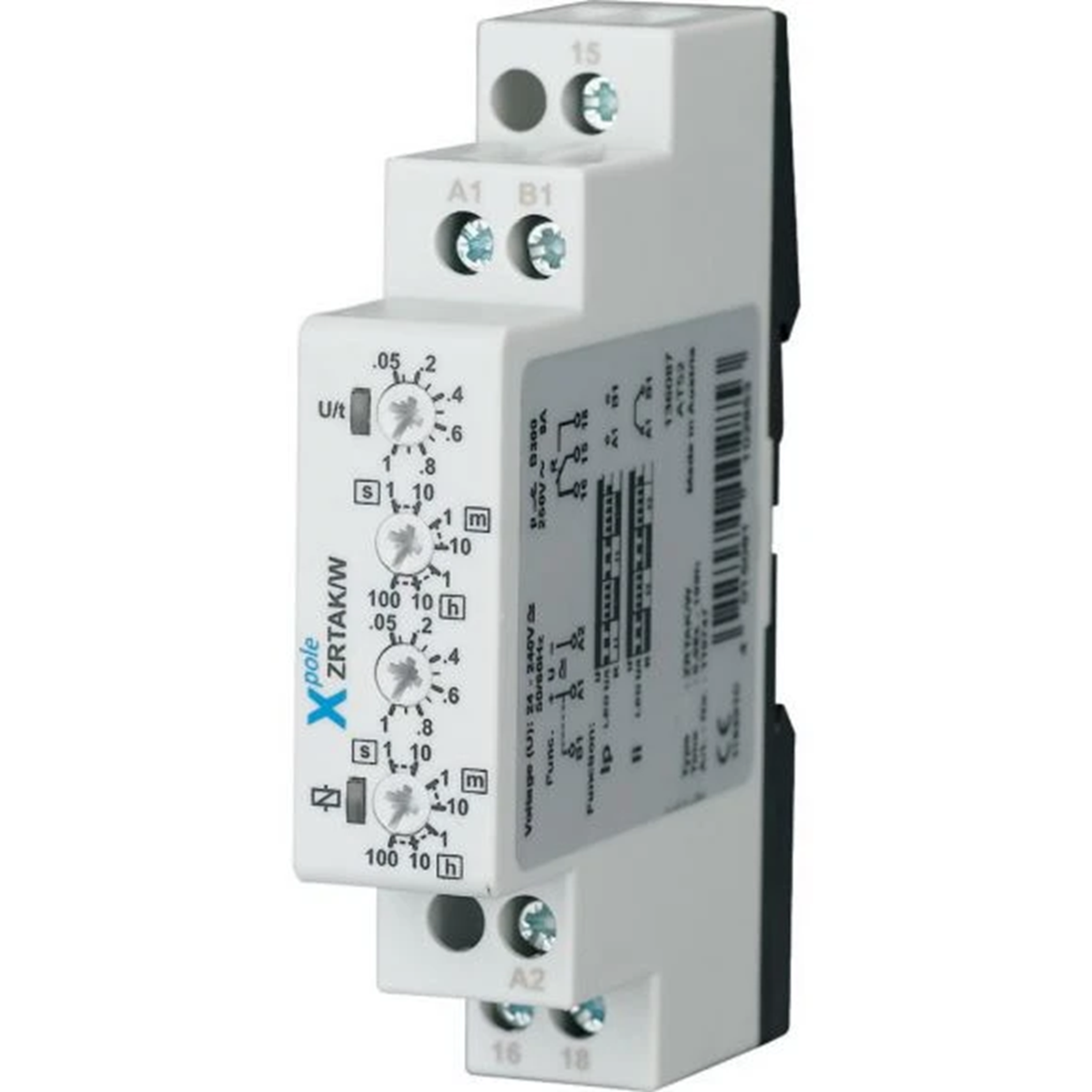

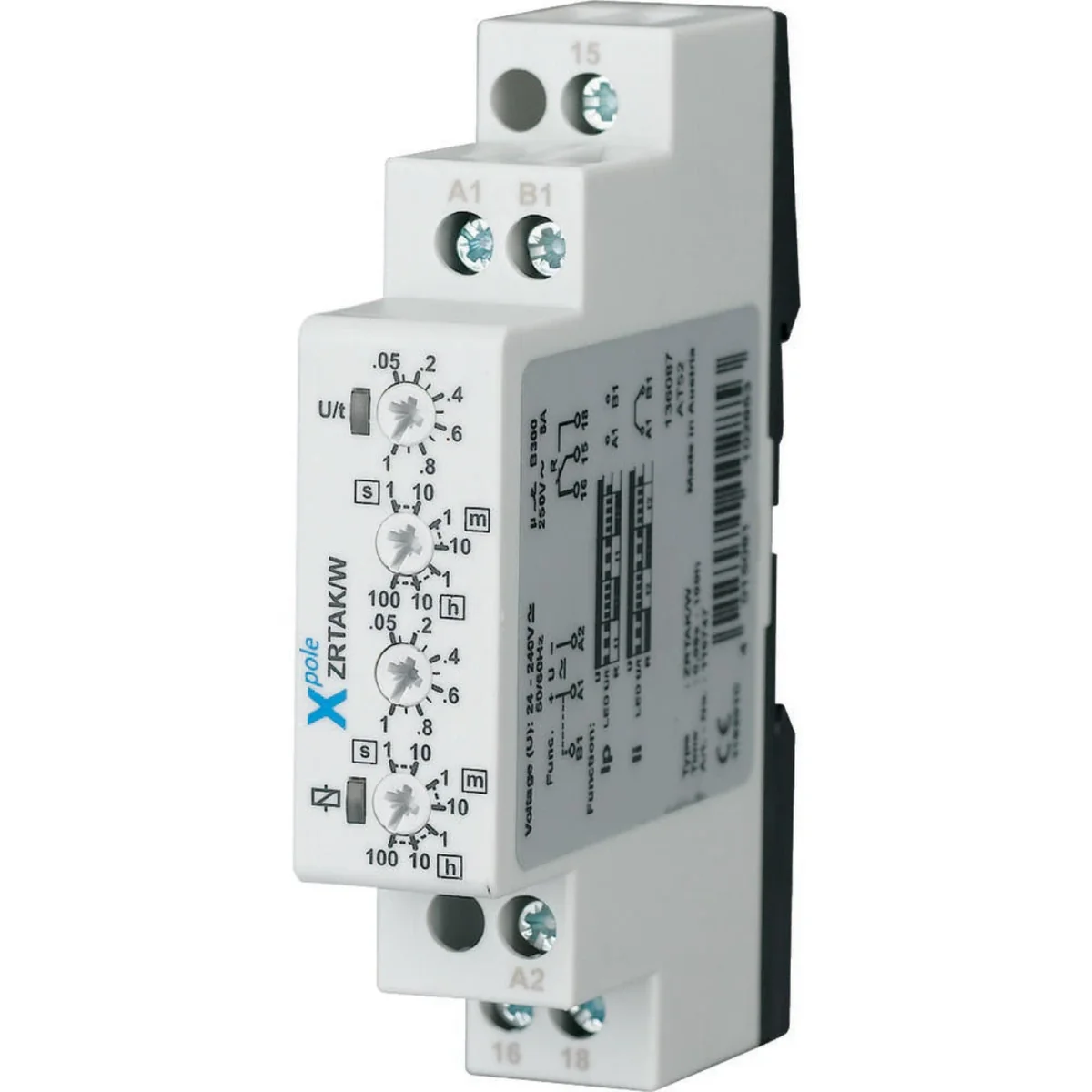

Time relay, ZRTAK/W 110747

Name: Time relay, ZRTAK/W
Brand: EATON
SKU: APC114MOEL
Price: 236.47 PLN

local index:

APC114MOEL

Catalog No:

110747

EAN code:

4015081102853

Click on the photo to enlarge

Manufacturer: EATON

Additional features: lp, li

See full description

Price:

236,47 €

gross / pcs.

(including VAT 23%)

Delivery in 3h

up to 2 weeks (business days)

Pickup in 1h

Quantity pcs.

(multiplicity:

2

)

Add to clipboard

Print

Ask about the product

Product description Technical data Manufacturer details Bulk packaging Files to download

Product description

Time relays ZR.
• ZRTAK/W
lp Pulsating with setting of ON and OFF times. – start from the off state.
li Pulsating with the setting of times on and off. – start from on state.

Technical data

Additional features

lp, li

Other technical data

Type of electric connection

Screw connection
Function delay on de-energization

No
Function floating contact on de-energization

No
Function pulse shaping

No
Function flashing, starting with pulse, fixed time

No
Clock function, starting with pulse, variable

Yes
Remote operation possible

No
Pluggable on auxiliary contact block

No
Rated control supply voltage AC 60 Hz

24 ... 240 V
Voltage type for actuating

AC/DC
Time range

0.05 ... 360000 s
Number of outputs, undelayed, normally open contact

0
Number of outputs, delayed, normally closed contact

0
Number of outputs, delayed, change-over contact

1
With semiconductor output

No
Suitable for front mounting

Yes
Height

87 mm

Function delay-on energization

No
Function floating contact on energization

No
Function star-delta

No
Function flashing, starting with pause, fixed time

No
Clock function, starting with pause, variable

Yes
Z gniazdem wtykowym

No
Suitable as remote control

No
Rated control supply voltage AC 50 Hz

24 ... 240 V
Rated control supply voltage DC

24 ... 240 V
Nominal current

8 A
Number of outputs, undelayed, normally closed contact

0
Number of outputs, undelayed, change-over contact

0
Number of outputs, delayed, normally open contact

0
Outputs, reversible delayed/undelayed

No
Suitable for DIN rail (top hat rail) mounting

Yes
Width

17.5 mm
Depth

65 mm

Manufacturer details

Manufacturer

EATON Electric Sp. z o.o.
Address

80-299 Gdańsk ul. Galaktyczna 30
Tax identification number

5841022327

Bulk packaging

A kind of package	Skrzynia	Karton	Karton
Quantity	1 pcs.	2 pcs.	120 pcs.
Weight (kg)	0,082	0,164	8,220
Volume (m3)	0,000	0,000	0,017
Width (m)	0,020	0,092	0,385
Length (m)	0,067	0,037	0,192
Depth (m)	0,089	0,075	0,230

Files to download

03_ZRTAK.pdf
