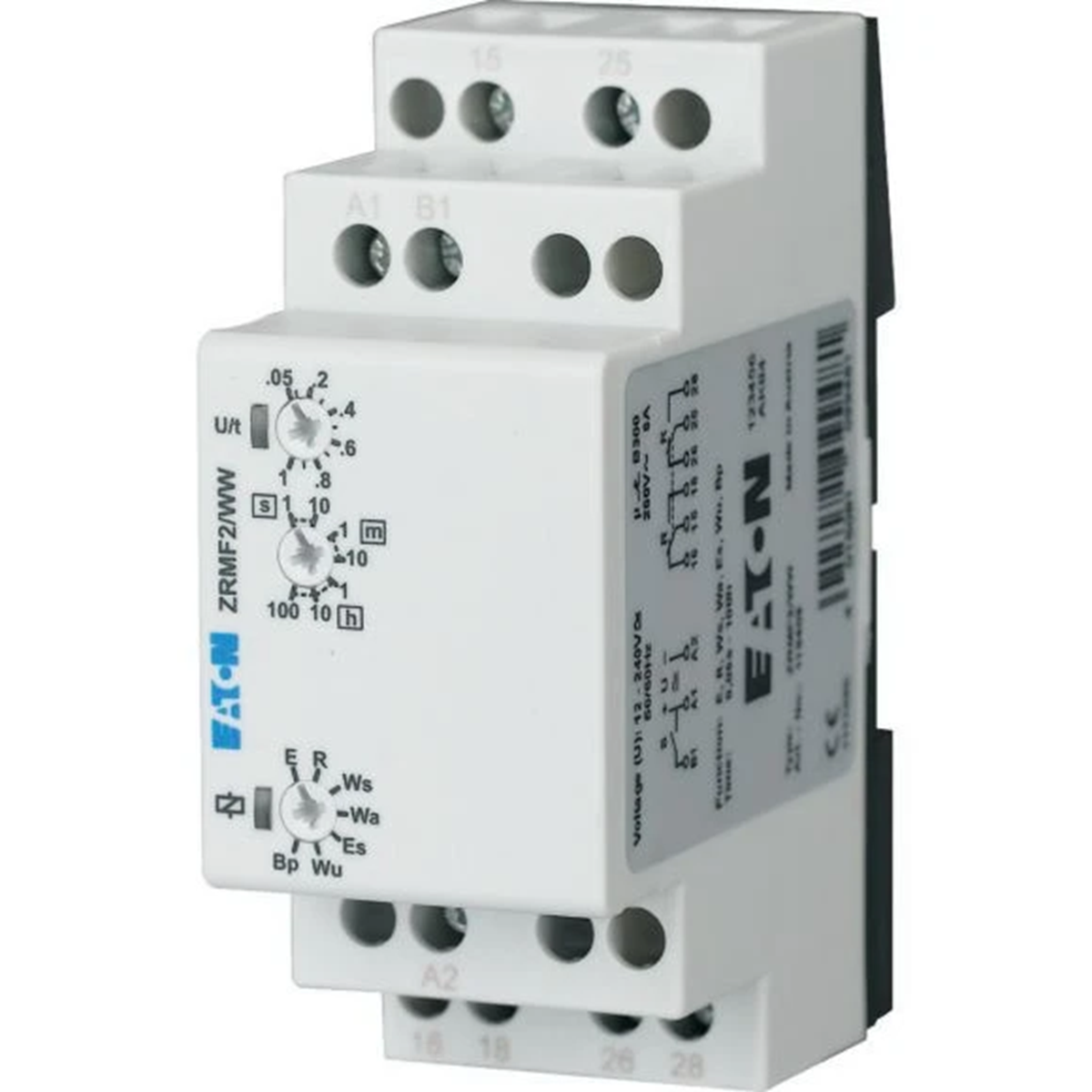

Time relay, ZRMF2/WW 110408
local index:
APC016MOEL
Catalog No:
110408
EAN code:
4015081099481
Manufacturer:
EATON
Additional features: E, R, Ws, Wa, Es, Wu, Bp
Price:
159,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Time relays ZR.
• ZRMF1/W, ZRMF2/WW
E delayed on
R delayed off
Ws Pulse formation – start on rising edge
Wa Impulse formation – start on falling edge
Es Delayed on – signal control
Wu Pulse formation – voltage controlled rising edge start
Bp Pulsing – start from off state
• ZRMF1/W, ZRMF2/WW
E delayed on
R delayed off
Ws Pulse formation – start on rising edge
Wa Impulse formation – start on falling edge
Es Delayed on – signal control
Wu Pulse formation – voltage controlled rising edge start
Bp Pulsing – start from off state
Technical data
-
Additional featuresE, R, Ws, Wa, Es, Wu, Bp
Other technical data
-
Type of electric connectionScrew connection
-
Function delay on de-energizationYes
-
Function floating contact on de-energizationYes
-
Function pulse shapingYes
-
Function flashing, starting with pulse, fixed timeNo
-
Clock function, starting with pulse, variableNo
-
Remote operation possibleNo
-
Pluggable on auxiliary contact blockNo
-
Rated control supply voltage AC 60 Hz24 ... 240 V
-
Voltage type for actuatingAC/DC
-
Time range0.05 ... 360000 s
-
Number of outputs, undelayed, normally open contact0
-
Number of outputs, delayed, normally closed contact0
-
Number of outputs, delayed, change-over contact2
-
With semiconductor outputNo
-
Suitable for front mountingYes
-
Height87 mm
-
Function delay-on energizationYes
-
Function floating contact on energizationYes
-
Function star-deltaNo
-
Function flashing, starting with pause, fixed timeNo
-
Clock function, starting with pause, variableNo
-
Z gniazdem wtykowymNo
-
Suitable as remote controlNo
-
Rated control supply voltage AC 50 Hz24 ... 240 V
-
Rated control supply voltage DC24 ... 240 V
-
Nominal current8 A
-
Number of outputs, undelayed, normally closed contact0
-
Number of outputs, undelayed, change-over contact0
-
Number of outputs, delayed, normally open contact0
-
Outputs, reversible delayed/undelayedNo
-
Suitable for DIN rail (top hat rail) mountingYes
-
Width35 mm
-
Depth65 mm
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | Karton | |
| Quantity | 1 pcs. | 1 pcs. | 60 pcs. |
| Weight (kg) | 0,100 | 0,115 | 6,700 |
| Volume (m3) | 0,000 | 0,000 | 0,017 |
| Width (m) | 0,035 | 0,092 | 0,385 |
| Length (m) | 0,065 | 0,037 | 0,192 |
| Depth (m) | 0,087 | 0,075 | 0,230 |
