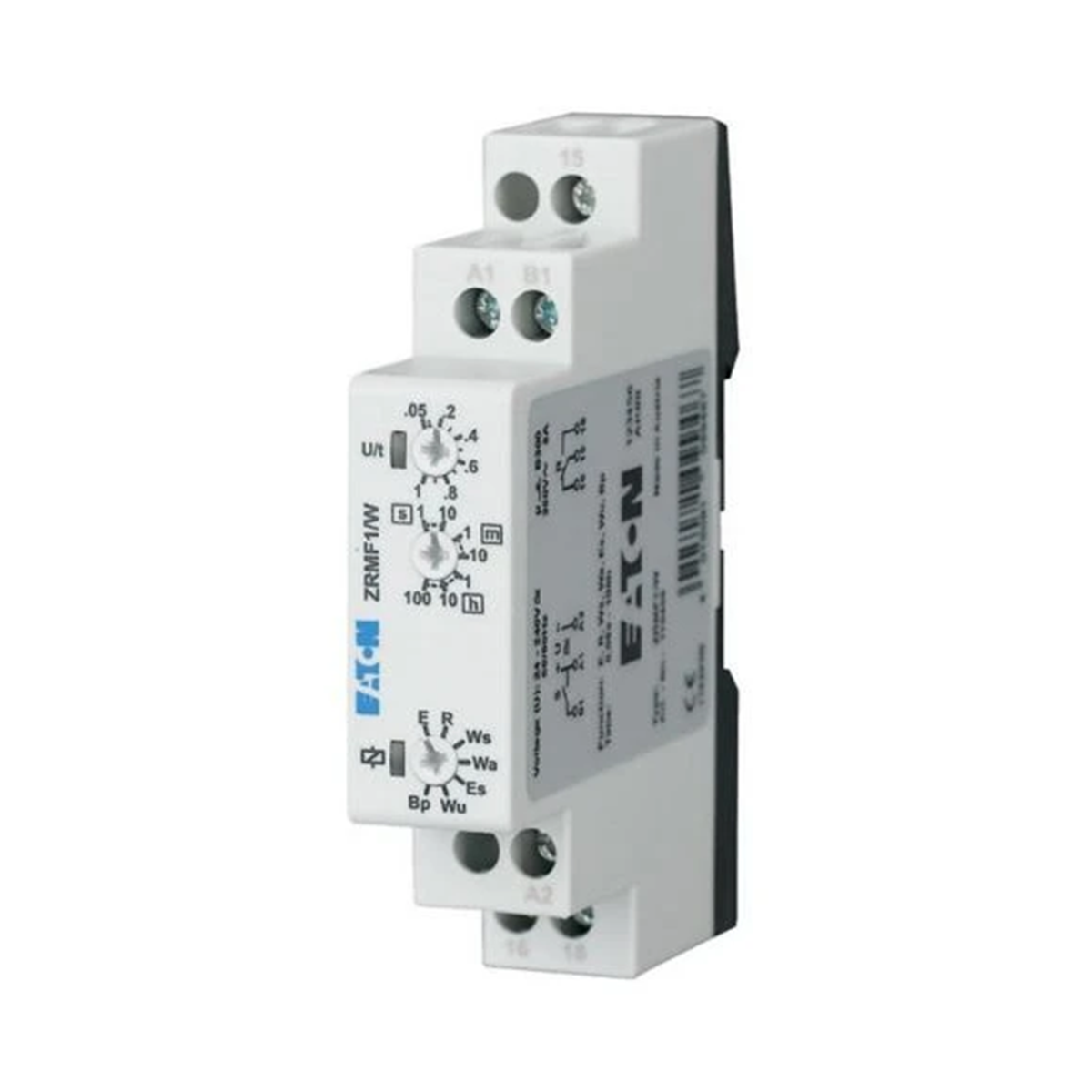

Time relay, ZRMF1/W 110406

local index:
APC032MOEL
Catalog No:
110406
EAN code:
4015081099467
Manufacturer: EATON
Additional features: E, R, Ws, Wa, Es, Wu, Bp
Price:
123,38 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
2
)
Add to clipboard
Print

Product description

Time relays ZR.
• ZRMF1/W, ZRMF2/WW
E delayed on
R delayed off
Ws Pulse formation – start on rising edge
Wa Impulse formation – start on falling edge
Es Delayed on – signal control
Wu Pulse formation – voltage-controlled rising edge start
Bp Pulsing – start from off state

Technical data

  • Additional features
    E, R, Ws, Wa, Es, Wu, Bp

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    Yes
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    24 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Time range
    0.05 ... 360000 s
  • Number of outputs, undelayed, normally open contact
    0
  • Number of outputs, delayed, normally closed contact
    0
  • Number of outputs, delayed, change-over contact
    1
  • With semiconductor output
    No
  • Suitable for front mounting
    Yes
  • Height
    87 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    24 ... 240 V
  • Rated control supply voltage DC
    24 ... 240 V
  • Nominal current
    8 A
  • Number of outputs, undelayed, normally closed contact
    0
  • Number of outputs, undelayed, change-over contact
    0
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Suitable for DIN rail (top hat rail) mounting
    Yes
  • Width
    17.5 mm
  • Depth
    65 mm

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 2 pcs. 120 pcs.
Weight (kg) 0,084 0,168 8,420
Volume (m3) 0,000 0,000 0,017
Width (m) 0,020 0,092 0,385
Length (m) 0,067 0,037 0,192
Depth (m) 0,089 0,075 0,230
