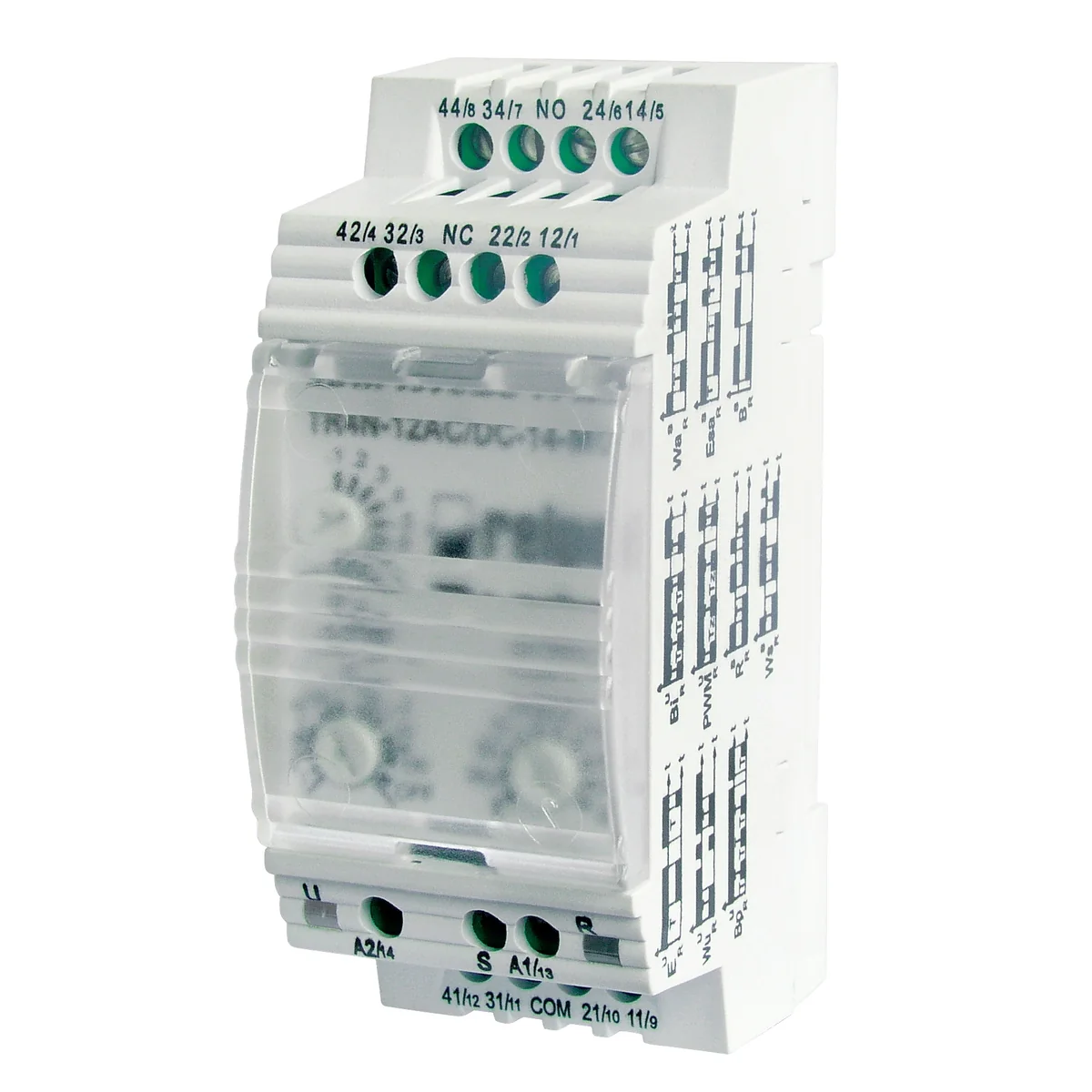

Time relay TR4N-24AC/DC-14-M 856101

Time relay, multifunctional: 4P - four changeover contacts. Functions: E, Wu, Bi, Bp, PWM, R, Ws, Wa, Esa, B, ON/OFF - permanent on/off. Input - terminals: A1 - A2 - any polarity; external control contact S - terminals: S - A1, supply voltage Un - 24 V AC/DC. Output: 4P contacts - terminals: 11(9)-12(1)-14(5), 21(10)-22(2)-24(6), 31(11)-32(3)-34(7) ), 41(12)-42(4)-44(8), AC1 - 6 A / 250 V, DC1 - 6 A / 24 V. Dimensions: 90 x 36 x 55 mm. Mounting on a 35 mm rail. Compact housing. IP 20.
