Time relay, single-function TR-ES2P-UNI 2613059

local index:
APC004RELP
Catalog No:
2613059
EAN code:
5900005014147

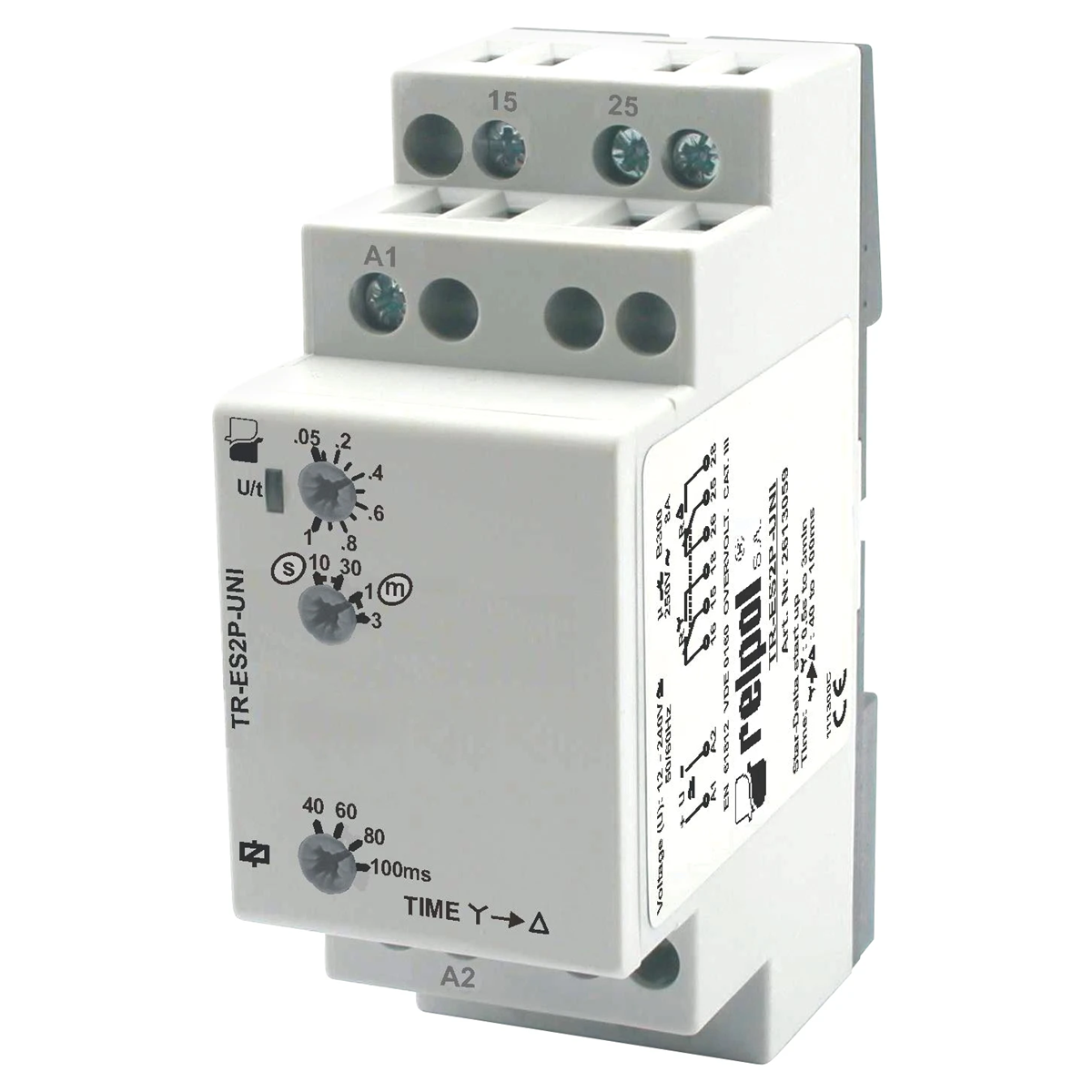

Time relay, single-function TR-ES2P-UNI
Time relay, single-function TR-ES2P-UNI

Click on the photo to enlarge

Manufacturer: RELPOL
Level of security: IP20
See full description
Price:
117,71 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Product description Technical data Manufacturer details

Product description

Time relay, single-function: 2P - two changeover contacts. Function: S - star-delta start with independent regulation of times T1 and T2. Input - terminals: (+)A1 - (-)A2, supply voltage Un - 12...240 V AC/DC. Output: 2P contacts - terminals: 15-16-18, 25-26-28, AC1 - 8 A / 250 V. Dimensions: 87 x 35 x 65 mm. Mounting on a 35 mm rail. Housing - installation module. IP 20.

Technical data

  • Level of security
    IP20

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    No
  • Function floating contact on de-energization
    No
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    12 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Width
    35 mm
  • Depth
    87 mm
  • Function delay-on energization
    No
  • Function floating contact on energization
    No
  • Function star-delta
    Yes
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    12 ... 240 V
  • Rated control supply voltage DC
    12 ... 240 V
  • Time range
    0 ... 0 s
  • Number of outputs, delayed, change-over contact
    2
  • With semiconductor output
    No
  • Height
    65 mm
