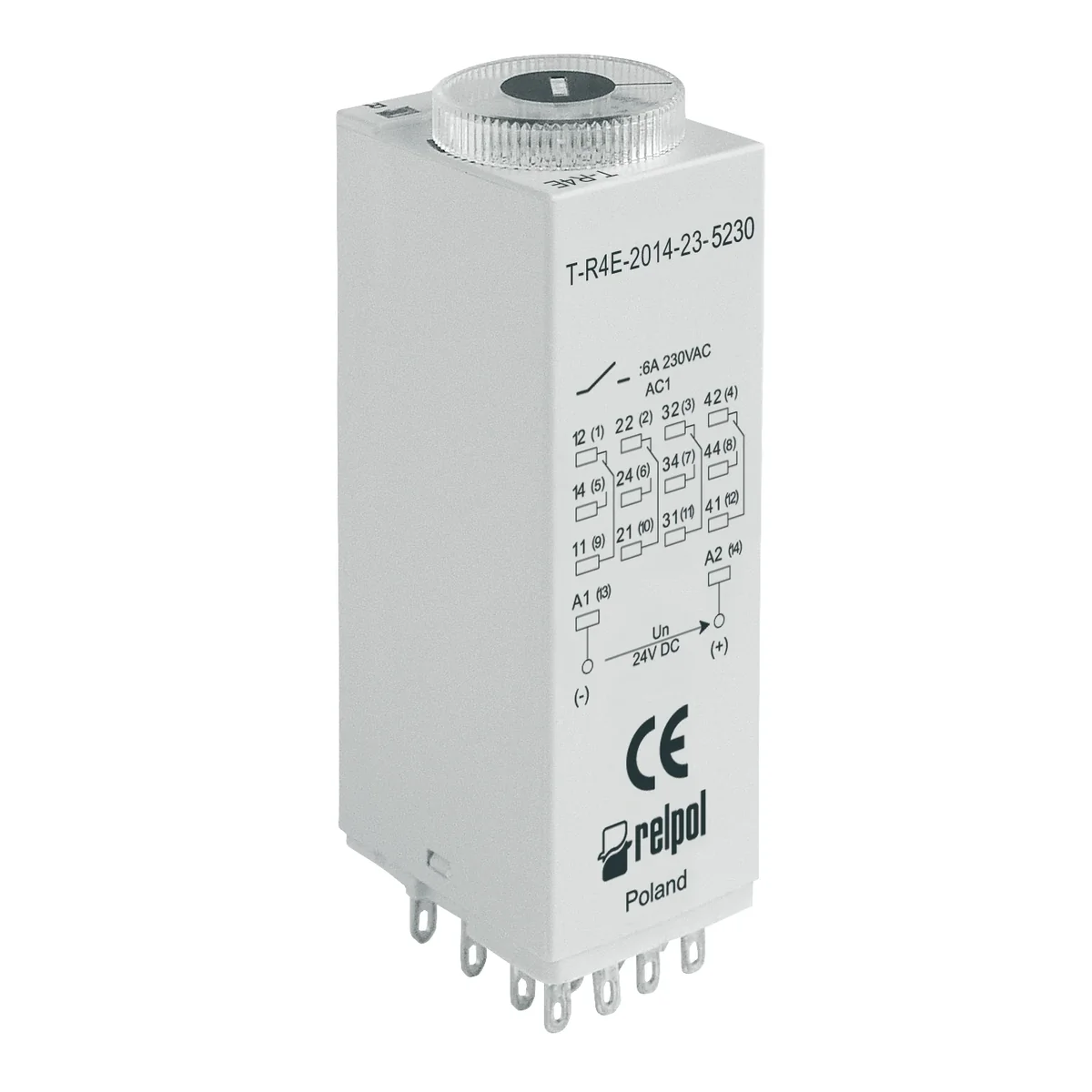

Time relay, single function T-R4E-2014-23-5230 854016

local index:
APC012RELP
Catalog No:
854016
EAN code:
5900005161674
Manufacturer: RELPOL
Level of security: IP20
Price:
32,84 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay, single-function: 4P - four changeover contacts. Function E - delayed activation. Input - terminals: A1 - A2, supply voltage Un - 230 V AC. Output: 4P contacts - terminals: 11(9)-12(1)-14(5), 21(10)-22(2)-24(6), 31(11)-32(3)-34(7) ), 41(12)-42(4)-44(8), AC1 - 6 A / 230 V. For GZM4 or GZT4 socket. Dimensions of the T-R4 + GZM4 set: 75 x 27 x 93.5 mm; set T-R4 + GZT4: 76.3 x 27 x 91.5 mm. Mounting on a 35 mm rail or on a mounting plate with two M3 screws. Set - IP 20.

Technical data

  • Level of security
    IP20

Other technical data

  • Type of electric connection
    Plug-in connection
  • Function delay on de-energization
    No
  • Function floating contact on de-energization
    No
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Width
    21.2 mm
  • Depth
    27.5 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    No
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    Yes
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Time range
    0 ... 0 s
  • Number of outputs, delayed, change-over contact
    4
  • With semiconductor output
    No
  • Height
    62.5 mm
