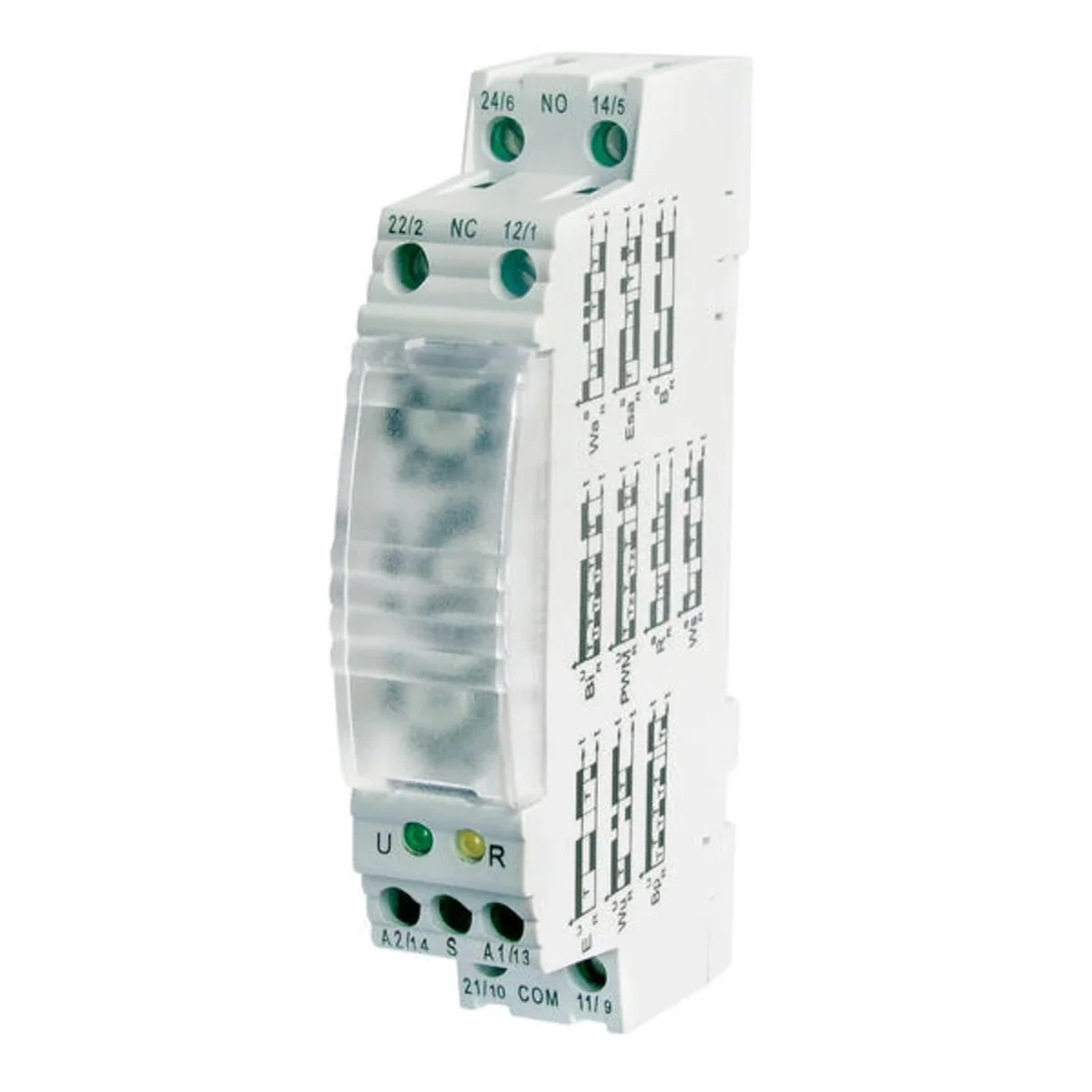

Time relay, multifunctional TR4N-230AC-12-M 856584

local index:
APC020RELP
Catalog No:
856584
EAN code:
5900005162190
Manufacturer: RELPOL
Level of security: IP20
Price:
50,06 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay, multifunctional: 2P - two changeover contacts. Functions: E, Wu, Bi, Bp, PWM, R, Ws, Wa, Esa, B, ON/OFF - permanent on/off. Input - terminals: A1 - A2; external control contact S - terminals: S - A1, supply voltage Un - 230 V AC. Output: 2P contacts - terminals: 11(9)-12(1)-14(5), 21(10)-22(2)-24(6), AC1 - 8 A / 250 V, DC1 - 8 A / 24V. Dimensions: 90 x 17.6 x 55mm. Mounting on a 35 mm rail. Compact housing. IP 20.

Technical data

  • Level of security
    IP20

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    Yes
  • Clock function, starting with pulse, variable
    Yes
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    230 ... 230 V
  • Voltage type for actuating
    AC
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Width
    17.6 mm
  • Depth
    55 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    Yes
  • Clock function, starting with pause, variable
    Yes
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    230 ... 230 V
  • Rated control supply voltage DC
    0 ... 0 V
  • Time range
    0 ... 0 s
  • Number of outputs, delayed, change-over contact
    2
  • With semiconductor output
    No
  • Height
    90 mm
