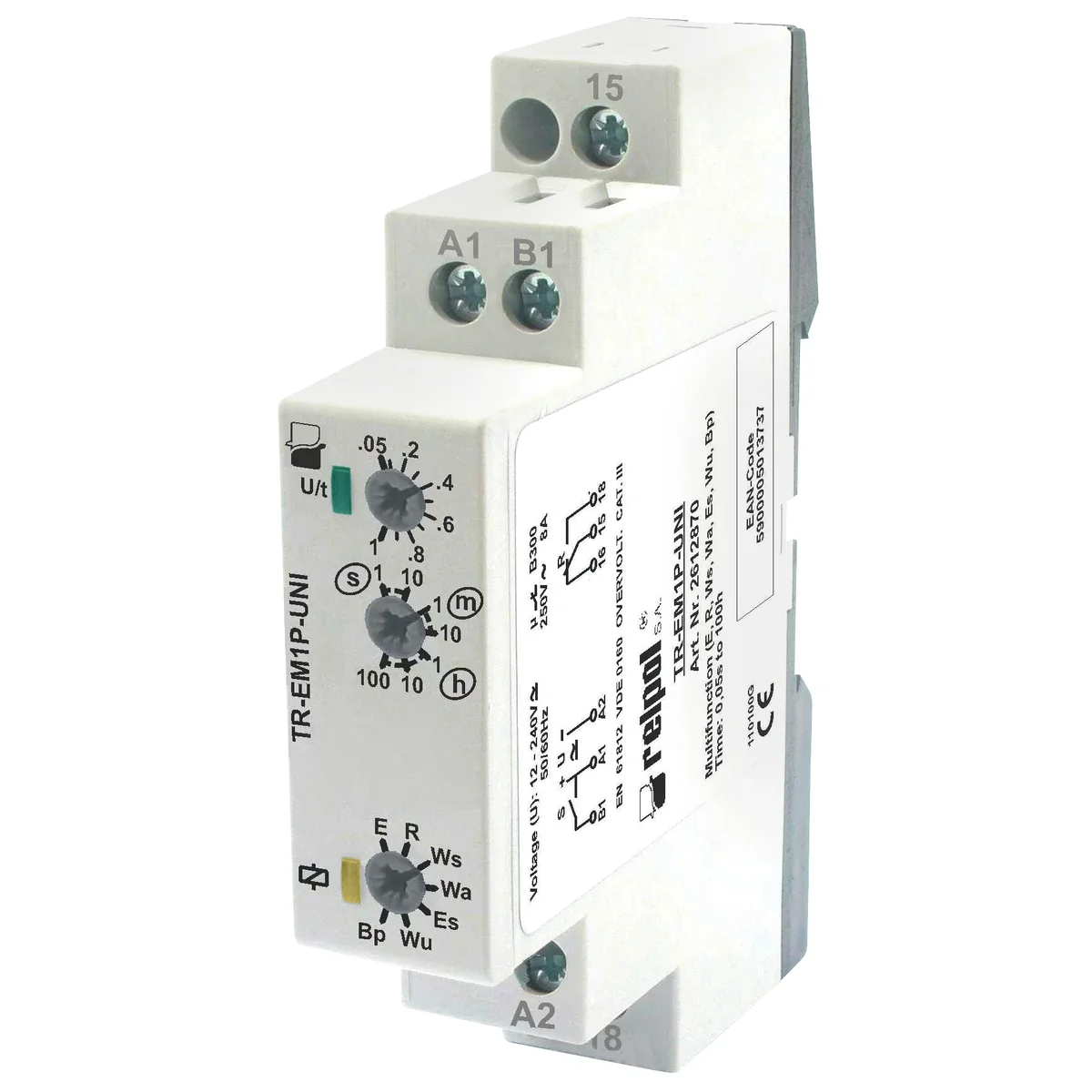

Time relay, multifunctional TR-EM1P-UNI 2612870

local index:
APC014RELP
Catalog No:
2612870
EAN code:
5900005013737
Manufacturer: RELPOL
Level of security: IP20
Price:
90,96 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay, multifunctional: 1P - one changeover contact. Functions: E, Wu, Bp, R, Ws, Wa, Es. Input - terminals: (+)A1 - (-)A2; external control contact S - terminals: B1 - (+)A1; parallel load possible - terminals: (-)A2 - B1, supply voltage Un - 12...240 V AC/DC. Output: 1P contact - terminals: 15-16-18, AC1 - 8 A / 250 V. Dimensions: 87 x 17.5 x 65 mm. Mounting on a 35 mm rail. Housing - installation module. IP 20.

Technical data

  • Level of security
    IP20

Other technical data

  • Type of electric connection
    Screw connection
  • Function delay on de-energization
    Yes
  • Function floating contact on de-energization
    Yes
  • Function pulse shaping
    No
  • Function flashing, starting with pulse, fixed time
    No
  • Clock function, starting with pulse, variable
    No
  • Remote operation possible
    No
  • Pluggable on auxiliary contact block
    No
  • Rated control supply voltage AC 60 Hz
    12 ... 240 V
  • Voltage type for actuating
    AC/DC
  • Number of outputs, delayed, normally open contact
    0
  • Outputs, reversible delayed/undelayed
    No
  • Width
    17.5 mm
  • Depth
    87 mm
  • Function delay-on energization
    Yes
  • Function floating contact on energization
    Yes
  • Function star-delta
    No
  • Function flashing, starting with pause, fixed time
    No
  • Clock function, starting with pause, variable
    No
  • Z gniazdem wtykowym
    No
  • Suitable as remote control
    No
  • Rated control supply voltage AC 50 Hz
    12 ... 240 V
  • Rated control supply voltage DC
    12 ... 240 V
  • Time range
    0 ... 0 s
  • Number of outputs, delayed, change-over contact
    1
  • With semiconductor output
    No
  • Height
    65 mm
