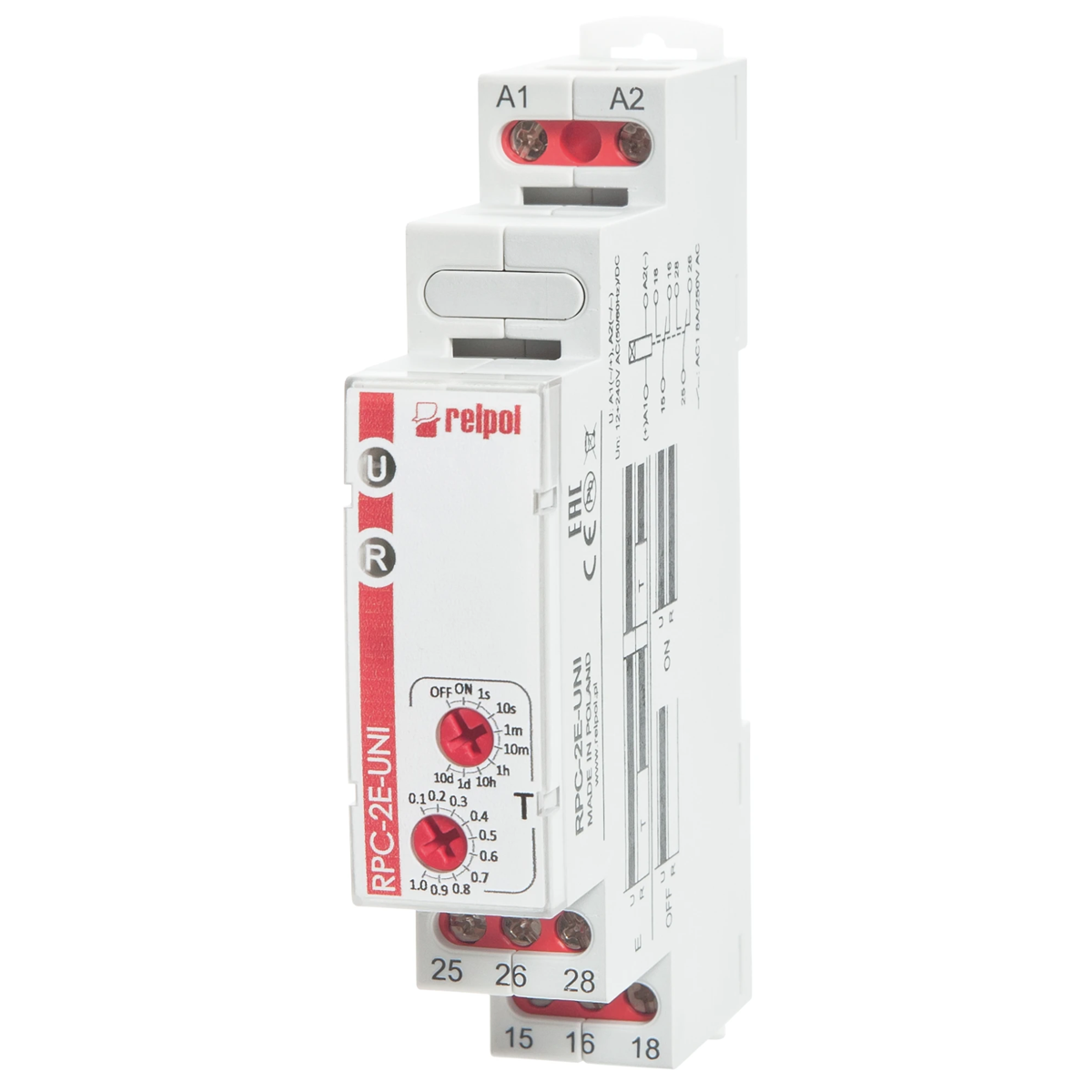

Time Relay 12-240V AC/DC 1P AgSnO2 16A / 250V AC 863195

local index:
APC024RELP
Catalog No:
863195
EAN code:
5900005230639
Manufacturer: RELPOL
Color: Gray
Installation: On the TH-35 rail
Width [mm]: 17.5
Price:
32,50 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print

Product description

Time relay - single function, Bps function - symmetrical cyclical operation starting with a break, ON/OFF - permanent on/off;

  • 8 time ranges,
  • Output: 1P - one changeover contact.
  • Supply voltage - universal: 12...240VAC/DC 50/60 Hz
  • Technical data

    • Color
      Gray
    • Width [mm]
      17.5
    • Terminal type
      screw terminals
    • Installation
      On the TH-35 rail
    • Height [mm]
      90
    • PKWIU
      27.33.13.0

    Other technical data

    • Number of units
      5
    • Number of units horizontal
      5
    • Liczba łączników
      5
    • Do instalacji podtynkowych
      Yes
    • Suitable for wall duct
      No
    • Label space/information surface
      No
    • Material quality
      Thermoplastic
    • Surface protection
      Untreated
    • Colour
      Kremowy
    • Transparent
      No
    • Degree of protection (IP)
      IP20
    • Type of fastening
      Engage (snap)
    • Height
      86 mm
    • Built-in height
      0 mm
    • Mounting direction
      Horizontal and vertical
    • Number of units vertical
      1
    • With mounting grid
      No
    • Suitable for subfloor installation duct box
      No
    • Suitable for built-in installation
      No
    • Material
      Plastic
    • Halogen free
      Yes
    • Surface finishing
      Matt
    • RAL-number (similar)
      9003
    • With hinged lid
      No
    • Impact strength
      IK04
    • Width
      370 mm
    • Depth
      10 mm
