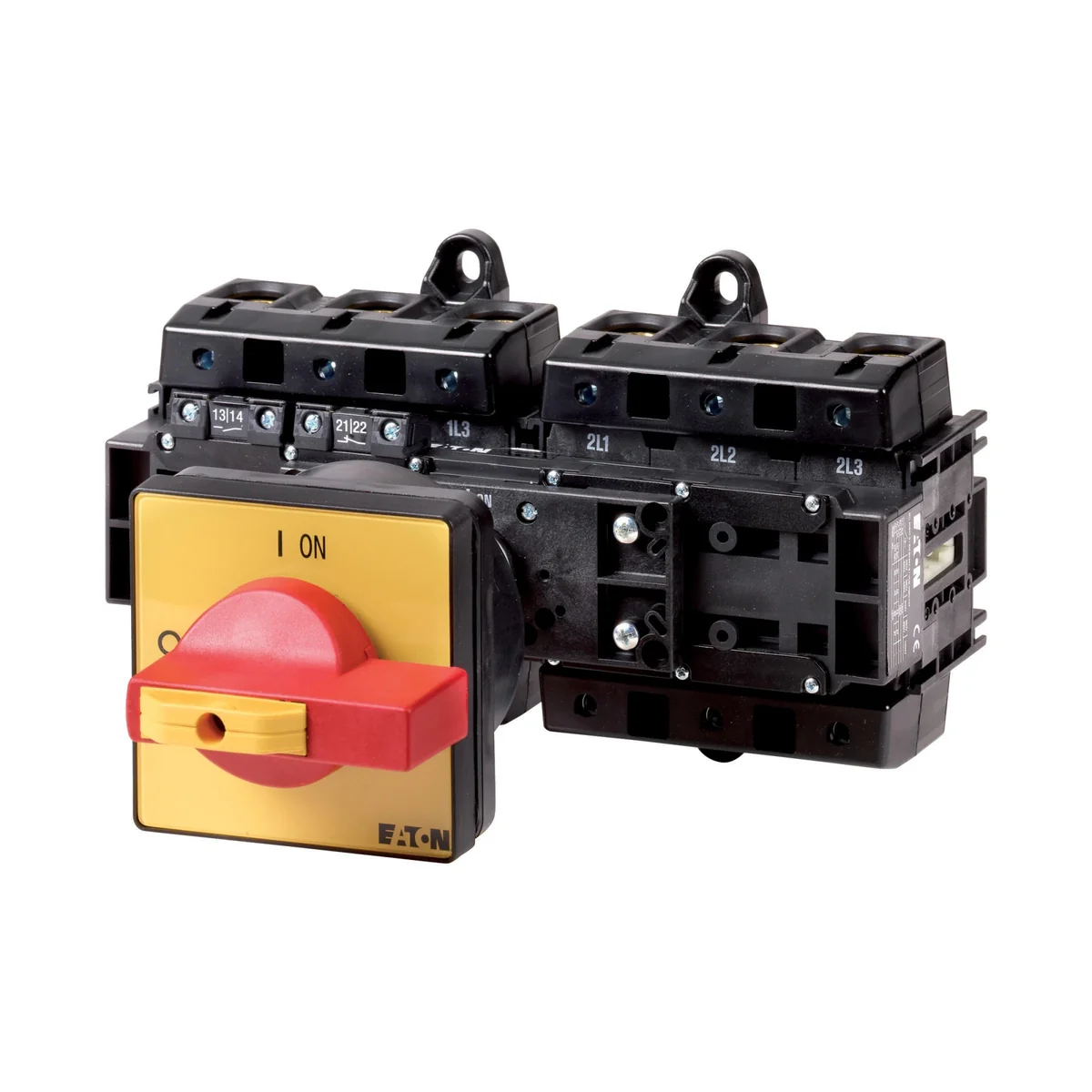

T6-160-6/V/SVB/HI11 Main switch, 6 pole + 1 NO + 1 NC, 160 A, emergency stop function, 90°, padlockable in the Off position, remote mounting, red/yellow handle with padlockable function 200619

Внутрішній артикул:
ALA394MOEL
№ каталоговий:
200619
Код EAN:
4015082006198
Виробник: EATON
Ціна:
3 225,82 zł
gross / шт.
(з ПДВ 23%)
2 тижні
На замовлення
Кількість шт.
(багаторазовий:
1
)
Додати до запиту на пропозицію
Додати в буфер обміну
Роздрукувати

Технічні дані

Інші технічні дані

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    105 A
  • Rated operation power at AC-3, 400 V
    45 kW
  • Rated operation power at AC-23, 400 V
    55 kW
  • Conditioned rated short-circuit current Iq
    30 kA
  • Number of auxiliary contacts as normally closed contact
    1
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Built-in device fixed built-in technique
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated permanent current Iu
    160 A
  • Rated permanent current at AC-21, 400 V
    160 A
  • Rated short-time withstand current lcw
    3 kA
  • Switching power at 400 V
    55 kW
  • Number of poles
    6
  • Number of auxiliary contacts as normally open contact
    1
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    Yes
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    12

Інформація про виробника

  • Виробник
    Eaton Electric Sp. z o.o.
  • Адреса
    80-299 Gdańsk Galaktyczna 30 Polska
  • Електронна пошта

Об'ємна упаковка

Свого роду пакет Skrzynia Karton Skrzynia Karton
Кількість 1 шт. 1 шт. 1 шт. 1 шт.
Вага (кг) 2,200 2,490 2,200 2,490
Об'єм (м3) 0,006 0,006 0,006 0,006
Ширина (м) 0,227 0,225 0,227 0,225
Довжина (м) 0,202 0,200 0,202 0,200
Глибина (м) 0,142 0,140 0,142 0,140
