T5B-3-8342/V/SVB On-Off switch, 6 pole, 63 A, 90 °, remote mounting, red/yellow knob with padlock 092300

Name: T5B-3-8342/V/SVB On-Off switch, 6 pole, 63 A, 90 °, remote mounting, red/yellow knob with padlock
Brand: EATON
SKU: ALK088MOEL
Price: 1133.47 PLN
Availability: BackOrder

Indice locale:

ALK088MOEL

Numero di catalogo:

092300

Codice EAN:

4015080923008

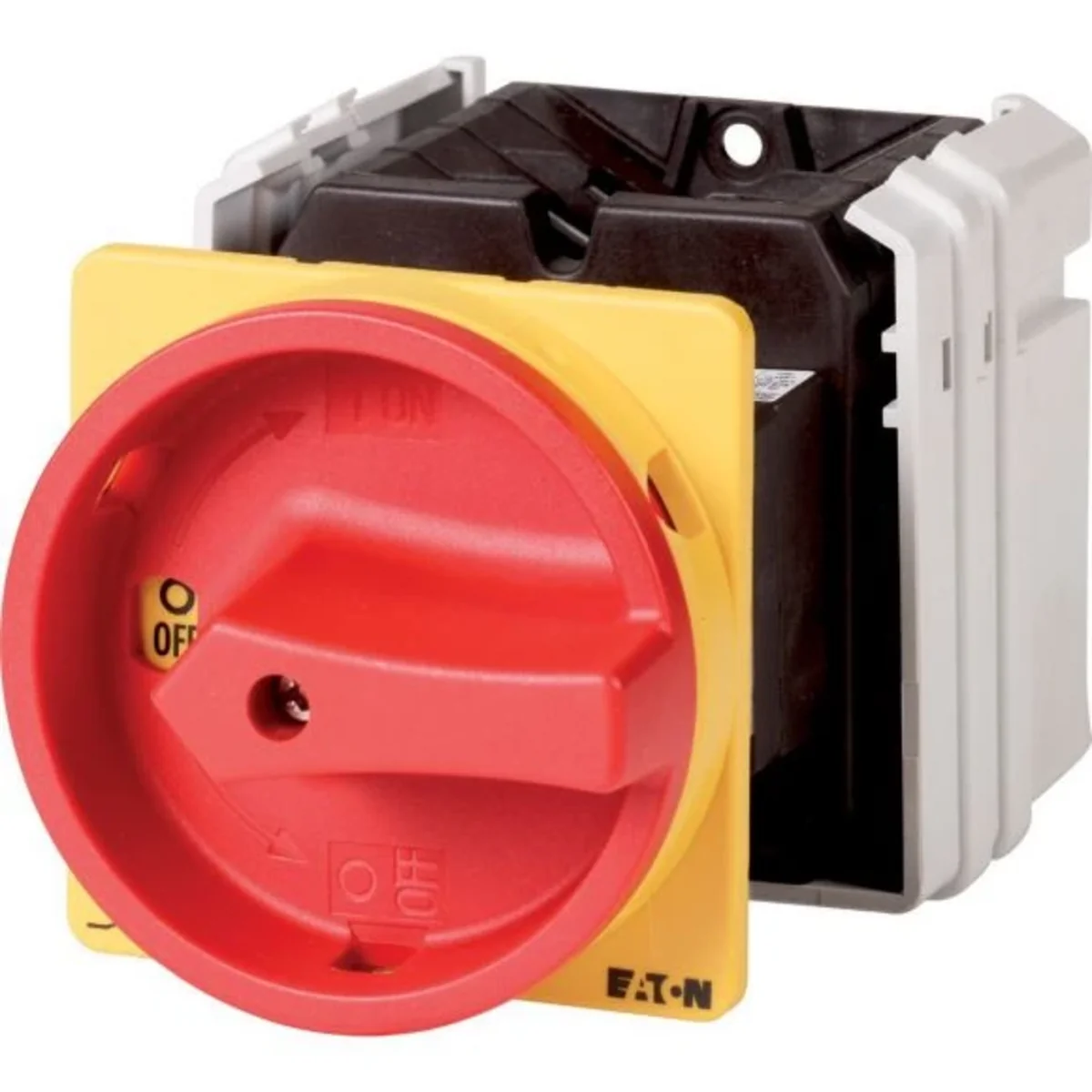

T5B-3-8342/V/SVB On-Off switch, 6 pole, 63 A, 90 °, remote mounting, red/yellow knob with padlock

Clicca sulla foto per ingrandire

Produttore: EATON

Prezzo:

1 133,47 zł

gross / pezzi

(inclusa IVA 23%)

2 settimane

Su ordinazione

Quantità pezzi

(multiplo:

1

)

Aggiungi alla richiesta di preventivo

Aggiungi agli appunti

Stampa

Chiedi informazioni sul prodotto

Dati tecnici Dettagli del produttore Imballaggio sfuso File da scaricare

Dati tecnici

Altri dati tecnici

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

63 A
Rated operation power at AC-3, 400 V

22 kW
Rated operation power at AC-23, 400 V

30 kW
Conditioned rated short-circuit current Iq

2 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

No
Colour control element

Red
Interlockable

Yes
Degree of protection (IP), front side

IP65

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Number of switches

1
Rated operating voltage

690 ... 690 V
Rated permanent current at AC-21, 400 V

63 A
Rated short-time withstand current lcw

1.3 kA
Switching power at 400 V

30 kW
Number of poles

6
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

Yes
Suitable for front mounting centre

No
Suitable for intermediate mounting

Yes
Type of control element

Door coupling rotary drive
Type of electrical connection of main circuit

Screw connection
Degree of protection (NEMA)

12

Dettagli del produttore

Produttore

Eaton Electric Sp. z o.o.
Indirizzo

80-299 Gdańsk Galaktyczna 30 Polska
Email

wsparcietech@eaton.com

Imballaggio sfuso

Una specie di pacchetto	Skrzynia	Karton
Quantità	1 pezzi	1 pezzi
Peso (kg)	0,660	0,799
Volume (m3)	0,001	0,002
Larghezza (m)	0,090	0,105
Lunghezza (m)	0,173	0,185
Profondità (m)	0,090	0,120
