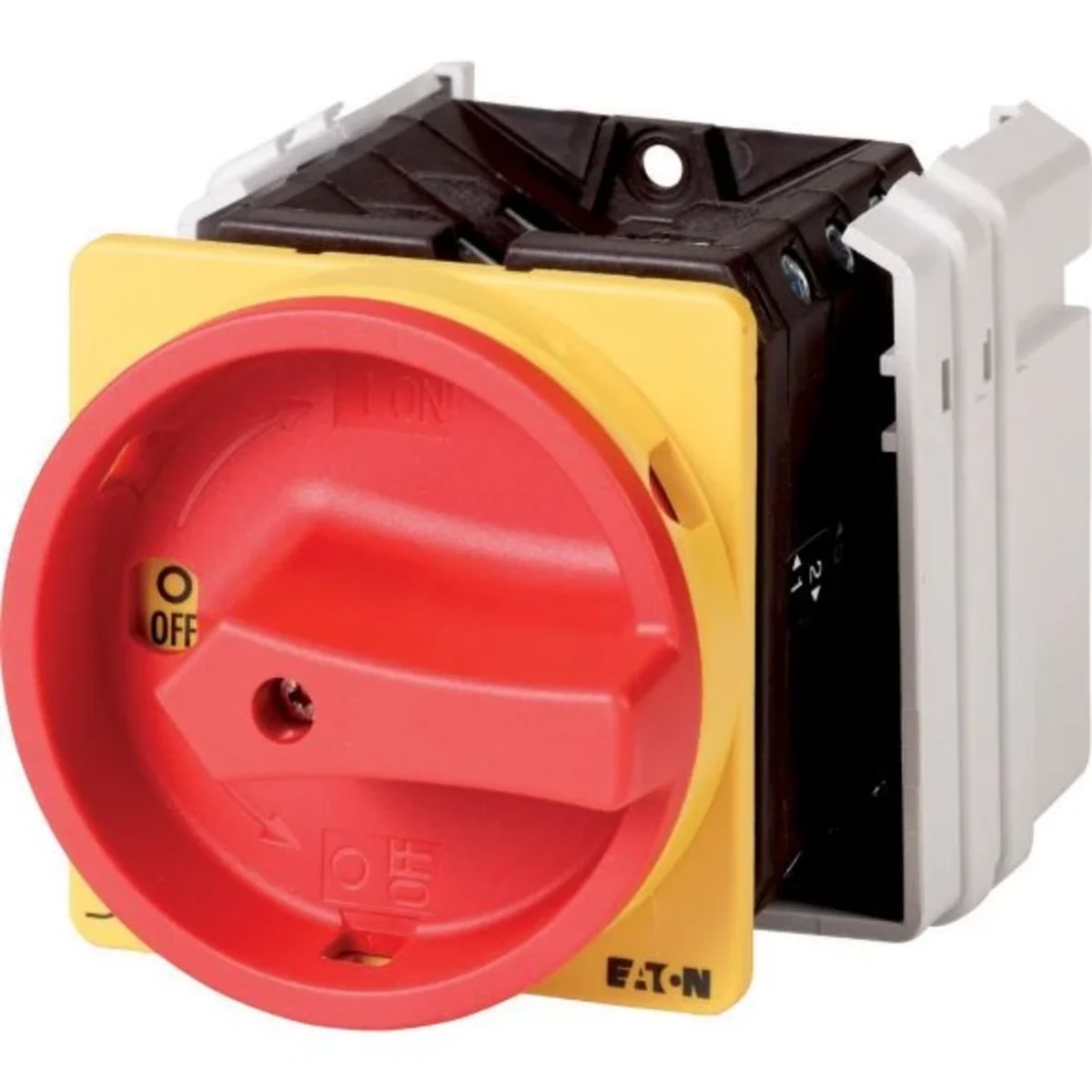

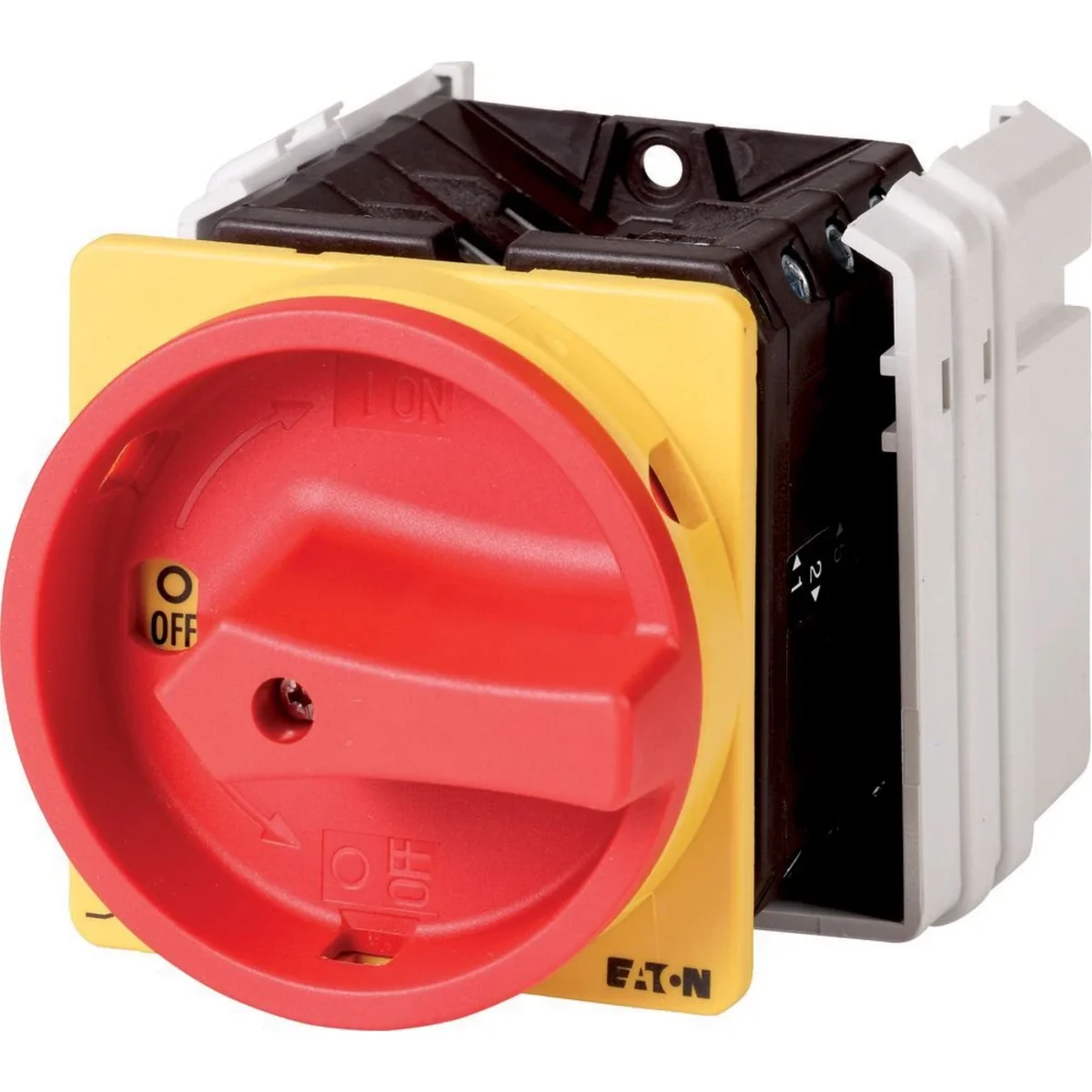

T5-3-8342/EA/SVB Main switch, 6 pole, 100 A, emergency stop function, 90°, padlockable in the Off position, surface mounting, red/yellow knob with padlockable function 096383

Name: T5-3-8342/EA/SVB Main switch, 6 pole, 100 A, emergency stop function, 90°, padlockable in the Off position, surface mounting, red/yellow knob with padlockable function
Brand: EATON
SKU: ALK095MOEL
Price: 1476.16 PLN
Availability: BackOrder

local index:

ALK095MOEL

Catalog number:

096383

EAN code:

4015080963837

T5-3-8342/EA/SVB Main switch, 6 pole, 100 A, emergency stop function, 90°, padlockable in the Off position, surface mounting, red/yellow knob with padlockable function

Click on the photo to enlarge

Manufacturer: EATON

Price:

1 476,16 zł

gross / pcs.

(including VAT 23%)

2 weeks

On request

Quantity pcs.

(multiplicity:

1

)

Add to inquiry

Add to clipboard

Print

Ask about the product

Technical data Manufacturer details Bulk packaging Files to download

Technical data

Other technical data

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

100 A
Rated operation power at AC-3, 400 V

30 kW
Rated operation power at AC-23, 400 V

55 kW
Conditioned rated short-circuit current Iq

2 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

No
Suitable for distribution board installation

No
Colour control element

Red
Interlockable

Yes
Degree of protection (IP), front side

IP65

Version as maintenance-/service switch

Yes
Version as emergency stop installation

Yes
Number of switches

1
Rated operating voltage

690 ... 690 V
Rated permanent current at AC-21, 400 V

100 A
Rated short-time withstand current lcw

1.7 kA
Switching power at 400 V

55 kW
Number of poles

6
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

No
Suitable for front mounting centre

Yes
Suitable for intermediate mounting

No
Type of control element

Door coupling rotary drive
Type of electrical connection of main circuit

Screw connection
Degree of protection (NEMA)

12

Manufacturer details

Manufacturer

Eaton Electric Sp. z o.o.
Address

80-299 Gdańsk Galaktyczna 30 Polska
E-mail

wsparcietech@eaton.com

Bulk packaging

A kind of package	Skrzynia	Karton
Quantity	1 pcs.	1 pcs.
Weight (kg)	0,740	0,782
Volume (m3)	0,001	0,002
Width (m)	0,090	0,105
Length (m)	0,158	0,185
Depth (m)	0,090	0,120
