el12 Automation Circuit breakers, disconnectors Cam switches

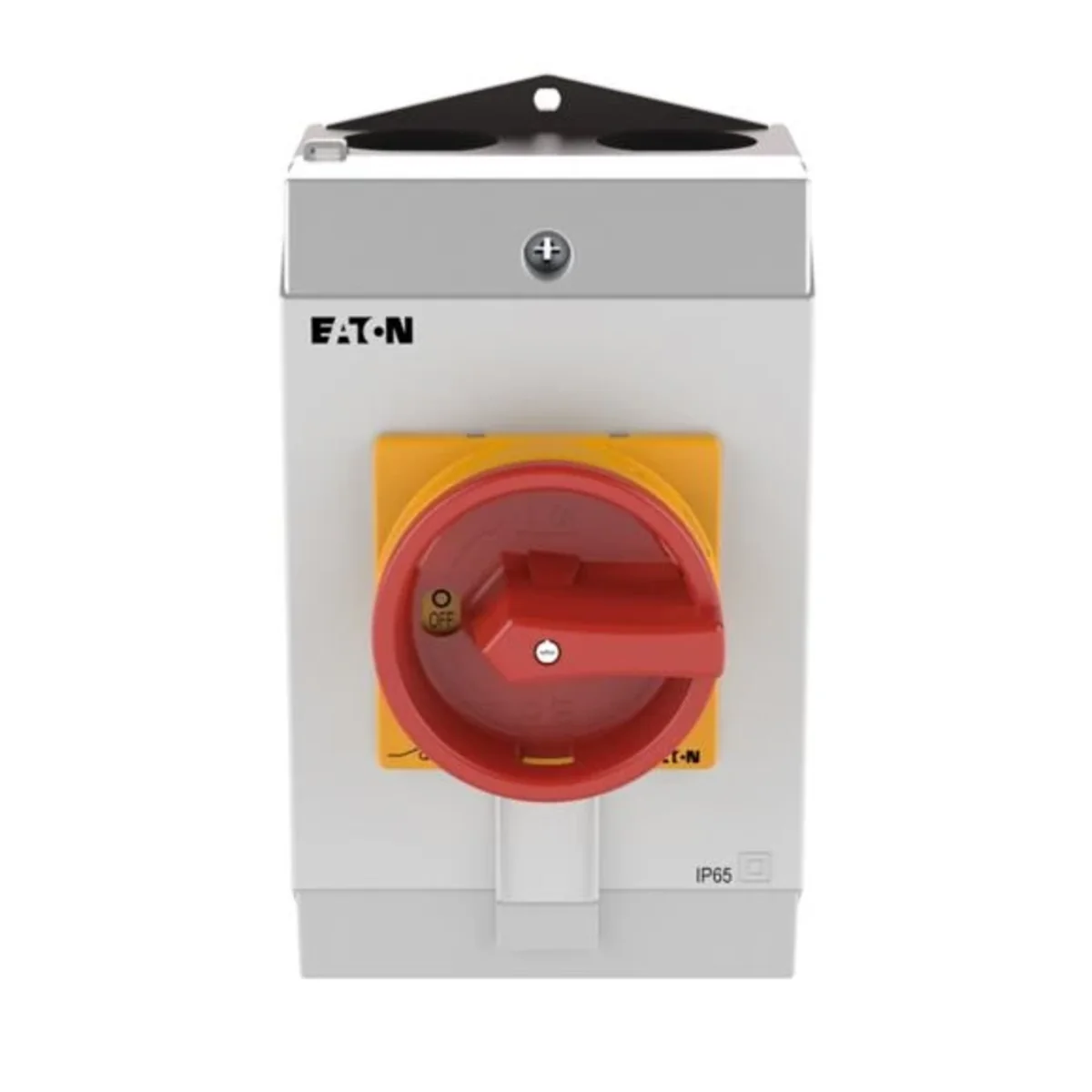

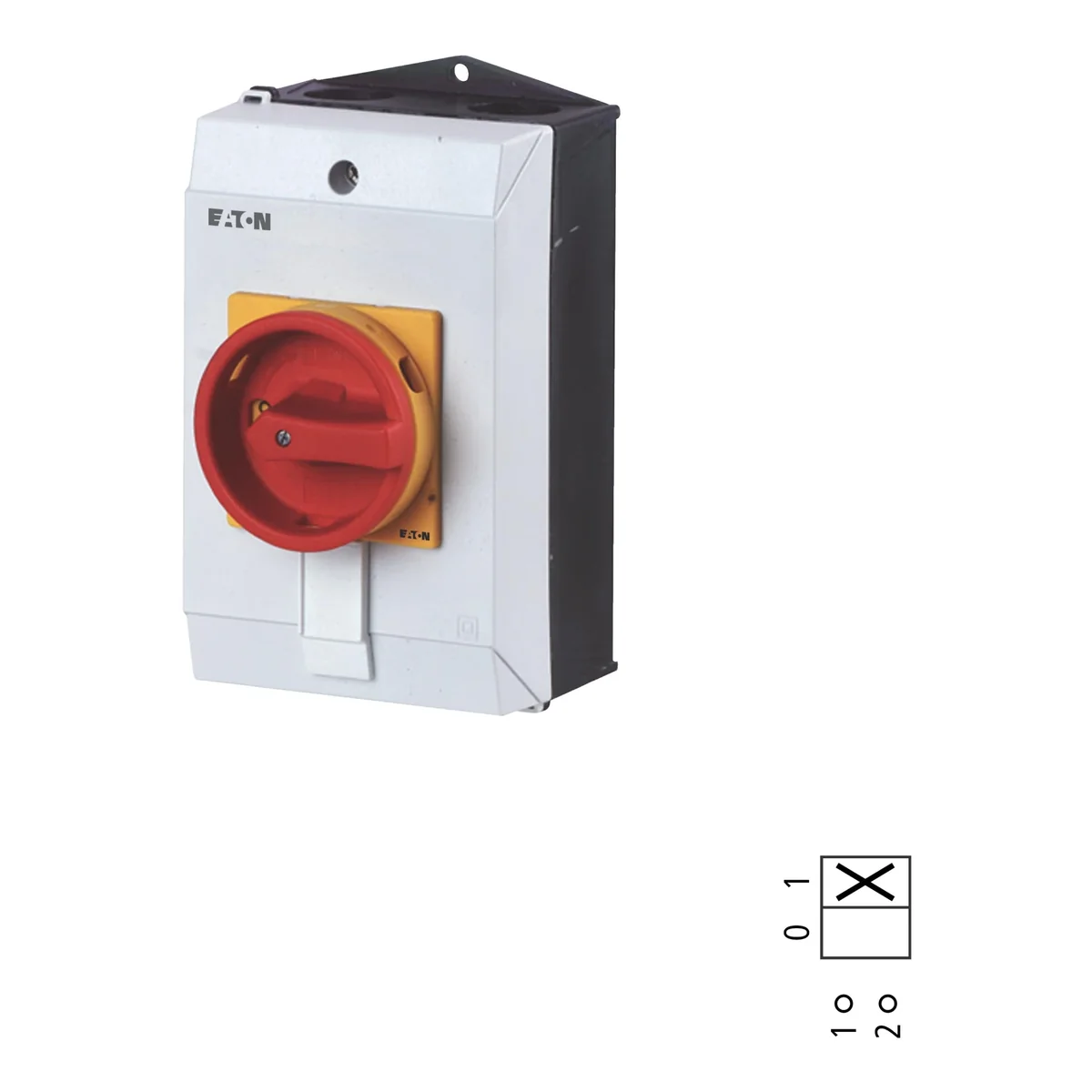

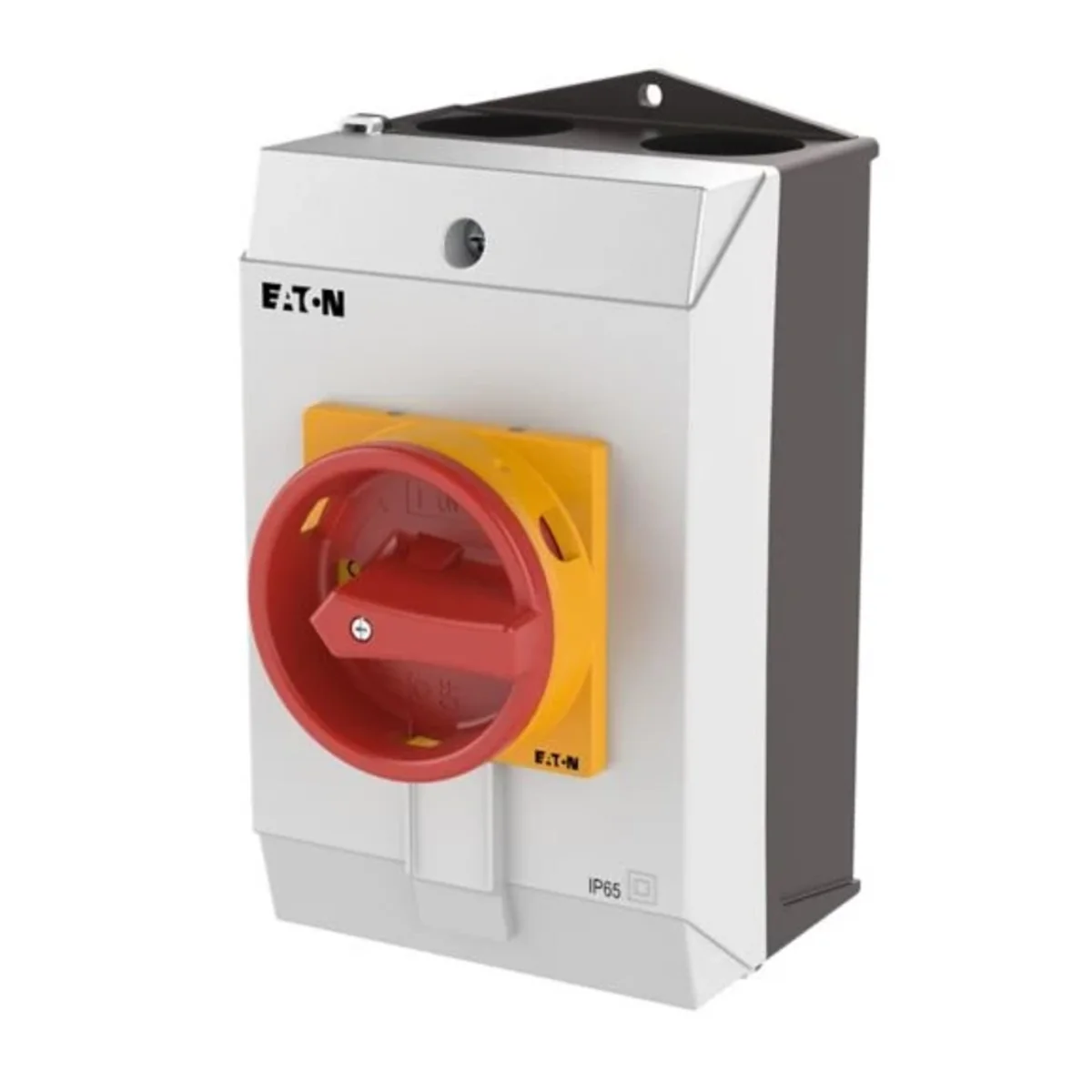

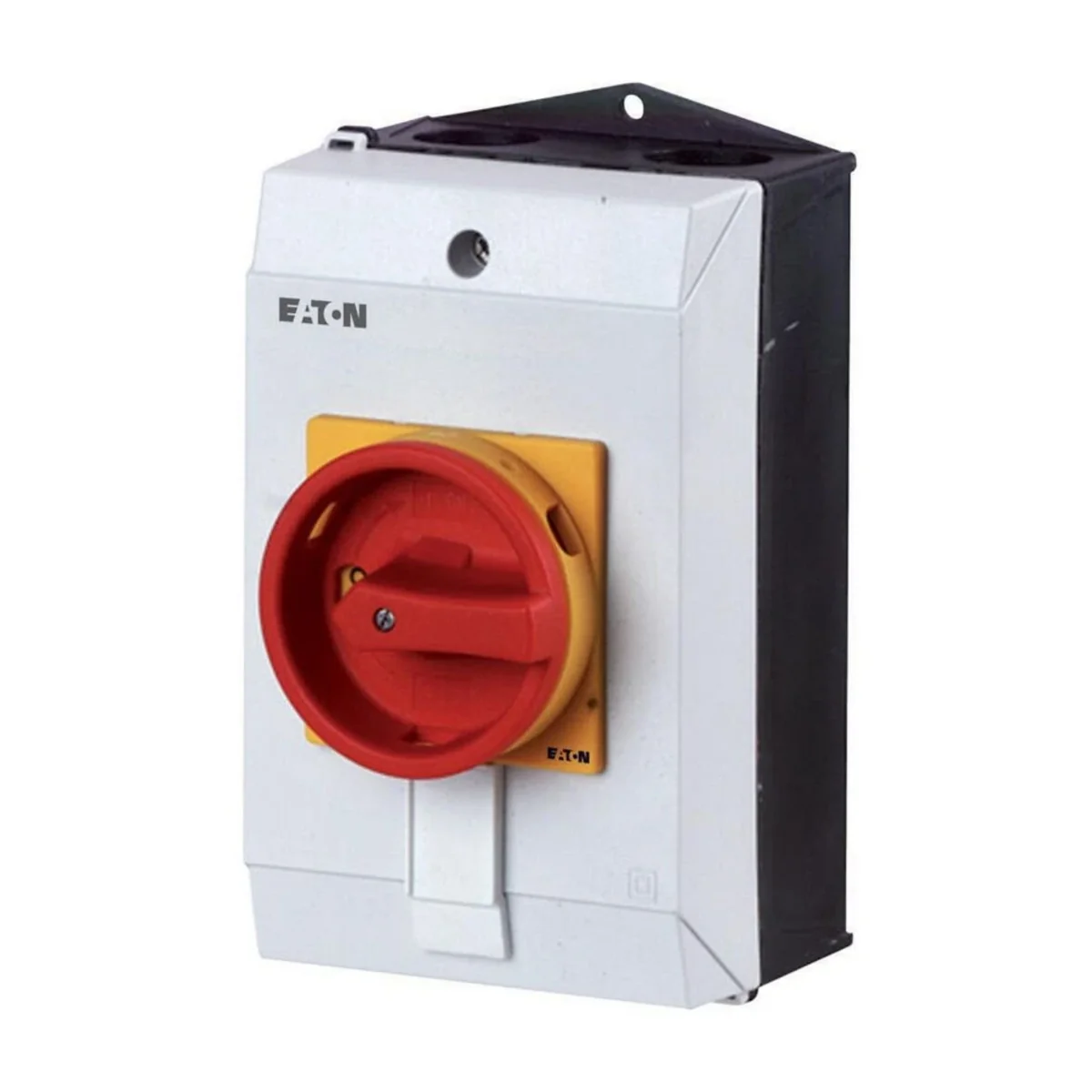

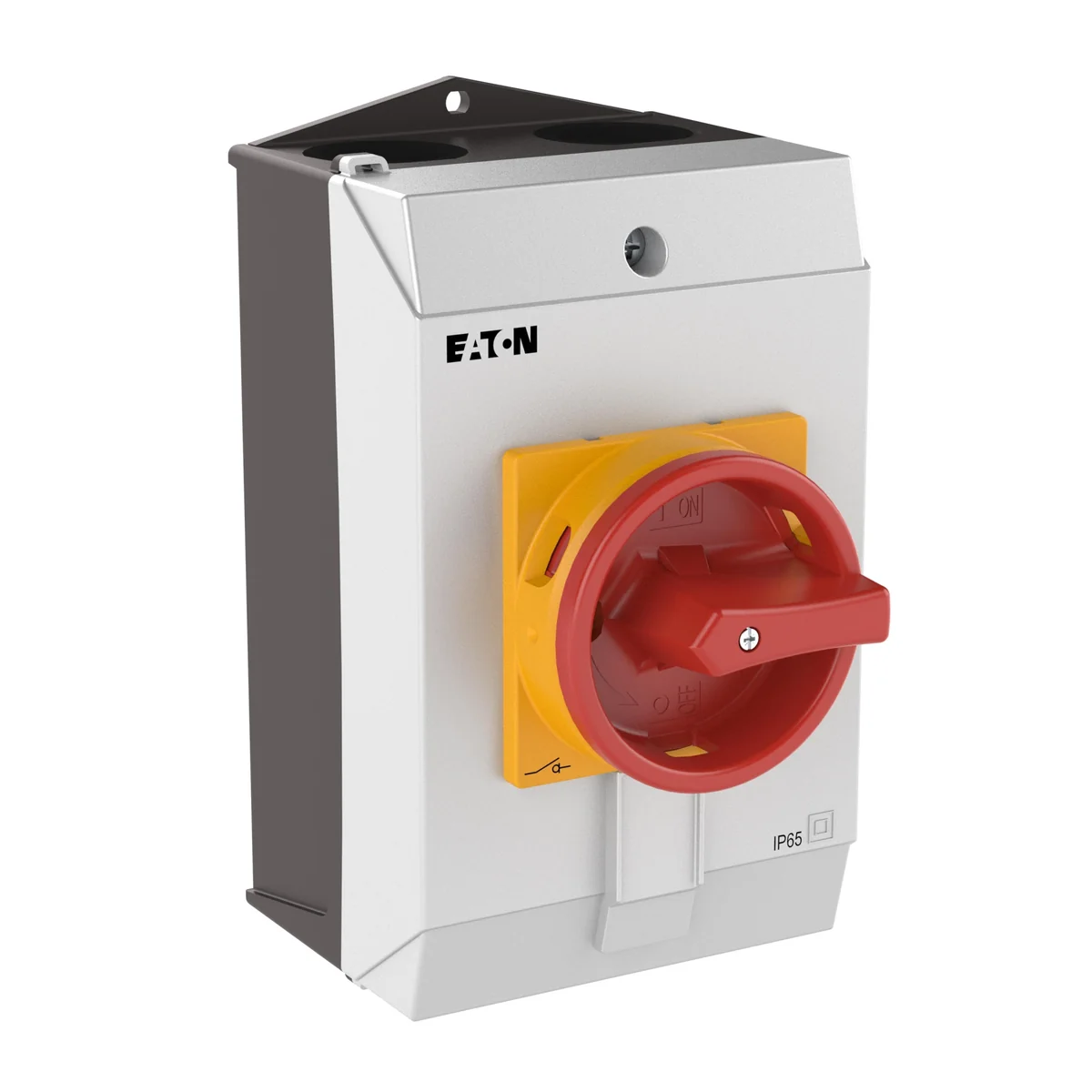

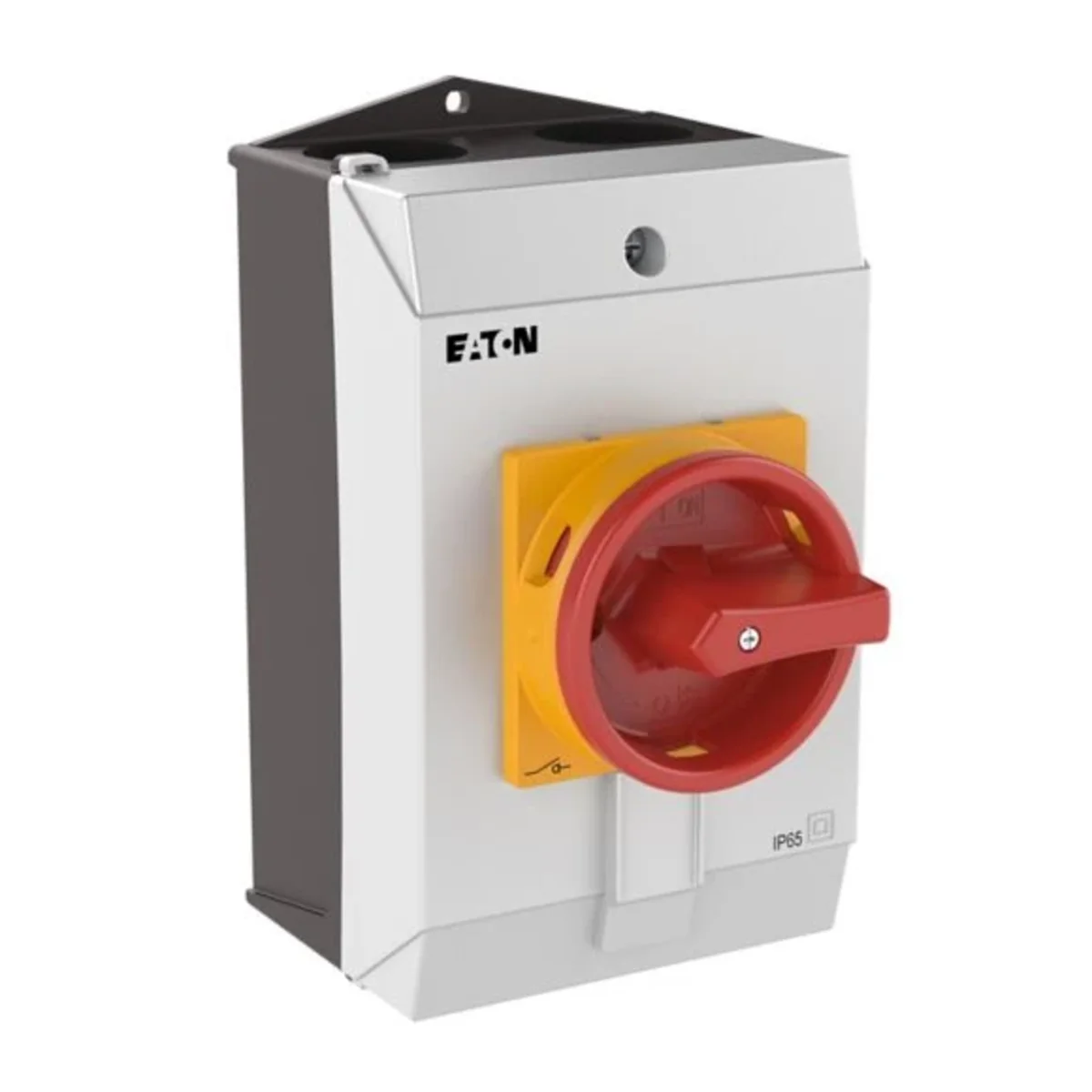

T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock 207200

Místní index:
ALK072MOEL
Katalogové číslo.:
207200
EAN kód:
4015082072001
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock
T3-1-8200/I2/SVB On-Off switch, Contacts: 2, 32A, nameplate: 0-1, 90°, latching, in IP65 housing, red-yellow knob with padlock

Kliknutím na obrázek jej zvětšíte

Výrobce: EATON
Cena:
397,52 zł
gross / kusů.
(včetně DPH 23%)
do 4 týdnů
Na zakázku
Množství kusů.
(vícenásobné:
1
)
Přidat do žádosti o cenovou nabídku
Přidat do schránky
Vytisknout
Technické údaje Podrobnosti o výrobci Velkoobjemová balení Soubory ke stažení

Technické údaje

Další technické údaje

  • Version as main switch
    Yes
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    690 V
  • Rated permanent current Iu
    32 A
  • Rated permanent current at AC-21, 400 V
    32 A
  • Rated short-time withstand current lcw
    0.65 kA
  • Switching power at 400 V
    15 kW
  • Number of poles
    1
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    No
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Door coupling rotary drive
  • Type of electrical connection of main circuit
    Screw connection
  • Degree of protection (NEMA)
    12
  • Version as maintenance-/service switch
    Yes
  • Version as emergency stop installation
    Yes
  • Number of switches
    1
  • Rated operating voltage
    690 ... 690 V
  • Rated permanent current at AC-23, 400 V
    32 A
  • Rated operation power at AC-3, 400 V
    11 kW
  • Rated operation power at AC-23, 400 V
    15 kW
  • Conditioned rated short-circuit current Iq
    1 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    No
  • Colour control element
    Red
  • Interlockable
    Yes
  • Degree of protection (IP), front side
    IP65

Podrobnosti o výrobci

  • Výrobce
    Eaton Electric Sp. z o.o.
  • Adresa
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-mail
    wsparcietech@eaton.com

Velkoobjemová balení

Typ obalu Skrzynia Karton Skrzynia Karton
Množství 1 kusů. 1 kusů. 1 kusů. 1 kusů.
Hmotnost (kg) 0,485 0,516 0,485 0,516
Objem (m3) 0,002 0,002 0,002 0,002
Šířka (m) 0,110 0,105 0,110 0,105
Délka (m) 0,187 0,180 0,187 0,180
Hloubka (m) 0,126 0,120 0,126 0,120
