el12 Automation Circuit breakers, disconnectors Cam switches

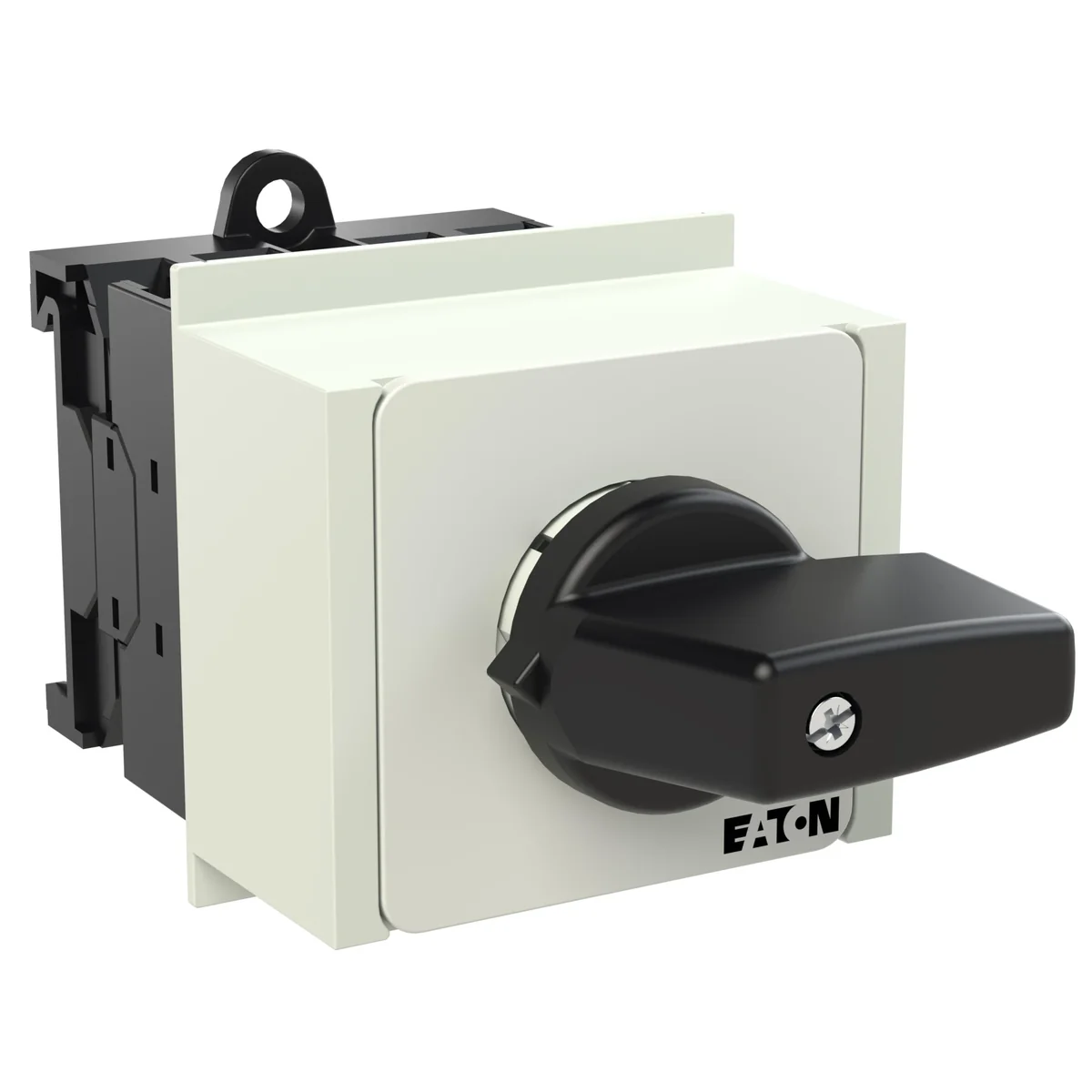

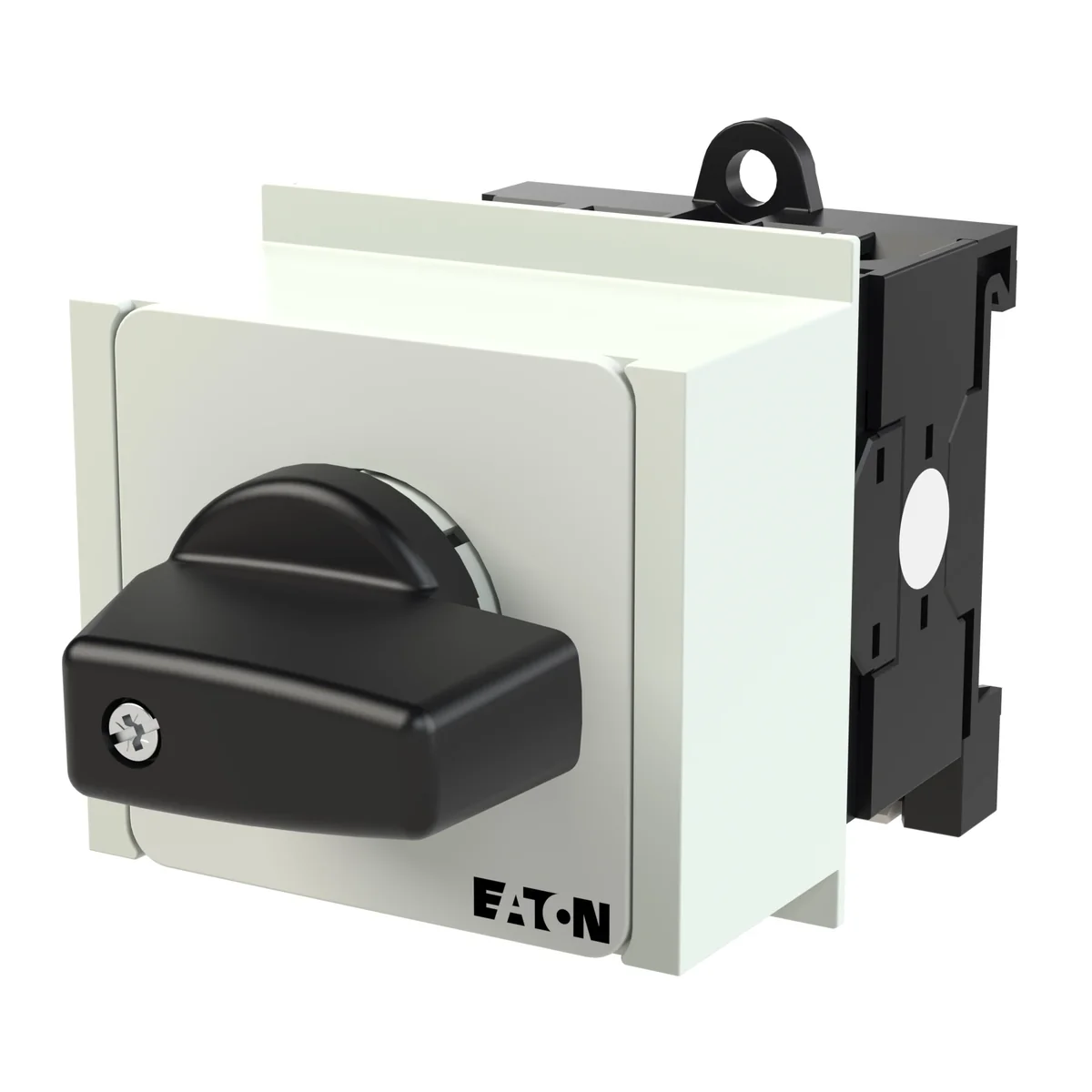

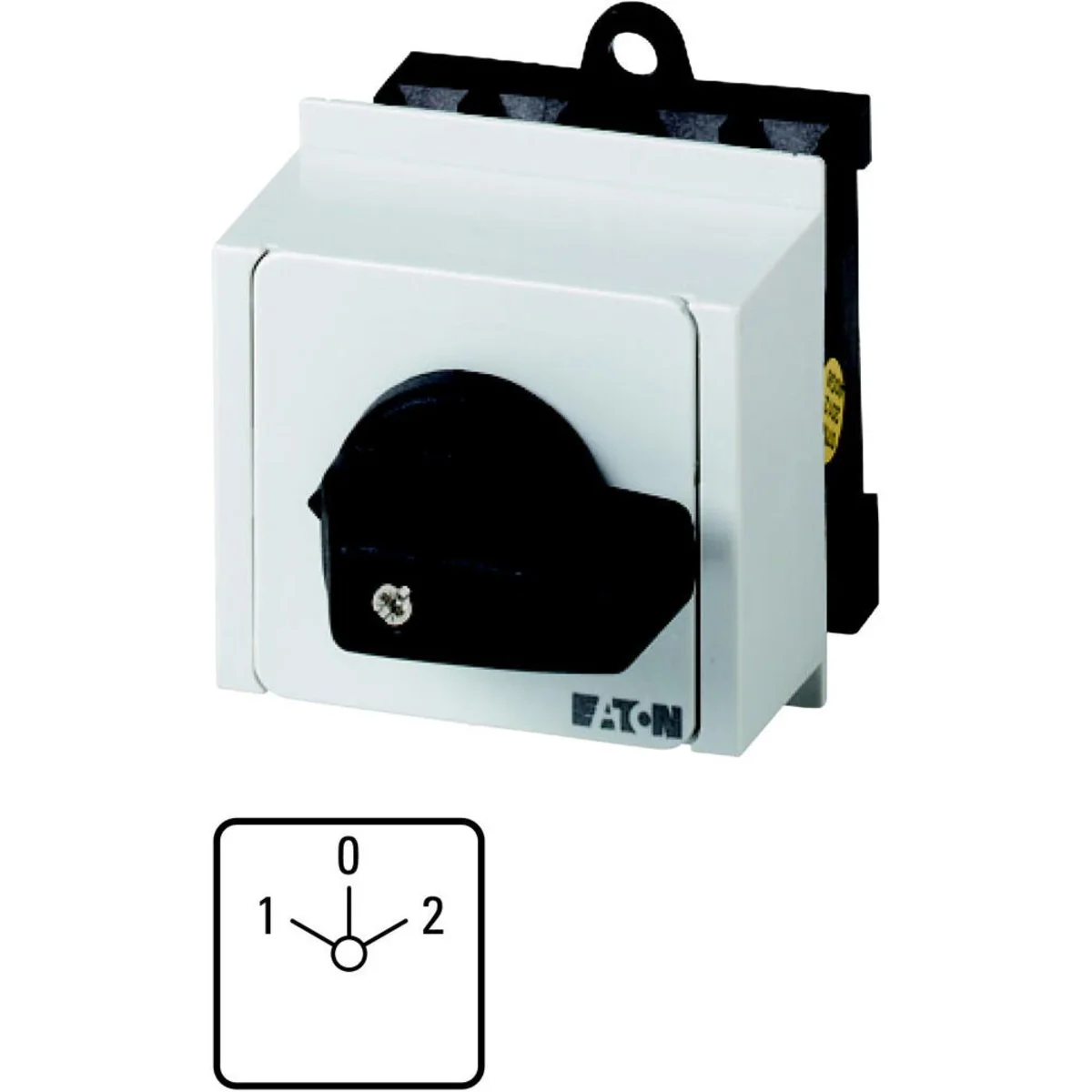

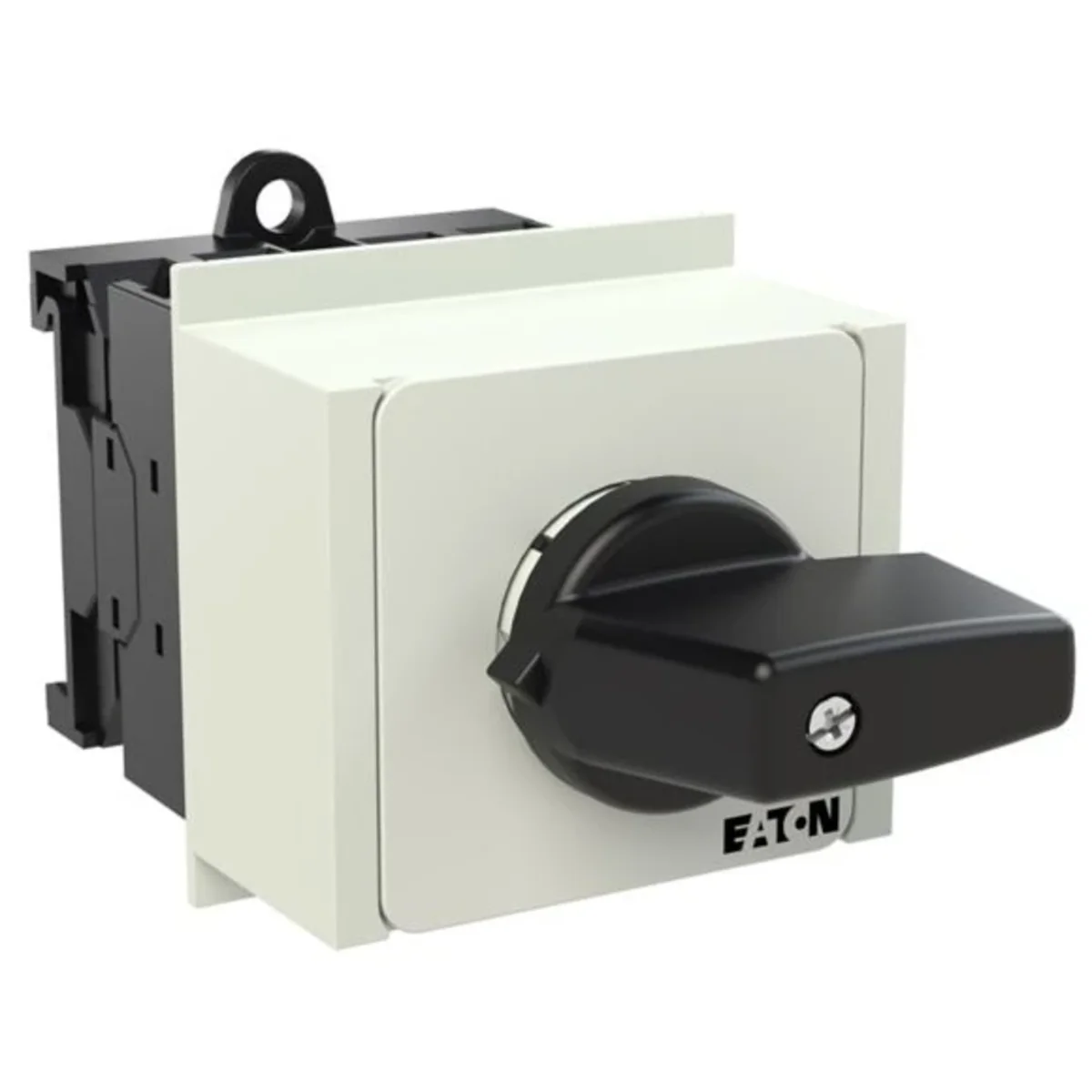

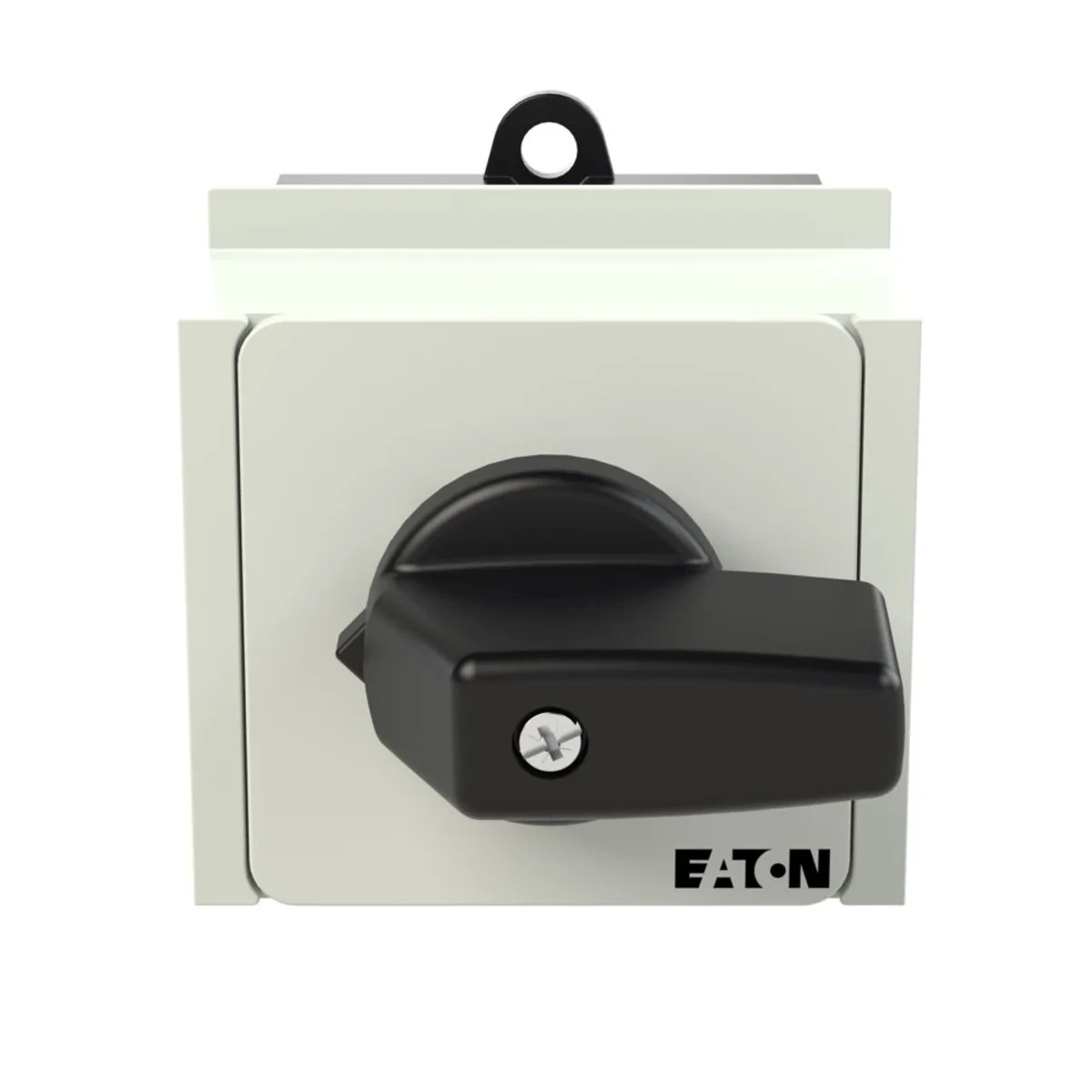

T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking 060198

Índice local:
ALO007MOEL
Número de catálogo:
060198
Código EAN:
4015080601982
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking
T0-2-8400/IVS Reversing switch, Contacts: 4, 20 A, nameplate: 1-0-2, 45 °, latching, TH rail mounting, black knob, non-locking

Haga clic en la foto para ampliar

Fabricante: EATON
Precio:
213,80 zł
gross / uds.
(IVA incluido 23%)
hasta 4 semanas
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Datos técnicos Detalles del fabricante Empaquetado a granel Archivos para descargar

Datos técnicos

Otros datos técnicos

  • Model
    Reversing switch
  • With zero (off) position
    Yes
  • Rated permanent current Iu
    20 A
  • Rated operation power at AC-3, 400 V
    4 kW
  • Degree of protection (NEMA), front side
    2
  • Number of auxiliary contacts as normally open contact
    0
  • Suitable for floor mounting
    No
  • Suitable for distribution board installation
    Yes
  • Complete device in housing
    No
  • Type of control element
    Short thumb-grip
  • Number of poles
    2
  • With retraction in 0-position
    No
  • Rated operation current Ie at AC-3, 400 V
    11.5 A
  • Degree of protection (IP), front side
    IP30
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Suitable for front mounting
    No
  • Suitable for intermediate mounting
    No
  • Housing material
    Plastic
  • Type of electrical connection of main circuit
    Screw connection

Detalles del fabricante

  • Fabricante
    Eaton Electric Sp. z o.o.
  • Dirección
    80-299 Gdańsk Galaktyczna 30 Polska
  • Email
    wsparcietech@eaton.com

Empaquetado a granel

una especie de paquete Skrzynia Karton
Cantidad 1 uds. 1 uds.
Peso (kg) 0,120 0,151
Volumen (m3) 0,000 0,001
Ancho (m) 0,056 0,075
Longitud (m) 0,094 0,121
Profundidad (m) 0,057 0,065
