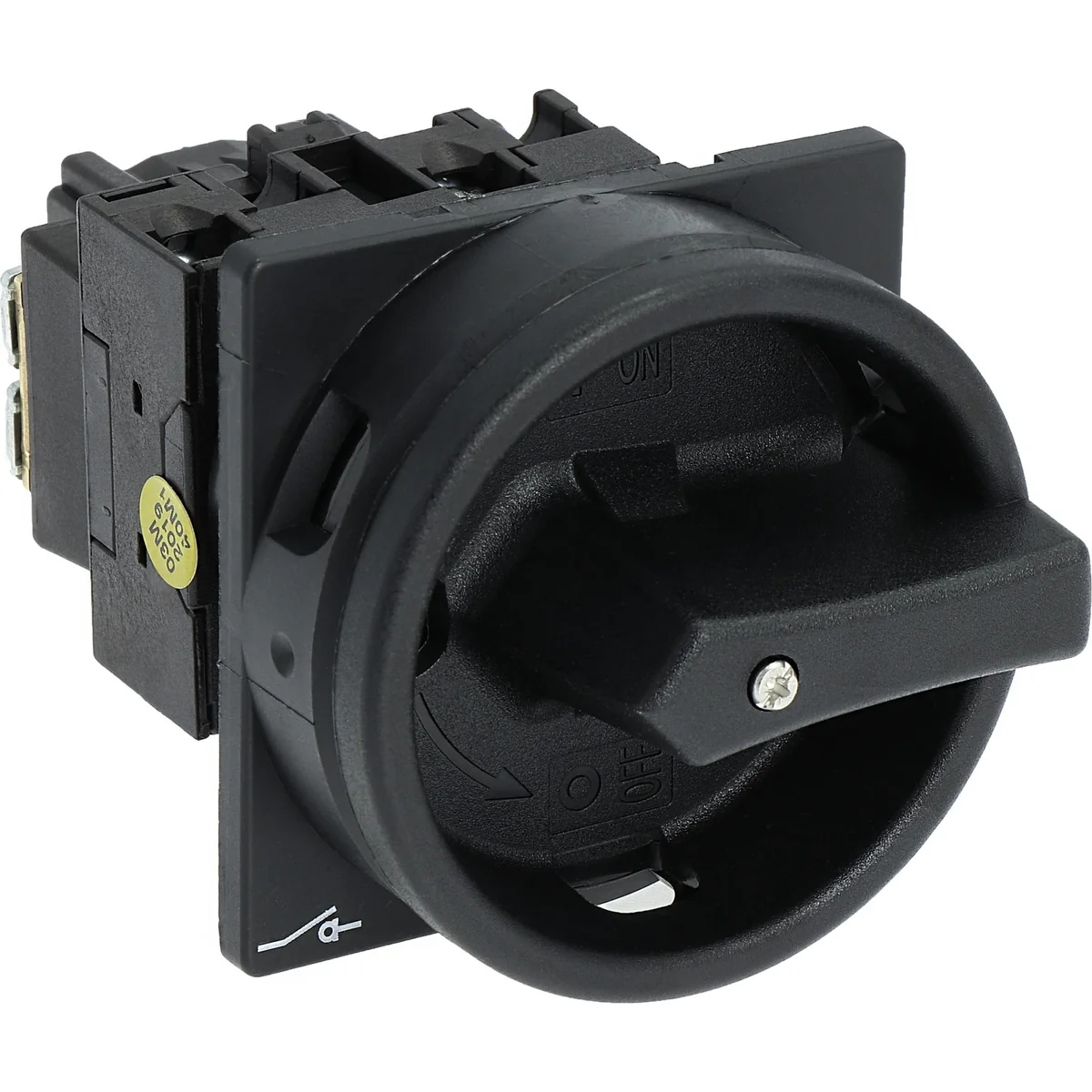

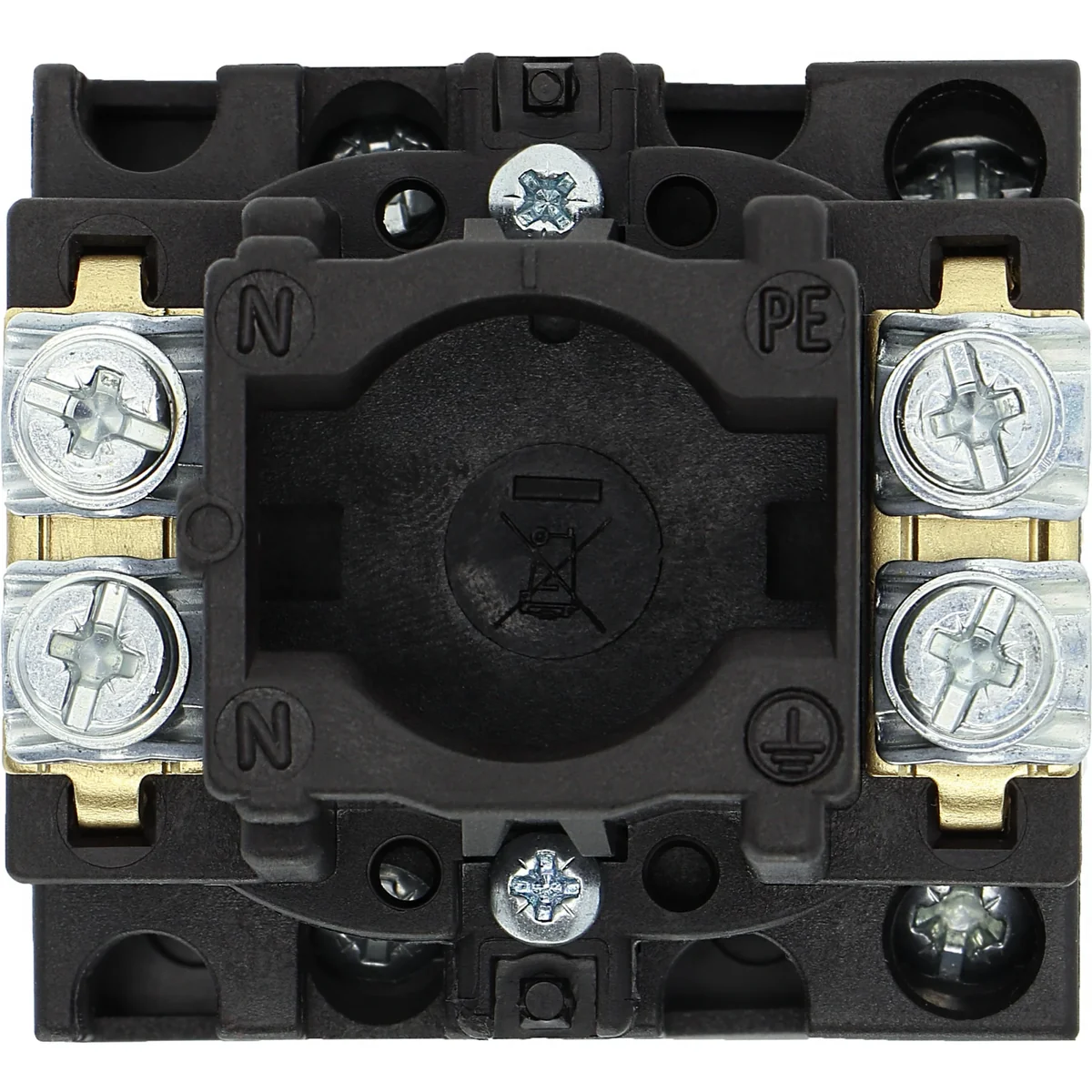

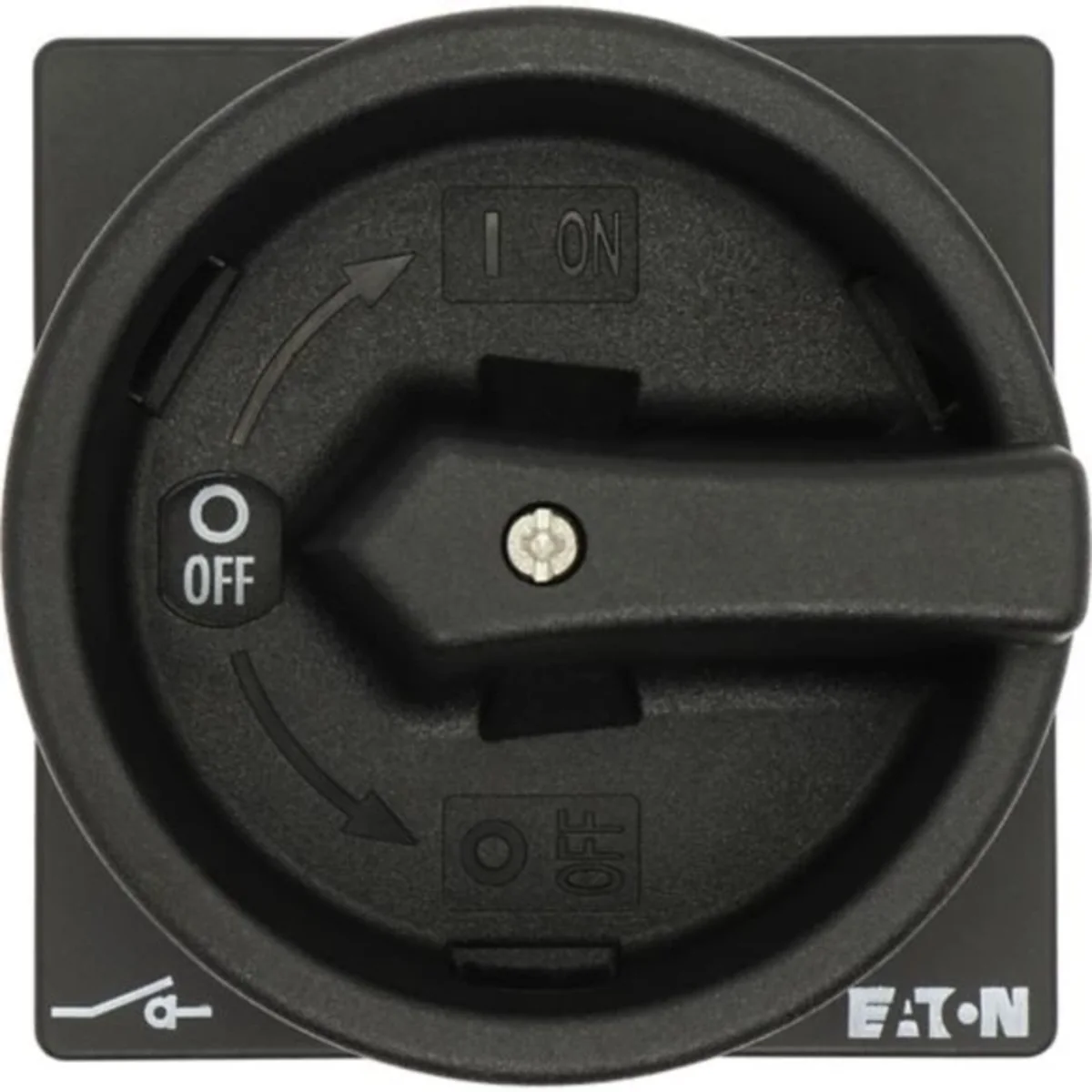

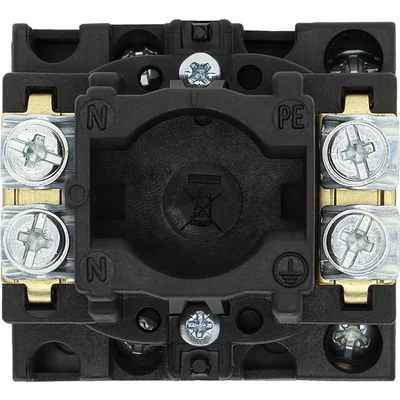

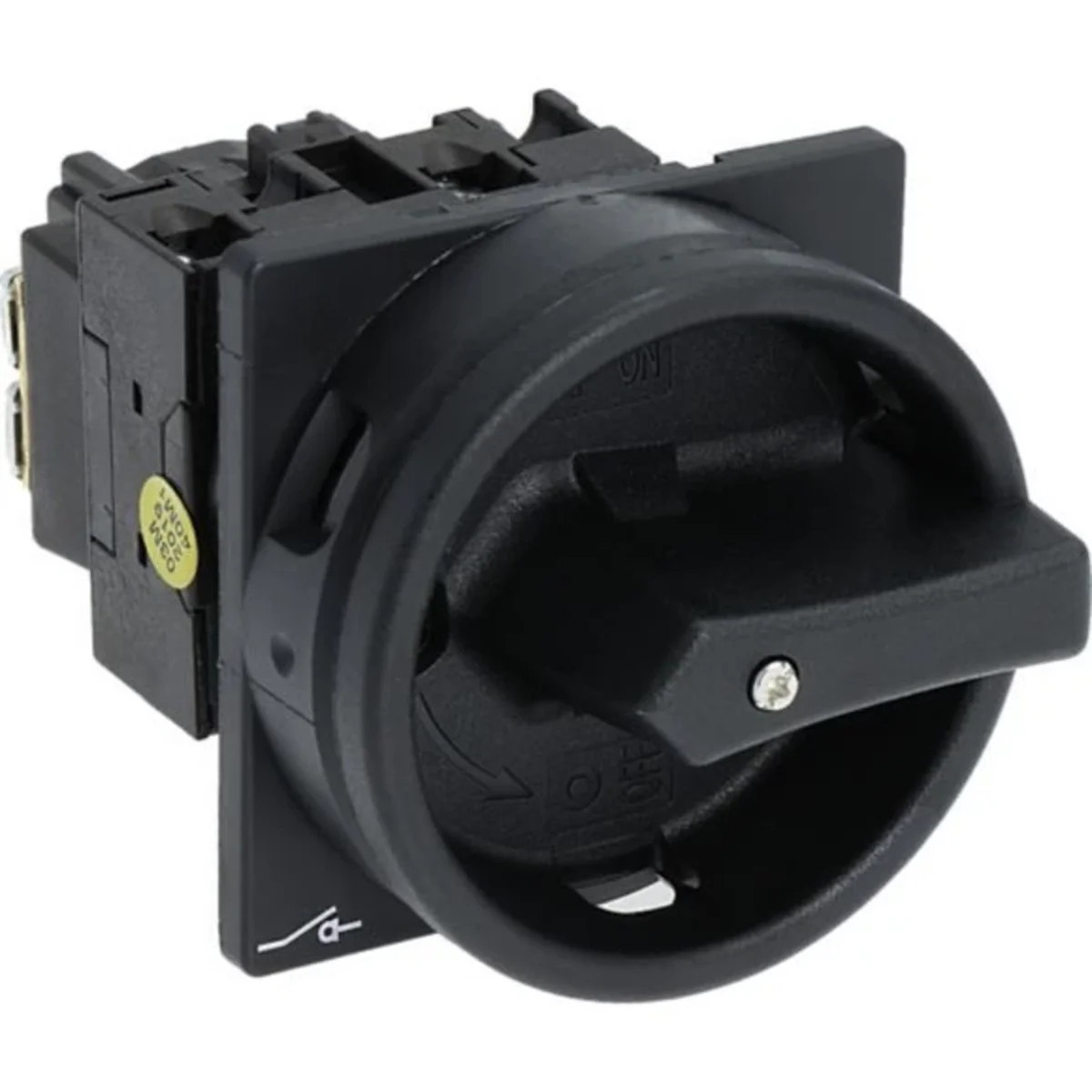

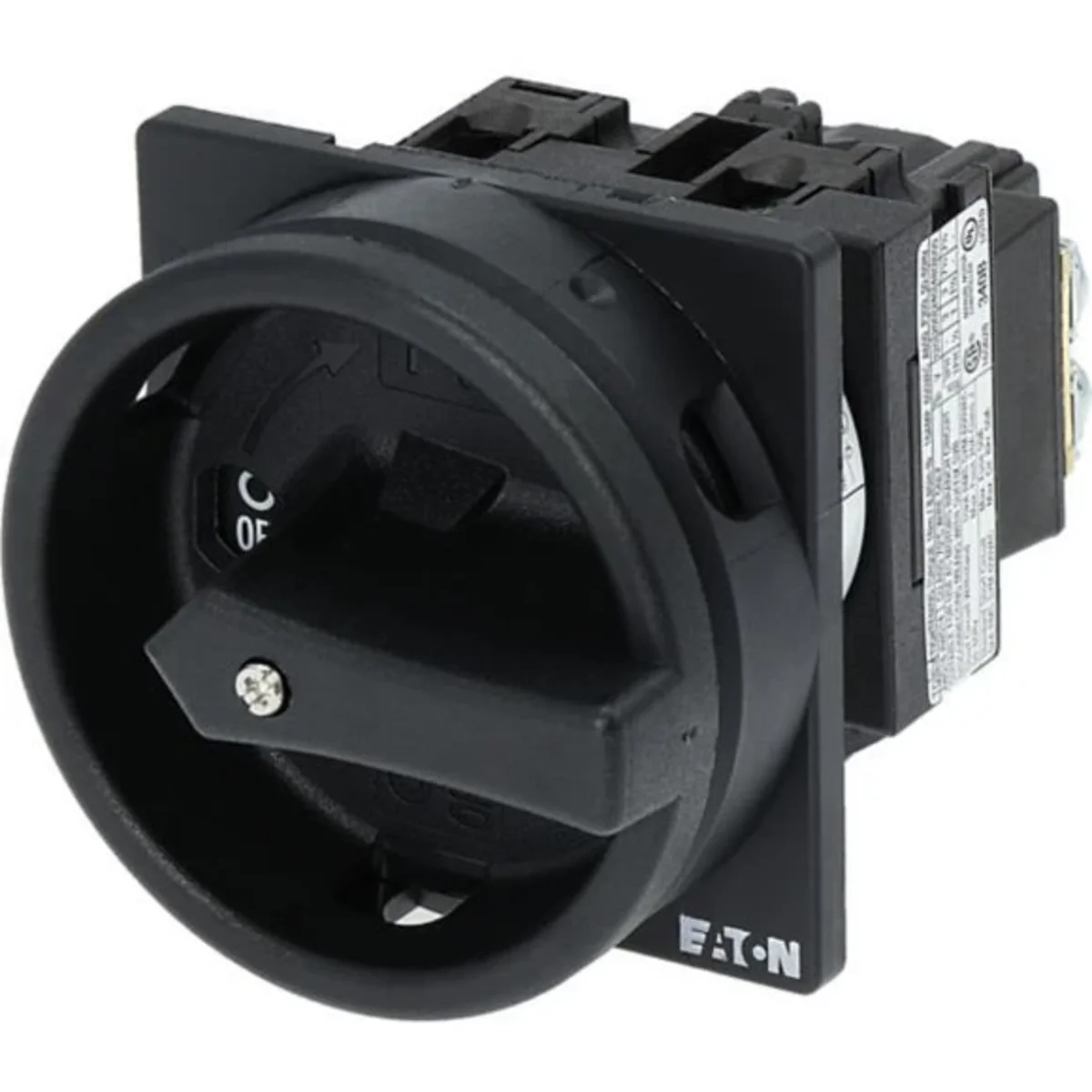

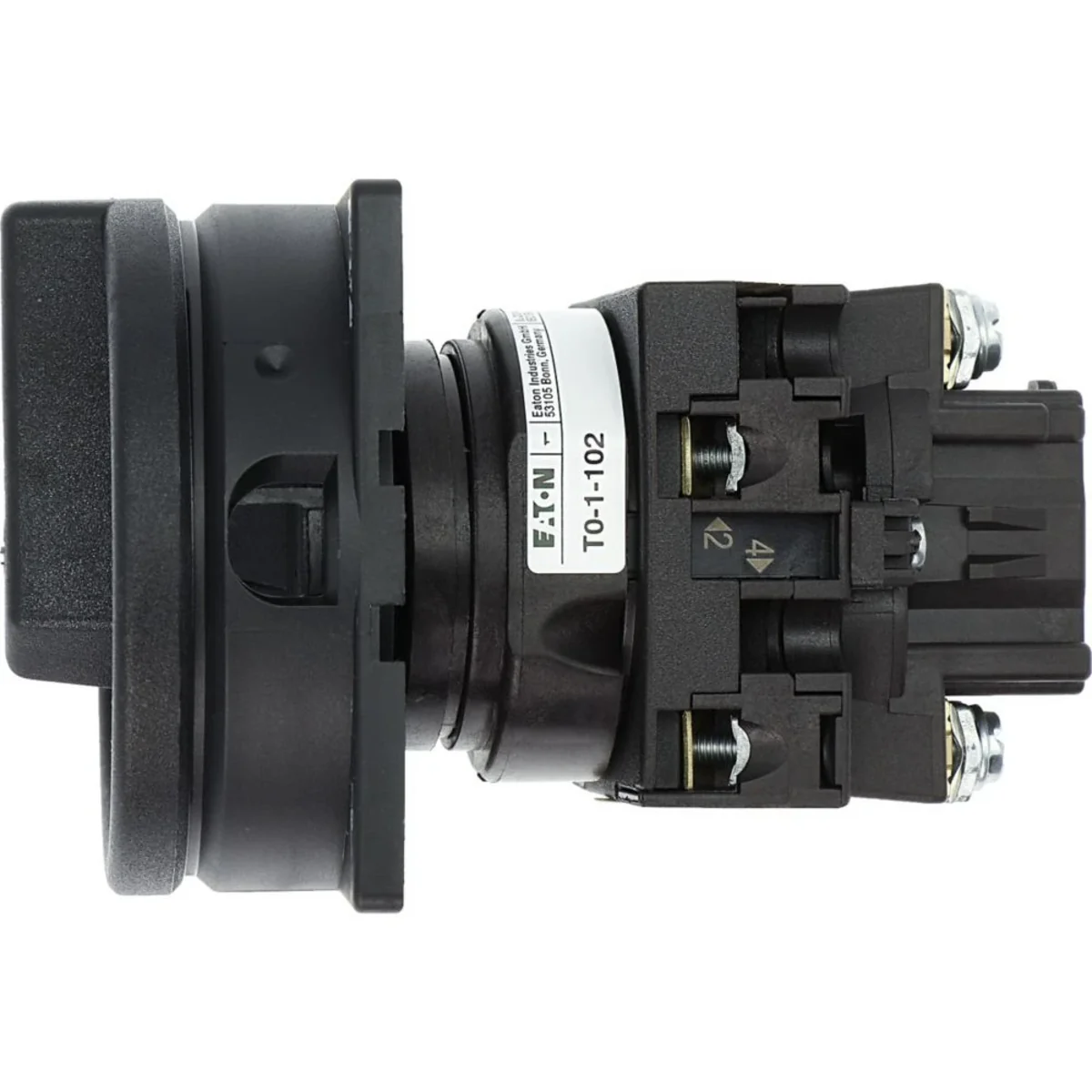

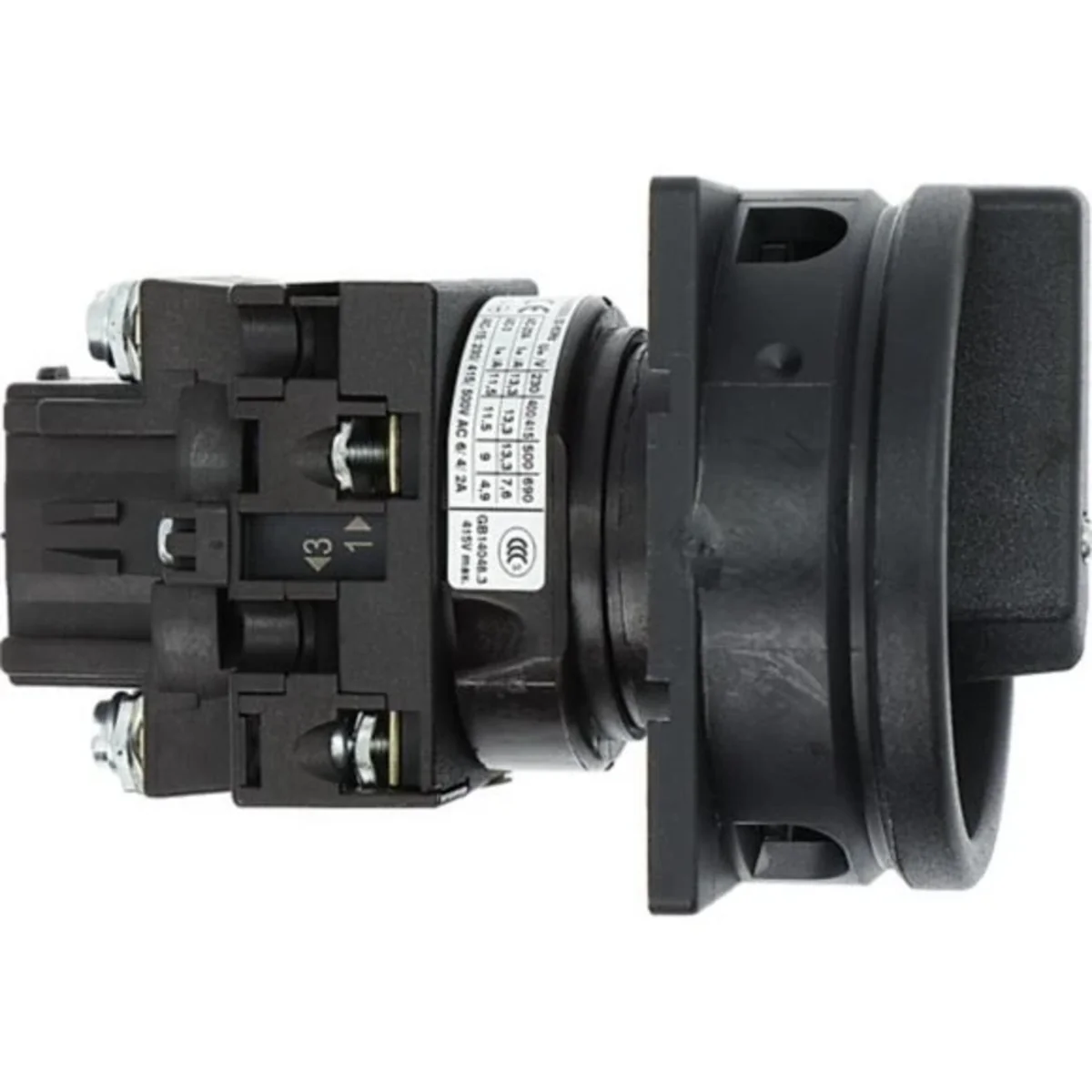

Name: T0-1-102/EA/SVB-SW Main switch, 2 pole, 20 A, emergency stop function, 90°, padlockable in the Off position, surface mounting, black knob with padlockable function
Brand: EATON
SKU: ALK086MOEL
Price: 228.46 PLN
Availability: BackOrder

Autres données techniques

Version as main switch

Yes
Version as safety switch

No
Version as reversing switch

No
Max. rated operation voltage Ue AC

690 V
Rated permanent current Iu

20 A
Rated operation power at AC-3, 400 V

5.5 kW
Rated operation power at AC-23, 400 V

5.5 kW
Conditioned rated short-circuit current Iq

6 kA
Number of auxiliary contacts as normally closed contact

0
Number of auxiliary contacts as change-over contact

0
Motor drive integrated

No
Device construction

Built-in device fixed built-in technique
Suitable for front mounting 4-hole

Yes
Suitable for distribution board installation

No
Colour control element

Black
Interlockable

Yes
Degree of protection (IP), front side

IP65

Version as maintenance-/service switch

Yes
Version as emergency stop installation

No
Number of switches

1
Rated operating voltage

690 ... 690 V
Rated permanent current at AC-21, 400 V

20 A
Rated short-time withstand current lcw

0.32 kA
Switching power at 400 V

5.5 kW
Number of poles

2
Number of auxiliary contacts as normally open contact

0
Motor drive optional

No
Voltage release optional

No
Suitable for floor mounting

No
Suitable for front mounting centre

No
Suitable for intermediate mounting

No
Type of control element

Door coupling rotary drive
Type of electrical connection of main circuit

Screw connection
Degree of protection (NEMA)

12

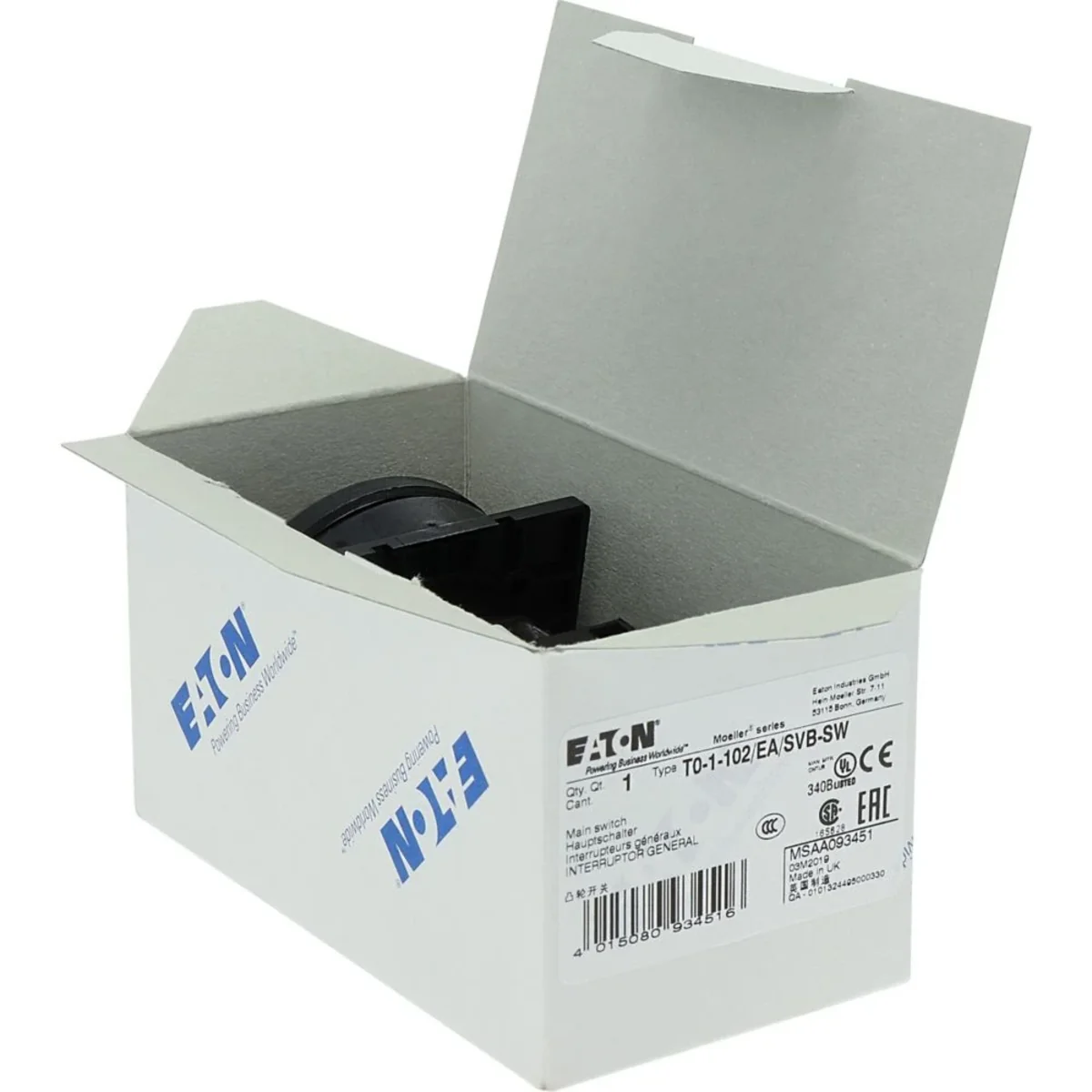

Une sorte de paquet	Skrzynia	Karton
Quantité	1 pcs.	1 pcs.
poids (kg)	0,135	0,177
Volume (m3)	0,000	0,000
Largeur (m)	0,067	0,048
Longueur (m)	0,103	0,095
Profondeur (m)	0,076	0,048

T0-1-102/EA/SVB-SW Main switch, 2 pole, 20 A, emergency stop function, 90°, padlockable in the Off position, surface mounting, black knob with padlockable function 093451
