el12 Automation Circuit breakers, disconnectors Switches up to 160A

Switch disconnector in enclosure, DC, 20A, 4 strings MC4 120916

local index:
ALI319MOEL
Catalog number:
120916
EAN code:
4015081187461

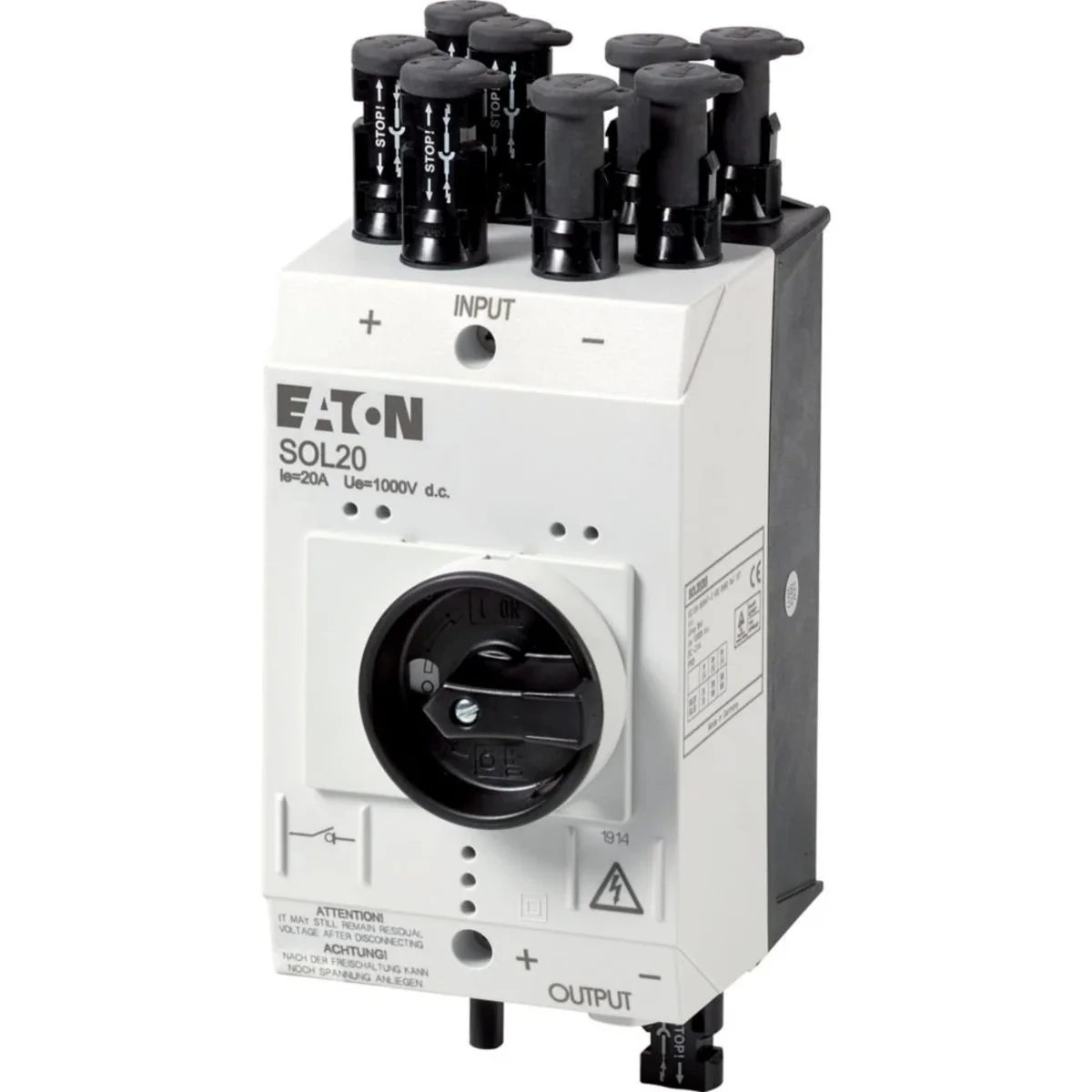

Switch disconnector in enclosure, DC, 20A, 4 strings MC4
Switch disconnector in enclosure, DC, 20A, 4 strings MC4
Switch disconnector in enclosure, DC, 20A, 4 strings MC4
Switch disconnector in enclosure, DC, 20A, 4 strings MC4

Click on the photo to enlarge

Manufacturer: EATON
Number of inputs: 4
Installation: M4 screw connection
Operating voltage [V]: 1000
See full description
Price:
1 800,03 zł
gross / pcs.
(including VAT 23%)
up to 4 weeks
On request
Quantity pcs.
(multiplicity:
1
)
Add to inquiry
Add to clipboard
Print
Product description Technical data Manufacturer details Bulk packaging

Product description

Switch disconnector, Lockable: OFF: yes, Degree of protection: IP65, Standards and regulations: IEC/EN 60947-3, TÜV certified

Technical data

  • Number of inputs
    4
  • Operating voltage [V]
    1000
  • Level of security
    65
  • Installation
    M4 screw connection
  • Rated current [A]
    20

Other technical data

  • Version as main switch
    No
  • Version as safety switch
    No
  • Version as reversing switch
    No
  • Max. rated operation voltage Ue AC
    0 V
  • Rated permanent current Iu
    20 A
  • Rated permanent current at AC-21, 400 V
    0 A
  • Rated short-time withstand current lcw
    0.24 kA
  • Switching power at 400 V
    20 kW
  • Number of poles
    2
  • Number of auxiliary contacts as normally open contact
    0
  • Motor drive optional
    No
  • Voltage release optional
    Yes
  • Suitable for floor mounting
    Yes
  • Suitable for front mounting centre
    No
  • Suitable for intermediate mounting
    No
  • Type of control element
    Toggle
  • Type of electrical connection of main circuit
    Other
  • Degree of protection (NEMA)
    Other
  • Version as maintenance-/service switch
    No
  • Version as emergency stop installation
    No
  • Number of switches
    1
  • Rated operating voltage
    1000 ... 1000 V
  • Rated permanent current at AC-23, 400 V
    0 A
  • Rated operation power at AC-3, 400 V
    0 kW
  • Rated operation power at AC-23, 400 V
    0 kW
  • Conditioned rated short-circuit current Iq
    0 kA
  • Number of auxiliary contacts as normally closed contact
    0
  • Number of auxiliary contacts as change-over contact
    0
  • Motor drive integrated
    No
  • Device construction
    Complete device in housing
  • Suitable for front mounting 4-hole
    No
  • Suitable for distribution board installation
    No
  • Colour control element
    Black
  • Interlockable
    No
  • Degree of protection (IP), front side
    IP65

Manufacturer details

  • Manufacturer
    Eaton Electric Sp. z o.o.
  • Address
    80-299 Gdańsk Galaktyczna 30 Polska
  • E-mail
    wsparcietech@eaton.com

Bulk packaging

A kind of package Skrzynia
Quantity 1 pcs.
Weight (kg) 1,081
Volume (m3) 0,005
Width (m) 0,100
Length (m) 0,290
Depth (m) 0,170
