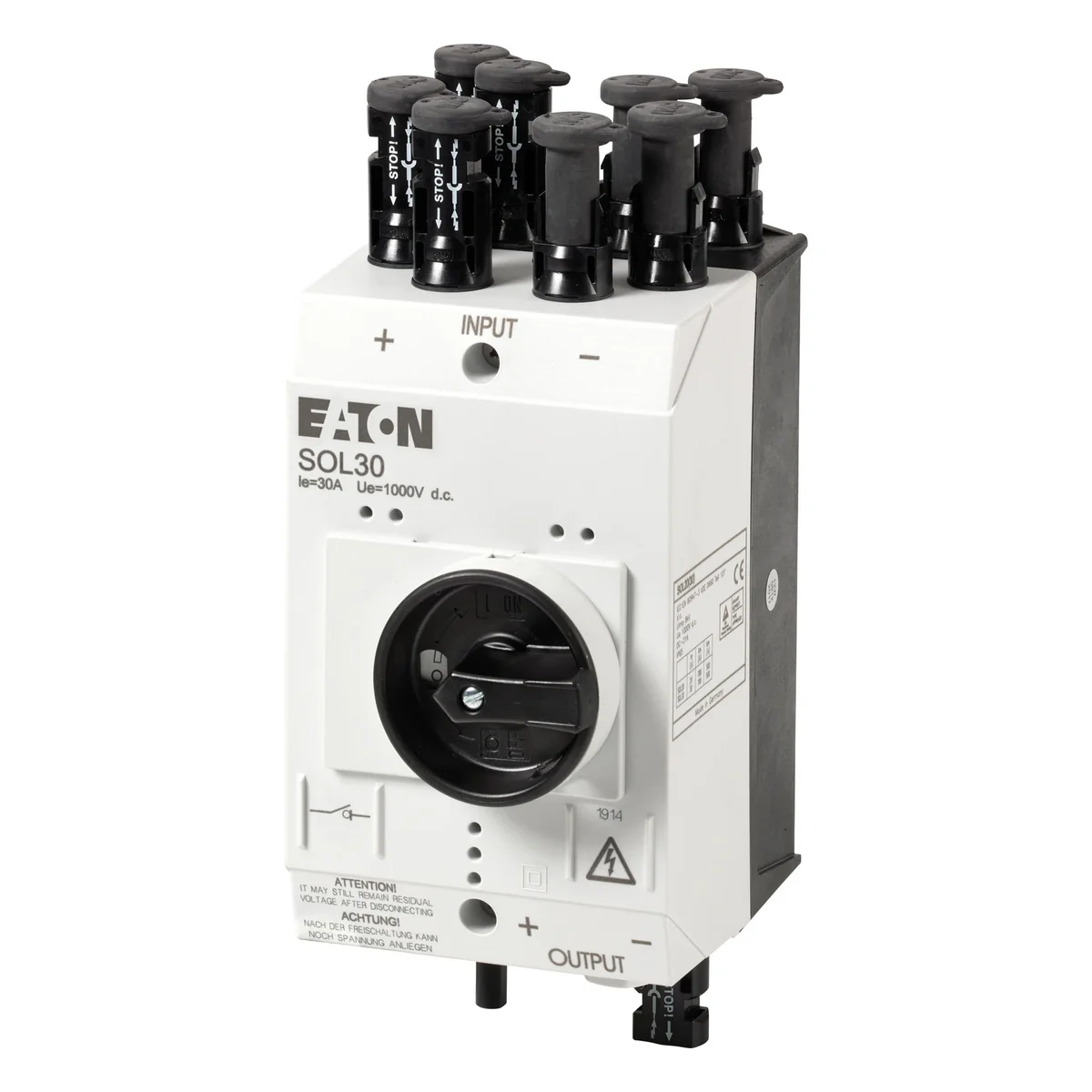

Switch disconnector, DC, 25A, 4 strings MC4 120923
local index:
ALI322MOEL
Catalog No:
120923
EAN code:
4015081187539
Price:
386,24 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch disconnector, Lockable: OFF: yes, Degree of protection: IP65, Standards and regulations: IEC/EN 60947-3, TÜV certified
Technical data
-
Number of inputs4
-
InstallationM4 screw connection
-
Rated current [A]25
-
Number of poles2
-
Operating voltage [V]1000
-
Level of security65
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC0 V
-
Rated permanent current Iu30 A
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw0.36 kA
-
Switching power at 400 V30 kW
-
Number of poles2
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementToggle
-
Type of electrical connection of main circuitOther
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage1000 ... 1000 V
-
Rated permanent current at AC-23, 400 V0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V0 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,940 | 1,051 |
| Volume (m3) | 0,003 | 0,006 |
| Width (m) | 0,100 | 0,165 |
| Length (m) | 0,234 | 0,250 |
| Depth (m) | 0,130 | 0,140 |
