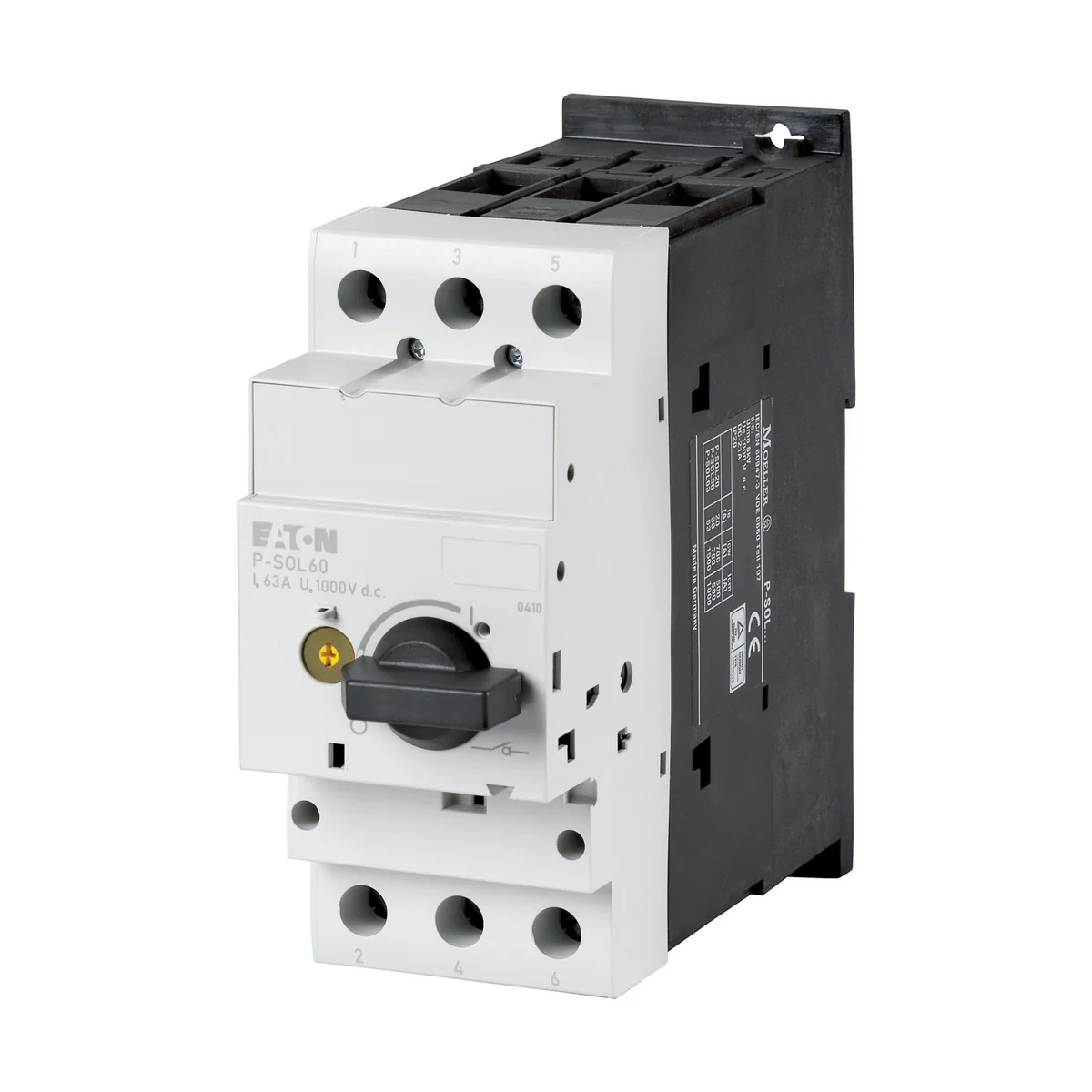

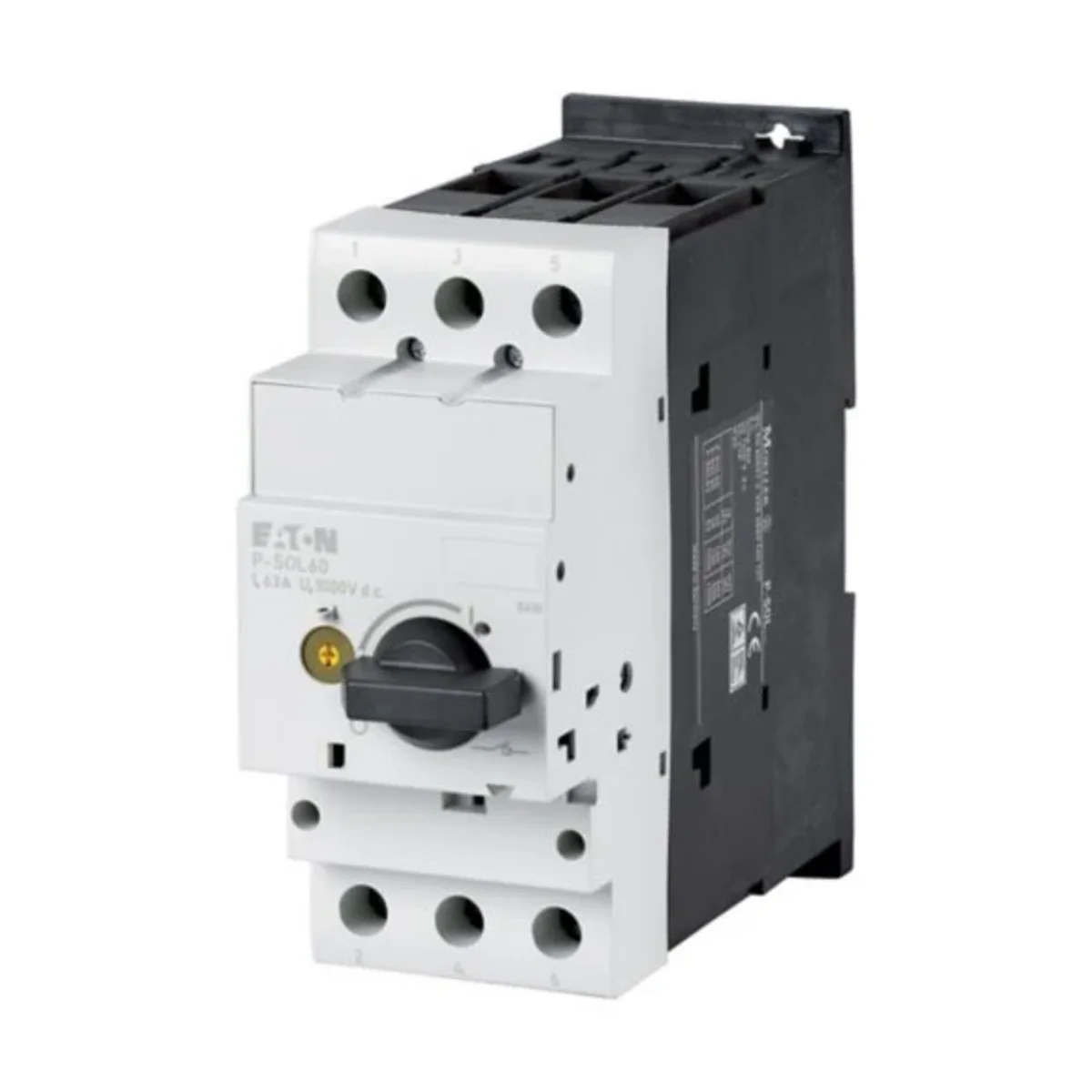

Switch disconnector, DC, 2-pole, 60A 120936
local index:
ALI337MOEL
Catalog No:
120936
EAN code:
4015081187669
Price:
323,66 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
Switch disconnector, Standards and Regulations: IEC/EN 60947-3, TÜV Certification, UL 508, CSA-C22.2 No. 14-10
Technical data
-
Number of poles2
-
Rated current [A]60
-
Operating voltage [V]1000
Other technical data
-
Version as main switchNo
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC1000 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V0 A
-
Rated short-time withstand current lcw0.72 kA
-
Switching power at 400 V63 kW
-
Number of poles2
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalYes
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementTurn button
-
Type of electrical connection of main circuitFrame clamp
-
Degree of protection (NEMA)Other
-
Version as maintenance-/service switchNo
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage1000 ... 1000 V
-
Rated permanent current at AC-23, 400 V0 A
-
Rated operation power at AC-3, 400 V0 kW
-
Rated operation power at AC-23, 400 V0 kW
-
Conditioned rated short-circuit current Iq0 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationYes
-
Colour control elementBlack
-
InterlockableNo
-
Degree of protection (IP), front sideIP20
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,994 | 1,058 |
| Volume (m3) | 0,001 | 0,001 |
| Width (m) | 0,055 | 0,058 |
| Length (m) | 0,140 | 0,143 |
| Depth (m) | 0,160 | 0,165 |
