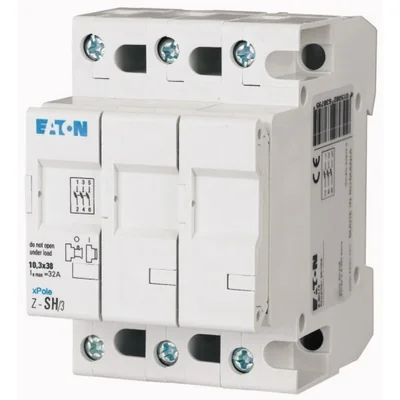

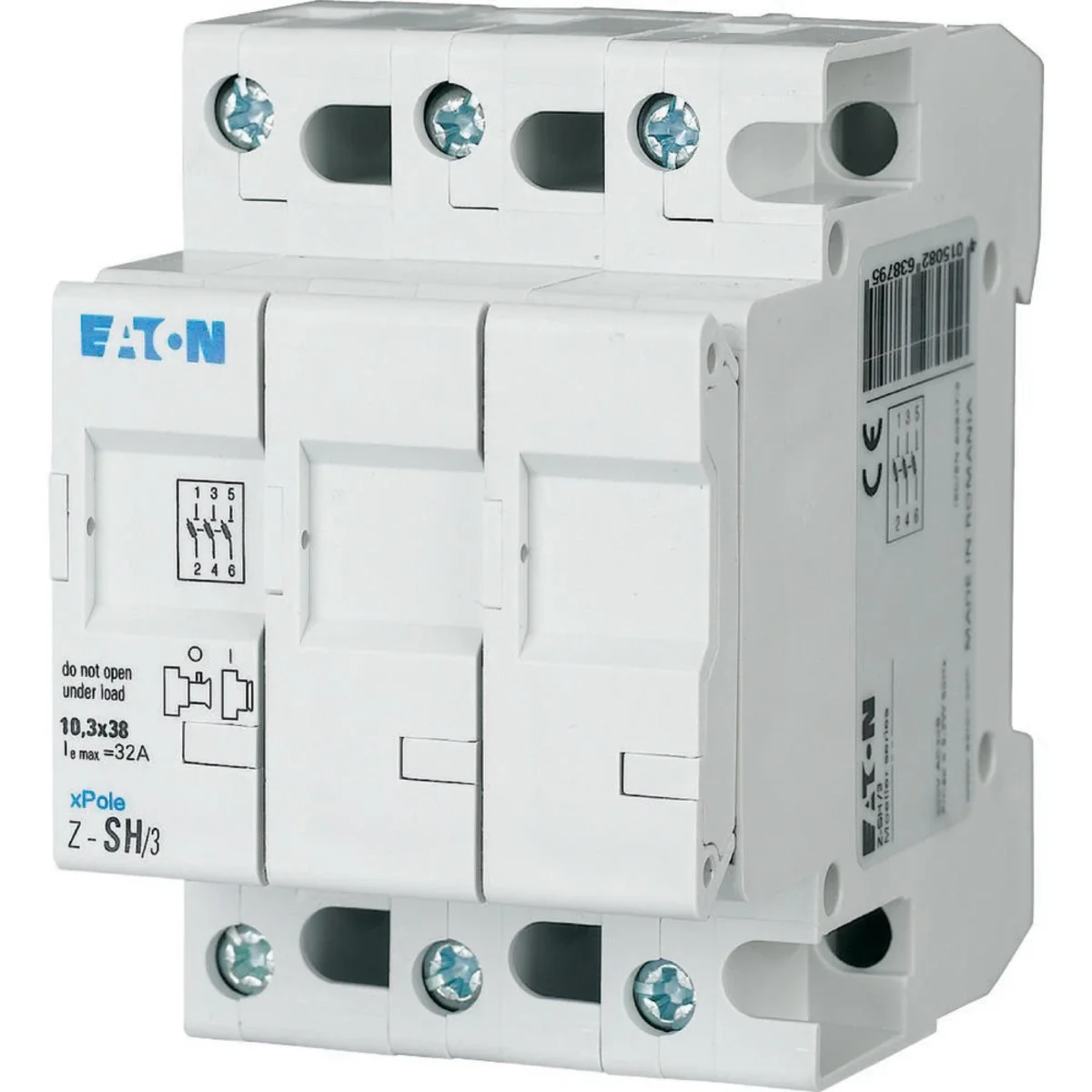

Switch-disconnector base, A, Z-SH/3 263879

local index:
ALA009MOEL
Catalog No:
263879
EAN code:
4015082638795
Price:
24,99 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
4
)
Add to clipboard
Print

Product description

Switch-disconnector base, A, Z-SH/3

Technical data

Other technical data

  • Version as main switch
    No
  • Max. rated operation voltage Ue AC
    400 V
  • Rated operation power at AC-23, 400 V
    0 kW
  • Rated short-time withstand current lcw
    0 kA
  • Number of poles
    3
  • Type of electrical connection of main circuit
    Screw connection
  • Equipped with connectors
    No
  • Suitable for front mounting
    No
  • Type of control element
    Other
  • Motor drive optional
    No
  • Version as emergency stop installation
    No
  • Version as safety switch
    No
  • Rated permanent current Iu
    32 A
  • Conditioned rated short-circuit current Iq
    10 kA
  • Suitable for fuses
    Shape C1-C3
  • With error protection
    No
  • Cable entry
    Other
  • Suitable for floor mounting
    No
  • Suitable for busbar mounting
    No
  • Position control element
    Front side
  • Motor drive integrated
    No
  • Degree of protection (IP), front side
    IP20

Bulk packaging

A kind of package Skrzynia Karton Karton
Quantity 1 pcs. 4 pcs. 40 pcs.
Weight (kg) 0,252 1,007 10,170
Volume (m3) 0,000 0,001 0,016
Width (m) 0,054 0,086 0,180
Length (m) 0,082 0,218 0,385
Depth (m) 0,076 0,074 0,230
