el12
Automation
Circuit breakers, disconnectors
Cam switches

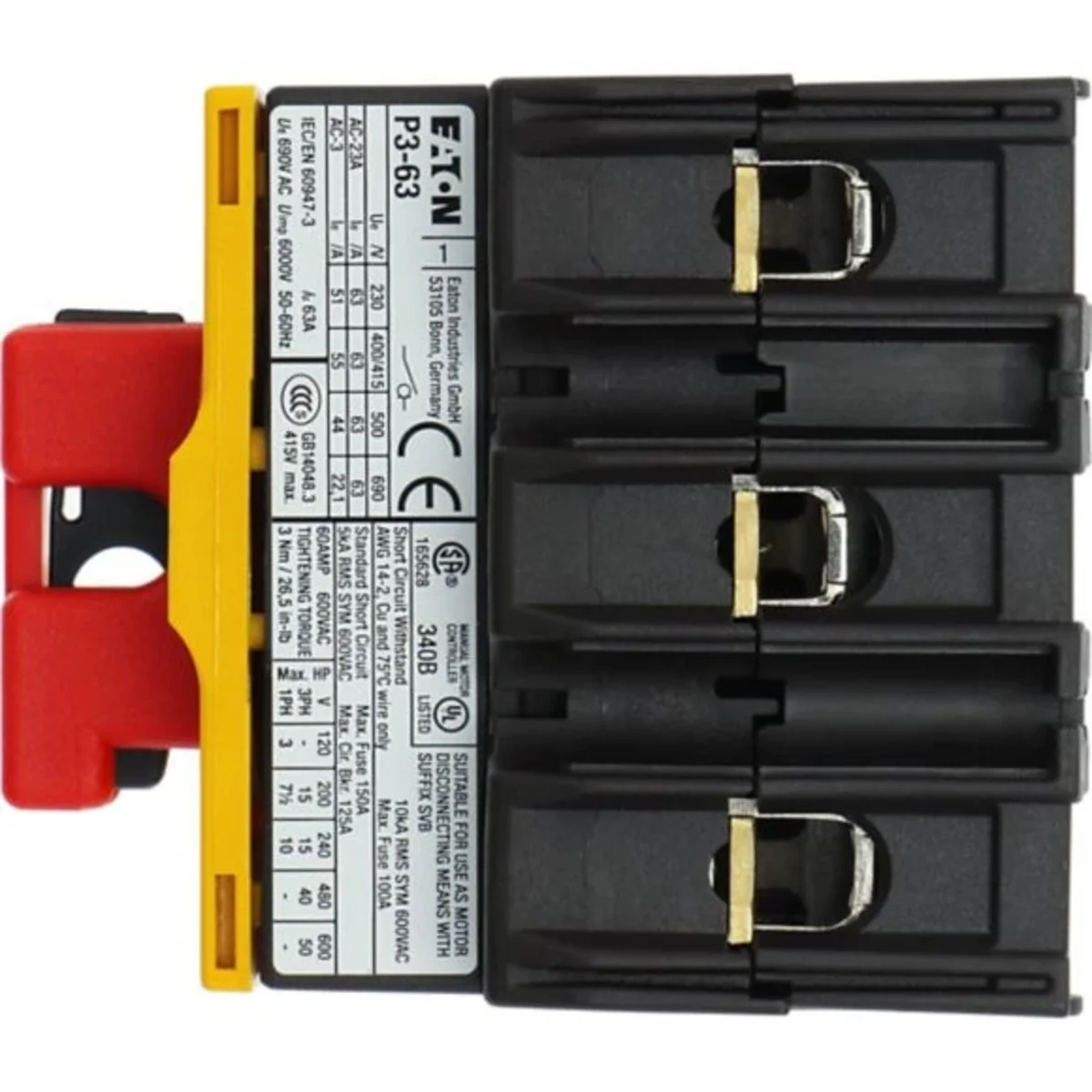

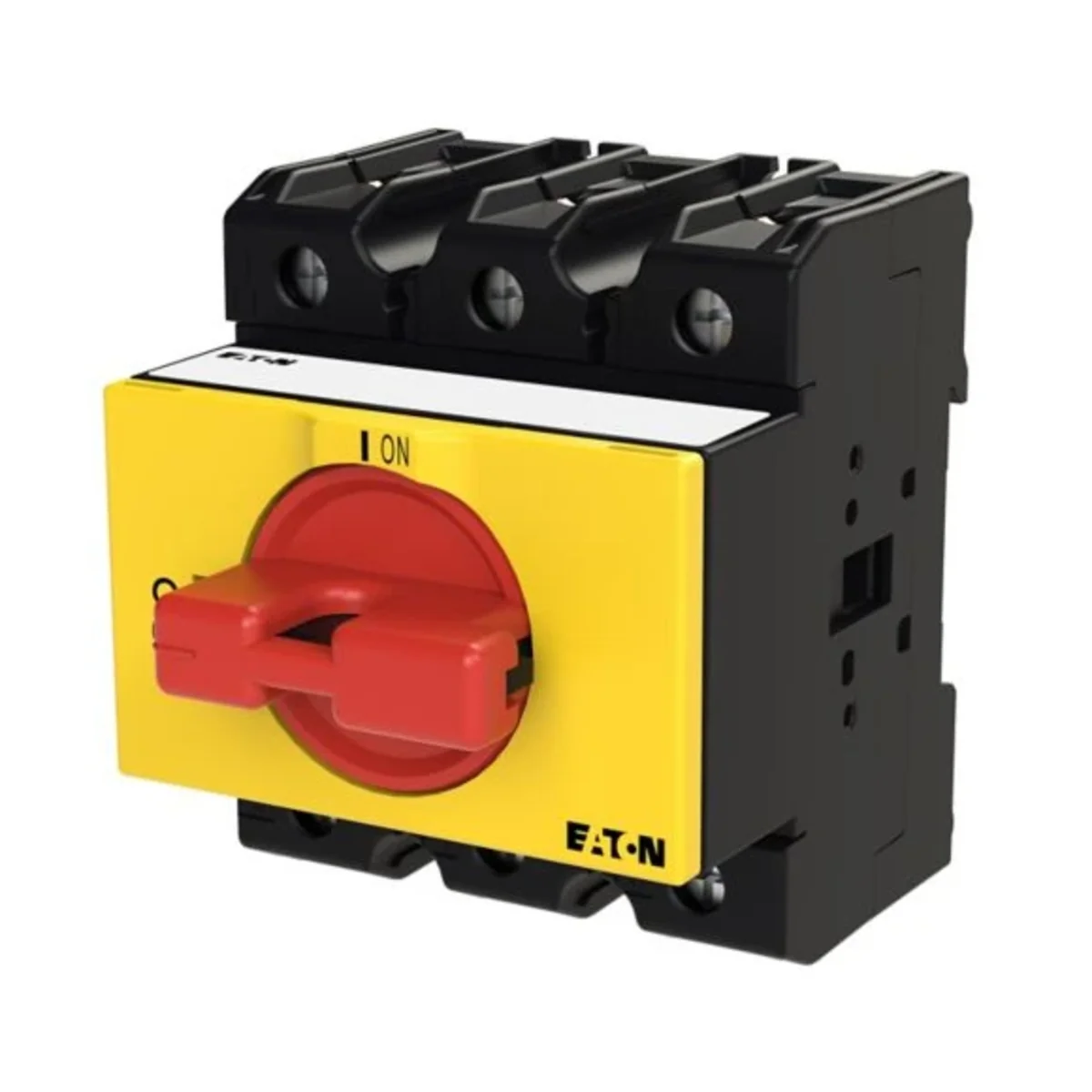

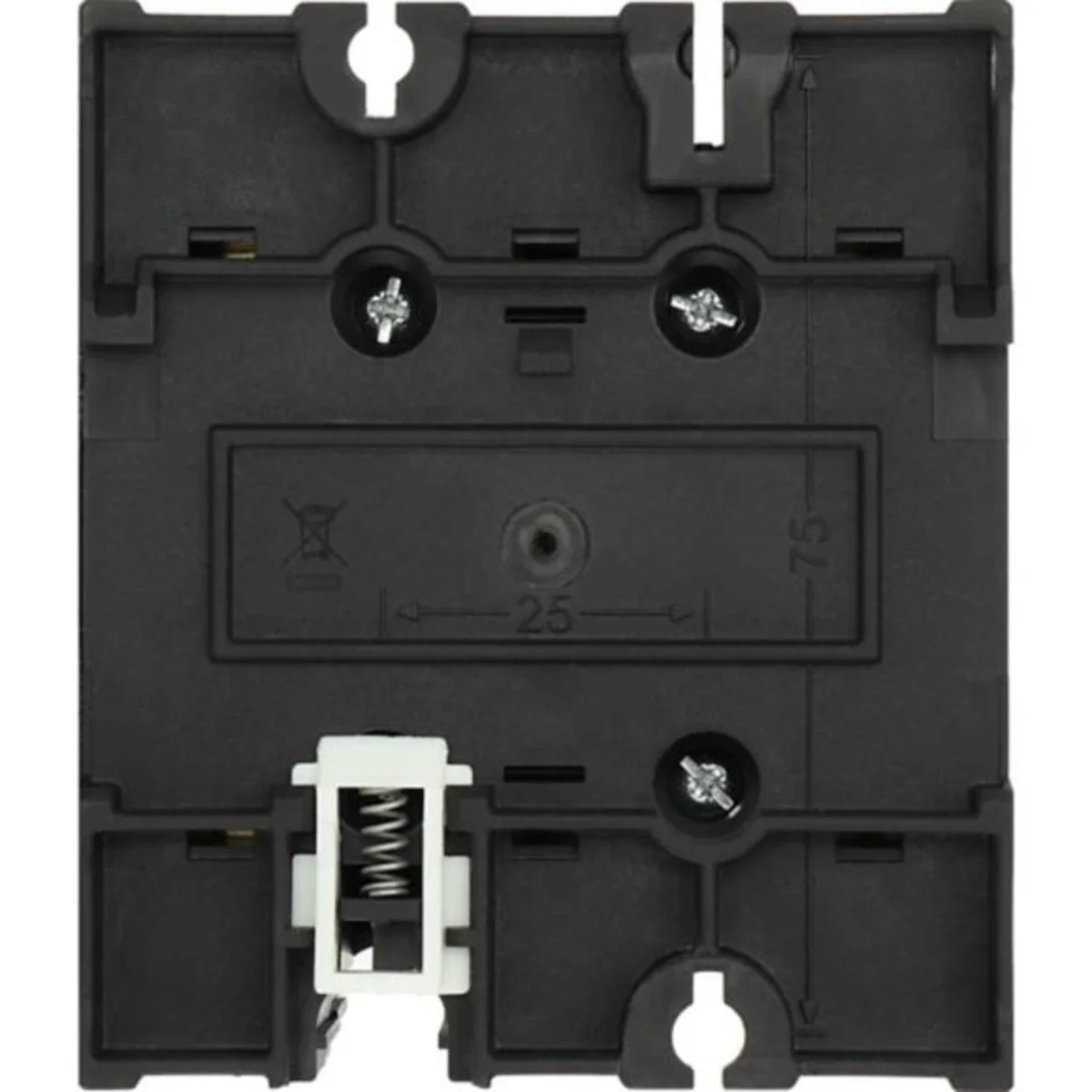

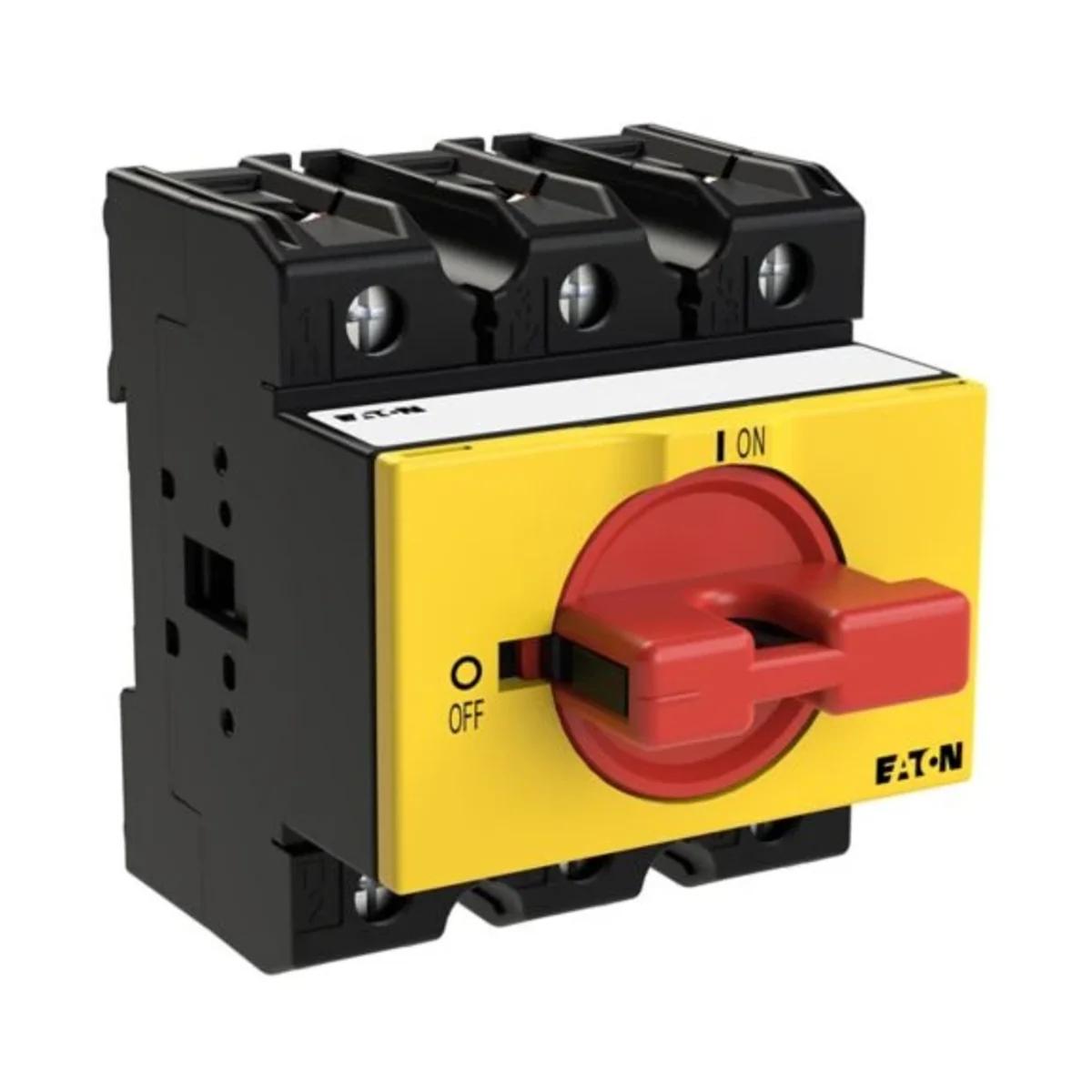

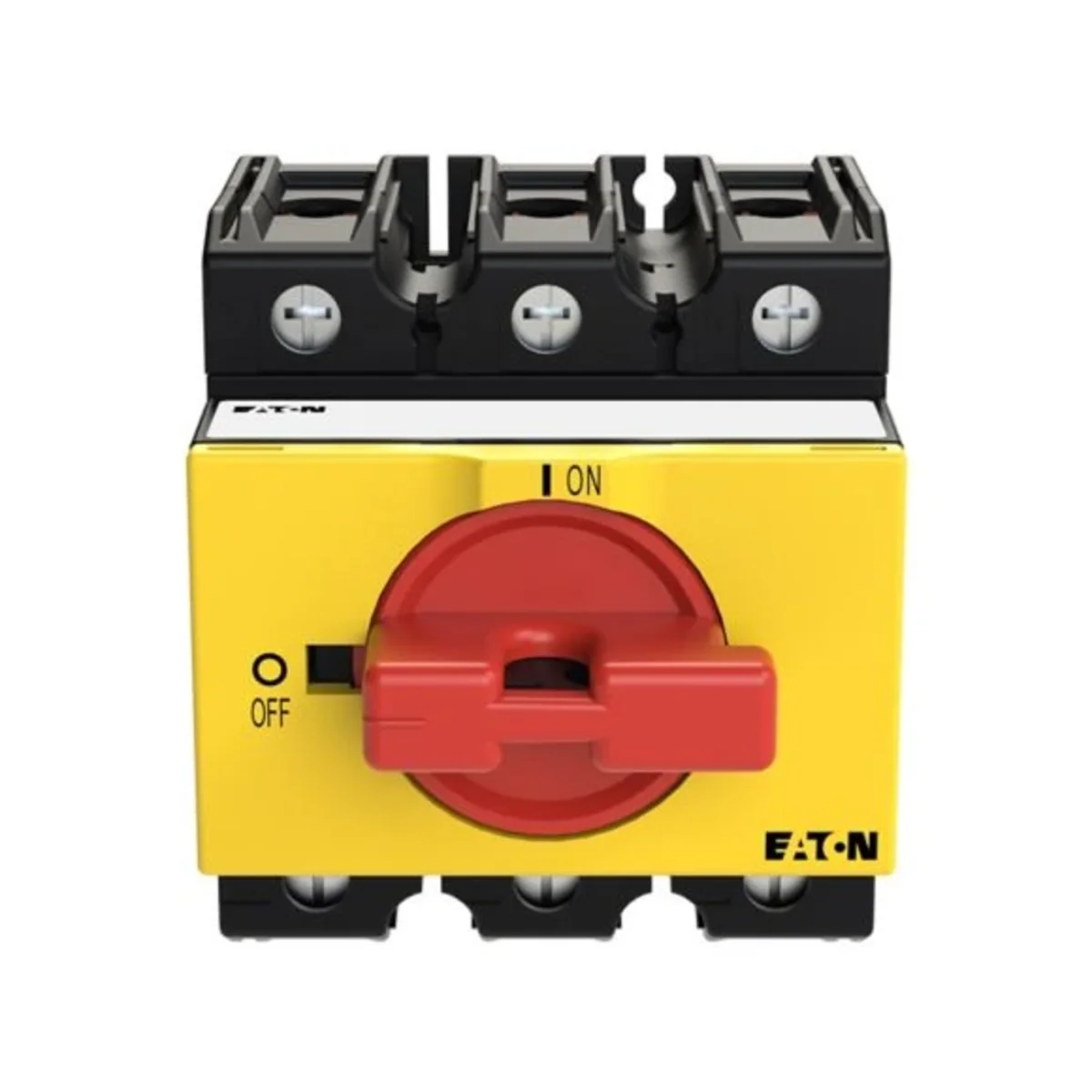

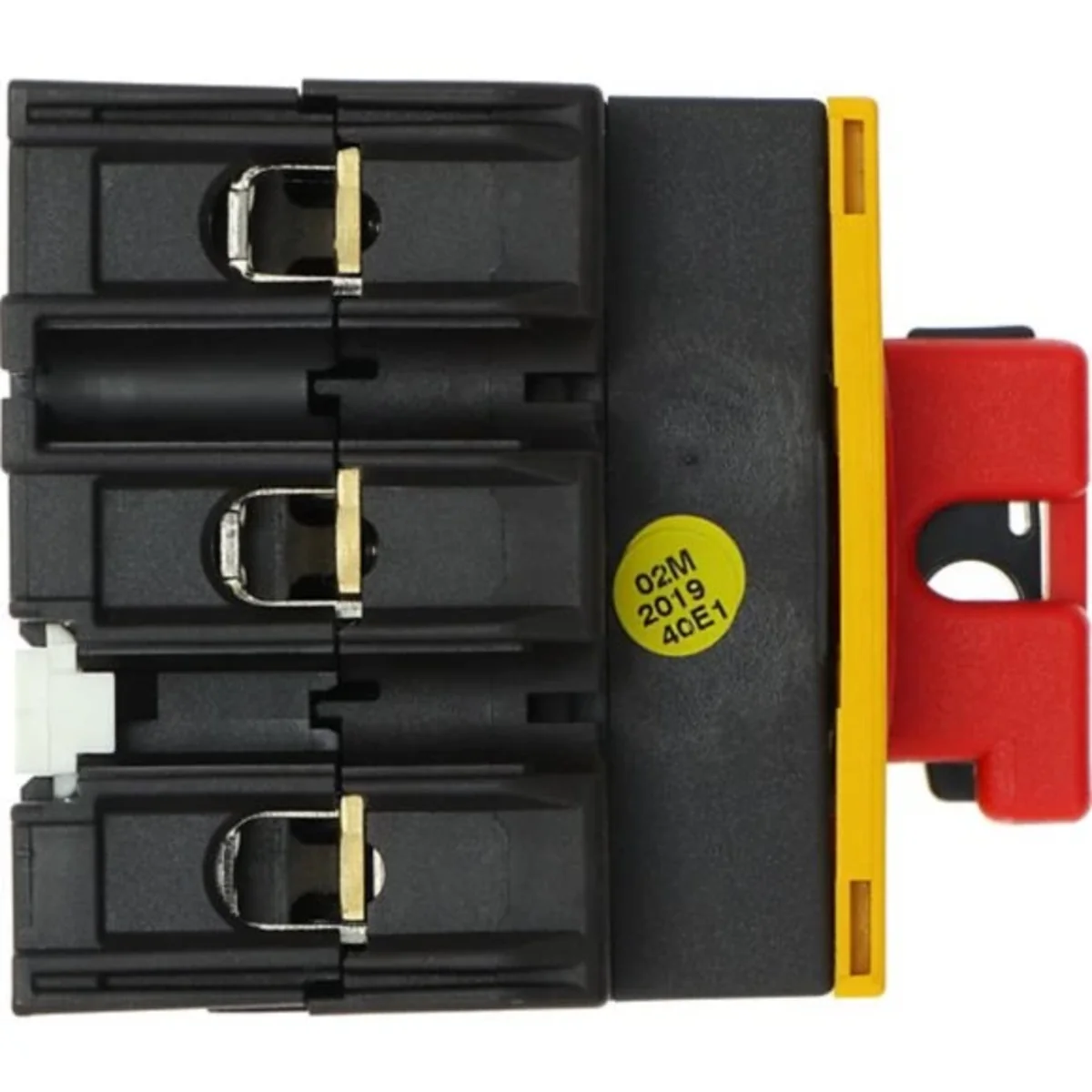

Switch, 63A, P3-63/IVS-RT 045845
local index:
ALK142MOEL
Catalog No:
045845
EAN code:
4015080458456
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
37
Main circuits:
3z
Rated current [A]:
63
See full description
Price:
95,68 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Bulk packaging
Product description
On/Off switch In=63A P=37kW
Technical data
Power [kW]
37
Rated current [A]
63
Main circuits
3z
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
63 A
Rated permanent current at AC-21, 400 V
63 A
Rated short-time withstand current lcw
1.26 kA
Switching power at 400 V
30 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
Yes
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
No
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
63 A
Rated operation power at AC-3, 400 V
30 kW
Rated operation power at AC-23, 400 V
30 kW
Conditioned rated short-circuit current Iq
100 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Red
Interlockable
No
Degree of protection (IP), front side
IP30
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
Weight (kg)
0,336
Volume (m3)
0,000
Width (m)
0,048
Length (m)
0,128
Depth (m)
0,048
