Switch, 63A, P3-63/EA/SVB-SW/N 012771
Índice local:
ALK233MOEL
Número de catálogo:
012771
Código EAN:
4015080127710
Precio:
741,17 zł
gross / uds.
(IVA incluido 23%)
Por encargo
Cantidad uds.
(múltiple:
1
)
Añadir a solicitud de presupuesto
Añadir al portapapeles
Imprimir
Pregunta por el producto
Descripción del producto
Datos técnicos
Detalles del fabricante
Empaquetado a granel
Archivos para descargar
Descripción del producto

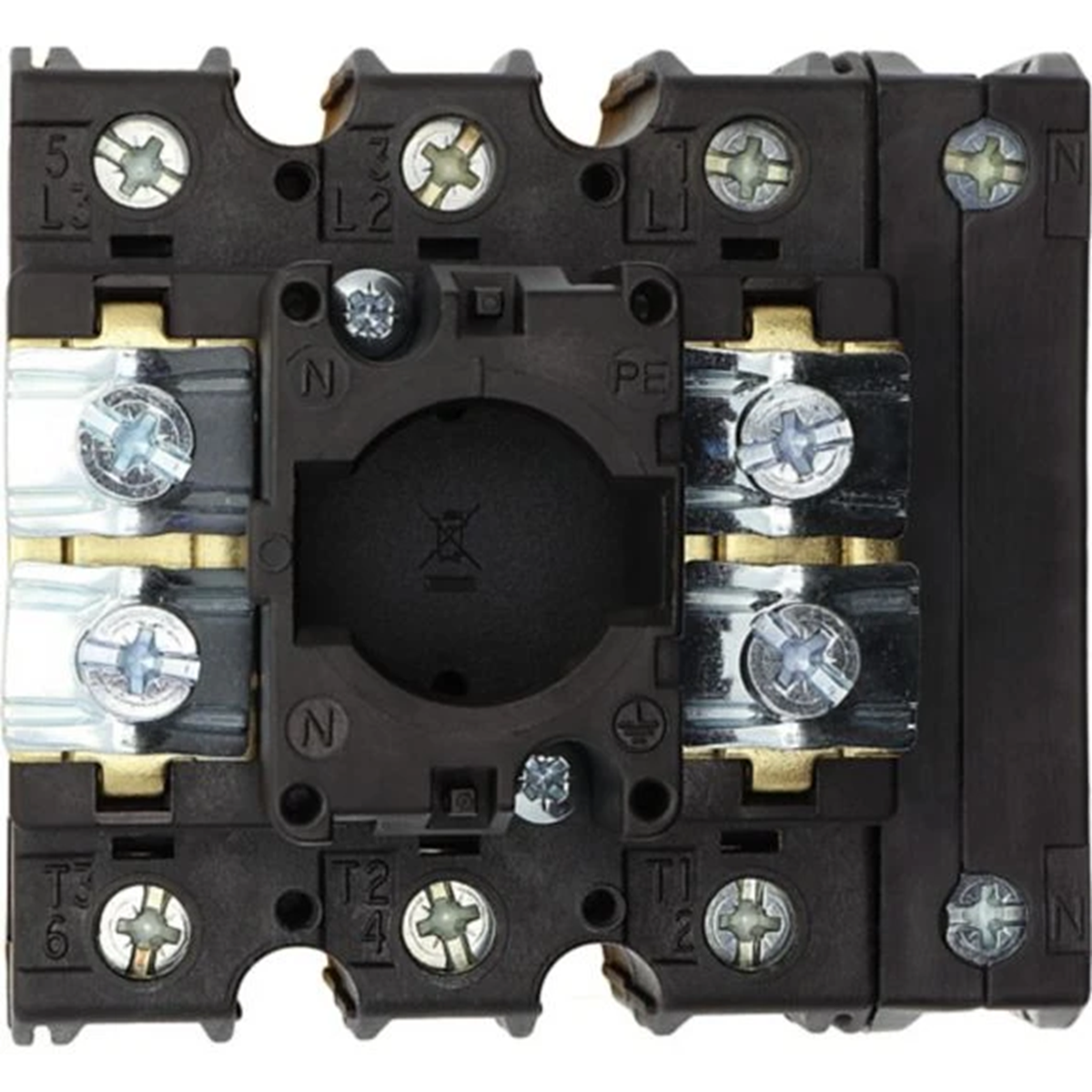

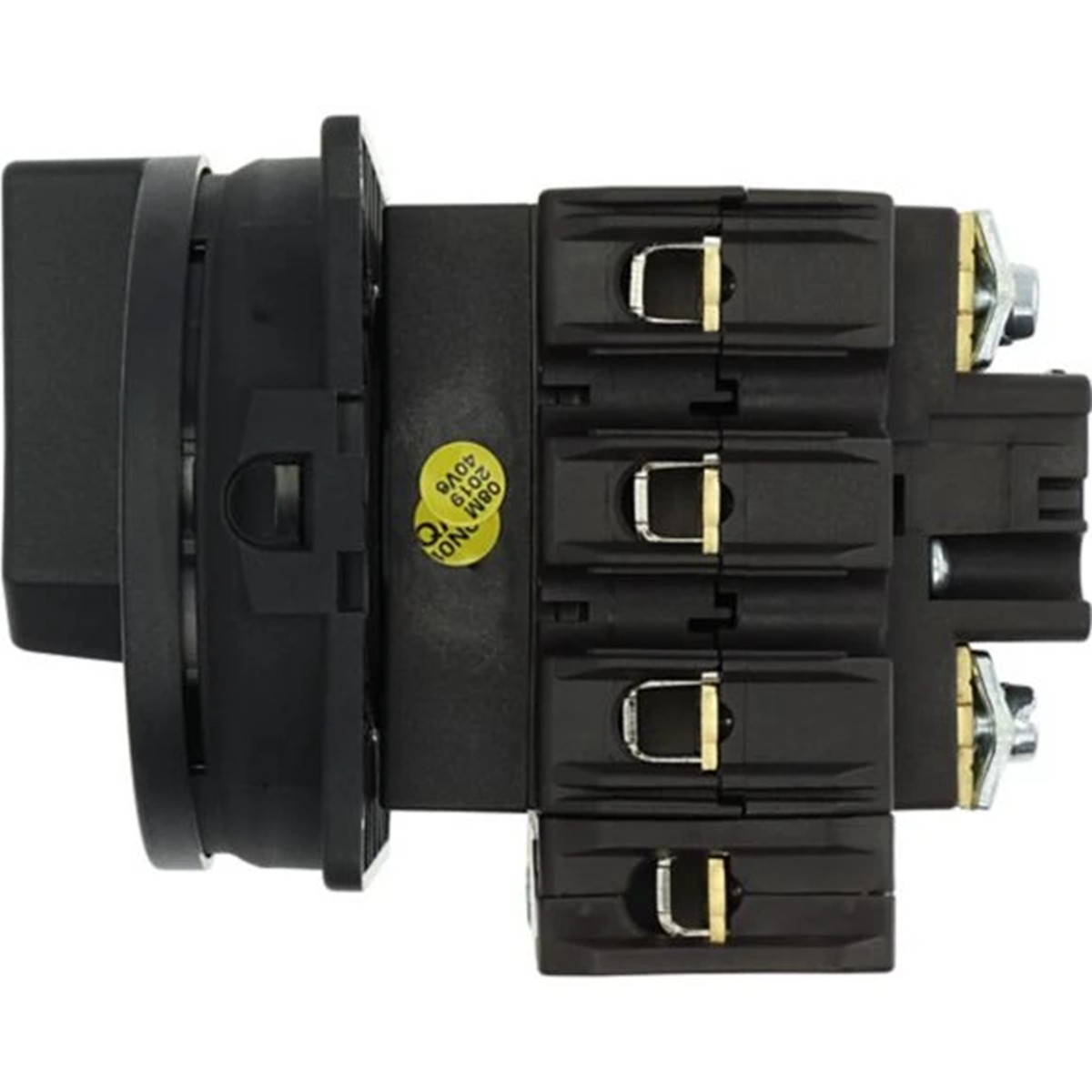

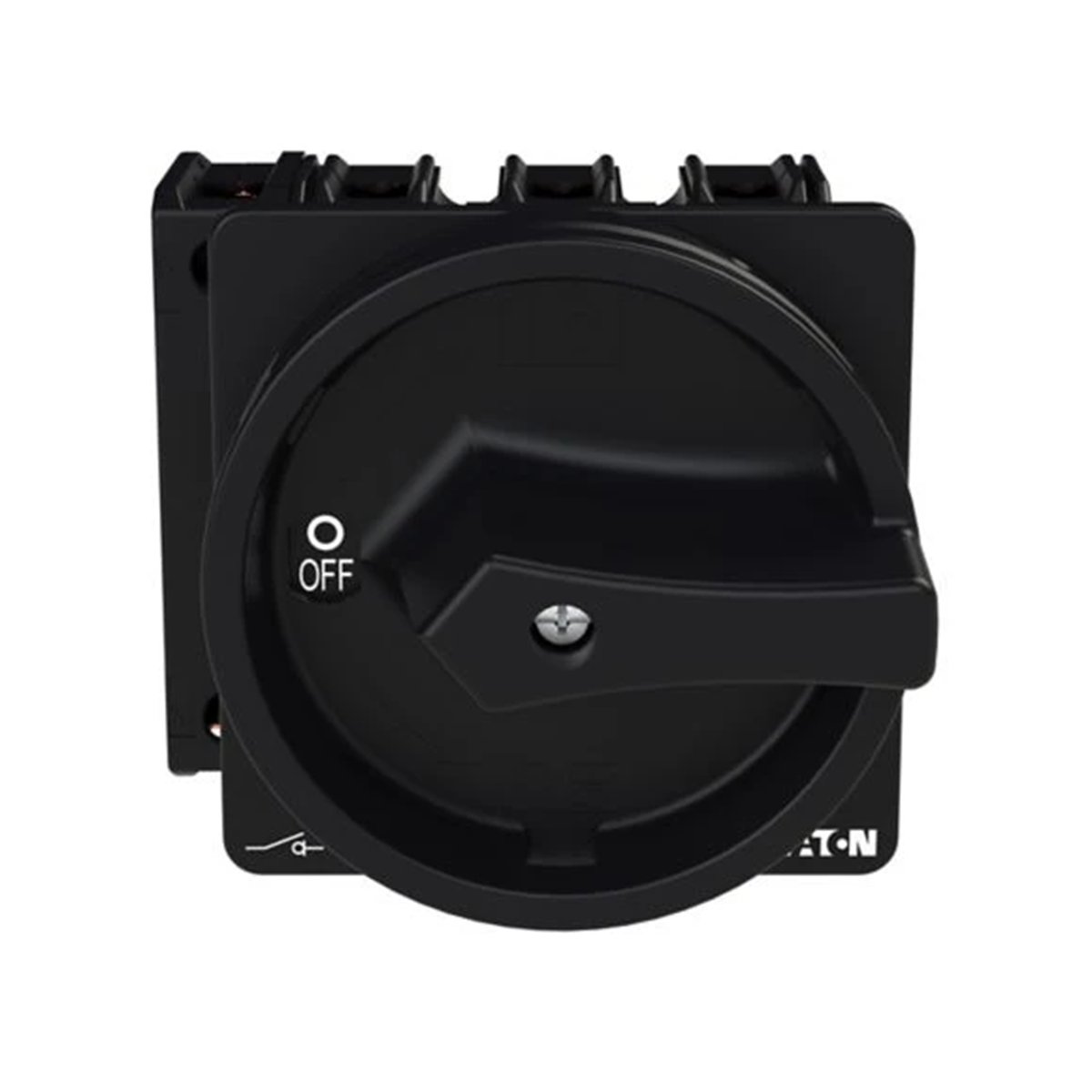

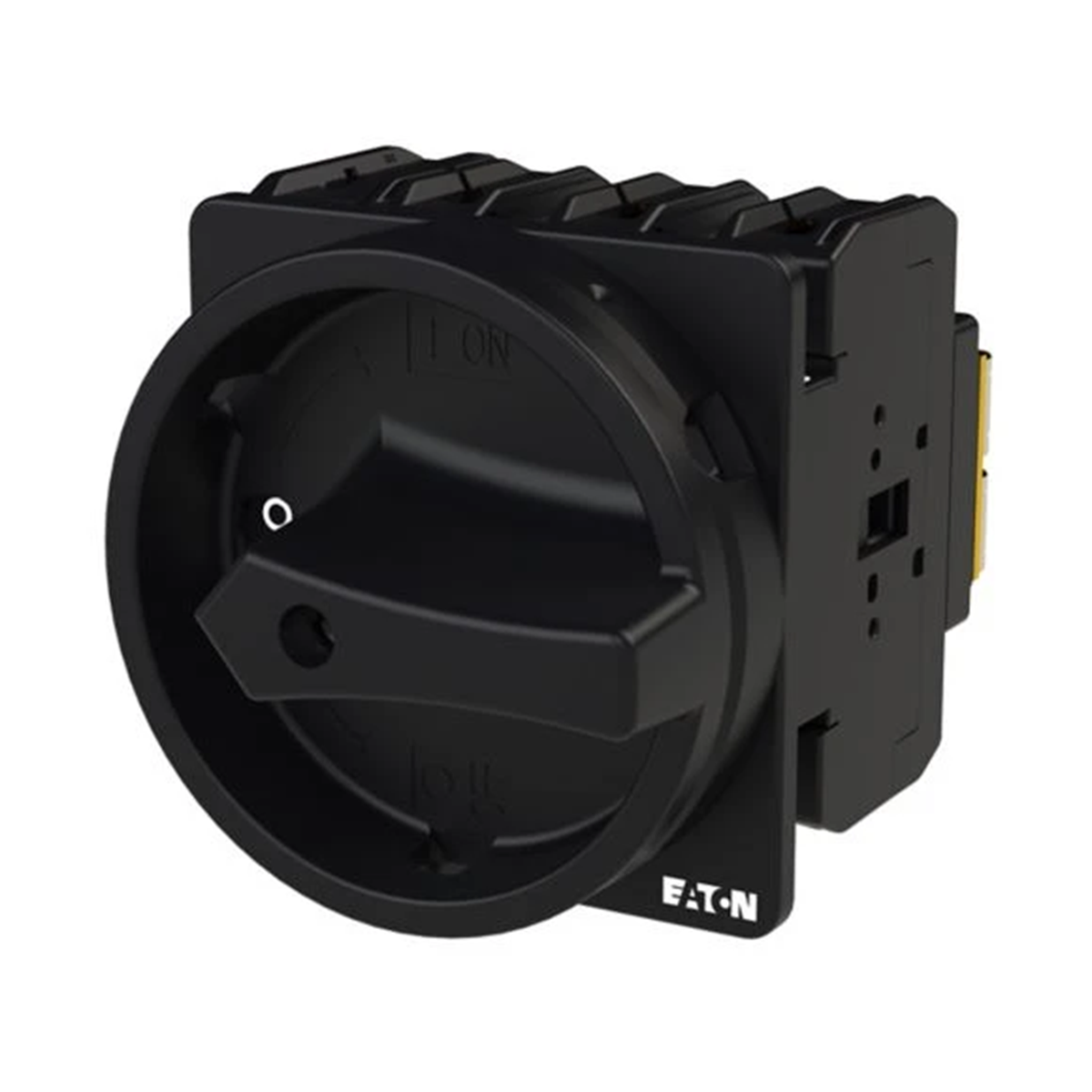

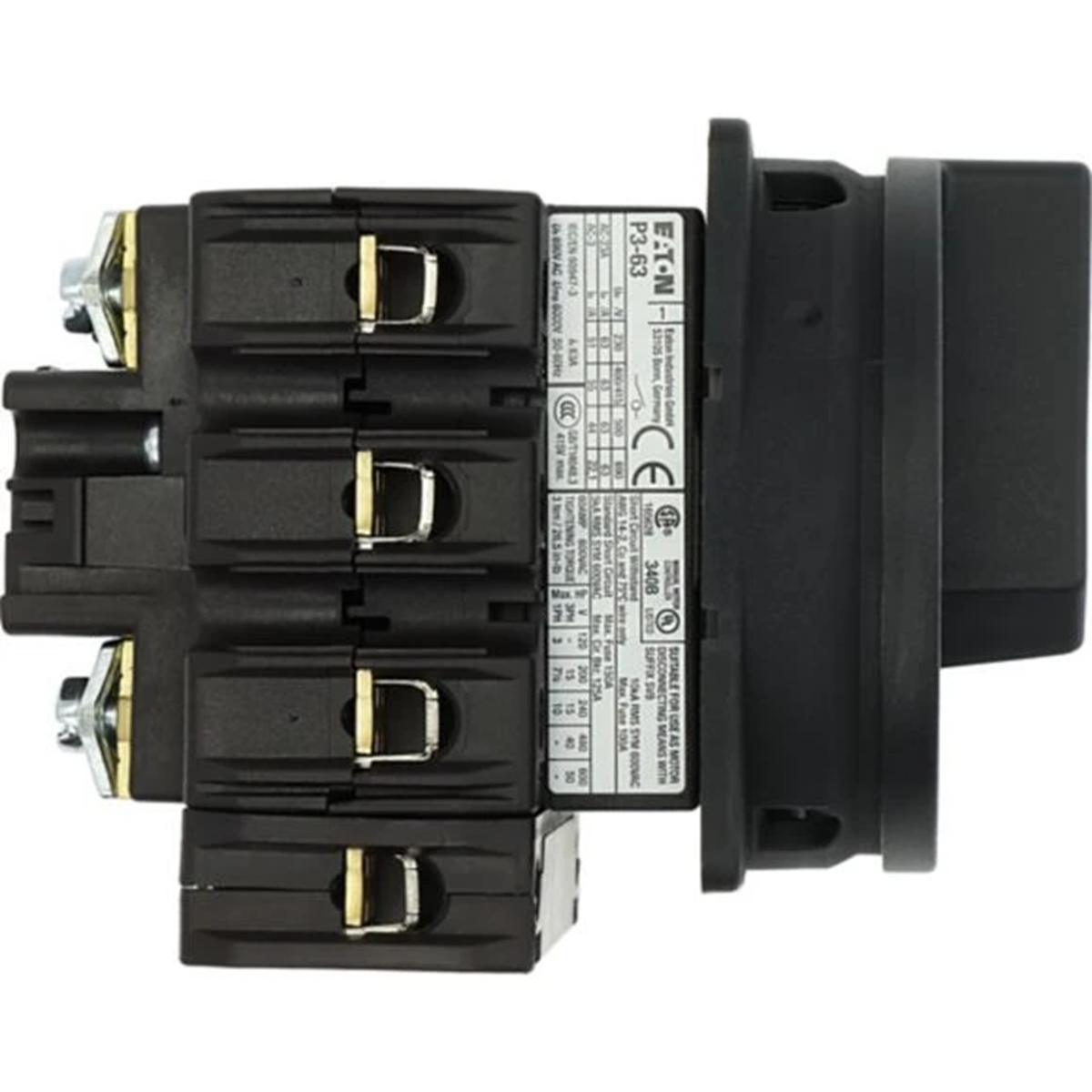

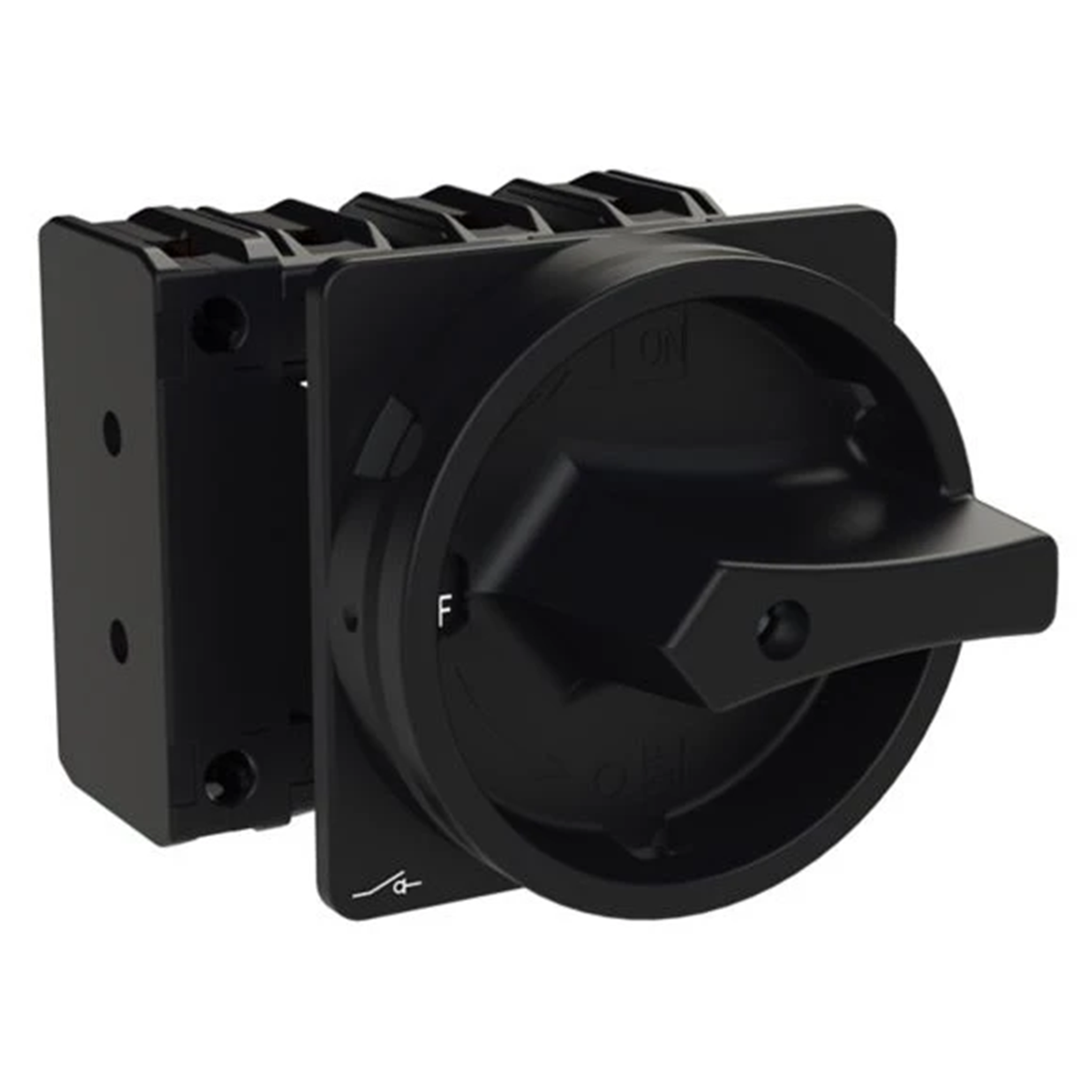

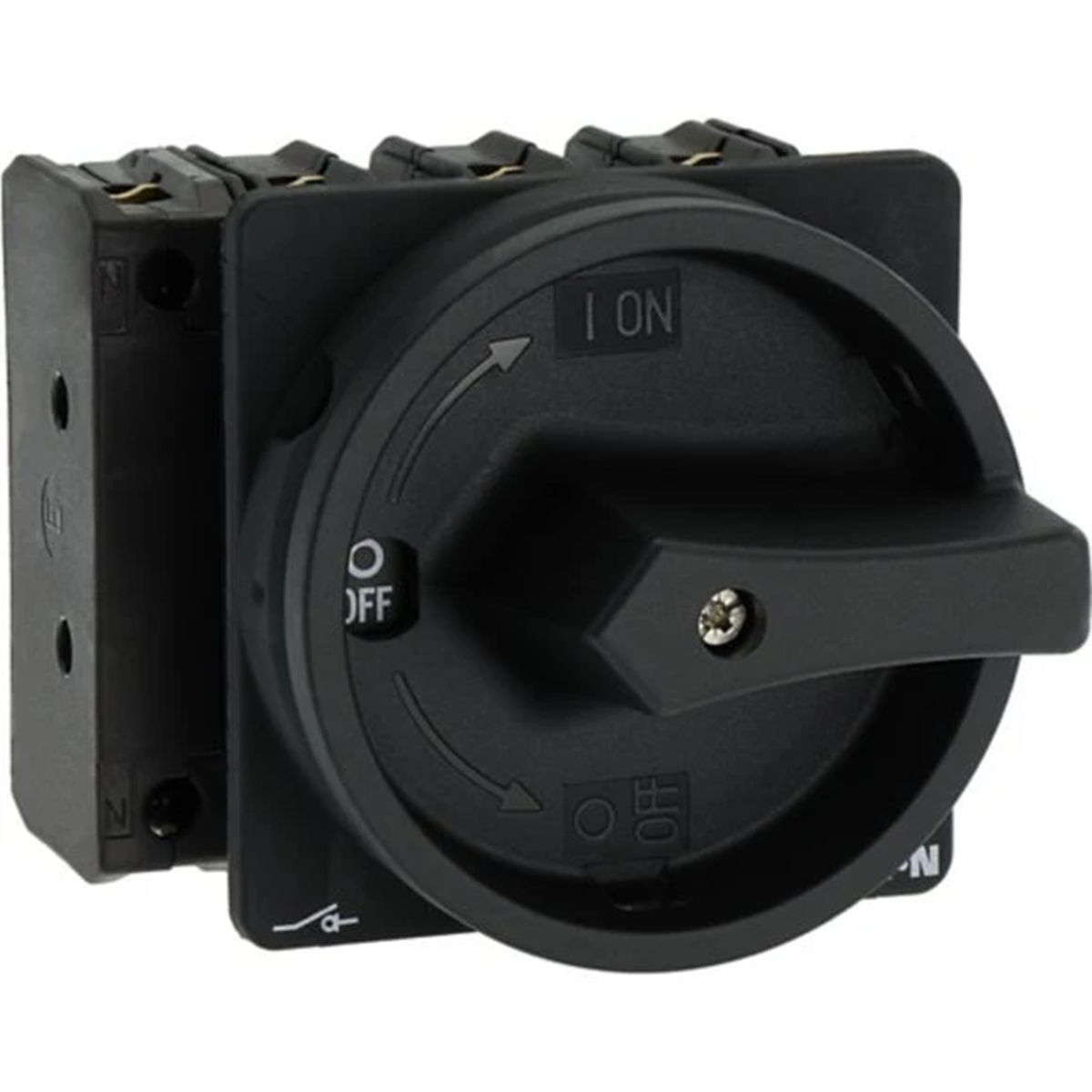

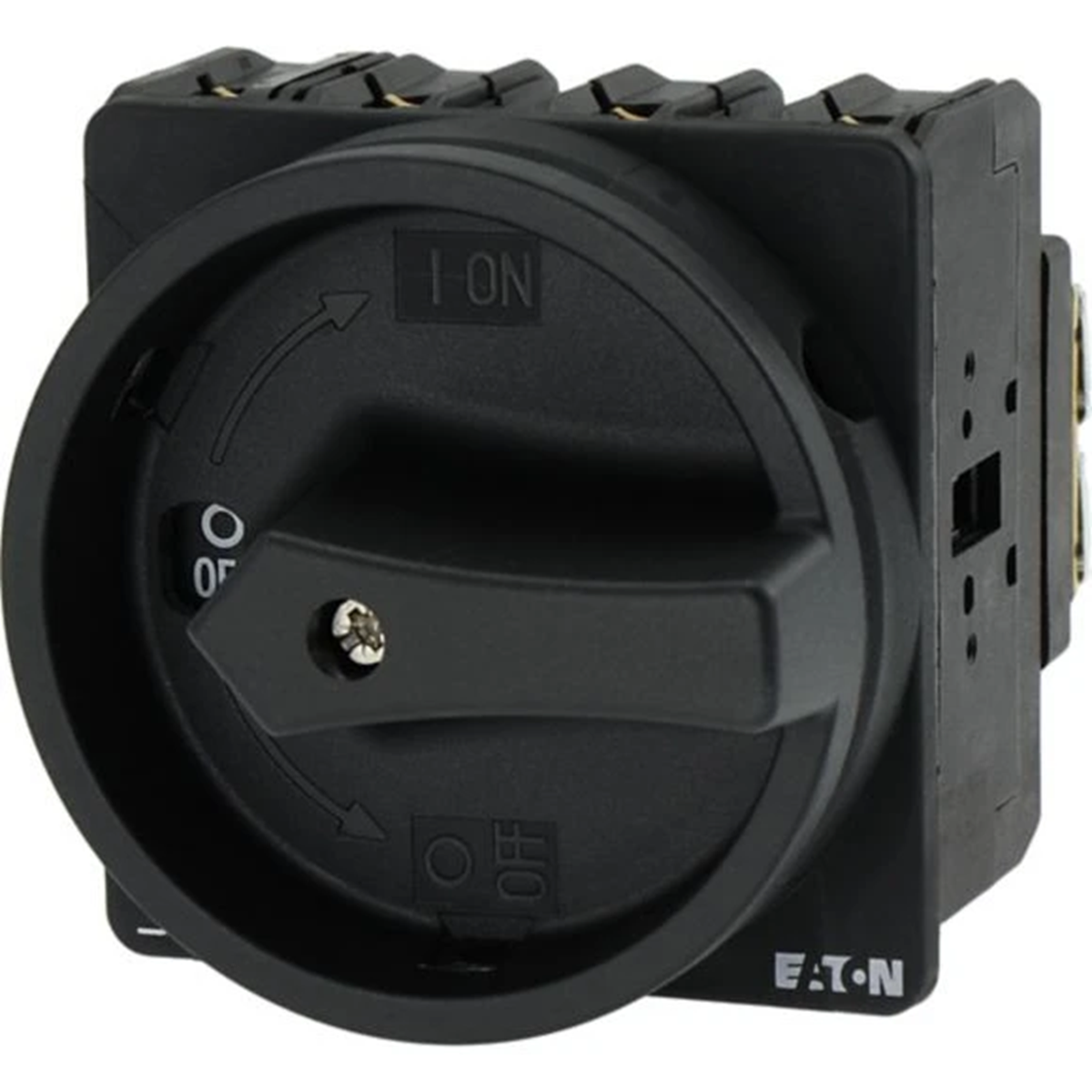

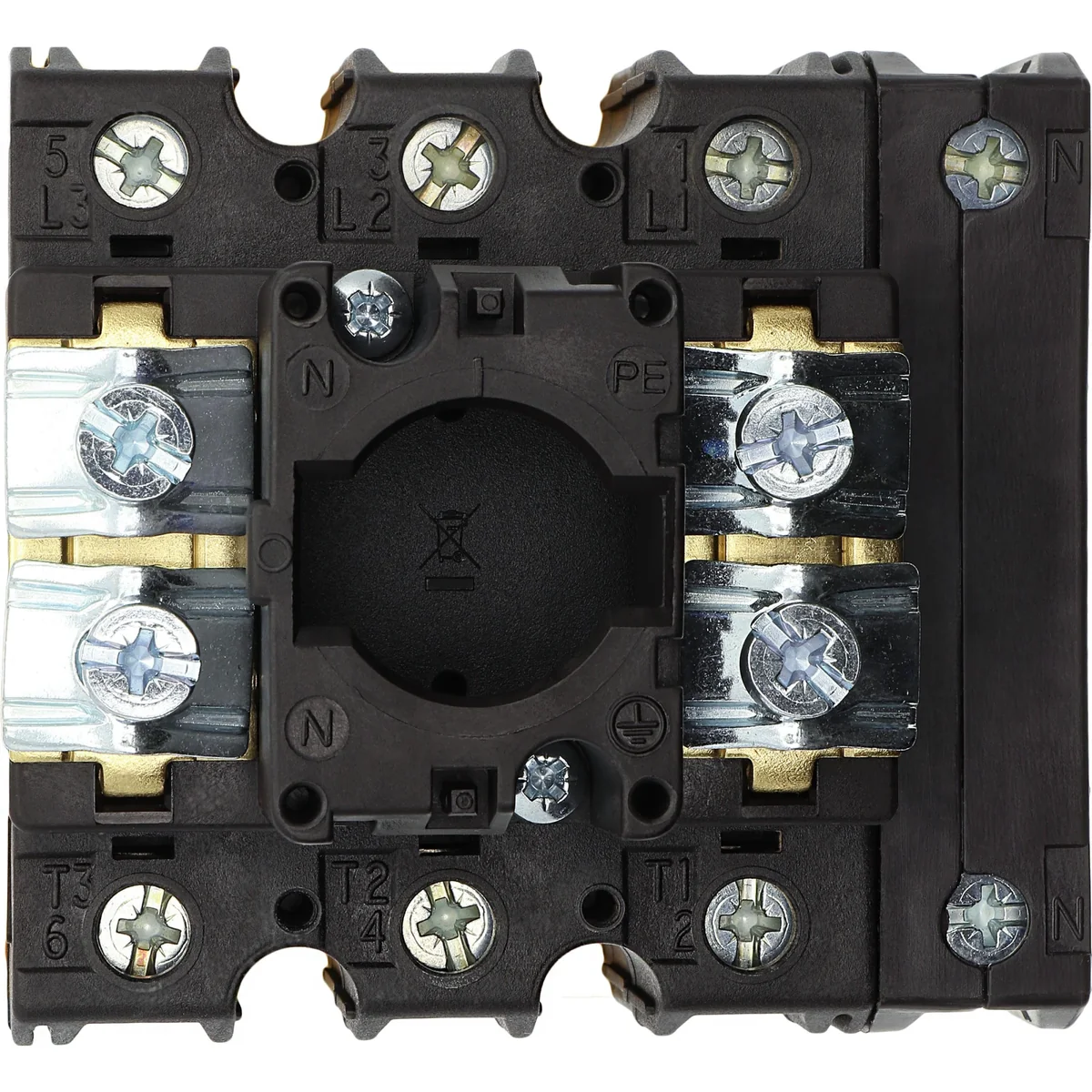

3-pole switch disconnector +N 63A for recess P3-63/EA/SVB-SW/N 012771 EATON. The user manual is delivered with the product.
Datos técnicos
-
Power [kW]37
-
Rated current [A]63
Otros datos técnicos
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu63 A
-
Rated permanent current at AC-21, 400 V63 A
-
Rated short-time withstand current lcw1.26 kA
-
Switching power at 400 V30 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-

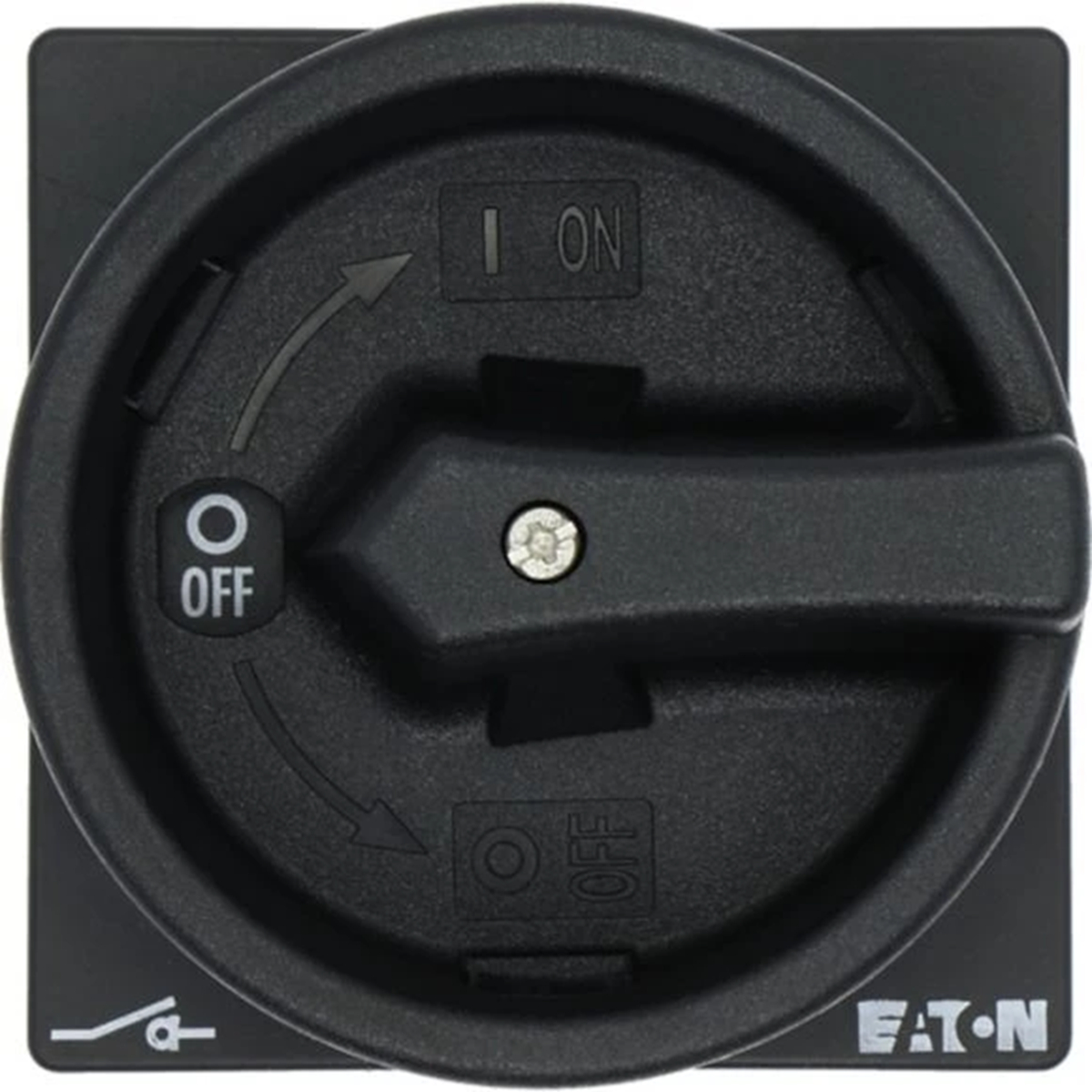

Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V63 A
-
Rated operation power at AC-3, 400 V30 kW
-
Rated operation power at AC-23, 400 V30 kW
-
Conditioned rated short-circuit current Iq100 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Detalles del fabricante
-
FabricanteEaton Electric Sp. z o.o.
-
Dirección80-299 Gdańsk Galaktyczna 30 Polska
-
Email
Empaquetado a granel
| una especie de paquete | Skrzynia |
| Cantidad | 1 uds. |
| Peso (kg) | 0,545 |
| Volumen (m3) | 0,002 |
| Ancho (m) | 0,126 |
| Longitud (m) | 0,150 |
| Profundidad (m) | 0,106 |
Archivos para descargar
