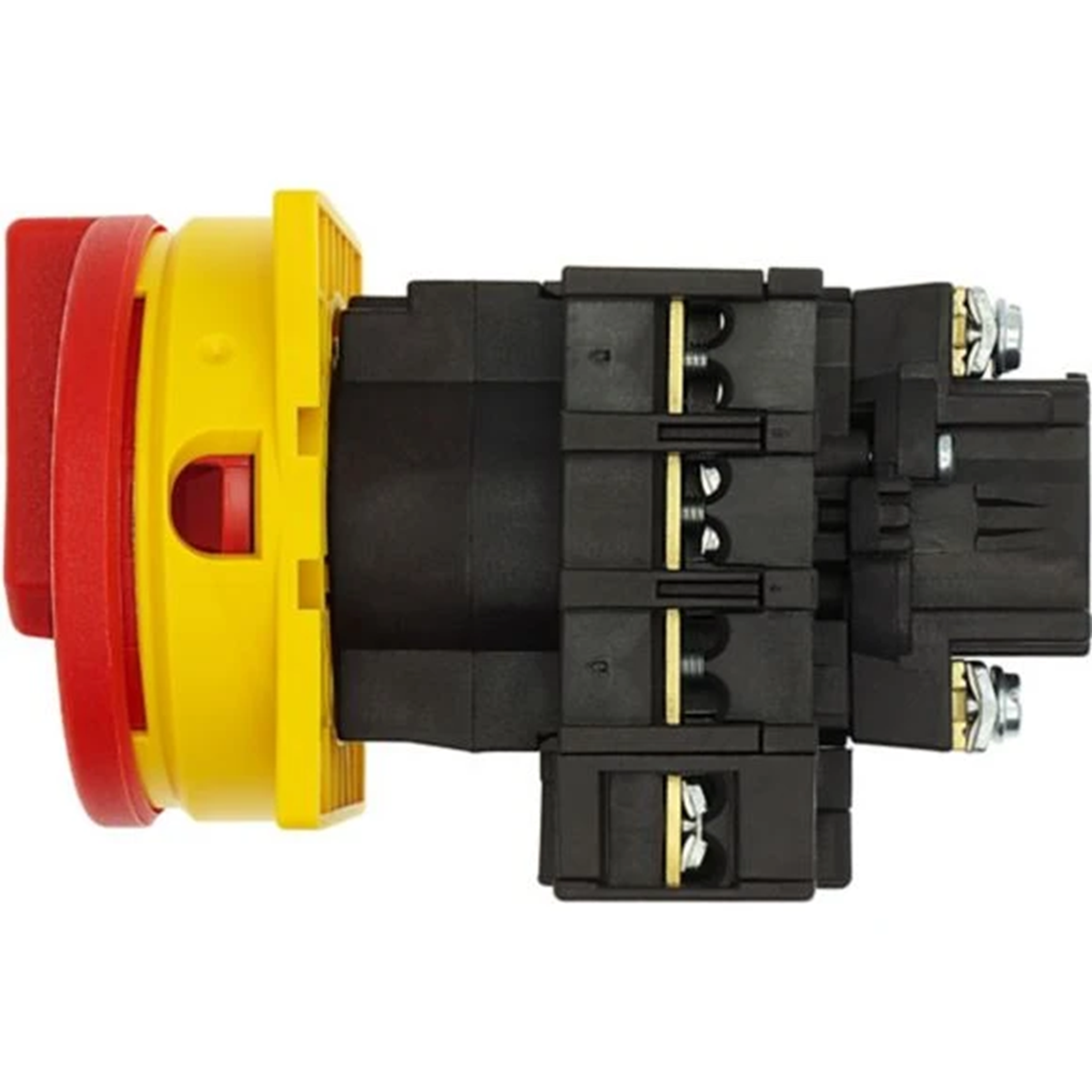

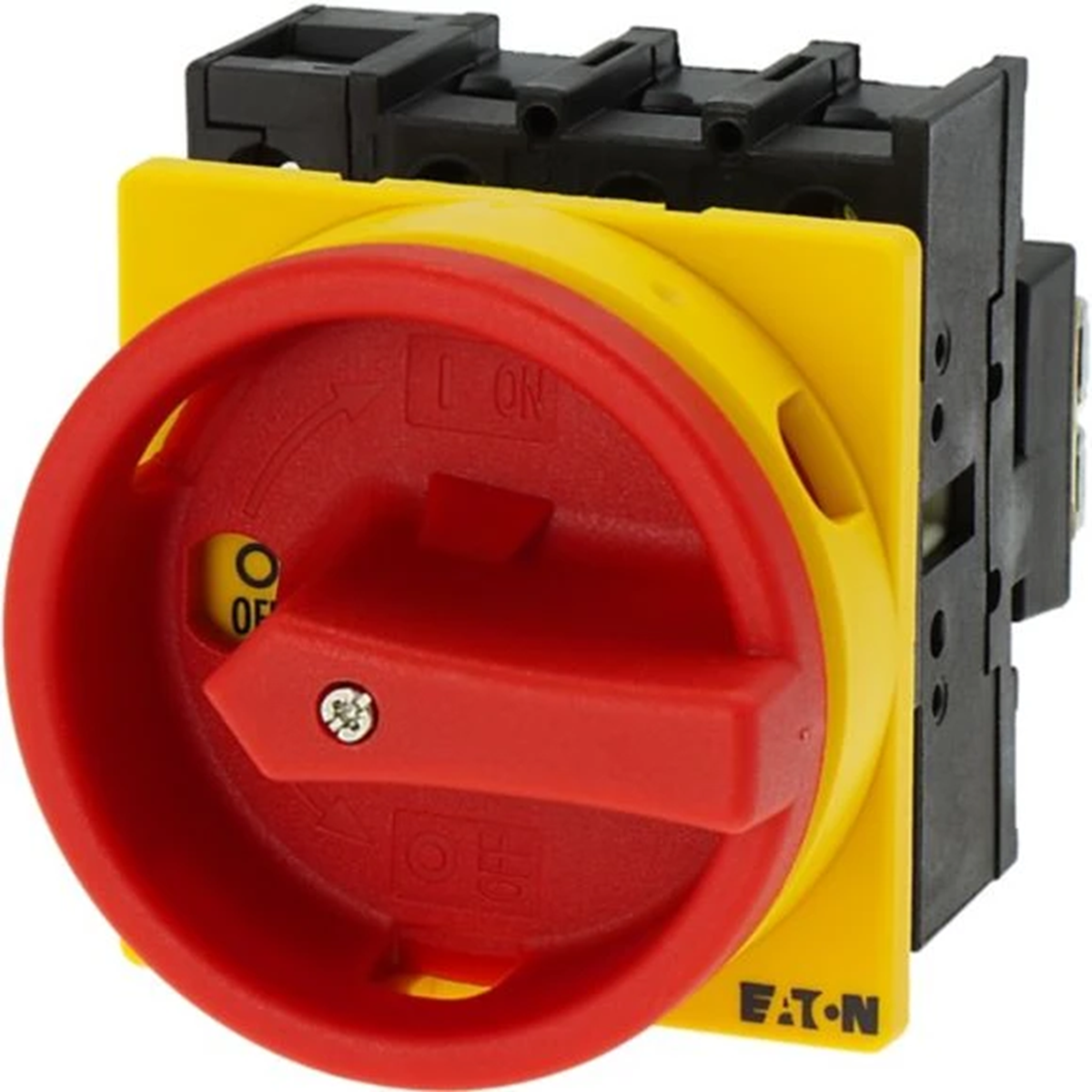

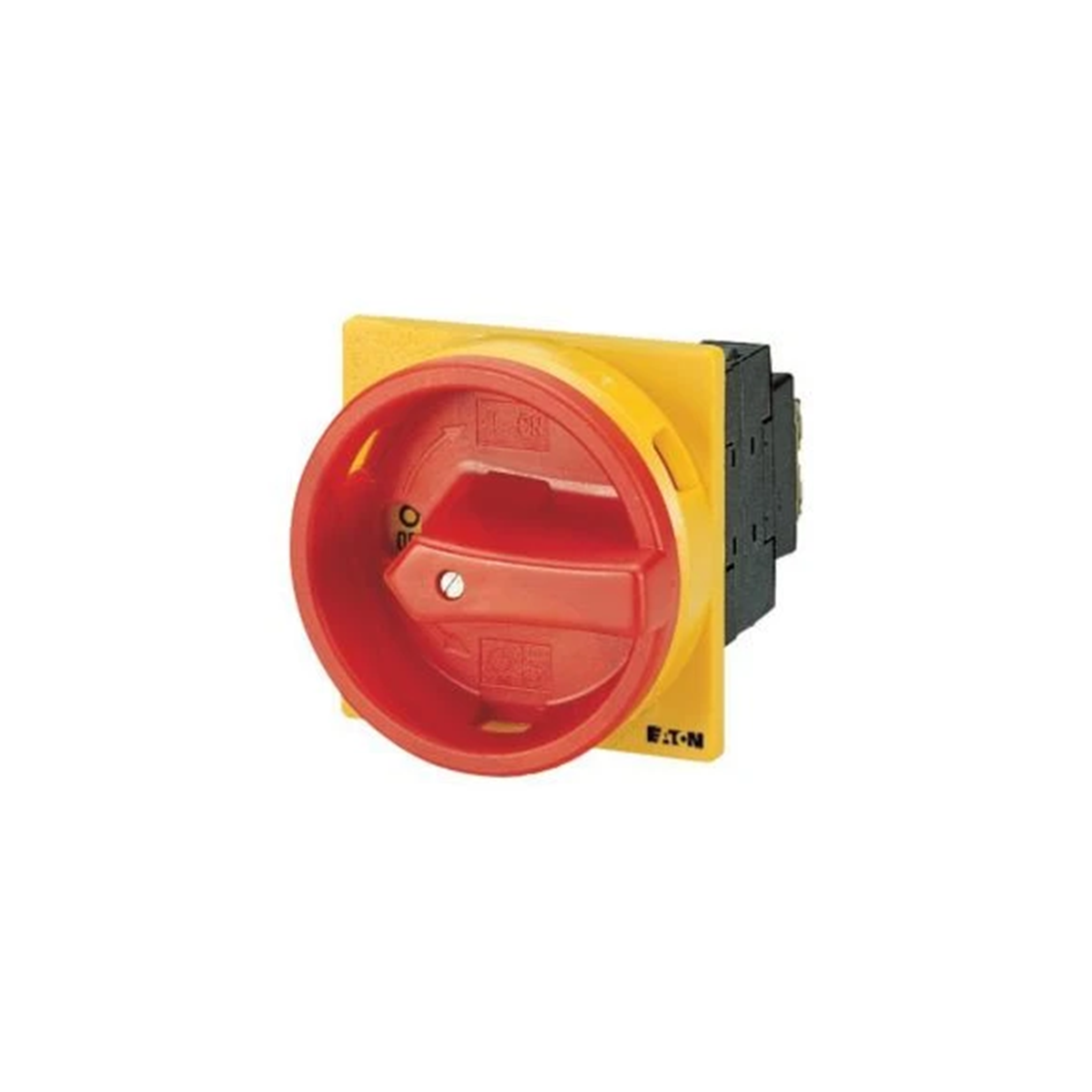

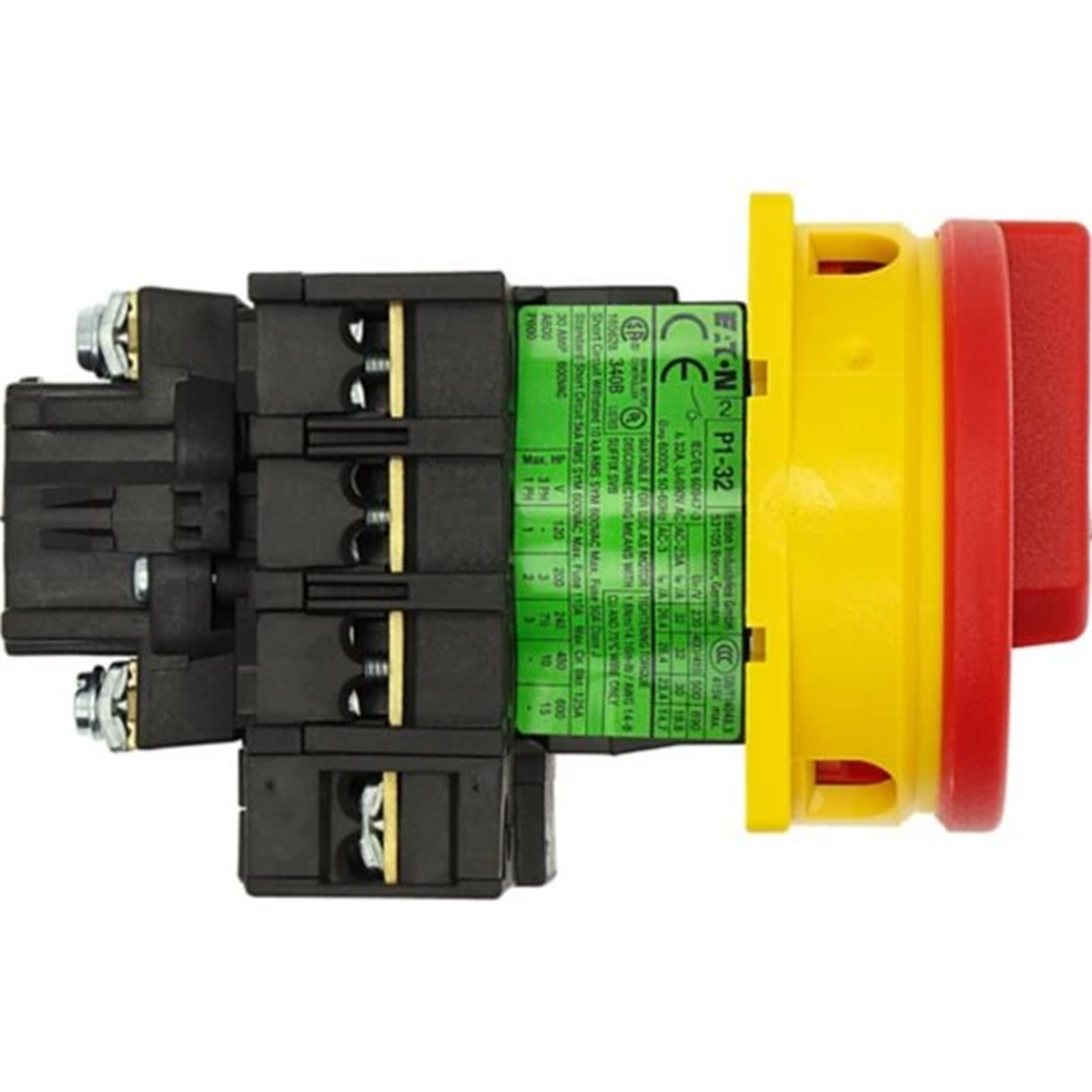

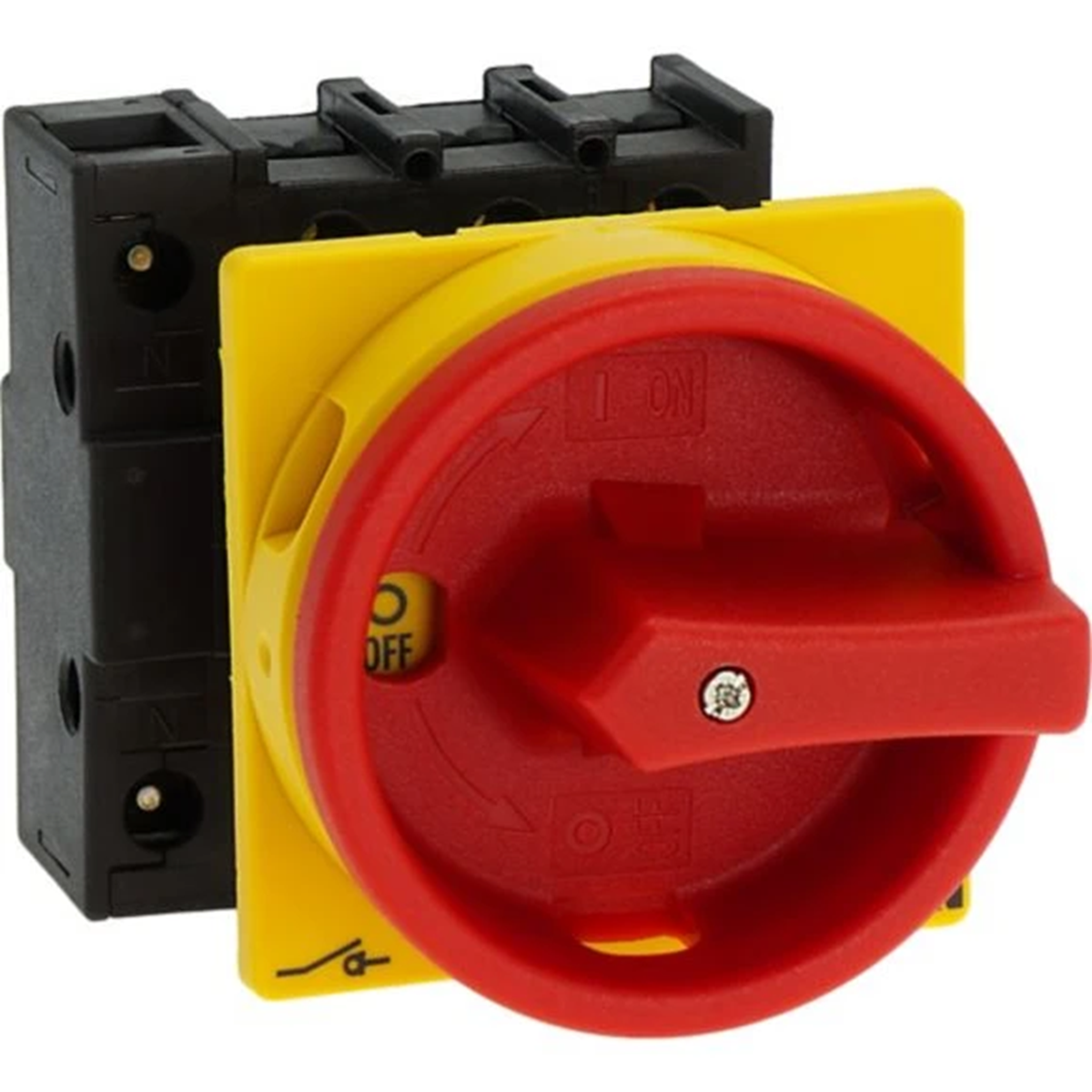

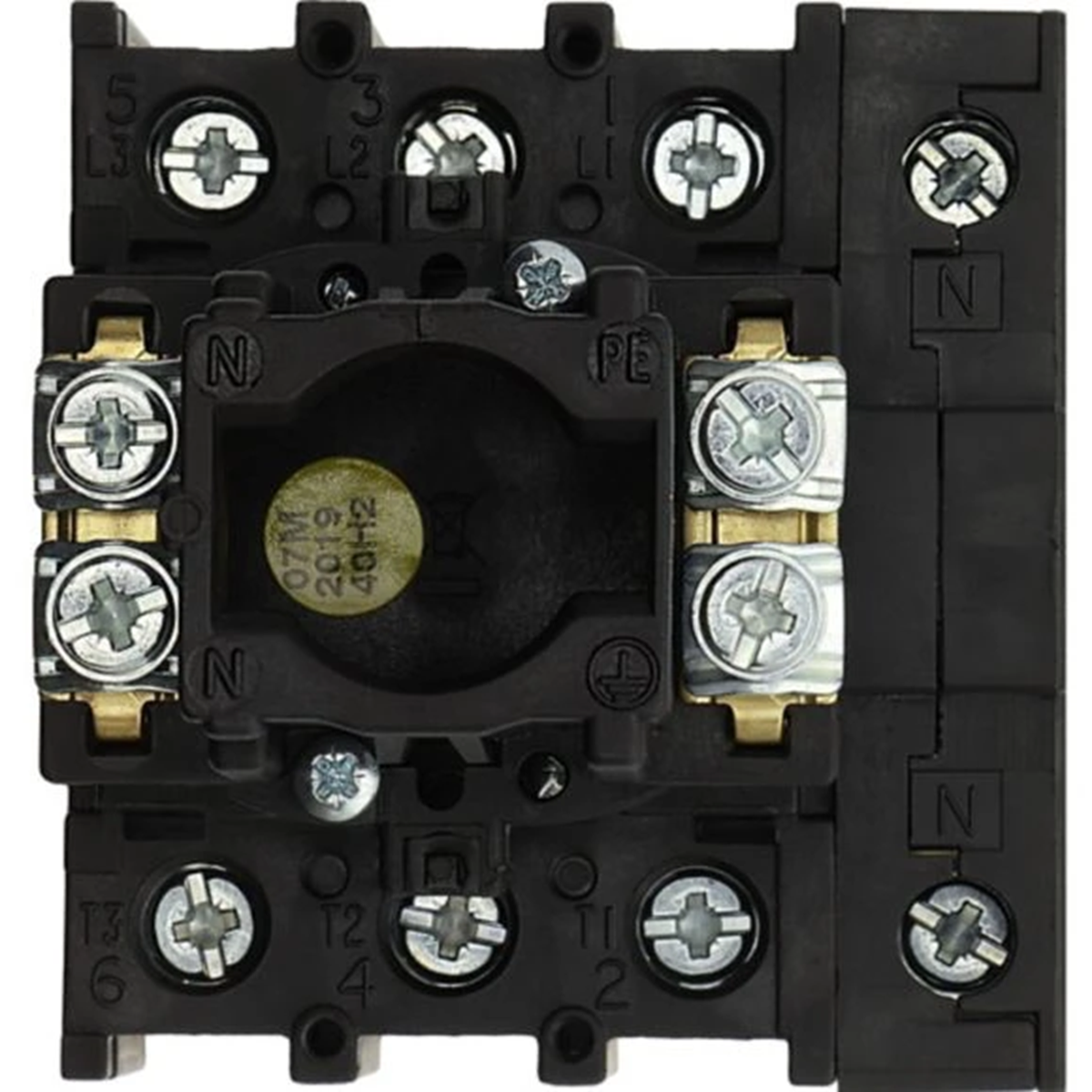

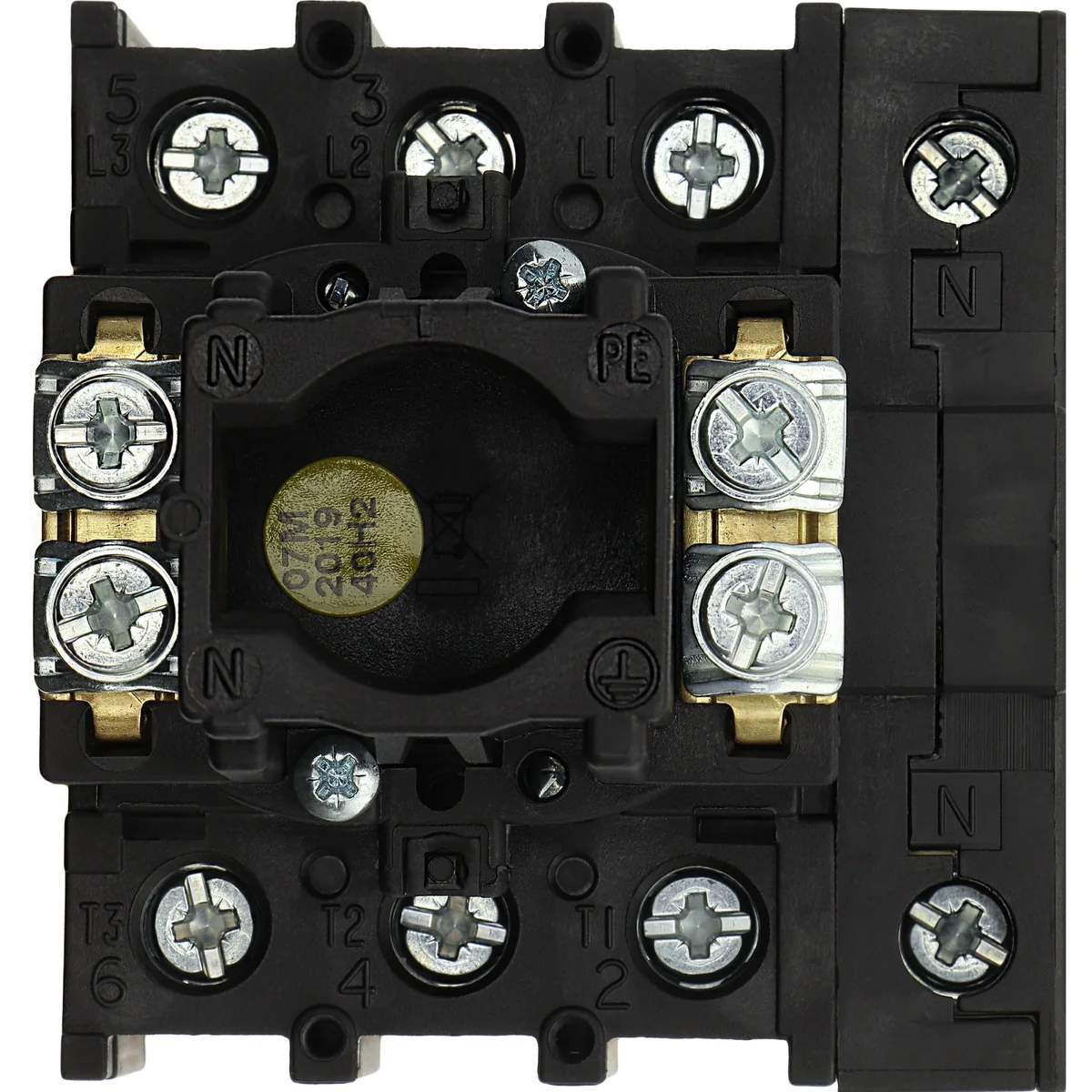

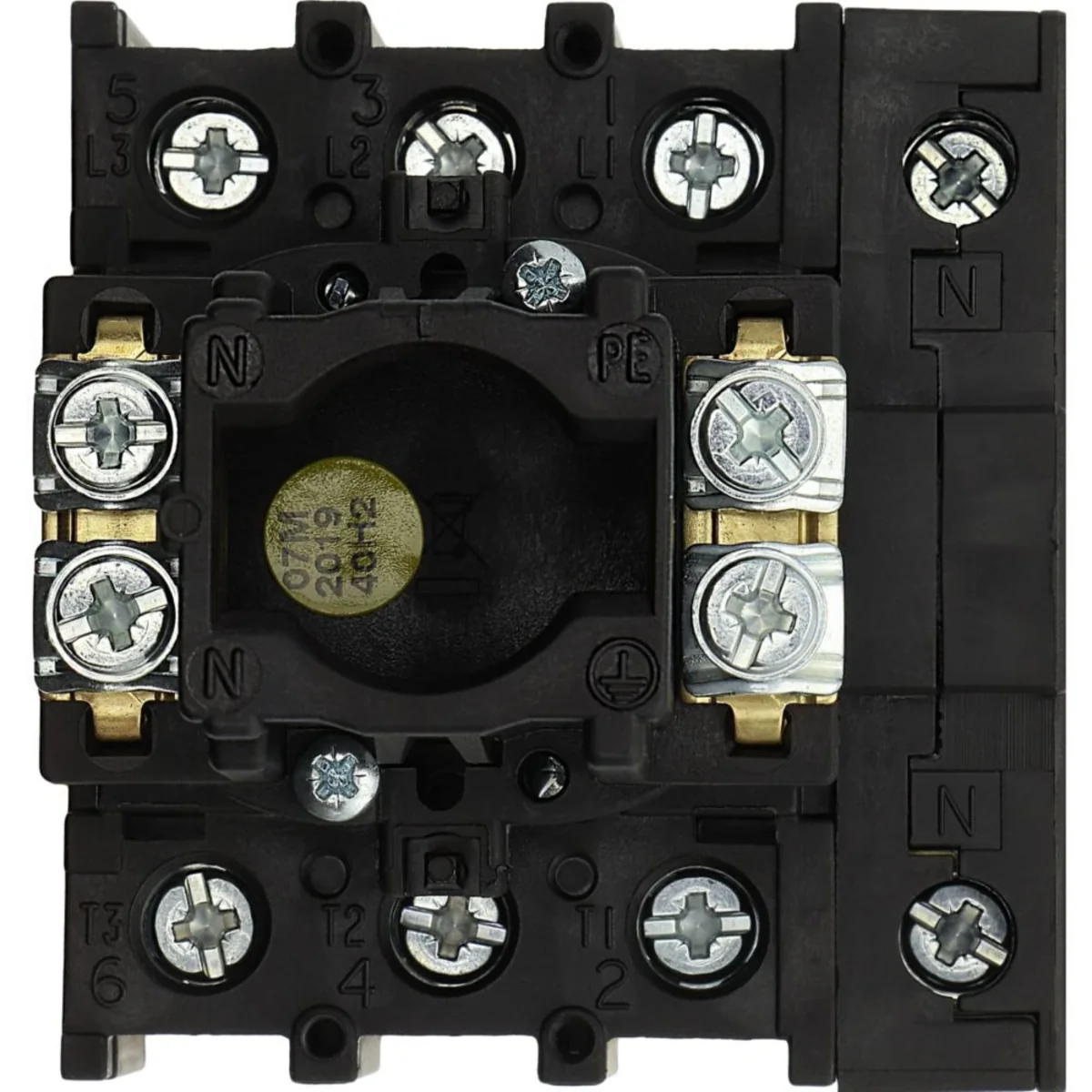

Switch, 32A, P1-32/EA/SVB/N 091079
local index:
ALK030MOEL
Catalog No:
091079
EAN code:
4015080910794
Price:
83,25 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

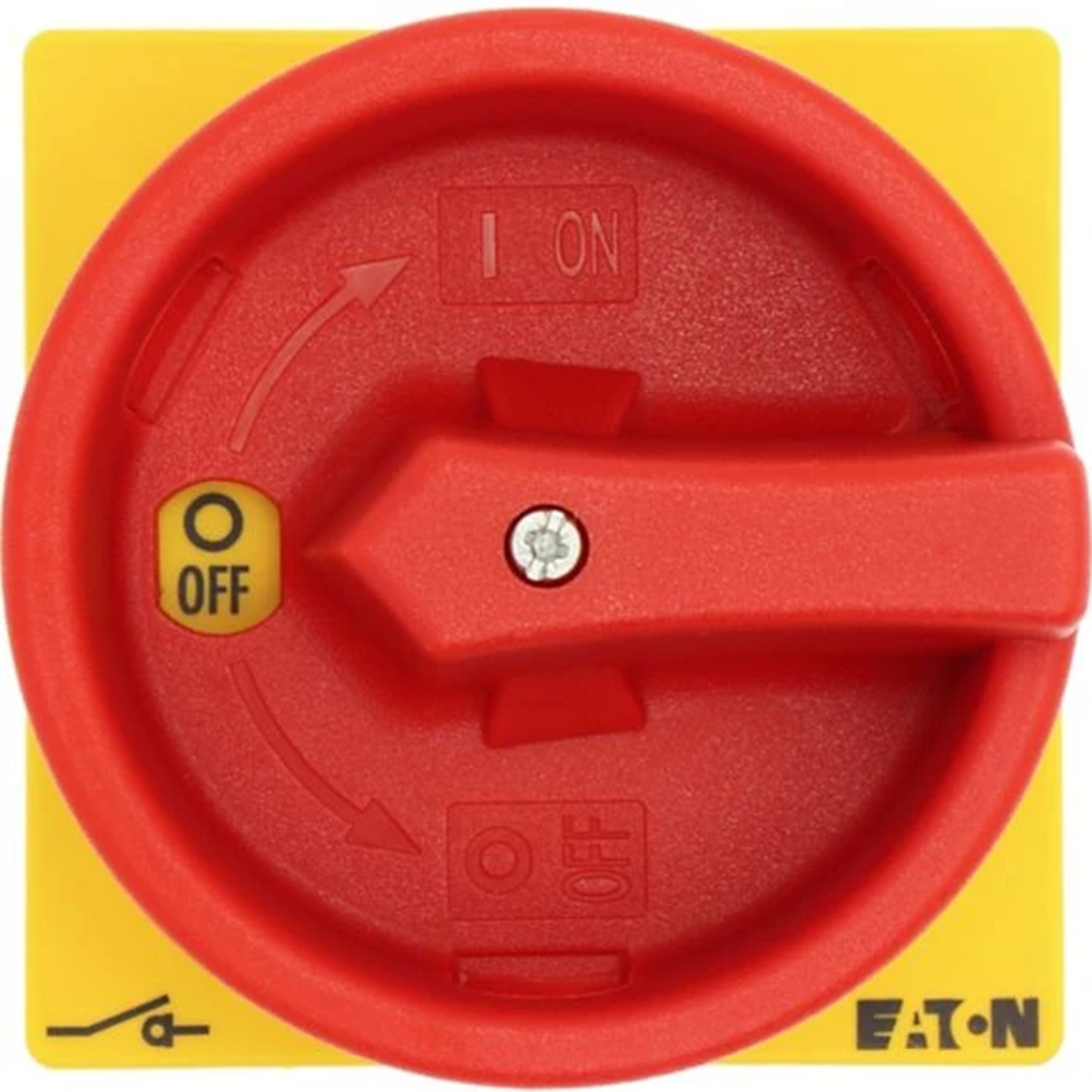

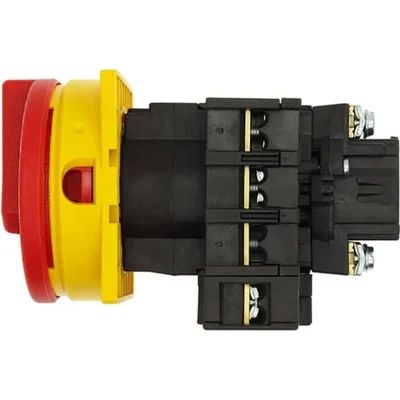

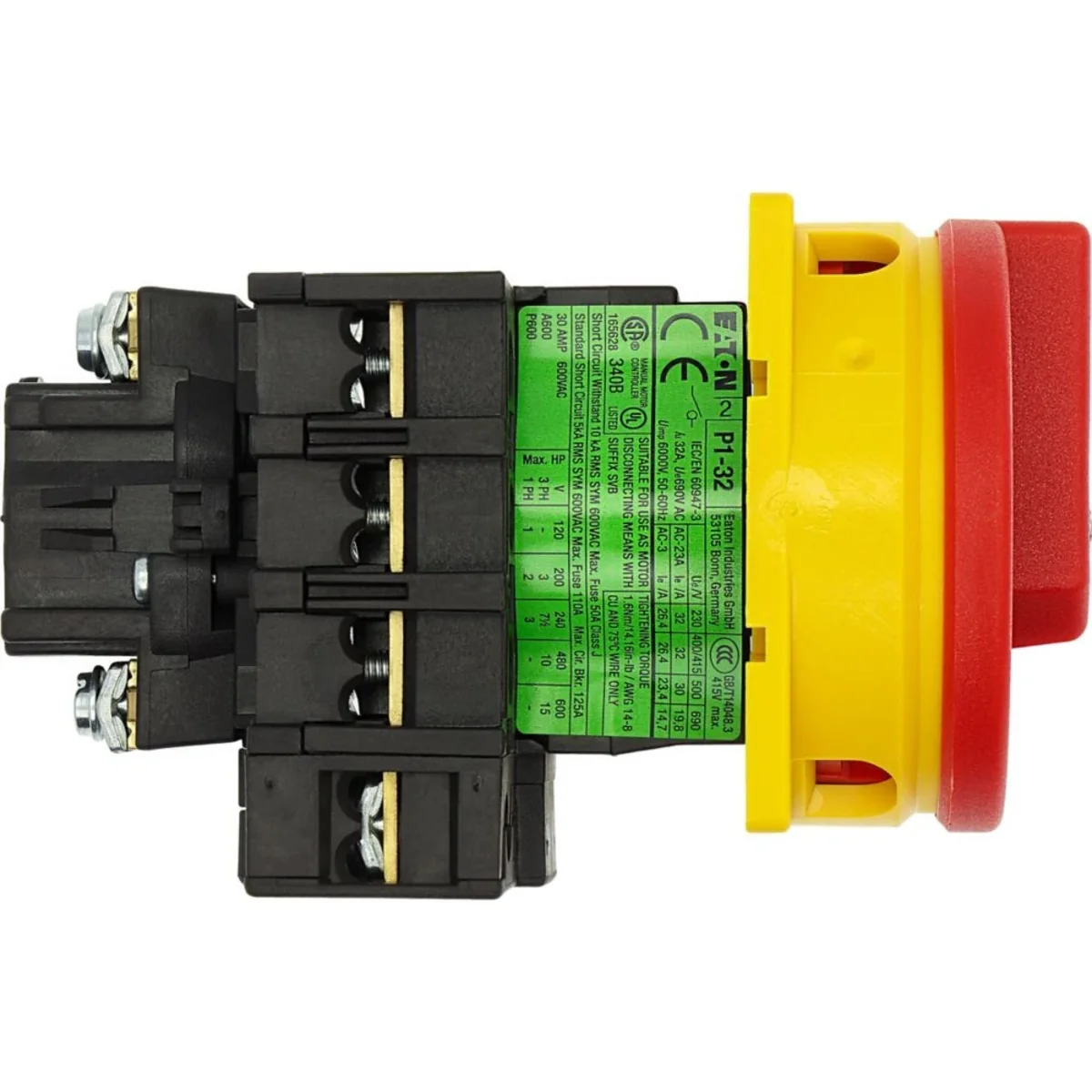

On/Off switch In=32A P=15kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113 Part 1
Technical data
-
Power [kW]15
-
Rated current [A]32
-
Main circuits3+N
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu32 A
-
Rated permanent current at AC-21, 400 V32 A
-
Rated short-time withstand current lcw0.64 kA
-
Switching power at 400 V15 kW
-
Number of poles4
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V32 A
-
Rated operation power at AC-3, 400 V13 kW
-
Rated operation power at AC-23, 400 V15 kW
-
Conditioned rated short-circuit current Iq80 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeYes
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944

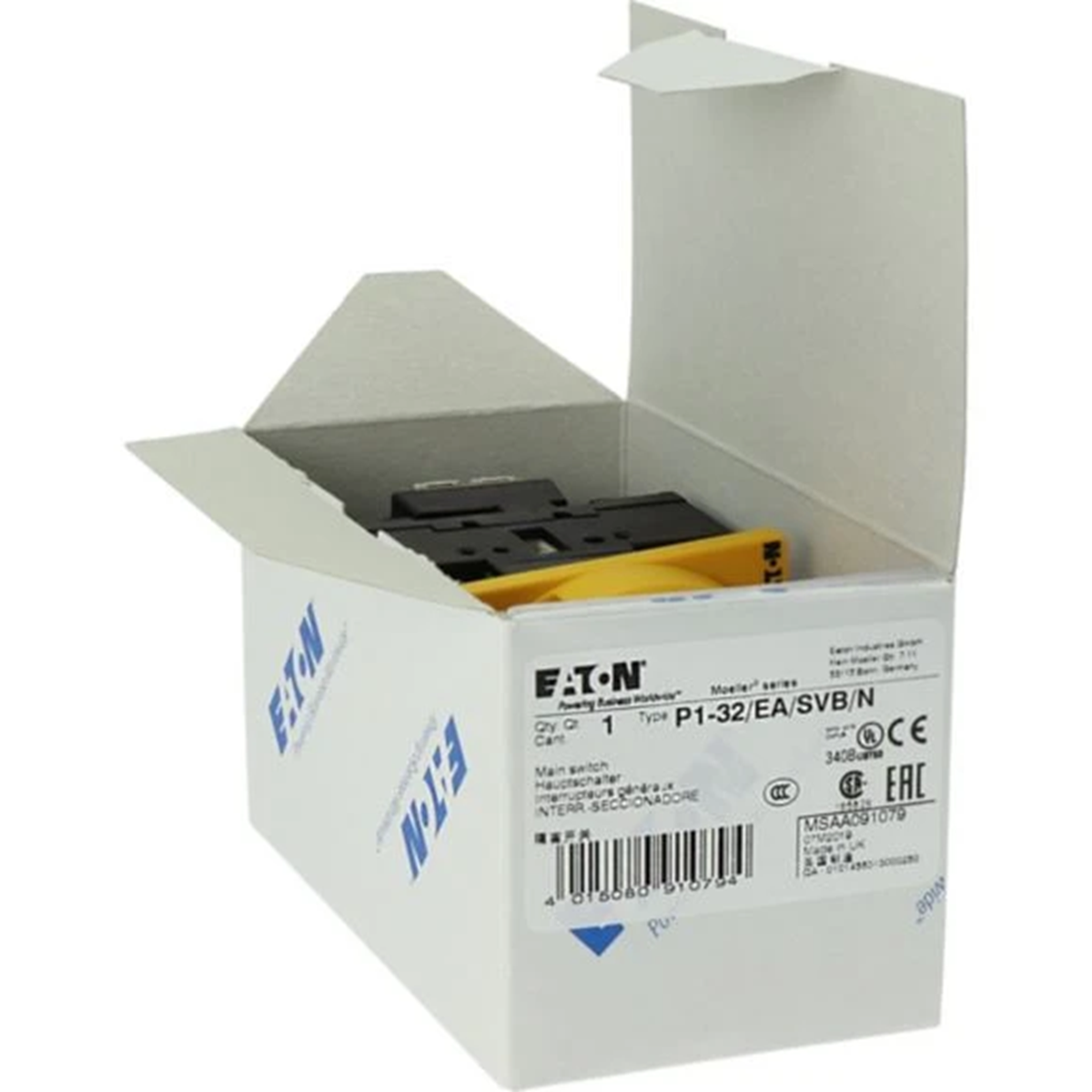

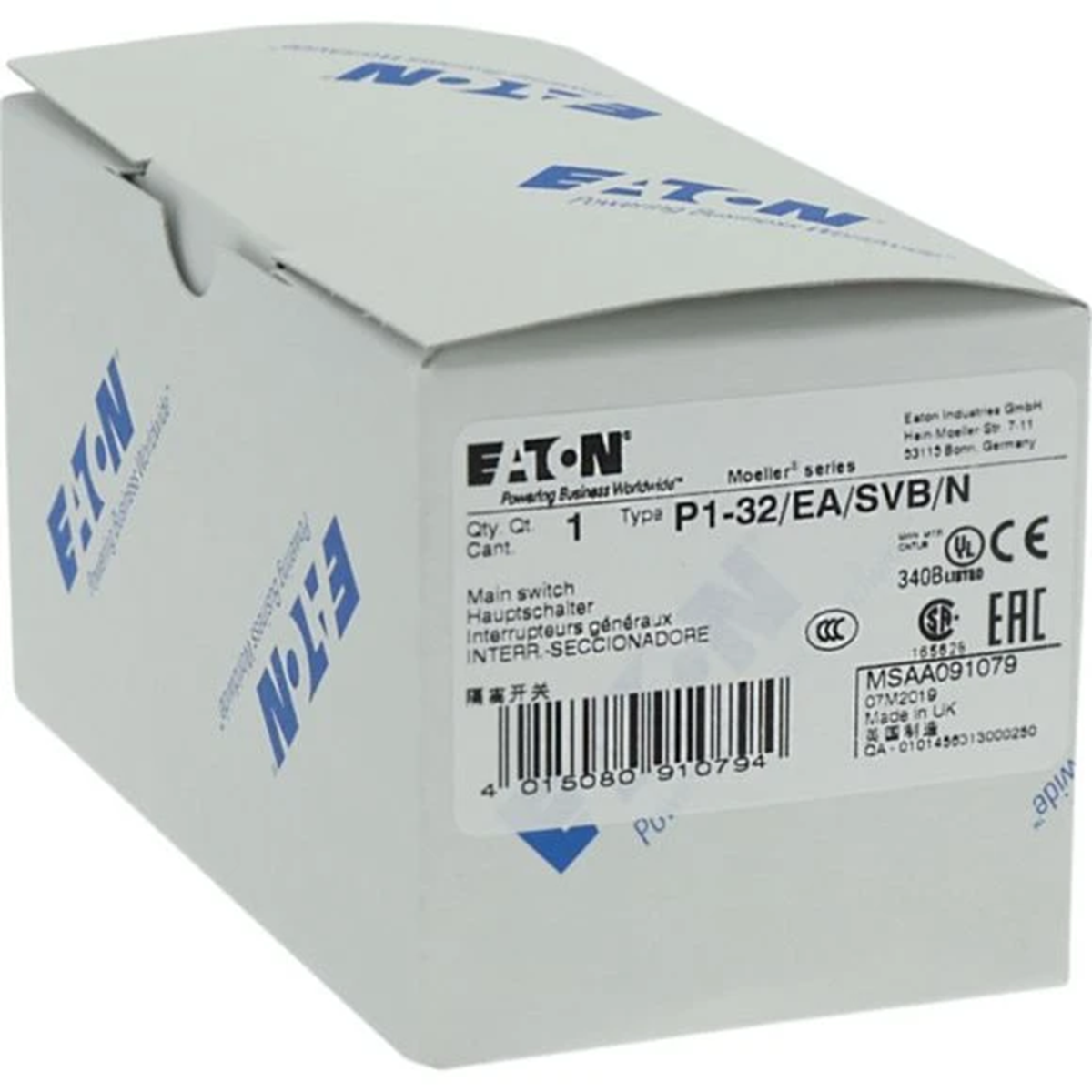

Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,222 | 0,271 |
| Volume (m3) | 0,001 | 0,000 |
| Width (m) | 0,065 | 0,048 |
| Length (m) | 0,120 | 0,086 |
| Depth (m) | 0,070 | 0,048 |
