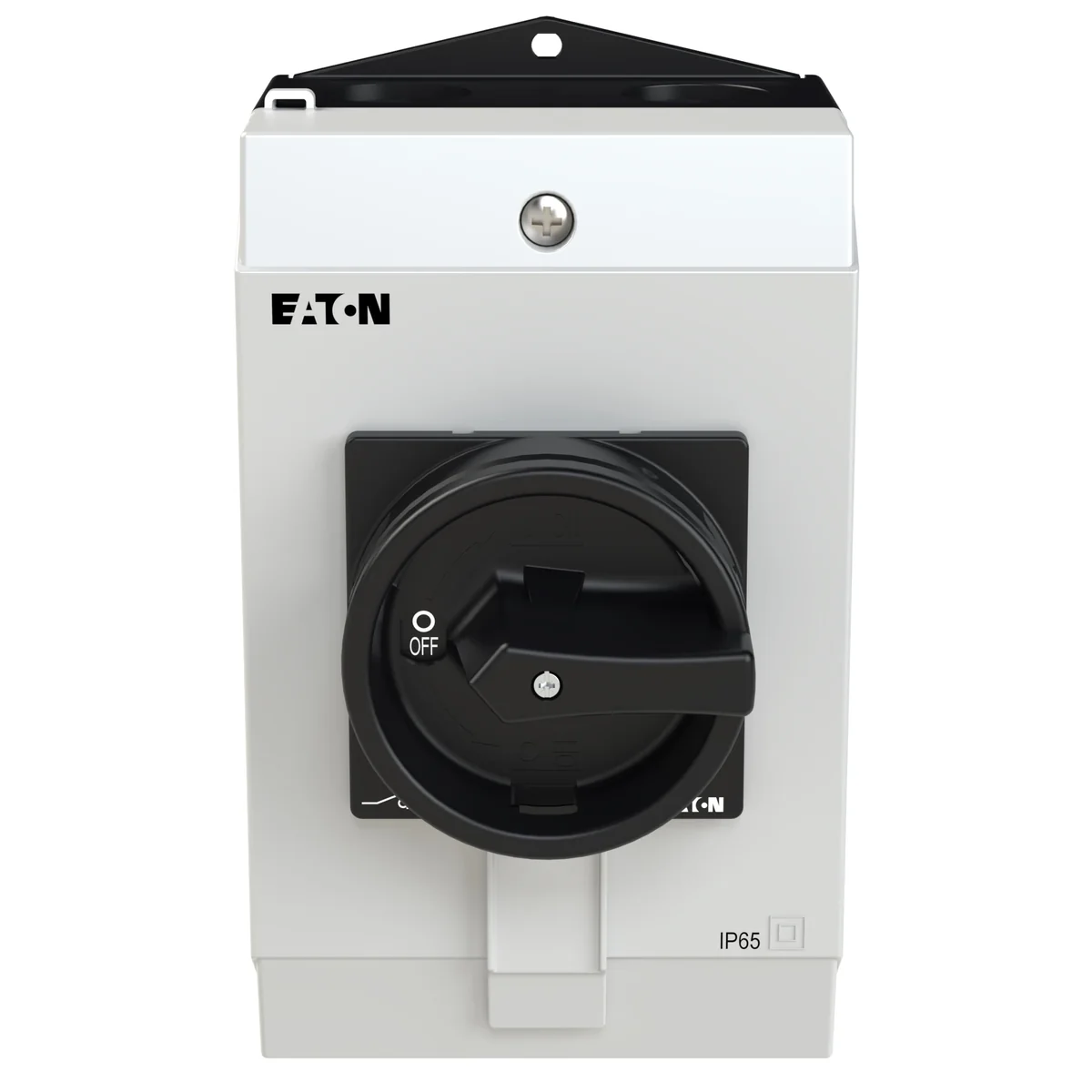

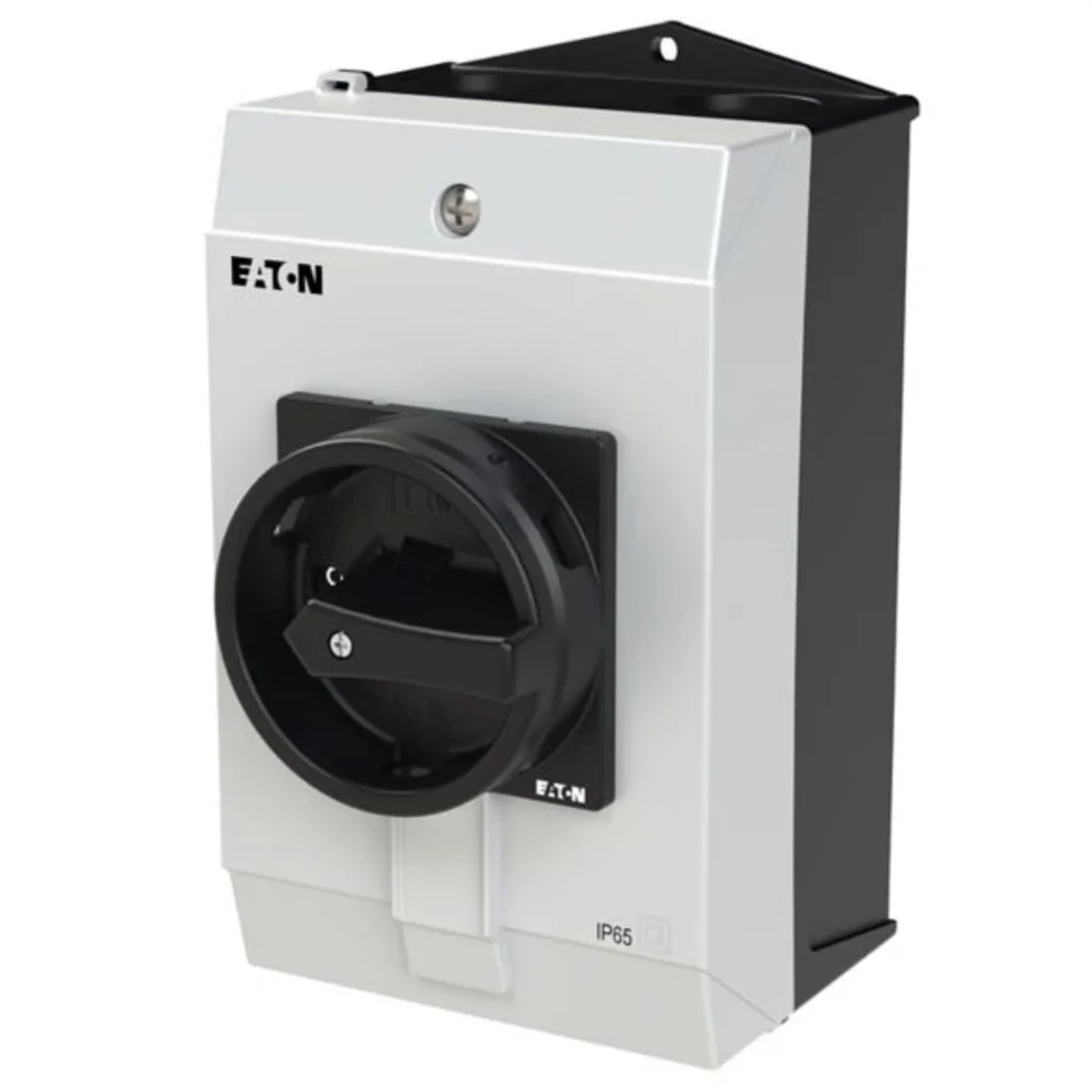

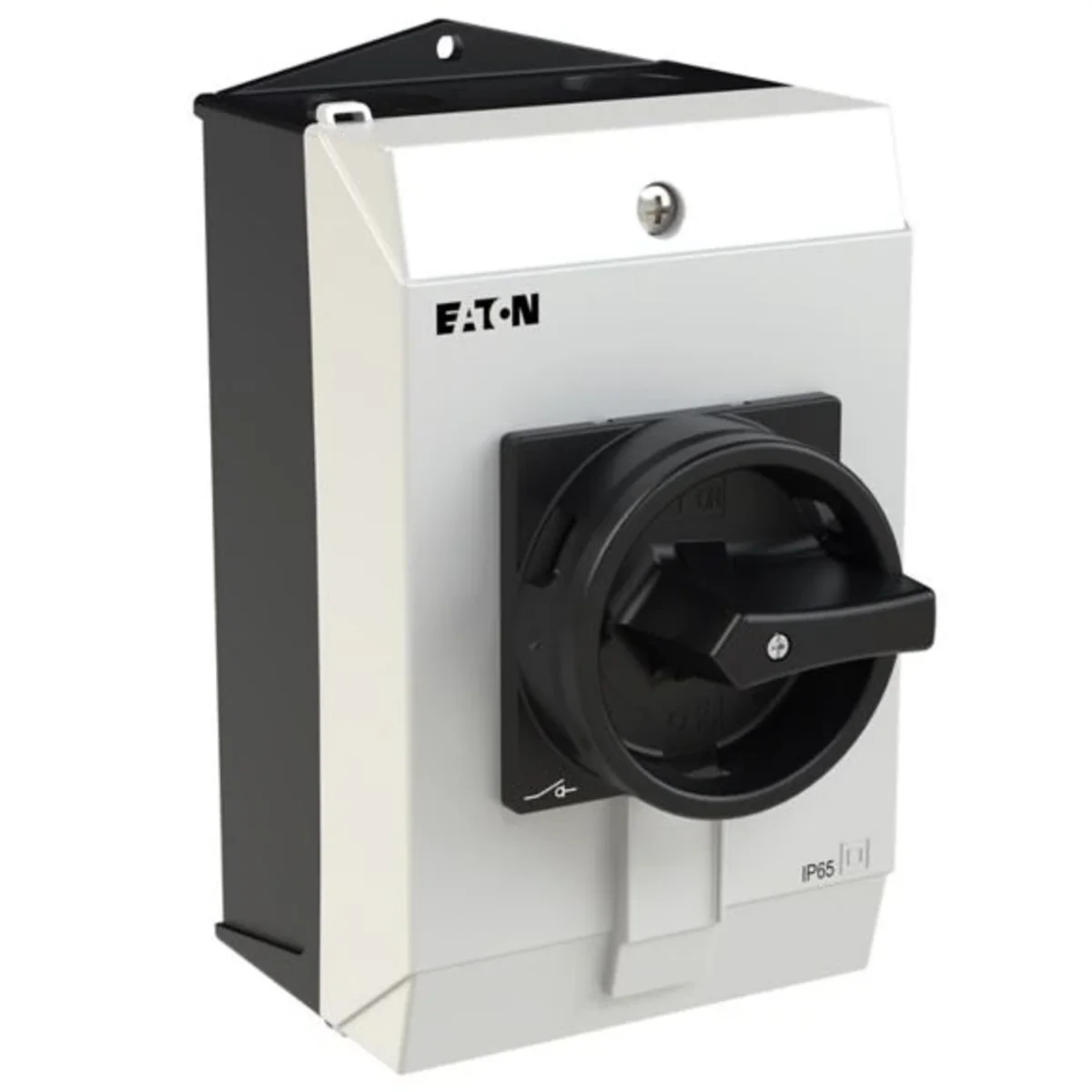

Switch, 25A, P1-25/I2/SVB-SW/HI11 207295
local index:
ALI096MOEL
Catalog No:
207295
EAN code:
4015082072957
Price:
80,45 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description

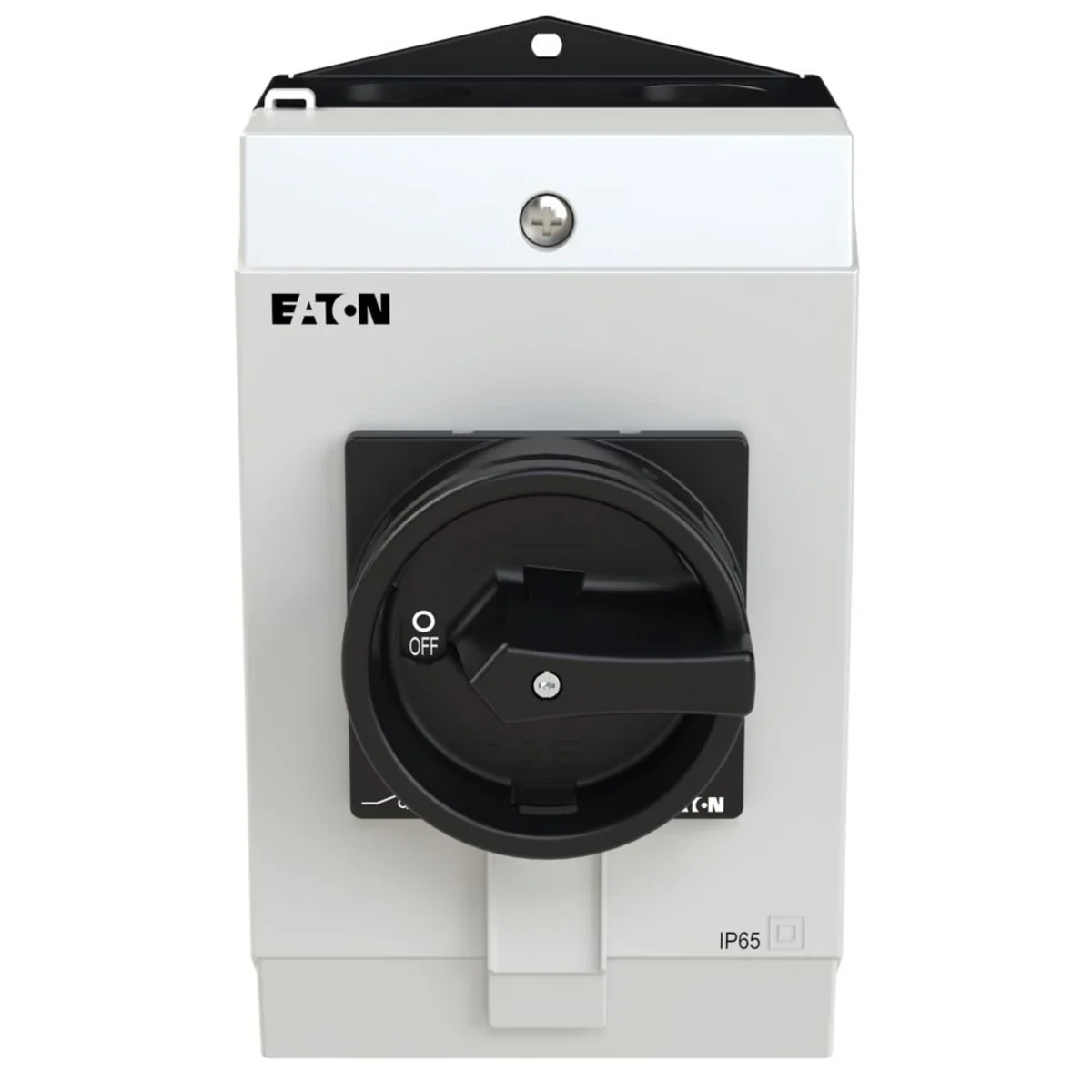

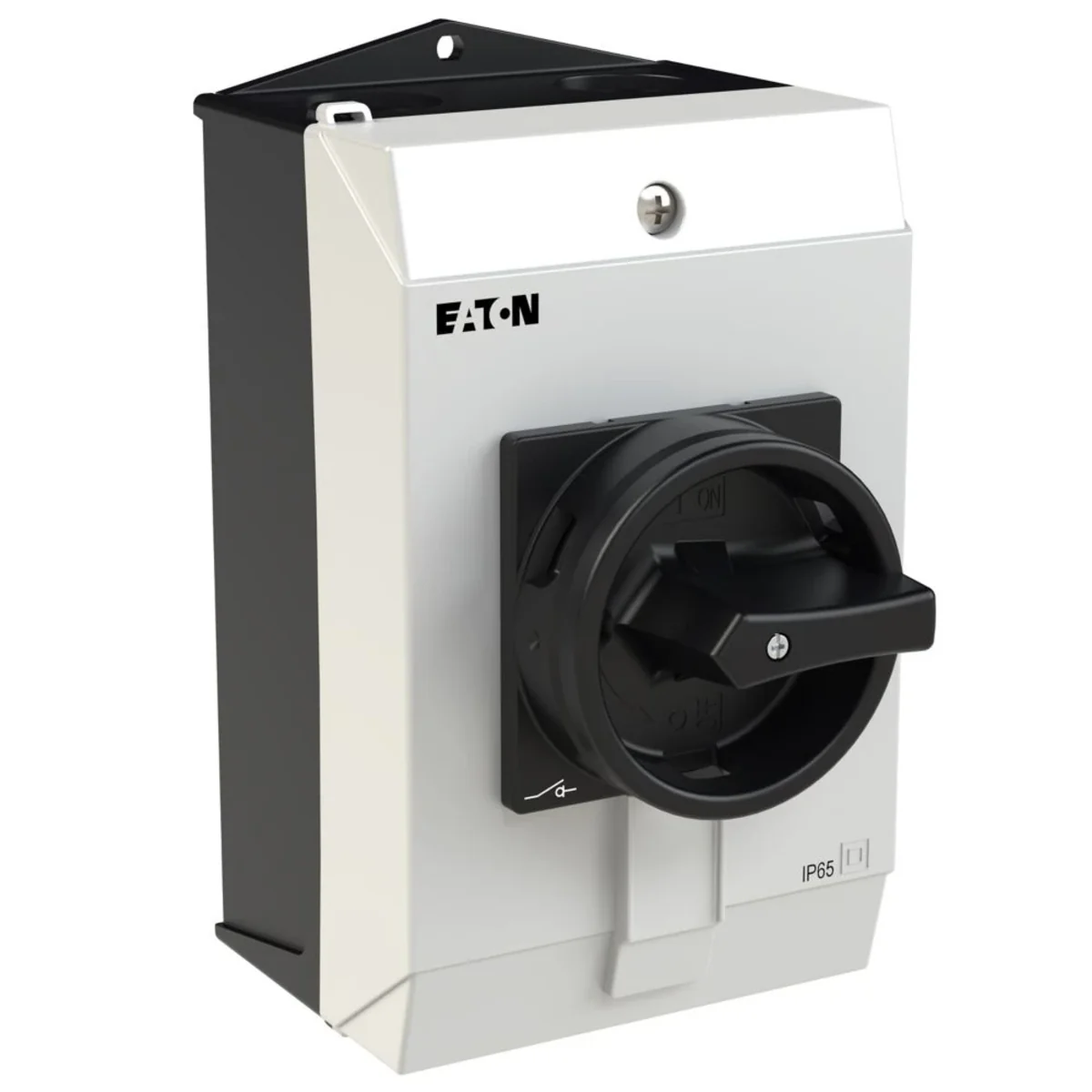

Switch, 25A, P1-25/I2/SVB-SW/HI11
Technical data
-
Power [kW]13
-
Rated current [A]25
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu25 A
-
Rated permanent current at AC-21, 400 V25 A
-
Rated short-time withstand current lcw0.64 kA
-
Switching power at 400 V13 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact1
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingYes
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingNo
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitScrew connection
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationNo
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V25 A
-
Rated operation power at AC-3, 400 V7.5 kW
-
Rated operation power at AC-23, 400 V13 kW
-
Conditioned rated short-circuit current Iq80 kA
-
Number of auxiliary contacts as normally closed contact1
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionComplete device in housing
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementBlack
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944

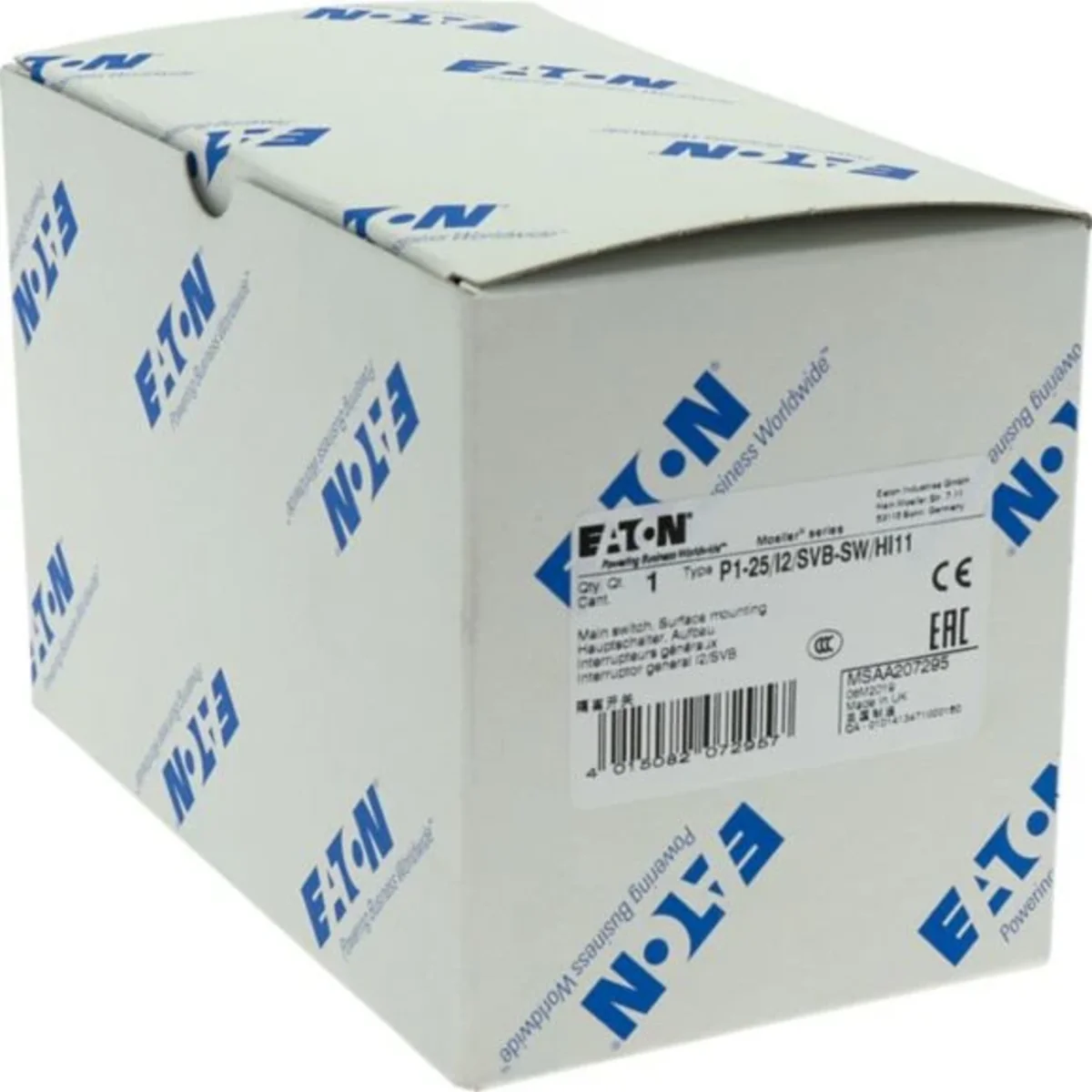

Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 0,495 | 0,544 |
| Volume (m3) | 0,002 | 0,003 |
| Width (m) | 0,100 | 0,140 |
| Length (m) | 0,115 | 0,180 |
| Depth (m) | 0,180 | 0,110 |
