el12
Automation
Circuit breakers, disconnectors
Cam switches

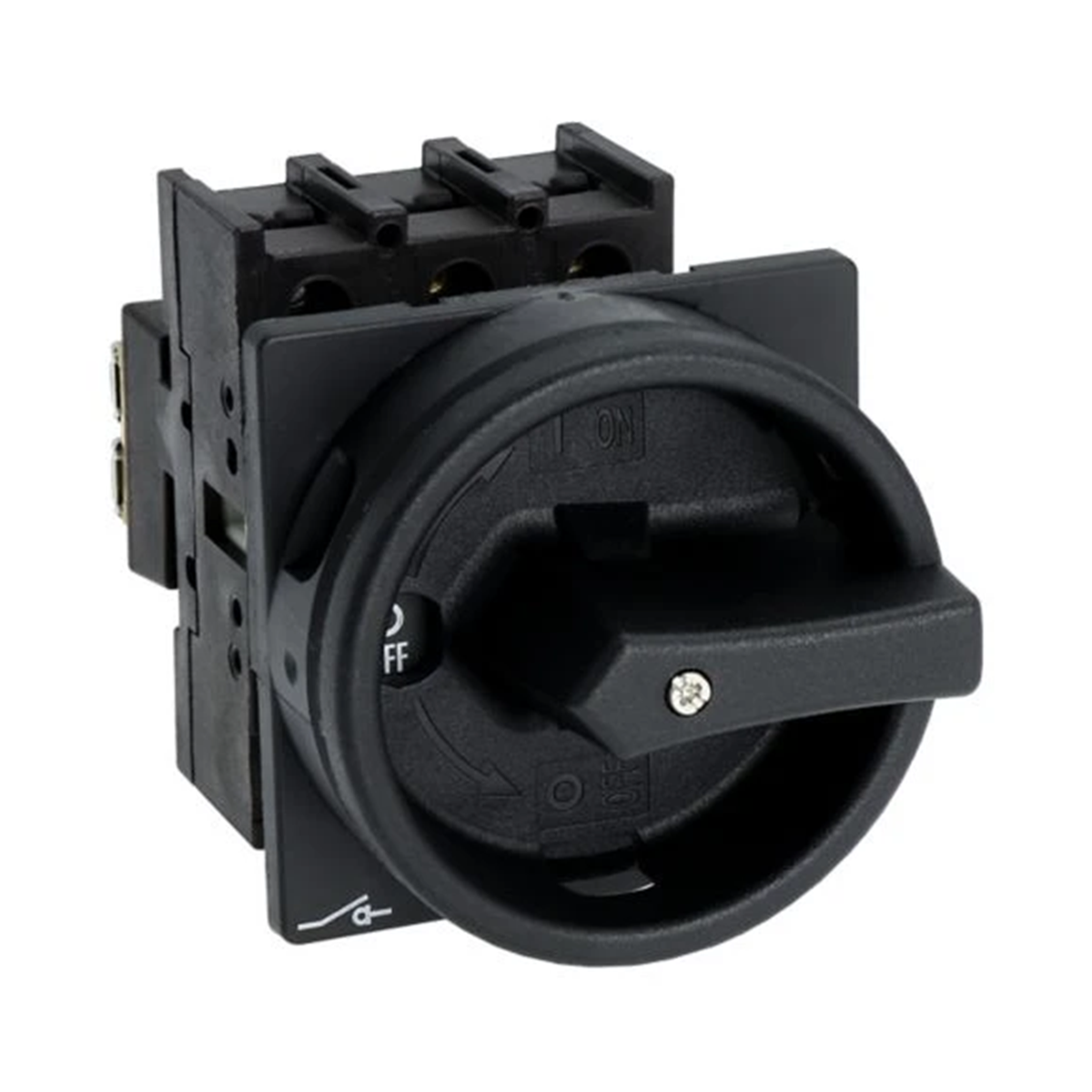

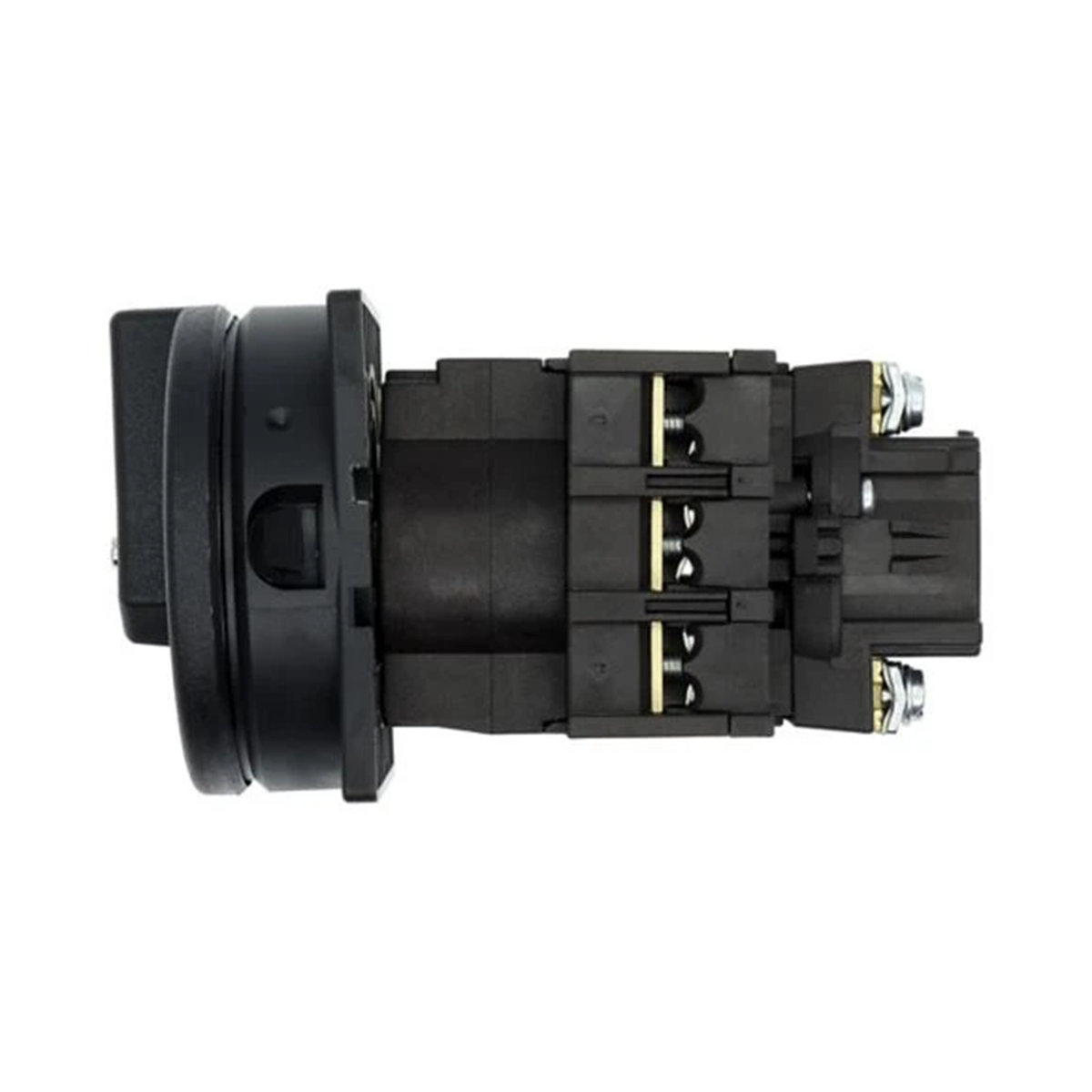

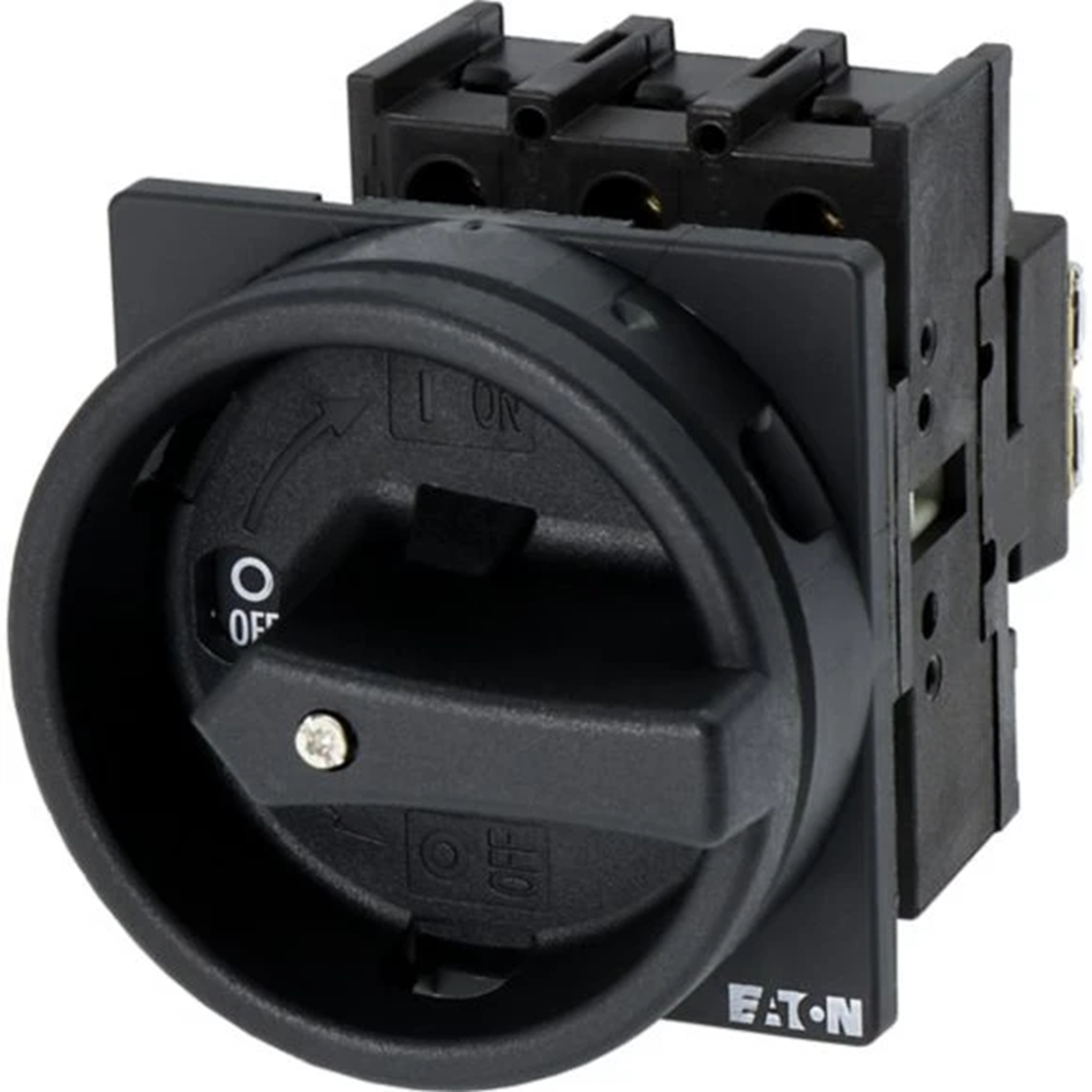

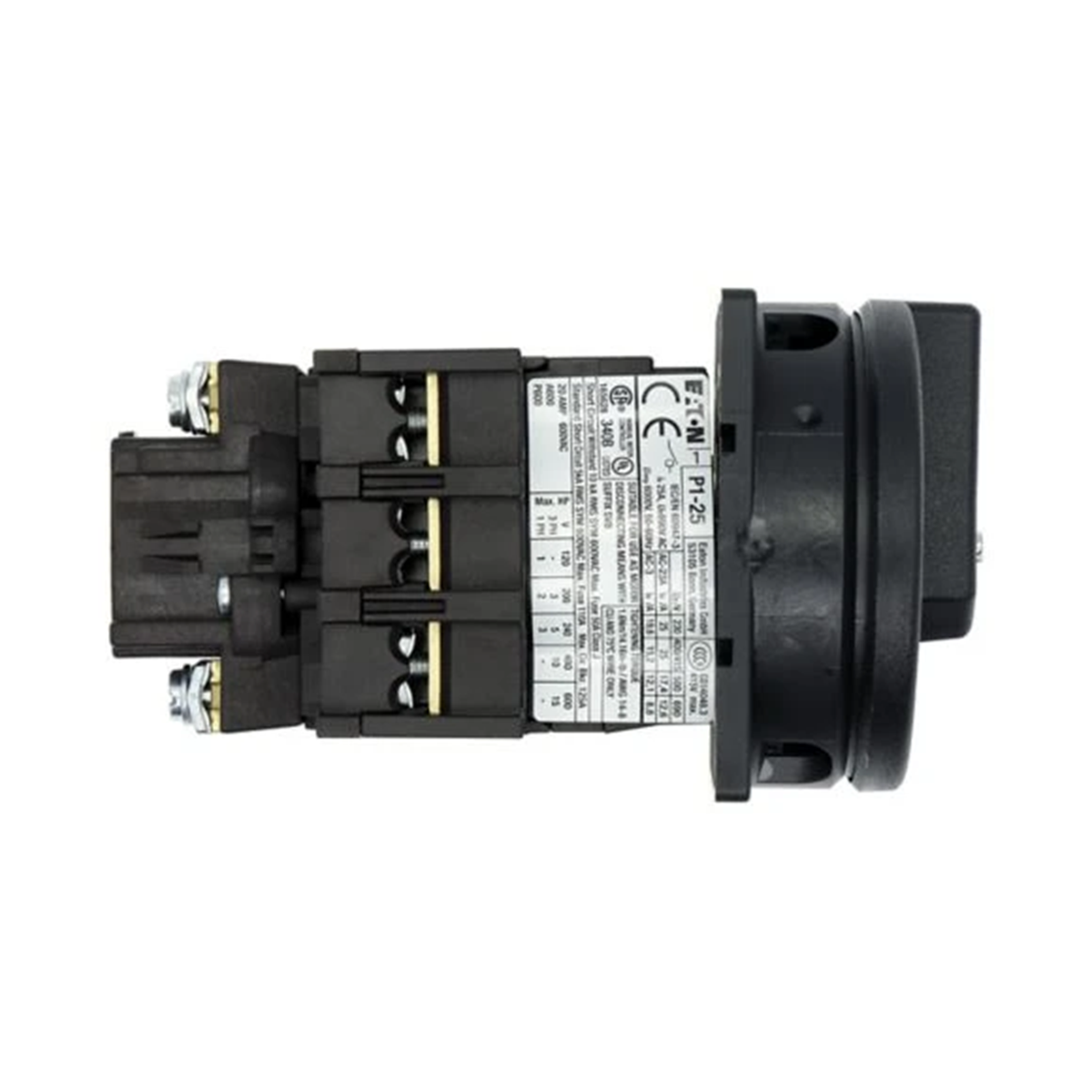

Switch, 25A, P1-25/EA/SVB-SW 048365
local index:
ALK010MOEL
Catalog No:
048365
EAN code:
4015080483656

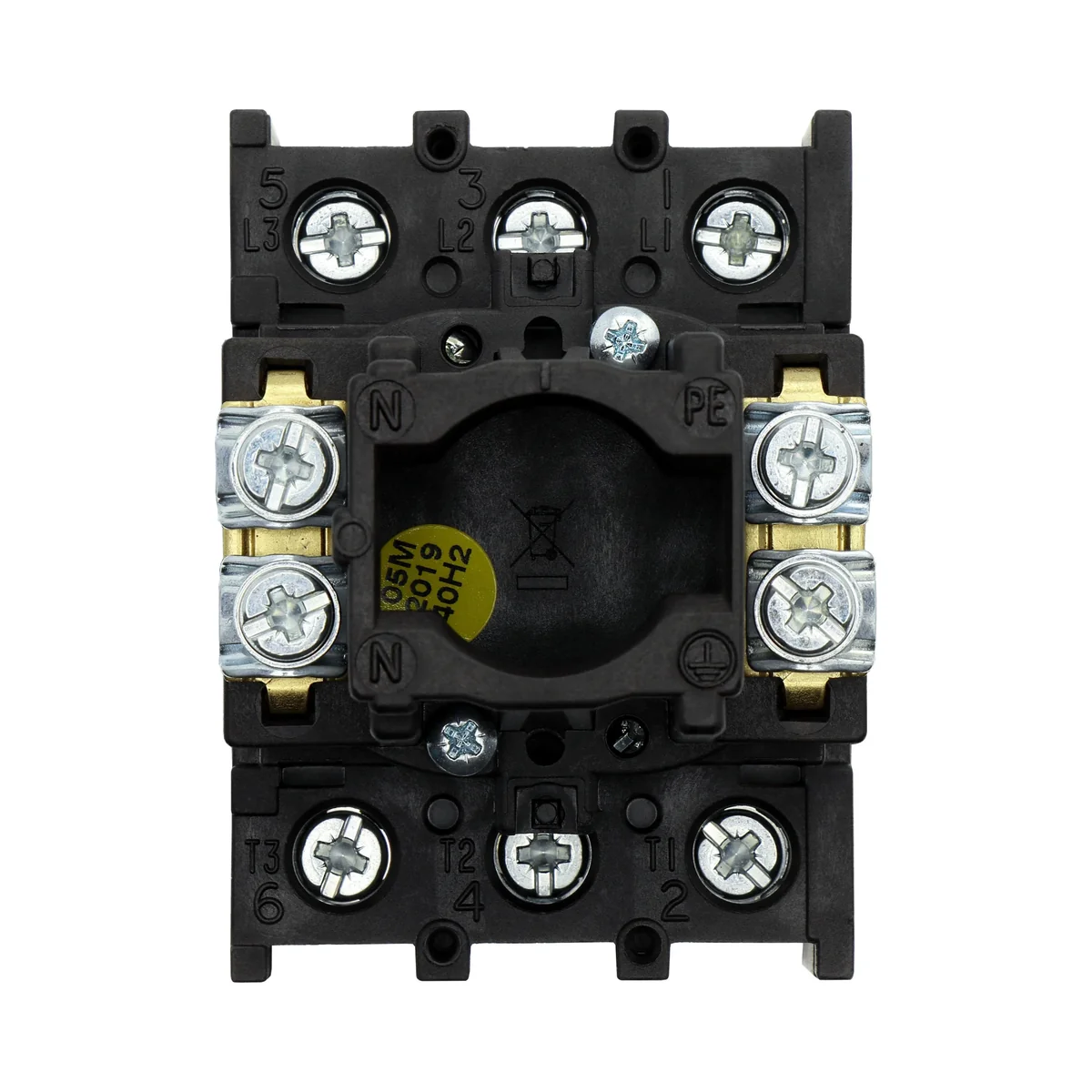

Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
13
Main circuits:
3z
Rated current [A]:
25
See full description
Price:
57,29 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description

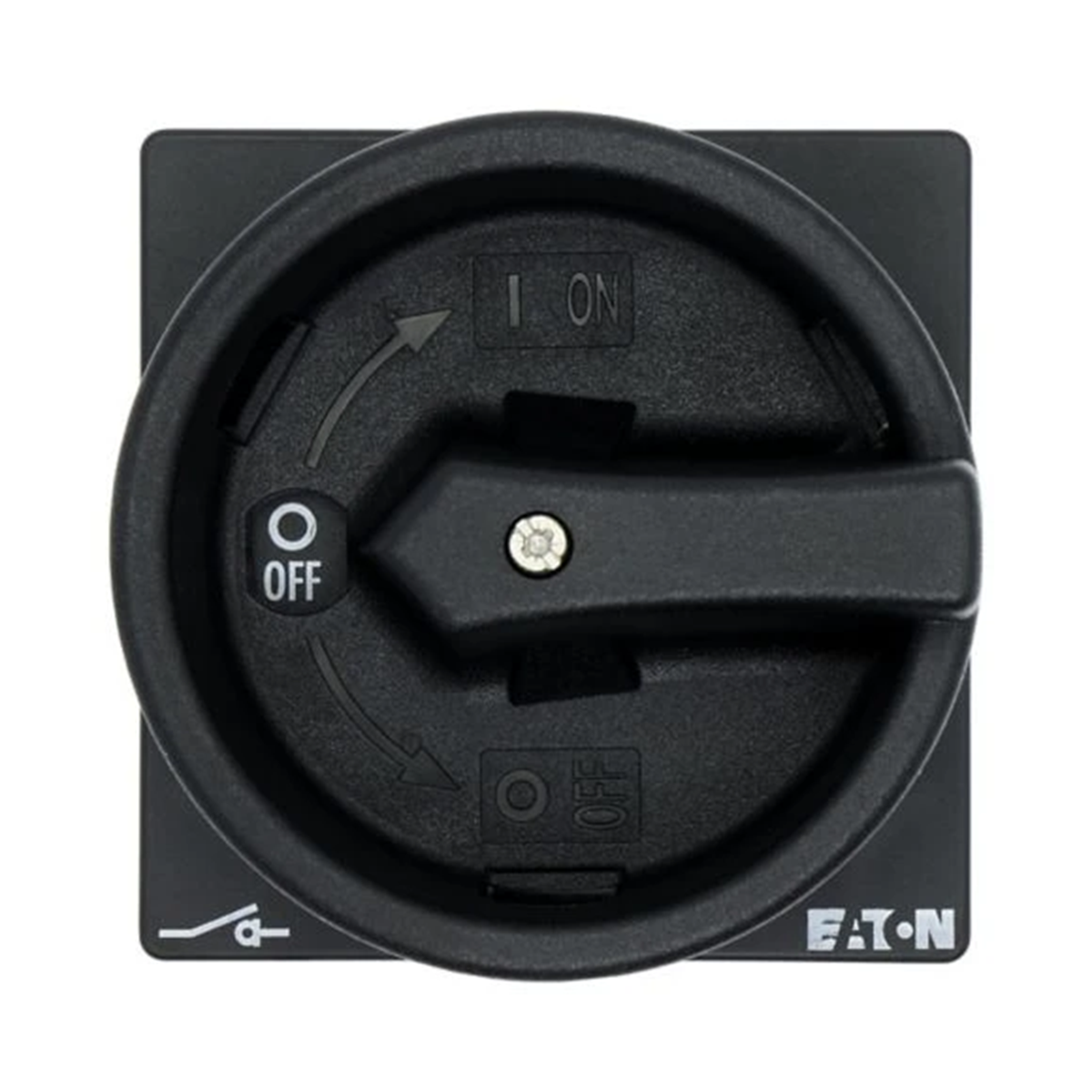

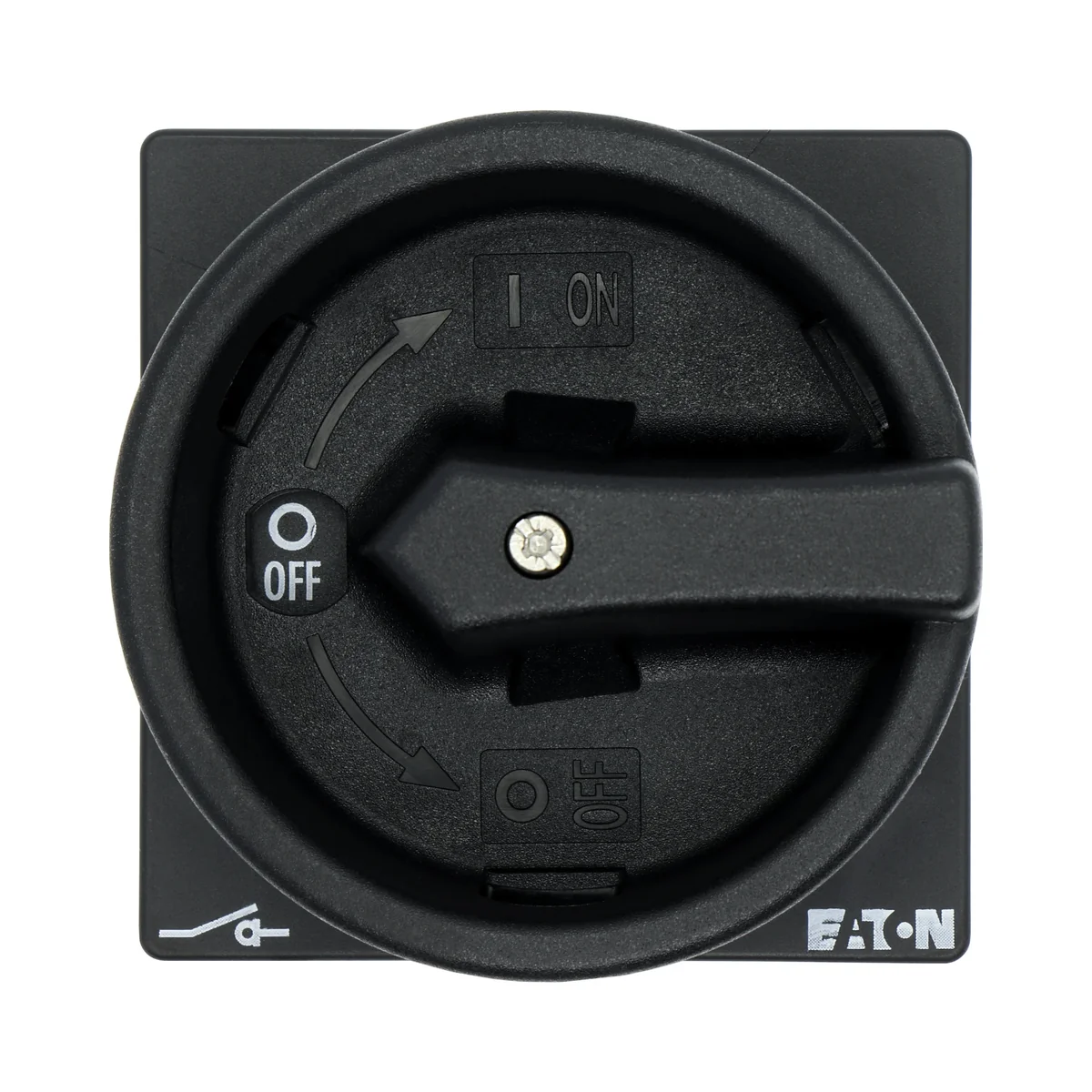

On/Off switch In=25A P=13kW. With a black padlockable knob. Lockable in position 0
Technical data
Power [kW]
13
Rated current [A]
25
Main circuits
3z
Other technical data
Version as main switch
Yes
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
25 A
Rated permanent current at AC-21, 400 V
25 A
Rated short-time withstand current lcw
0.64 kA
Switching power at 400 V
13 kW
Number of poles
3
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Door coupling rotary drive

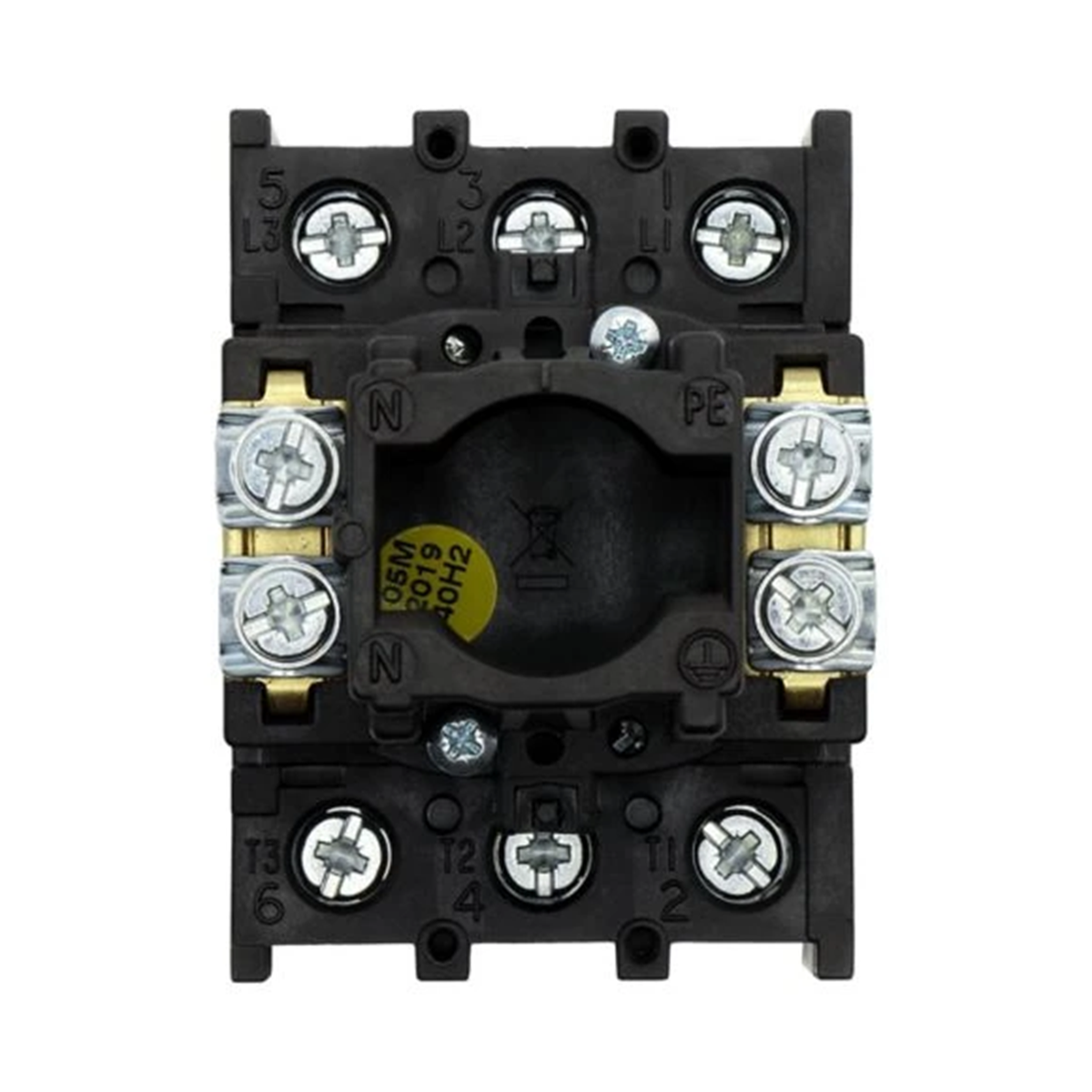

Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
12
Version as maintenance-/service switch
Yes
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
25 A
Rated operation power at AC-3, 400 V
7.5 kW
Rated operation power at AC-23, 400 V
13 kW
Conditioned rated short-circuit current Iq
50 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
Yes
Suitable for distribution board installation
No
Colour control element
Black
Interlockable
Yes
Degree of protection (IP), front side
IP65
Manufacturer details
Manufacturer
EATON Electric Sp. z o.o.
Address
80-299 Gdańsk ul. Galaktyczna 30
E-mail
pl-gdansk@eaton.com
WWW
https://www.moeller.pl
Tax identification number
5841022327
GLN
5900009970944

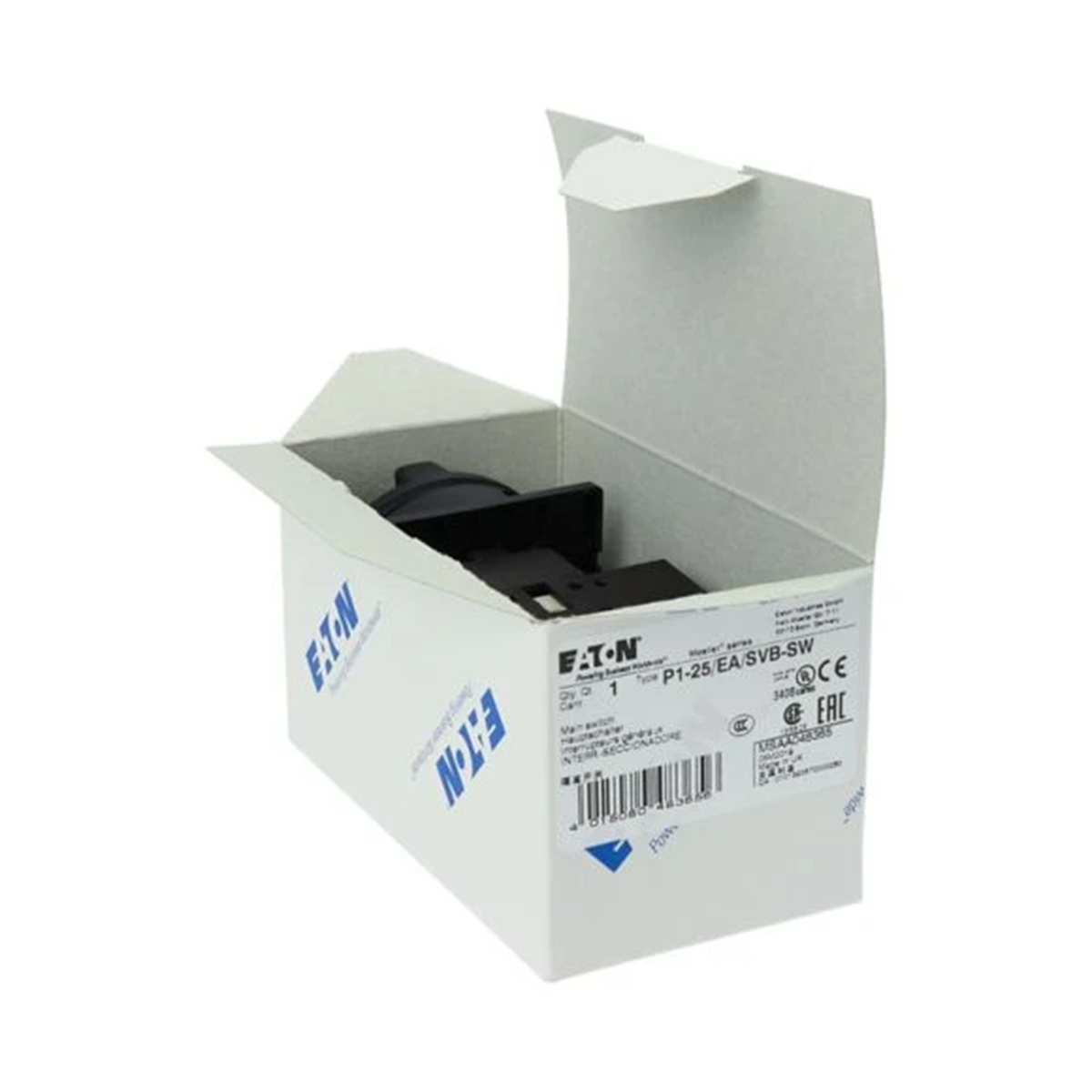

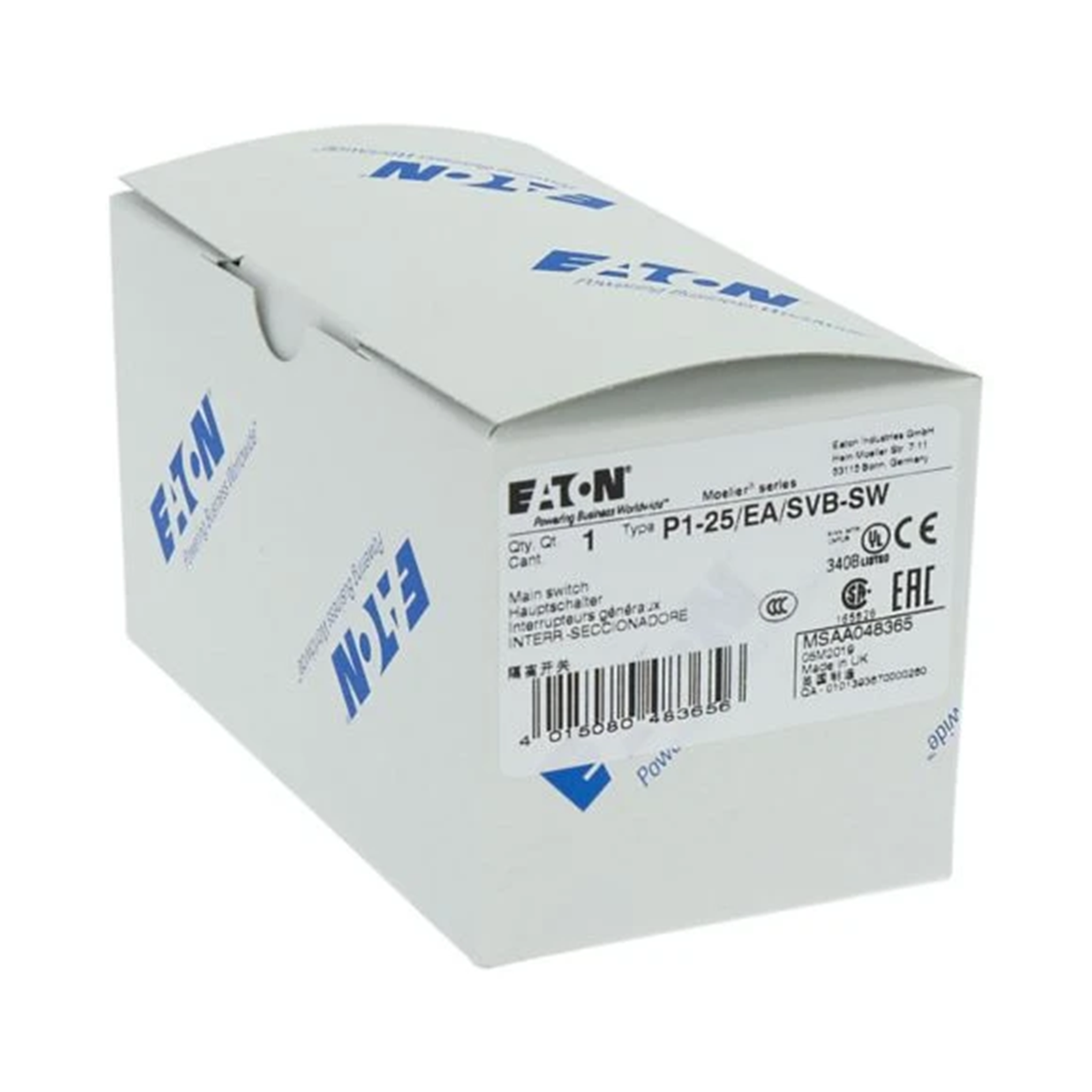

Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
1 pcs.
Weight (kg)
0,190
0,239
Volume (m3)
0,001
0,000
Width (m)
0,065
0,054
Length (m)
0,119
0,082
Depth (m)
0,065
0,055
