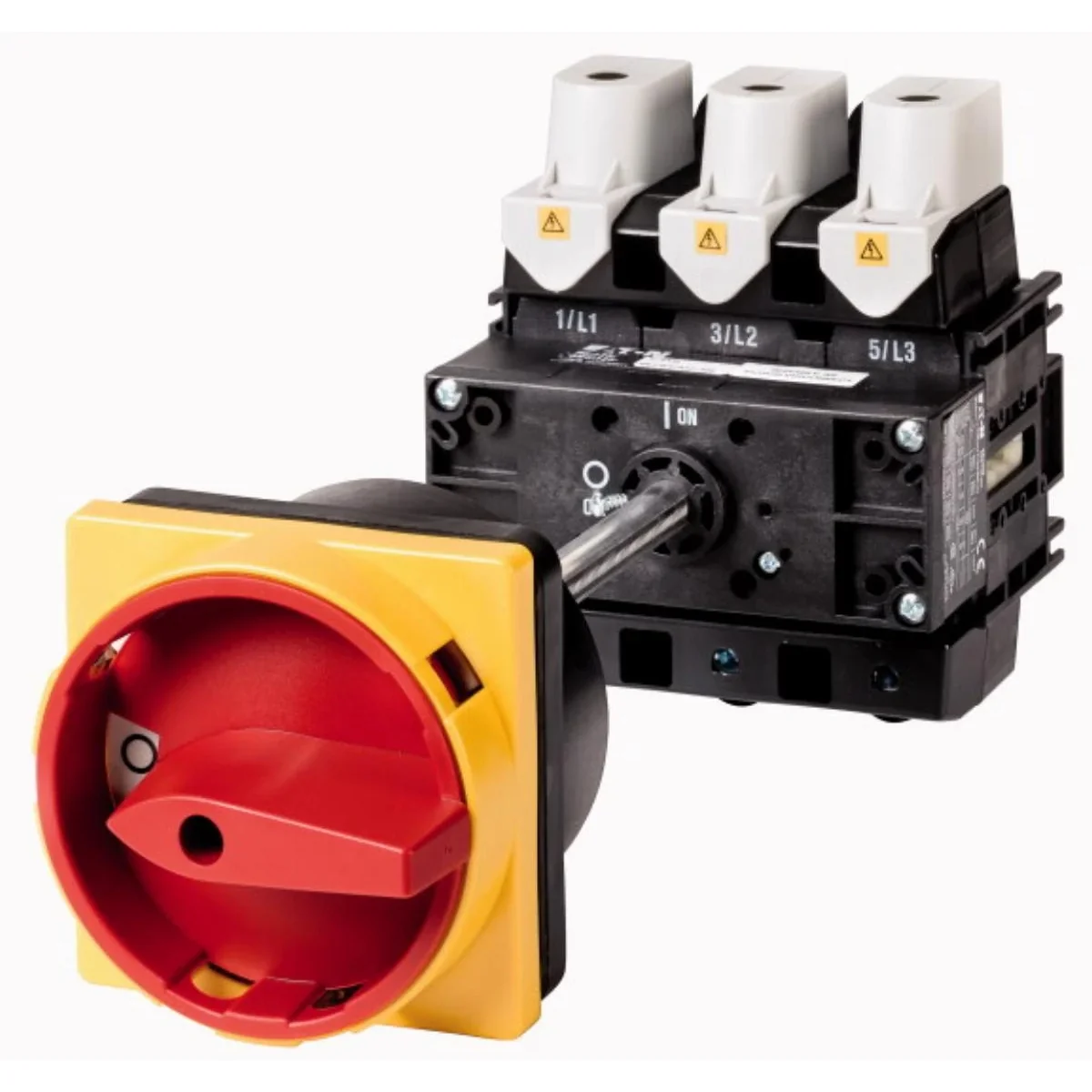

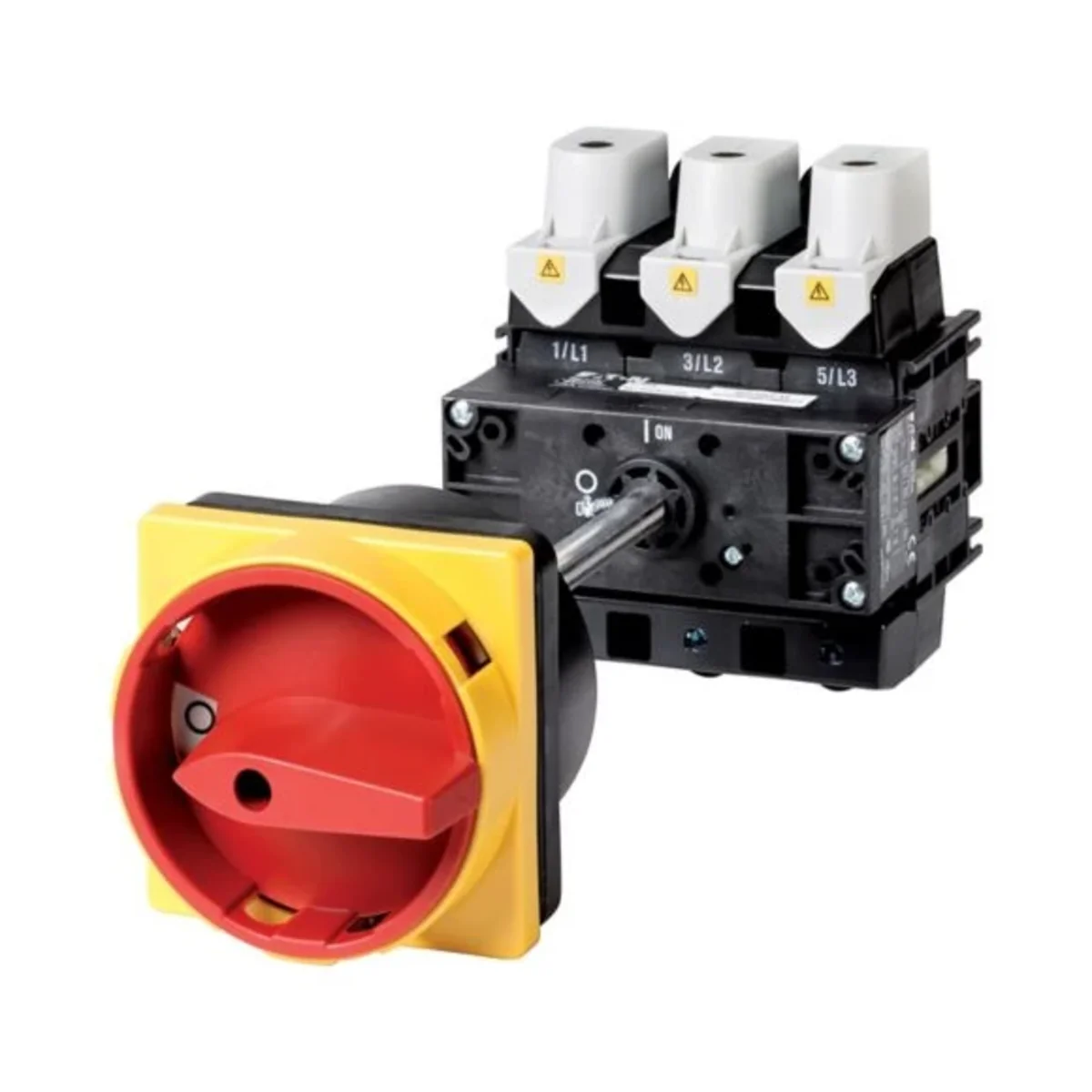

Switch, 250A, P5-250/V/SVB 280942
local index:
ALM010MOEL
Catalog No:
280942
EAN code:
4015082809423
Price:
468,48 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113, part 1 Lockable in 0 position
Technical data
-
Power [kW]90
-
Contact3z
-
Rated current [A]250
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu250 A
-
Rated permanent current at AC-21, 400 V250 A
-
Rated short-time withstand current lcw4.6 kA
-
Switching power at 400 V90 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitFrame clamp
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V250 A
-
Rated operation power at AC-3, 400 V55 kW
-
Rated operation power at AC-23, 400 V90 kW
-
Conditioned rated short-circuit current Iq30 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Bulk packaging
| A kind of package | Skrzynia |
| Quantity | 1 pcs. |
| Weight (kg) | 2,344 |
| Volume (m3) | 0,000 |
| Width (m) | 0,054 |
| Length (m) | 0,101 |
| Depth (m) | 0,055 |
