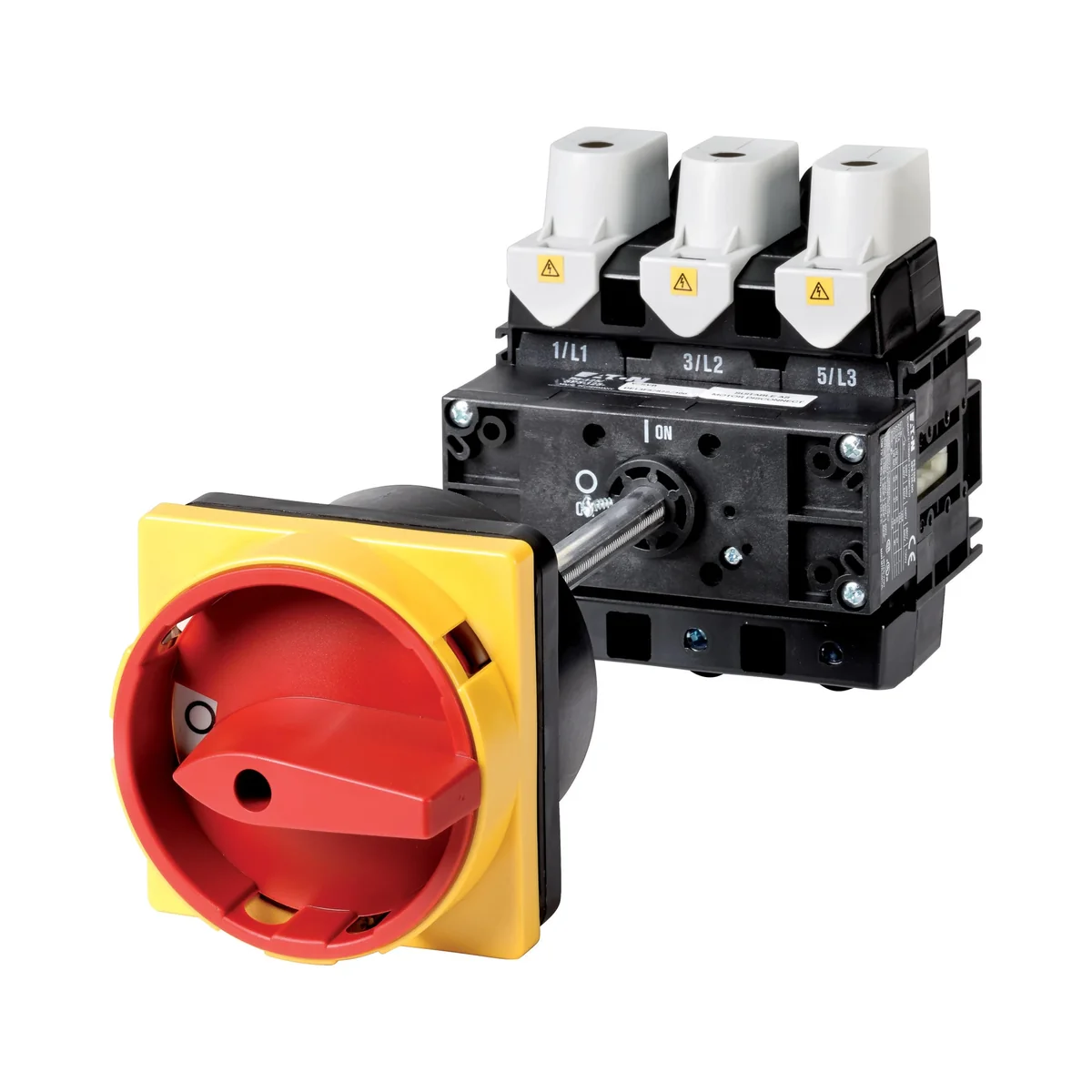

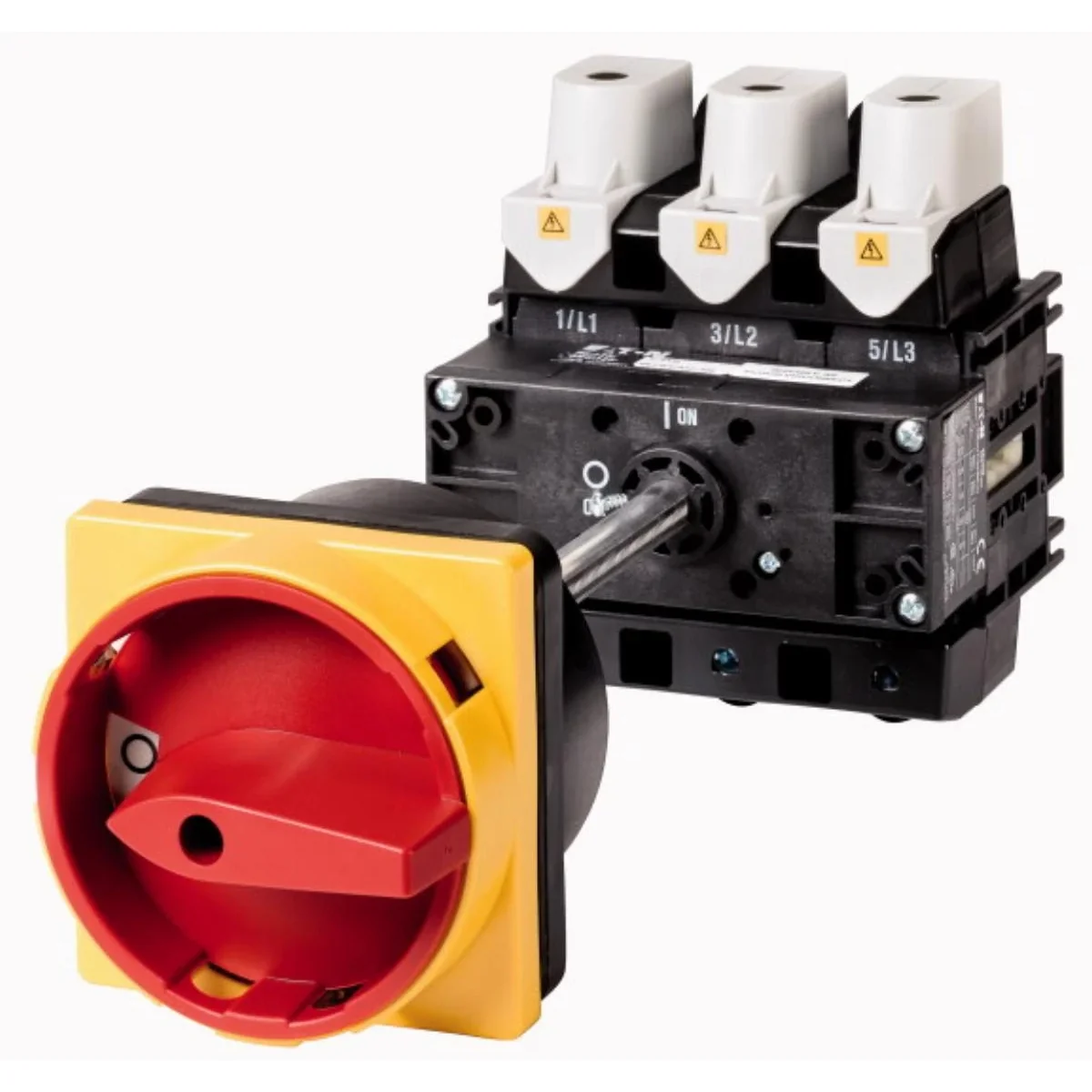

Switch, 160A, P5-160/V/SVB 280928
local index:
ALK009MOEL
Catalog No:
280928
EAN code:
4015082809287
Price:
410,93 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to clipboard
Print
Ask about the product
Product description
On/Off switch In=160A P=55kW. With red/yellow padlockable knob according to IEC/EN 60204-1, VDE 0113 Part 1. Lockable in 0 position
Technical data
-
Power [kW]55
-
Rated current [A]160
-
Main circuits3z
Other technical data
-
Version as main switchYes
-
Version as safety switchNo
-
Version as reversing switchNo
-
Max. rated operation voltage Ue AC690 V
-
Rated permanent current Iu160 A
-
Rated permanent current at AC-21, 400 V160 A
-
Rated short-time withstand current lcw3 kA
-
Switching power at 400 V55 kW
-
Number of poles3
-
Number of auxiliary contacts as normally open contact0
-
Motor drive optionalNo
-
Voltage release optionalNo
-
Suitable for floor mountingNo
-
Suitable for front mounting centreNo
-
Suitable for intermediate mountingYes
-
Type of control elementDoor coupling rotary drive
-
Type of electrical connection of main circuitFrame clamp
-
Degree of protection (NEMA)12
-
Version as maintenance-/service switchYes
-
Version as emergency stop installationYes
-
Number of switches1
-
Rated operating voltage690 ... 690 V
-
Rated permanent current at AC-23, 400 V160 A
-
Rated operation power at AC-3, 400 V45 kW
-
Rated operation power at AC-23, 400 V55 kW
-
Conditioned rated short-circuit current Iq30 kA
-
Number of auxiliary contacts as normally closed contact0
-
Number of auxiliary contacts as change-over contact0
-
Motor drive integratedNo
-
Device constructionBuilt-in device fixed built-in technique
-
Suitable for front mounting 4-holeNo
-
Suitable for distribution board installationNo
-
Colour control elementRed
-
InterlockableYes
-
Degree of protection (IP), front sideIP65
Manufacturer details
-
ManufacturerEATON Electric Sp. z o.o.
-
Address80-299 Gdańsk ul. Galaktyczna 30
-
E-mail
-
Tax identification number5841022327
-
GLN5900009970944
Bulk packaging
| A kind of package | Skrzynia | |
| Quantity | 1 pcs. | 1 pcs. |
| Weight (kg) | 1,343 | 1,543 |
| Volume (m3) | 0,002 | 0,000 |
| Width (m) | 0,130 | 0,048 |
| Length (m) | 0,115 | 0,095 |
| Depth (m) | 0,150 | 0,048 |
