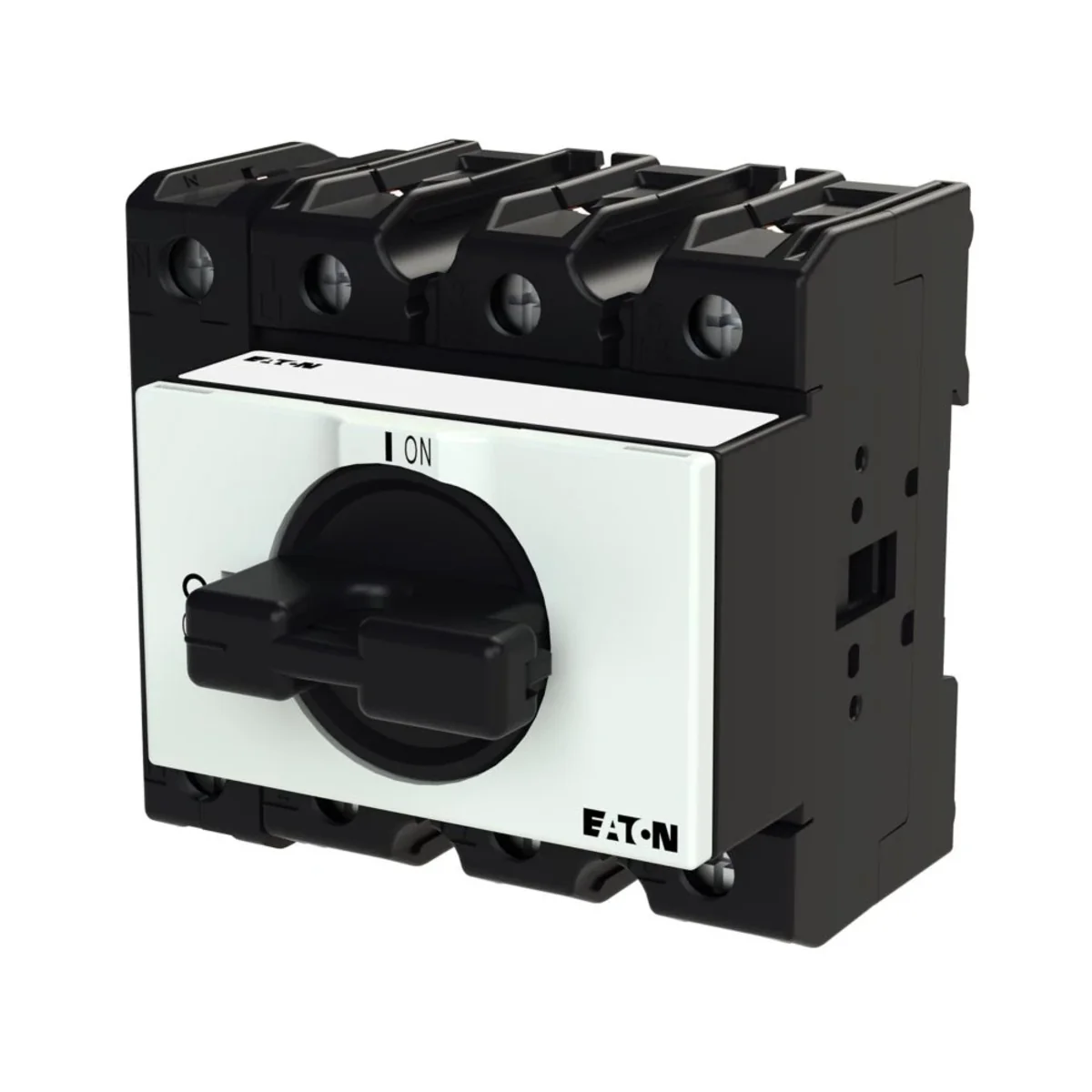

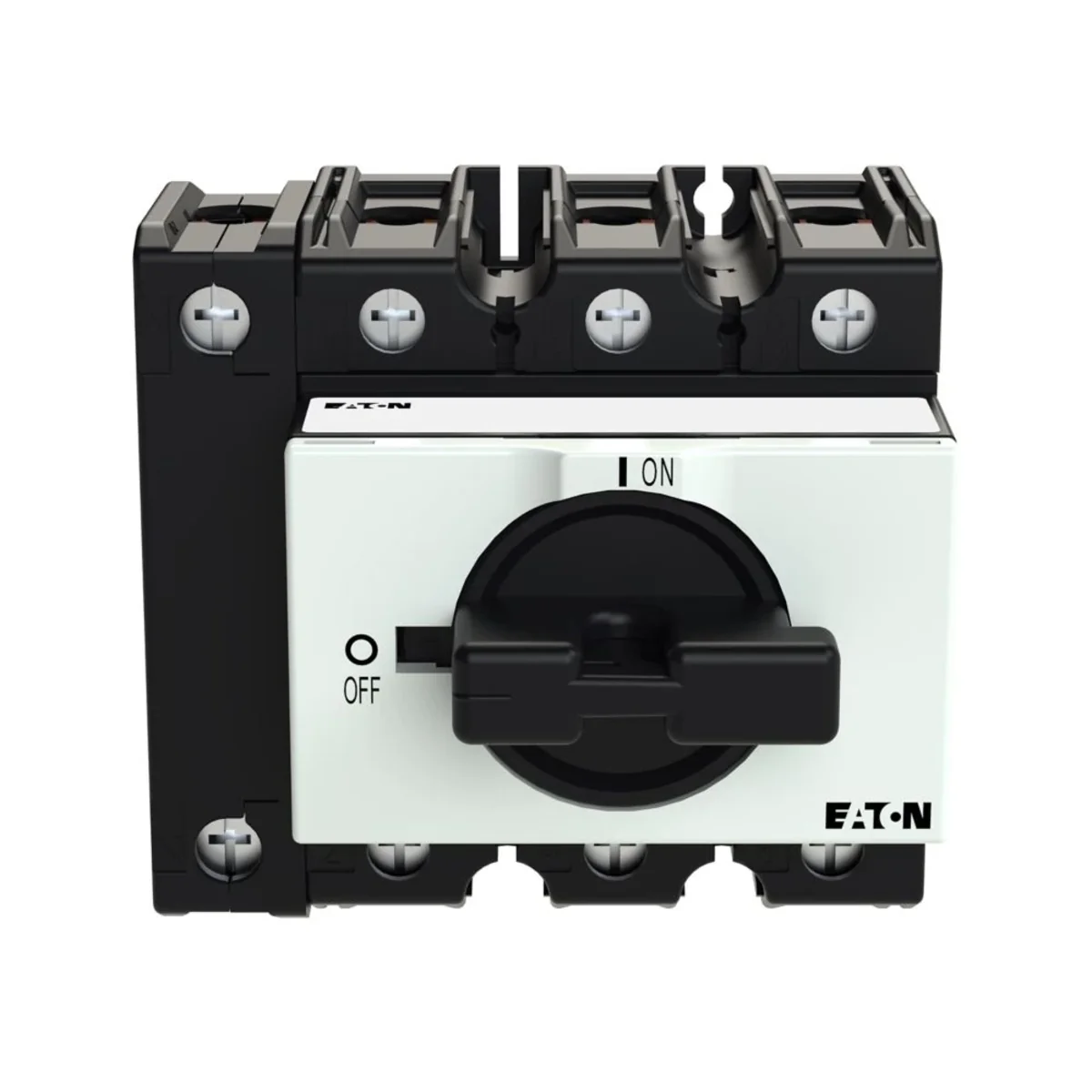

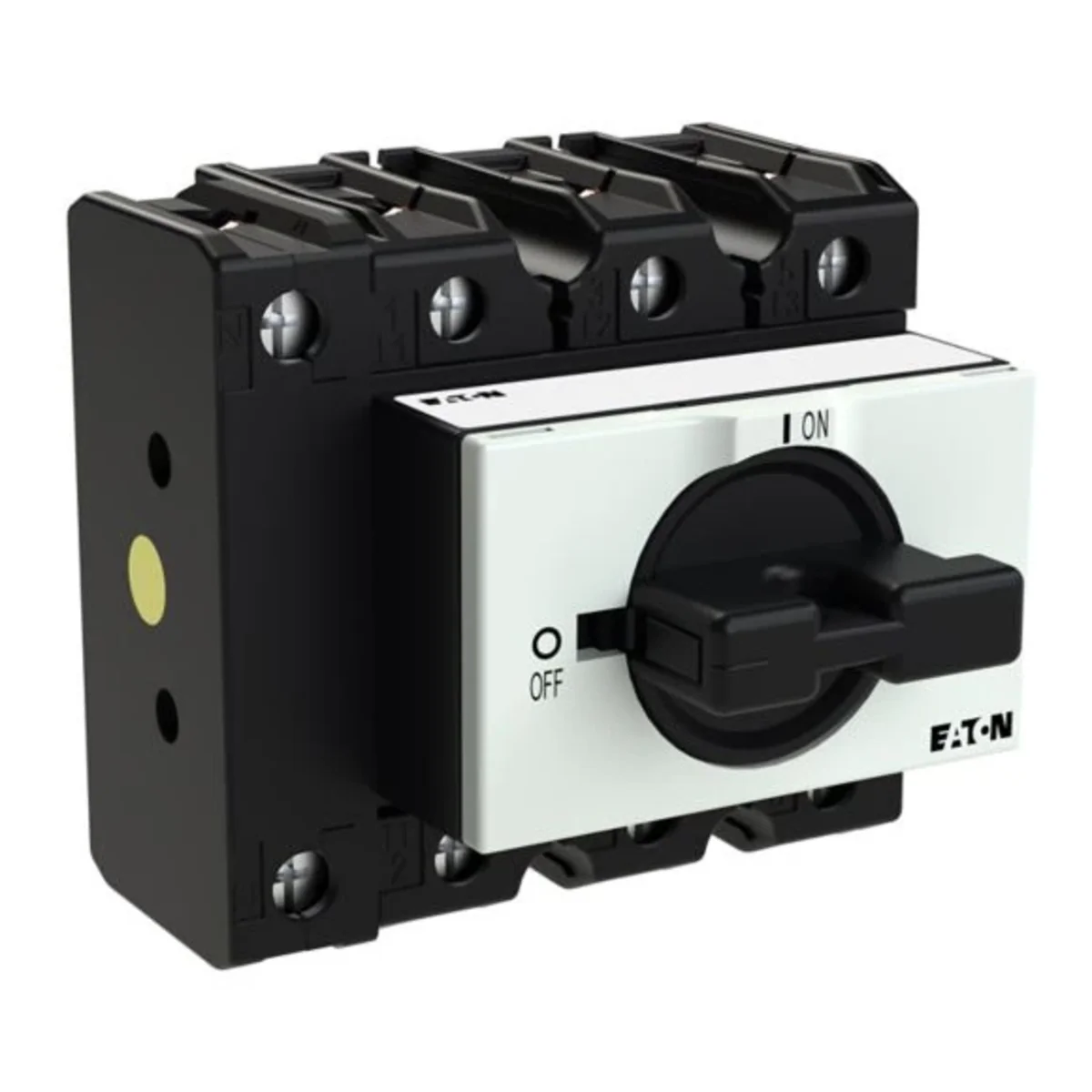

Switch, 100A, P3-100/IVS/N 034132
local index:
ALK152MOEL
Catalog No:
034132
EAN code:
4015080341321
Click on the photo to enlarge
Manufacturer:
EATON
Power [kW]:
50
Main circuits:
3+N
Rated current [A]:
100
See full description
Price:
168,62 €
gross / pcs.
(including VAT 23%)
Delivery in 3h
up to 2 weeks (business days)
Pickup in 1h
Quantity pcs.
(multiplicity:
1
)
Add to cart
Add to clipboard
Print
Ask about the product
Product description
Technical data
Manufacturer details
Bulk packaging
Product description
On/Off switch In=100A P=50kW. Without auxiliary circuits. With black knob and face plate
Technical data
Power [kW]
50
Rated current [A]
100
Main circuits
3+N
Other technical data
Version as main switch
No
Version as safety switch
No
Version as reversing switch
No
Max. rated operation voltage Ue AC
690 V
Rated permanent current Iu
100 A
Rated permanent current at AC-21, 400 V
100 A
Rated short-time withstand current lcw
2 kA
Switching power at 400 V
55 kW
Number of poles
4
Number of auxiliary contacts as normally open contact
0
Motor drive optional
No
Voltage release optional
No
Suitable for floor mounting
No
Suitable for front mounting centre
No
Suitable for intermediate mounting
No
Type of control element
Short thumb-grip
Type of electrical connection of main circuit
Screw connection
Degree of protection (NEMA)
Other
Version as maintenance-/service switch
No
Version as emergency stop installation
No
Number of switches
1
Rated operating voltage
690 ... 690 V
Rated permanent current at AC-23, 400 V
100 A
Rated operation power at AC-3, 400 V
37 kW
Rated operation power at AC-23, 400 V
55 kW
Conditioned rated short-circuit current Iq
80 kA
Number of auxiliary contacts as normally closed contact
0
Number of auxiliary contacts as change-over contact
0
Motor drive integrated
No
Device construction
Built-in device fixed built-in technique
Suitable for front mounting 4-hole
No
Suitable for distribution board installation
Yes
Colour control element
Black
Interlockable
No
Degree of protection (IP), front side
IP30
Manufacturer details
Manufacturer
EATON Electric Sp. z o.o.
Address
80-299 Gdańsk ul. Galaktyczna 30
E-mail
pl-gdansk@eaton.com
WWW
https://www.moeller.pl
Tax identification number
5841022327
GLN
5900009970944
Bulk packaging
A kind of package
Skrzynia
Quantity
1 pcs.
1 pcs.
Weight (kg)
0,358
0,407
Volume (m3)
0,001
0,001
Width (m)
0,090
0,105
Length (m)
0,090
0,120
Depth (m)
0,090
0,095
